1. Киришүү
The Fender CD-140SCE All-Mahogany Dreadnought Cutaway Acoustic Electric Guitar is a versatile instrument designed for musicians of all levels. It features an all-mahogany construction, providing a robust and warm tone. The single-cutaway dreadnought body allows for comfortable access to higher frets, while the easy-to-play neck with rolled fingerboard edges enhances playability. This model is equipped with an upgraded Fishman Presys electronics system, making it suitable for both acoustic performance and amplified settings.
Сүрөт 1: Алдыңкы view of the Fender CD-140SCE All-Mahogany Dreadnought Cutaway Acoustic Electric Guitar.
2. Орнотуу
2.1 Кутудан чыгаруу жана алгачкы текшерүү
Carefully remove the guitar from its hardshell case. Inspect the instrument for any visible damage that may have occurred during shipping. Ensure all components, including the guitar and case, are present and in good condition.
2.2 Гитараны тюнинг
The CD-140SCE features a built-in Fishman tuner for convenient and accurate tuning. To use the tuner:
- Press the "Tuner" button on the Fishman preamp. The display will illuminate.
- Ар бир кылды өз-өзүнчө үзүңүз. Дисплейде ойнолуп жаткан нота көрсөтүлүп, анын курч, жай же обондуу экени көрсөтүлөт.
- Adjust the tuning pegs on the headstock until each string is in tune.
- Press the "Tuner" button again to turn off the tuner.
Figure 2: Close-up of the guitar's headstock, showing the tuning pegs.
2.3 Ampөмүрлүү
үчүн amplify your guitar's sound, connect a standard 1/4-inch instrument cable from the output jack located at the bottom of the guitar (where the strap button is) to your ampкөтөргүч. Ишениңиз amplifier is turned off before connecting or disconnecting the cable.
3. Operating the Fishman Presys System
The Fishman Presys preamp system provides control over your amplified tone. The controls are located on the side of the guitar body.

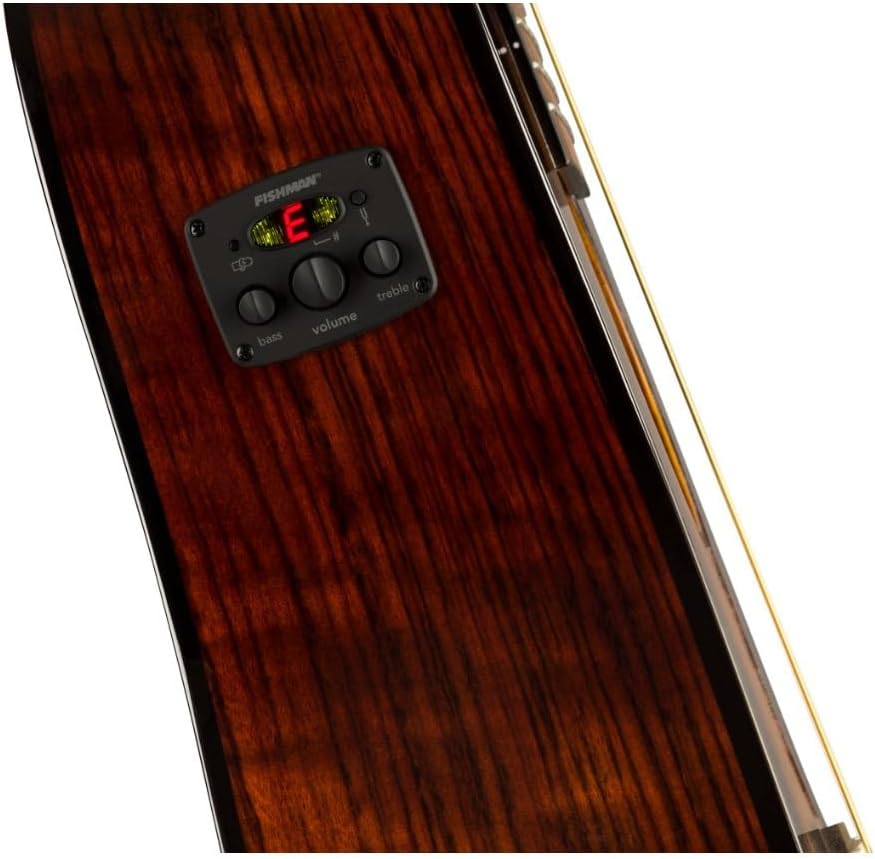

Figure 3: The Fishman Presys preamp system with controls for bass, treble, phase, and volume.
- Үндү көзөмөлдөө: Жалпы чыгаруу деңгээлин тууралайт ampжандуу үн.
- Басс башкаруу: Төмөн жыштыктагы жоопту жогорулатат же төмөндөтөт.
- Үч ыргак башкаруу: Жогорку жыштыктагы жоопту жогорулатат же төмөндөтөт.
- Фаза баскычы: Helps to reduce feedback in live performance situations. Experiment with this setting if you experience unwanted feedback.
- Камтылган тюнер: As described in Section 2.2, activate by pressing the "Tuner" button.
4. Техникалык тейлөө
4.1 Тазалоо
Regular cleaning helps maintain the guitar's finish and playability.
- Wipe down the body and neck with a soft, lint-free cloth after each use to remove sweat and oils.
- For a deeper clean, use a guitar-specific polish or cleaner. Apply sparingly to a cloth, not directly to the guitar.
- Clean the fretboard periodically with a lemon oil or fretboard conditioner to prevent drying and cracking.
4.2 Сапты алмаштыруу
Strings should be replaced regularly to maintain optimal tone and playability. Refer to standard acoustic guitar string replacement guides for detailed instructions. Ensure you use appropriate gauge strings for acoustic guitars.
4.3 Сактоо
Store the guitar in its hardshell case when not in use to protect it from dust, humidity fluctuations, and physical damage. Avoid extreme temperatures and direct sunlight.
4.4 Батареяны алмаштыруу
The Fishman Presys preamp requires a 9V battery (included). When the battery indicator light illuminates or the sound quality degrades, it's time to replace the battery. The battery compartment is typically located near the output jack or on the preamp бирдиктин өзү.
5. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| No sound when plugged in. | Dead battery in preamp, faulty cable, amplifier off, volume low. | Replace 9V battery. Check cable connections. Turn on amplifier. Increase volume on guitar and amp. |
| Poor sound quality / Buzzing. | Old strings, incorrect EQ settings, feedback. | Replace strings. Adjust Bass/Treble controls. Try pressing the Phase button. |
| Guitar won't stay in tune. | Old strings, improper string winding, environmental changes. | Replace strings. Ensure strings are properly wound around tuning pegs. Allow guitar to acclimate to room temperature. |
6. Техникалык шарттар
- Элемент Салмагы: 13 фунт
- Продукциянын өлчөмдөрү: 44 x 18 x 7 дюйм
- Модель номери: 0970213322
- Батареялар: 1 9V батарейка талап кылынат (кошулган)
- Арткы материал: Mahogany Wood
- Дене материалы: Ovangkol
- Түс аты: Mahogany
- Fretboard материалы: Mahogany Wood
- Гитараны көтөрүп алуунун конфигурациясы: Пьезо
- Масштабдын узундугу: 25.3 дюйм
- Сап материалы: Бронза
- Жогорку материал: Mahogany Wood
- Neck Material Type: Mahogany
- Саптардын саны: 6
- Guitar Bridge System: Hard Tail
- Өлчөмү: Толук
- Батарея түрү: щелочтуу
- Колдун багыты: Туура
7. Кепилдик жана колдоо
This Fender CD-140SCE guitar comes with a 2 жылдык кепилдик. For detailed warranty information and claims, please refer to the official Fender webсайтына кириңиз же Fender кардарларды колдоо кызматына кайрылыңыз.
PDF форматындагы расмий Колдонуучу колдонмосун жүктөп алуу үчүн жеткиликтүү: Колдонуучунун колдонмосун жүктөп алуу (PDF).
For additional support, product information, or to explore other Fender products, visit the official Fender Store: Канаттар дүкөнү.
