1. Киришүү
This manual provides detailed instructions for the safe and efficient use of your ieGeek Portable DVD Player. Please read this manual thoroughly before operating the device and retain it for future reference.
2. Пакеттин мазмуну
Төмөндө тизмеленген нерселердин баары пакетиңизге камтылганын текшериңиз. Эгерде кандайдыр бир нерселер жок болсо же бузулса, кардарларды колдоо менен байланышыңыз.
- ieGeek Portable DVD Player (10.5-inch HD Swivel Screen)
- Алыстан башкаруу
- Унаа заряддагыч
- AC кубат адаптери
- 3-in-1 AV кабели
- Колдонуучунун колдонмосу (бул документ)
Image: All components included in the ieGeek Portable DVD Player package, including the player, remote, cables, and adapters.
3. Продукт бүтүп калдыview
3.1 Player Components
Image: The ieGeek Portable DVD Player with its 10.5-inch swivel screen open, alongside the remote control.
3.2 Порттор жана башкаруу каражаттары
Familiarize yourself with the various ports and controls on your portable DVD player.
Сүрөт: деталдуу view of the side panel of the ieGeek Portable DVD Player, highlighting the USB port, SD card slot, earphone jack, AV OUT, AV IN, DC IN, ON/OFF switch, and GAME port.
- USB порт: Медиа ойнотуу үчүн USB флэш-дисктерин туташтыруу үчүн files.
- SD карта уячасы: For inserting SD cards to play media files.
- Наушник джек: Купуя угуу үчүн кулакчындарды туташтыруу үчүн.
- AV OUT: For connecting the player to an external display (e.g., TV, projector) using the 3-in-1 AV cable.
- AV IN: For connecting another compatible device to display its content on the DVD player's screen.
- DC IN 12V: Power input for the AC adapter or car charger.
- ON/OFF которуу: Аппаратты күйгүзүү же өчүрүү үчүн.
- GAME Port: For connecting a game controller (if supported by specific models or accessories).
3.3 Алыстан башкаруу
The included remote control provides convenient access to all player functions.
Image: The remote control for the ieGeek Portable DVD Player, showing all buttons for navigation, playback, volume, and menu access.
4. Орнотуу
4.1 Батареяны заряддоо
Before first use, fully charge the internal lithium battery. Connect the AC power adapter to the DC IN 12V port on the player and plug it into a wall outlet. The charging indicator light will typically show red while charging and turn green when fully charged. A full charge provides approximately 5 hours of playback.
Image: The ieGeek Portable DVD Player with an overlay indicating 5 hours of battery life, along with icons for power adapter, battery capacity, and car charger.
4.2 Күйгүзүү/өчүрүү
Slide the ON/OFF switch to the 'ON' position to power on the player. To power off, slide the switch to the 'OFF' position.
4.3 Дискти салуу
Gently open the disc cover. Place a DVD or CD onto the spindle with the label side facing up. Press down lightly until the disc clicks into place. Close the disc cover firmly.
5. Иштөө нускамалары
5.1 Негизги дискти ойнотуу
After inserting a disc and powering on the player, it will typically begin playback automatically. Use the remote control or the player's buttons for functions such as Play/Pause, Stop, Fast Forward, Rewind, and Chapter Skip.
5.2 Media Playback from USB/SD Card
Insert a USB flash drive into the USB port or an SD card into the SD card slot. The player will detect the media and usually display a menu to select the file type (e.g., Movie, Music, Photo). Navigate using the remote or player buttons to select and play your desired files.

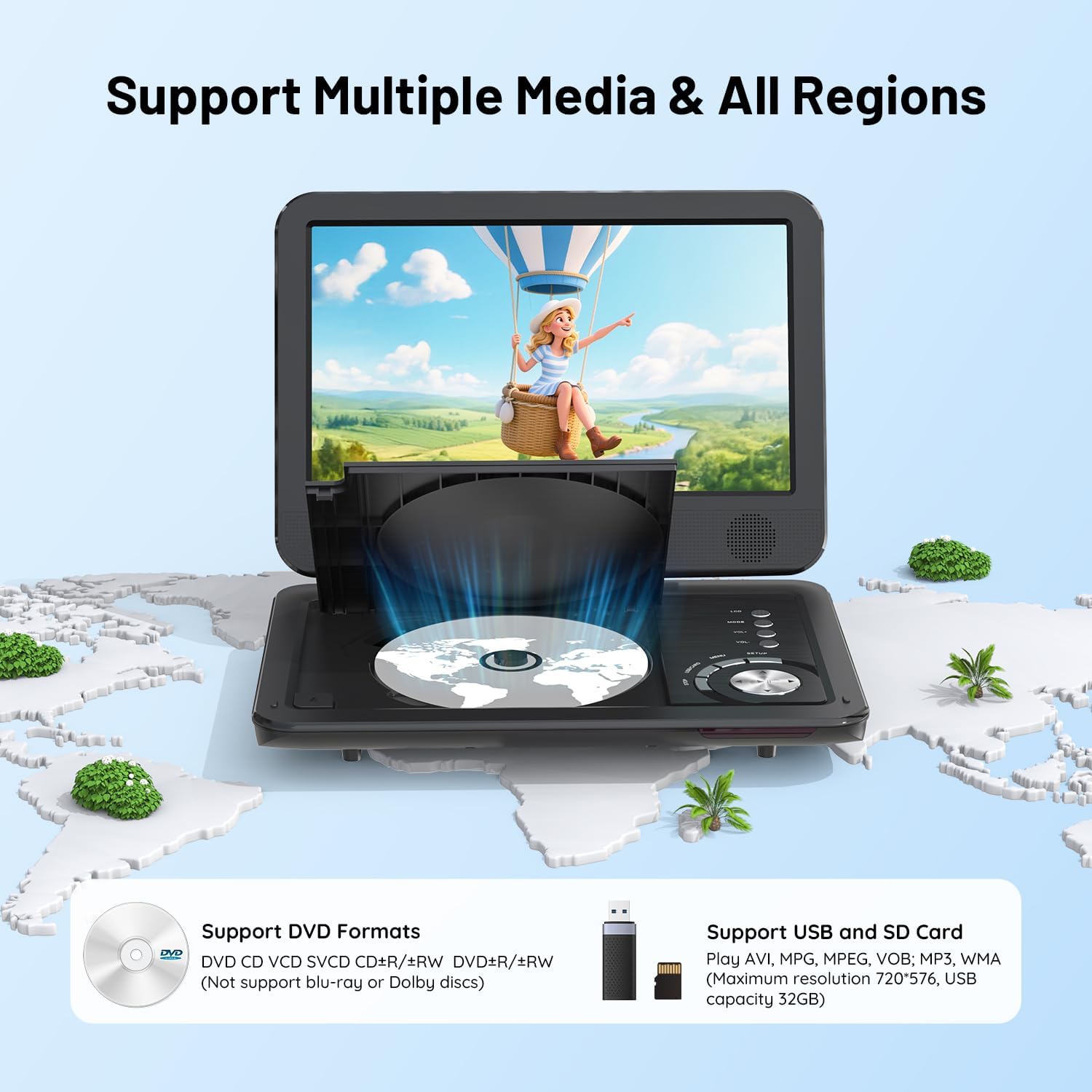

Supported formats include: AVI, MPG, MPVG4, VOB, FLV, RMVB (video resolution within 720*576); MP3, WMA, OGG, AAC (audio).
Сүрөт: Жакын план view of the USB port and SD card slot on the ieGeek Portable DVD Player, indicating their function for media playback.
5.3 Swivel Screen Functionality
The 10.5-inch HD screen can rotate 270 degrees and fold back 180 degrees, allowing for various viewing angles or compact storage. Adjust the screen to your preferred position for optimal viewing.
Image: A visual representation of the ieGeek Portable DVD Player's screen swiveling 270 degrees and folding back 180 degrees.
5.4 Тышкы дисплейге (телевизор/проекторго) туташуу
Use the included 3-in-1 AV cable to connect the player's AV OUT port to the AV IN ports (typically yellow for video, white/red for audio) on your television or projector. Select the correct input source on your external display to view the player's content.
Image: A family watching a movie on a large TV screen, with the ieGeek Portable DVD Player connected via AV cables, demonstrating the sync to TV feature.
5.5 Connecting to Another Portable DVD Player
An AV to AV cable (not always included, may require separate purchase) can be used to connect the AV OUT of one player to the AV IN of another, allowing two players to display the same content simultaneously.
5.6 Anti-Shock Technology
The player features anti-shock technology to minimize playback interruptions caused by vibrations, making it suitable for use in vehicles or during travel.
Image: A child watching the ieGeek Portable DVD Player in the back seat of a car, illustrating the anti-shock feature for stable playback during travel.
5.7 Resume Function
The player is equipped with a resume function that allows it to remember the last playback point of a disc or file, so you can continue watching from where you left off after powering off and on.
Image: A visual representation of the ieGeek Portable DVD Player's breakpoint memory function, showing how it resumes playback after being powered off and on.
6. Техникалык тейлөө
- Тазалоо: Use a soft, dry cloth to clean the player's exterior. For the screen, use a specialized screen cleaning solution and a microfiber cloth. Do not use abrasive cleaners or solvents.
- Дискке кам көрүү: Дисктерди четинен кармаңыз. Дисктерди ортосунан сыртка карай сүртүп, жумшак, түксүз чүпүрөк менен тазалаңыз.
- Сактагыч: Ойноткучту салкын, кургак жерде, күн нуру түз тийбеген жана өтө жогорку температурадан алыс сактаңыз.
- Батарея: For optimal battery life, avoid fully discharging the battery frequently. If storing for extended periods, charge the battery to about 50% every few months.
7. Кыйынчылыктарды
If you encounter issues with your ieGeek Portable DVD Player, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Player does not power on | Battery is discharged; Power adapter not connected or faulty; ON/OFF switch is off. | Charge the battery; Ensure power adapter is securely connected and functional; Slide ON/OFF switch to 'ON'. |
| "No Disc" error message | Disc is inserted incorrectly; Disc is dirty or damaged; Disc format is not supported. | Reinsert disc correctly (label side up); Clean or replace disc; Ensure disc is a supported format (CD, DVD, VCD, etc., not Blu-ray). |
| Үн жок | Volume is too low or muted; Headphones not connected properly; External speakers not connected. | Increase volume; Check mute setting; Ensure headphones/external speakers are correctly connected. |
| Бурмаланган сүрөт | Disc is dirty or scratched; Incorrect video settings; External display connection issue. | Clean or replace disc; Reset video settings to default; Check AV cable connections to external display. |
| Cannot read USB/SD card | Card/drive not inserted correctly; Unsupported file format; Card/drive capacity too large. | USB/SD картаны кайра салыңыз; Ишениңиз files are supported (AVI, MP3, etc.); Max 32GB USB/SD card supported. |
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Продукциянын өлчөмдөрү | 16.2 x 9 x 3.2 дюйм |
| Элемент Салмагы | 3.84 фунт |
| Screen Size | 10.5 дюйм (диагоналдык) |
| Дисплей түрү | LCD |
| Батарея түрү | Литий полимери (кошулган) |
| Батареянын иштөө мөөнөтү | Болжол менен 5 саат |
| Supported Disc Media | CD, DVD, VCD, DVD±R, DVD±RW, CD-R, CD-RW, CVD, SVCD (Not Blu-ray) |
| Supported Digital Media | USB, SD Card (Max 32GB) |
| Колдоого алынган видео форматтары | AVI, MPG, MPVG4, VOB, FLV, RMVB (resolution within 720*576) |
| Колдоого алынган аудио форматтары | MP3, WMA, OGG, AAC |
| Түс | Кара |
| Өндүрүүчү | ieGeek |
9. Кепилдик жана колдоо
ieGeek is committed to providing excellent customer service and technical support. If you encounter any issues or have questions regarding your product, please contact us.
- Кардарларды тейлөө жообу: Your inquiries will be responded to within 24 hours.
- Техникалык колдоо: Сиздин продуктуңуз үчүн өмүр бою техникалык колдоо жеткиликтүү.
For support, please refer to the contact information provided with your purchase or visit the official ieGeek webсайт.
