Walfront 110V 250W PTC Ceramic Heating Element Instruction Manual

1. Киришүү

Thank you for choosing the Walfront 110V 250W PTC Ceramic Heating Element. This product is designed for efficient and reliable heating in various applications. This manual provides important information for proper installation, operation, and maintenance to ensure safe and optimal performance.

А генерал view of the Walfront PTC Ceramic Heating Element, showcasing its overall design and compact form factor.

2. Продукциянын өзгөчөлүктөрү

• Жогорку сапаттагы курулуш: Utilizes ceramic heating technology and an aluminum tube for low thermal resistance and high heat transfer efficiency, ensuring a long service life.
• Өркүндөтүлгөн коопсуздук: Features constant temperature heating with no open flame, offering a safer heating solution compared to traditional elements.
• Automatic Energy-Saving: Incorporates automatic energy-saving capabilities. As the ambient temperature rises, the power consumption gradually reduces, potentially operating at 90%, 80%, or less of its rated power.
• Ар тараптуу колдонмо: Suitable for integration into various devices such as air conditioners, electric heaters, instruments, general appliances, air curtain machines, and humidifiers.

This image visually represents the rapid heat transfer capability of the PTC ceramic heating element, indicating that it reaches operational temperature quickly.

3. Техникалык шарттар

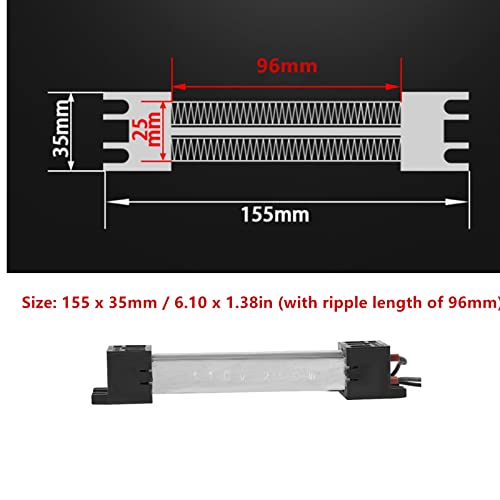

This diagram illustrates the physical dimensions of the heating element, including its overall length, the length of the ripple heating section, and its width and height.

This table provides critical electrical specifications for the heating element, detailing its power output and voltage limits across different operating conditions.

4. Орнотуу жана орнотуу

This PTC ceramic heating element is designed for integration into various heating systems or appliances. Proper installation is crucial for safety and performance. It is highly recommended that installation be performed by a qualified professional.

4.1. Электр зымдары

• Connect the heating element to a power source matching the rated voltage (110V).
• Электрдик коркунучтарды болтурбоо үчүн бардык туташуулардын коопсуз жана изоляцияланганын текшериңиз.
• The power supply is not divided into positive and negative poles for this element.

4.2. Жайгаштыруу

• Integrate the element into your appliance or system in a manner that allows for adequate airflow around the heating fins.
• Ensure the element is securely mounted to prevent movement or damage during operation.

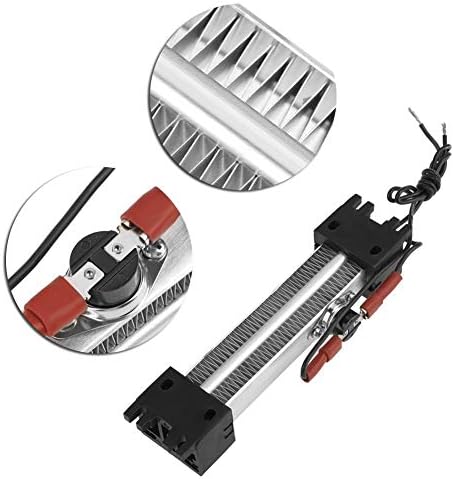

А деталдуу view highlighting the aluminum fins designed for efficient heat dissipation and the built-in thermostat for regulating temperature.

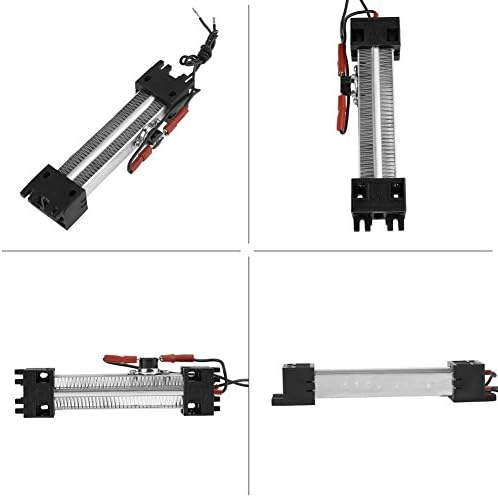

This image shows the electrical connections and the placement of the thermostat, emphasizing the importance of proper wiring.

5. Иштөө принциптери

The Walfront PTC Ceramic Heating Element operates on a principle of self-regulation, providing constant temperature heating. Once powered, the element rapidly heats up, transferring heat energy to its aluminum shell within approximately 10 seconds. Its automatic energy-saving feature adjusts power consumption based on ambient temperature, optimizing efficiency.

6. Техникалык тейлөө

To ensure the longevity and efficient operation of your PTC ceramic heating element, follow these simple maintenance guidelines:

• Желдетүүчү тешиктерди таза кармаңыз: Ensure that any air inlets or outlets around the heating element are free from dust, debris, or obstructions. Blocked vents can reduce efficiency and potentially lead to overheating.
• үзгүлтүксүз тазалоо: Periodically clean the exterior of the element and surrounding areas with a soft, dry cloth. Do not use abrasive cleaners or immerse the element in water.
• Зымдарды текшерүү: Regularly check the electrical connections for any signs of wear, damage, or loose connections. Address any issues promptly.

7. Кыйынчылыктарды

If you encounter issues with your Walfront PTC Ceramic Heating Element, consider the following:

• Элемент жылыбайт: Verify that the element is correctly connected to a power source of the specified voltage (110V). Check for any loose wiring or tripped circuit breakers.
• Element Overheating/Tripping: The PTC element has inherent self-regulating properties. If it appears to be overheating or shutting off prematurely, ensure there is adequate airflow around the element and that it is not enclosed in a manner that restricts heat dissipation.
• Тtage Айырмачылык: CRITICAL WARNING: It has been reported that some units may be physically labeled with a different voltage (e.g., 12V) than advertised (110V). ALWAYS verify the voltage rating directly on the product itself before connecting it to a power source. Connecting a 12V unit to a 110V supply will cause immediate failure and a significant fire hazard. Do not use the product if there is any discrepancy or uncertainty regarding its voltage рейтинг.

8. Коопсуздук боюнча маанилүү маалымат

Please read and adhere to all safety instructions to prevent injury or damage:

• Электр коопсуздугу: Ensure the heating element is connected to a power supply that matches its rated voltage (110V). Incorrect voltage can lead to product damage, fire, or electric shock.
• Кесиптик орнотуу: Installation should ideally be performed by a qualified electrician or technician to ensure proper wiring and safe integration into your system.
• Тоскоолдуктарды болтурбоо: Keep electrical cords, drapery, and other furnishings at least 3 feet (0.9m) away from the front of the heater and away from the side and rear to prevent fire hazards.
• Ачык от жок: This product operates without an open flame, but it still generates heat. Do not touch the heating element directly during or immediately after operation.
• Вентиляция: Ensure adequate ventilation around the heating element to prevent heat buildup and maintain optimal performance.
• Үй ичинде гана колдонуу: This heating element is designed for indoor applications as part of a larger system.
• Балдар жана үй жаныбарлары: Keep the heating element and any appliance it is integrated into out of reach of children and pets.

9. Кепилдик жана колдоо

Specific warranty details for the Walfront PTC Ceramic Heating Element are not provided in this manual. For warranty claims, technical support, or further inquiries, please contact Walfront customer service or refer to the original purchase documentation.
