1. Киришүү
Сатып алганыңыз үчүн рахматasing the Klipsch R-41PM Powered Monitor Speakers. These active speakers are designed to deliver high-quality audio with versatile connectivity options, including Bluetooth, Phono, Optical, USB, and Line inputs. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your speakers to ensure optimal performance and longevity.
2. Пакеттин мазмуну
- Klipsch R-41PM Powered Monitor Speakers (Pair)
- Алыстан башкаруу
- Динамик кабели
- Электр кабели
- USB кабели
- Оптикалык кабель
- RCA кабели
3. Орнотуу
3.1 Спикерди жайгаштыруу
For optimal sound quality, place the speakers on a stable, flat surface, such as a bookshelf or speaker stands. Position them equidistant from your listening position, forming an equilateral triangle. Ensure there is adequate space behind the speakers for proper airflow and cable management, especially for the rear-firing port.
Image: Klipsch R-41PM speakers integrated into a home entertainment setup.
3.2 Динамиктерди туташтыруу
The R-41PM system consists of one active (powered) speaker and one passive speaker. Connect the active speaker to the passive speaker using the included speaker cable. Ensure the positive (+) terminal on the active speaker connects to the positive (+) terminal on the passive speaker, and similarly for the negative (-) terminals.
Image: Rear panel of the Klipsch R-41PM speakers, highlighting the various input and output connections.
Сүрөт: деталдуу view of the active speaker's rear panel, showing USB, Optical, Sub Out, Aux, Phono, and speaker output terminals.
3.3 Кубат туташтыруу
Connect the supplied power cord to the active speaker's AC input and then to a wall outlet. The speakers are designed to operate on 240 Volts AC.
4. Иштөө нускамалары
4.1 Күйгүзүү/өчүрүү
Use the power button on the remote control or the volume/source knob on the rear of the active speaker to turn the speakers on or off.
4.2 Киргизүүнү тандоо
The R-41PM speakers support multiple input sources. You can switch between inputs (Bluetooth, Phono, Optical, USB, Line) using the remote control or by pressing the volume/source knob on the rear of the active speaker.
4.3 Bluetooth байланышы
- Select the Bluetooth input on the speakers. The Bluetooth indicator light will begin to flash.
- On your compatible device (smartphone, tablet, laptop), enable Bluetooth and search for available devices.
- Select "Klipsch R-41PM" from the list.
- Жупташтырылгандан кийин, Bluetooth индикатору туруктуу күйөт.
4.4 Phono Input (Turntable)
The R-41PM speakers feature a dedicated Phono input, allowing direct connection of a turntable without the need for an external pre-amplifier. Ensure your turntable is connected to the Phono input and select this source for playback.
4.5 Other Inputs (Optical, USB, Line)
Connect your digital audio sources (e.g., TV, CD player) to the Optical input, computers to the USB input, or other analog devices to the Line input using the appropriate cables.
4.6 Үндү башкаруу
Adjust the volume using the remote control or the volume/source knob on the rear of the active speaker. The maximum speaker output power is 70 Watts.
Video: An official demonstration of the Klipsch R-41PM's Dynamic Bass EQ feature, showcasing its audio performance.
5. Техникалык тейлөө
5.1 Кам көрүү жана тазалоо
To maintain the appearance and performance of your speakers, regularly wipe them with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners. The speaker grilles are magnetic and can be easily removed for cleaning or for a different aesthetic preference.

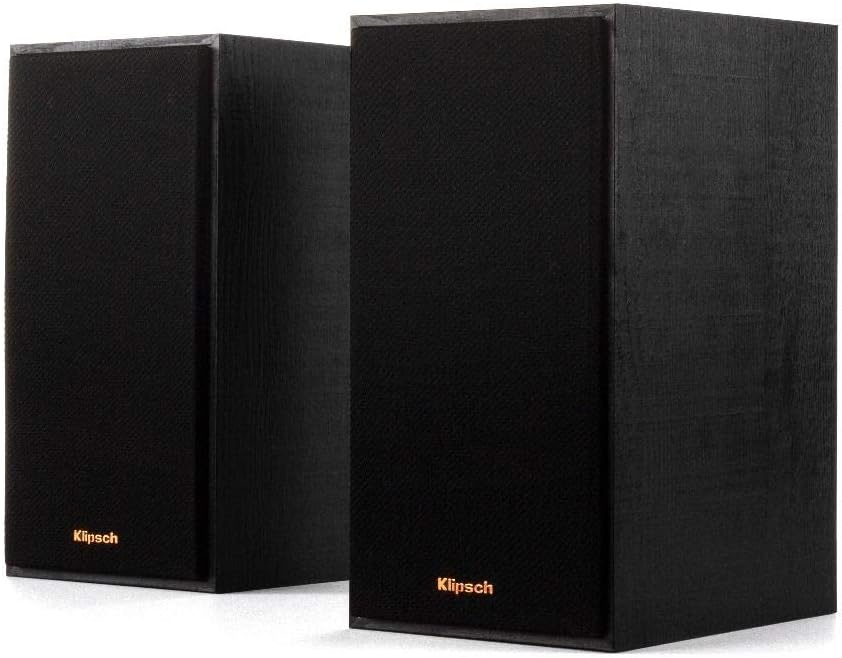

Image: Klipsch R-41PM speakers with their magnetic grilles in place.
6. Кыйынчылыктарды
6.1 Күч жок
- Кубат шнуру динамикке да, иштеп жаткан розеткага да бекем туташтырылганын текшериңиз.
- Розетка иштеп турганын текшериңиз.
6.2 Үн жок
- Check that the correct input source is selected on the speakers.
- Increase the volume on both the speakers and your audio source device.
- Ensure all cables (speaker cable, audio input cables) are securely connected.
- Bluetooth колдонуп жатсаңыз, аппарат туура жупташкан жана диапазондо экенин текшериңиз.
6.3 Bluetooth туташуу маселелери
- Динамиктердин Bluetooth жупташтыруу режиминде экенин текшериңиз.
- Түзмөктү жупташып, кайра жупташып көрүңүз.
- Move the Bluetooth device closer to the speakers to reduce interference.
7. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Модель аты | R-41PM |
| Бренд | Klipsch |
| Динамик түрү | Stereo Front / Bookshelf |
| Байланыш технологиясы | Bluetooth; Phono; Optical; USB; Line |
| Динамиктердин максималдуу чыгаруу күчү | 70 Ватт |
| Frequency Response | 21000 Гц |
| Аудио чыгаруу режими | Стерео |
| Өлчөмдөрү (P x L x H) | 15P x 20L x 30H centimeters |
| Элемент Салмагы | 6 килограмм |
| Материал | MDF |
| Киргизүү көлөмүtage | 240 вольт |
| Controller Type | Алыстан башкаруу |
| Шайкеш түзмөктөр | Ноутбук, планшет, смартфон |
| Камтылган компоненттер | Remote control, pair of speakers |
8. Кепилдик жана колдоо
8.1 Кепилдик маалыматы
This product is subject to the return policy of the retailer from which it was purchased, typically offering a 30-day refund/replacement period. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact the manufacturer directly.
8.2 Кардарларды колдоо
For technical assistance, troubleshooting beyond this guide, or inquiries regarding your Klipsch R-41PM speakers, please visit the official Klipsch website or contact their customer support service. Keep your purchase receipt and product serial number handy for faster service.
