1. Киришүү
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Honeywell Ventnor 52-inch Indoor LED Ceiling Fan. Please read all instructions carefully before beginning installation and retain this manual for future reference.

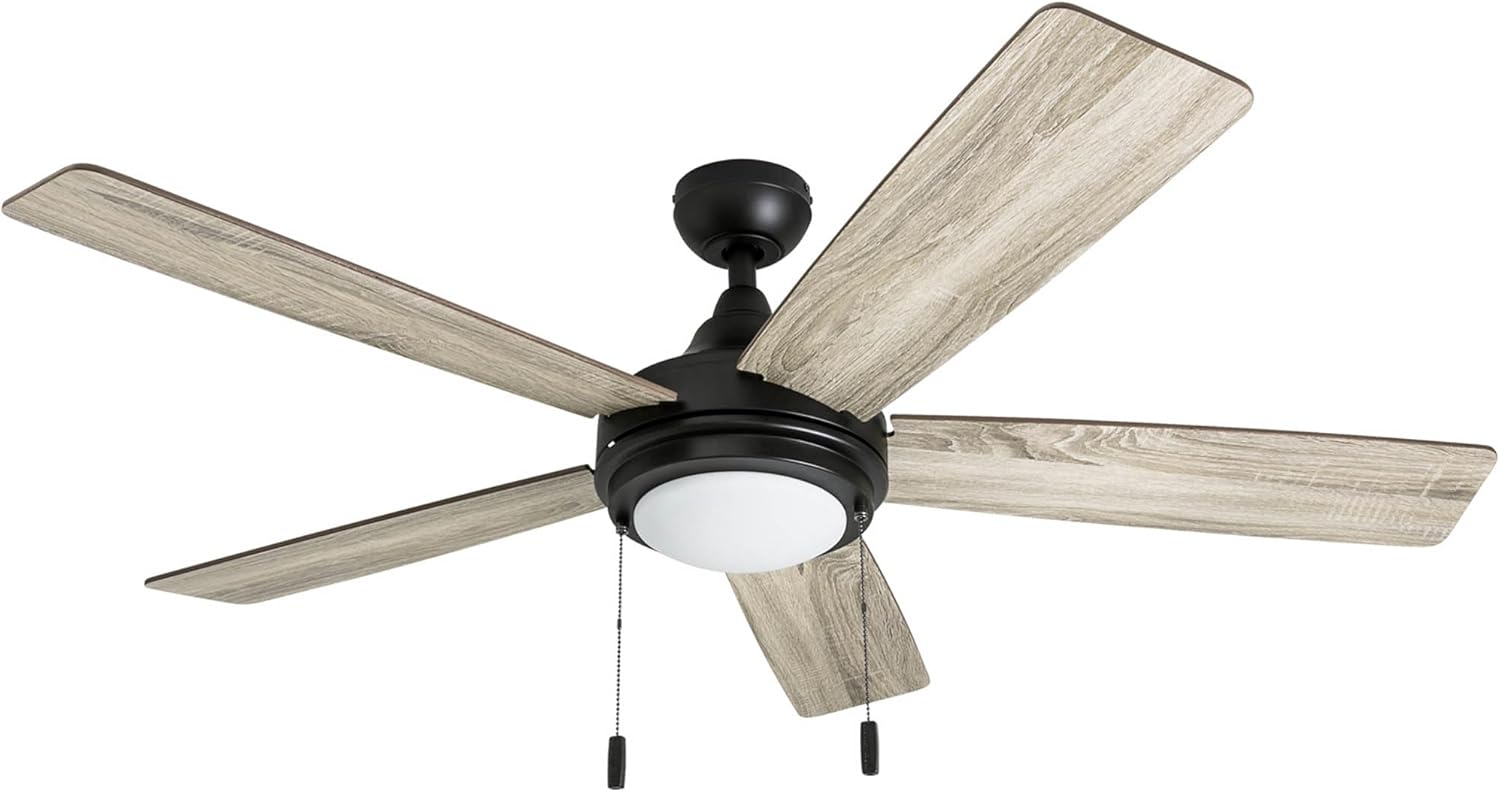

Honeywell Ventnor 52-inch Ceiling Fan in Bronze finish.
2. Коопсуздук маалыматы
For your safety, always disconnect power at the circuit breaker before installing or servicing the fan. Ensure all electrical connections comply with local codes and ordinances. If you are unfamiliar with electrical wiring, consult a qualified electrician.
WARNING: Proposition 65 Warning:
Бул продукт сизге химиялык заттардын, анын ичинде коргошундун таасирин тийгизиши мүмкүн, ал Калифорния штатына рак жана тубаса кемтик же башка репродуктивдүү зыян алып келиши белгилүү. Көбүрөөк маалымат алуу үчүн өтүңүз www.P65Warnings.ca.gov.
Honeywell Ventnor Ceiling Fan safety certifications: DOE Compliant, ETL Listed, Prop 65.
3. Пакеттин мазмуну
Орнотууну баштоодон мурун бардык компоненттер бар экендигин текшериңиз:
- Мотор
- Blades (5 total)
- Light Fixture
- Аппараттык пакет
4. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Honeywell |
| Модель аты | Ventnor |
| Модель номери | 50607-01 |
| Түс | Бронза |
| Blade Length | 52 дюйм |
| Blades саны | 5 |
| Бычактын материалы | Wood (Dual-finish: Ancient Pine / Light Oak) |
| Мотор | 3-Speed Reversible Motor |
| Жарык түрү | Integrated LED (1400 lumens) |
| Башкаруу түрү | Тартуу чынжырын башкаруу |
| Монтаждоо параметрлери | 3 (Close, Standard, Angled) |
| Ички/тышкы колдонуу | Indoor (Dry Rated) |
| Продукциянын өлчөмдөрү | 12.87"D x 24.49"W x 8.74"H |
| Элемент Салмагы | 8.32 килограмм |
| Тtage | 120 вольт |
| Ватtage | 31 ватт |
5. Орнотуу
The Honeywell Ventnor ceiling fan offers three mounting options to suit various ceiling types: close-mount, standard downrod, and angled-mount. A 4-inch downrod is included for standard installation. Ensure the mounting location can support the fan's weight and that all electrical wiring is properly connected.
Three mounting options: Closemount, Standard, and Angled.
The fan features dual-finish reversible blades, allowing you to choose between Ancient Pine and Light Oak to match your room's aesthetic. The motor housing is also reversible, enabling the fan to circulate air for cooling in summer and to help distribute warm air in winter.
Reversible blades with Ancient Pine and Light Oak finishes.
Installation typically takes 45-60 minutes. Refer to the detailed wiring diagrams and step-by-step instructions provided in the full installation guide for proper setup.
Easy installation, estimated 45-60 minutes.
6. Иштөө нускамалары
The Honeywell Ventnor fan is controlled by two pull chains located on the light fixture. One pull chain operates the fan speeds, and the other controls the integrated LED light.

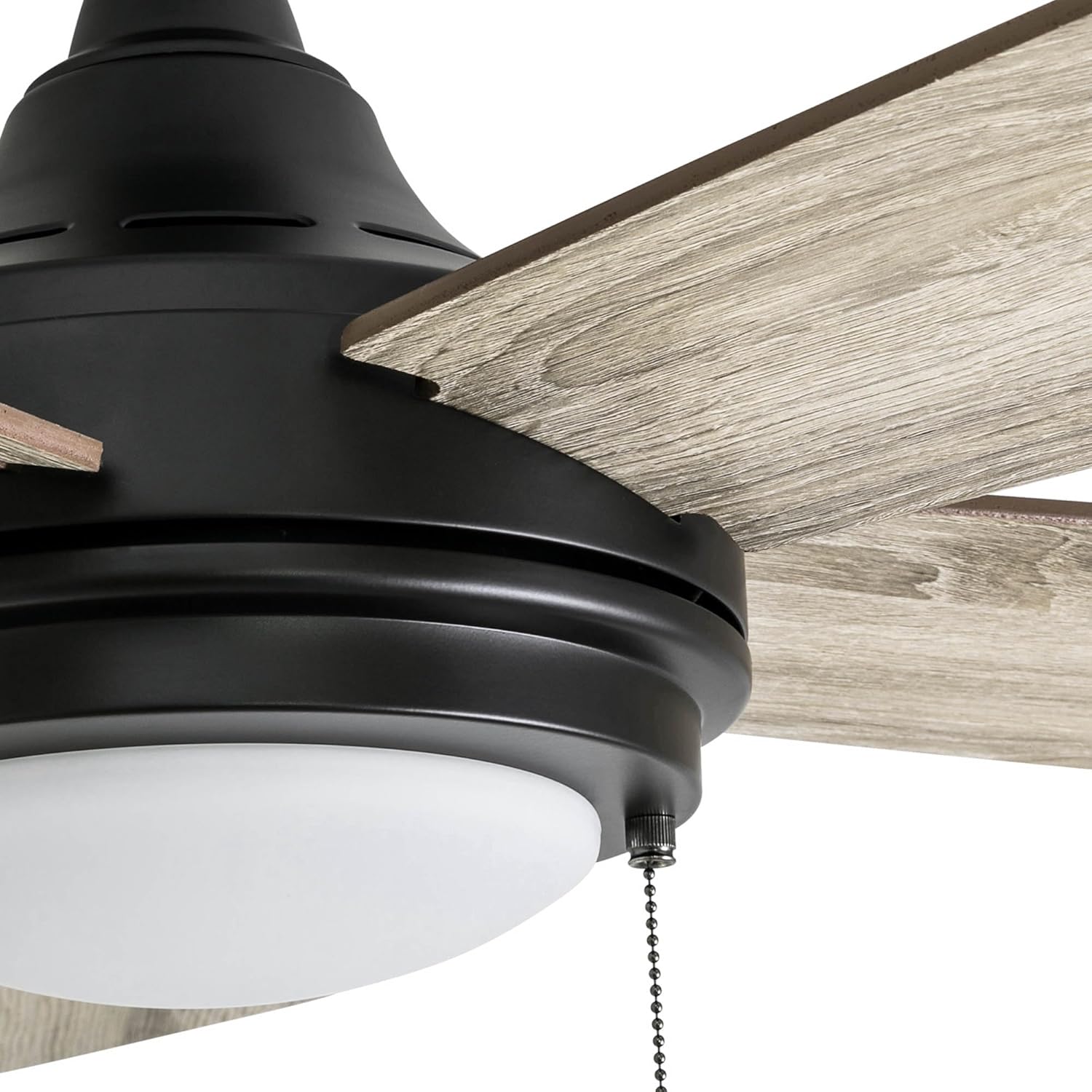

Pull chains for fan speed and light control.
Желдетүүчү ылдамдыкты көзөмөлдөө:
Pull the fan chain to cycle through the three available speeds: High, Medium, and Low. Pulling the chain again will turn the fan off. The fan features a quiet, 3-speed reversible motor for optimal airflow.
3-speed reversible motor for year-round comfort.
Жарыкты башкаруу:
Pull the light chain to turn the integrated LED light on or off. The LED light provides 1400 lumens of illumination.
7. Техникалык тейлөө
Үзгүлтүксүз тейлөө сиздин шыптын желдеткичиңиздин оптималдуу иштешин жана узак иштөөсүн камсыз кылат.
- Тазалоо: жумшак колдонуу, damp cloth to clean the fan blades and motor housing. Avoid abrasive cleaners that may scratch surfaces.
- Бычак текшерүү: Мезгил-мезгили менен бычактын бардык бурамалар бекем экендигин текшерип туруңуз. Бошогон бурамалар солкулдап, ызы-чуу жаратышы мүмкүн.
- Жарык арматура: The integrated LED light is designed for long-term use and typically does not require bulb replacement.
8. Кыйынчылыктарды
Эгерде сиз желдеткичиңиз менен көйгөйлөргө туш болсоңуз, төмөнкү жалпы көйгөйлөрдү чечүү кадамдарын карап чыгыңыз:
- Вентилятор иштебей жатат: Check that the circuit breaker is on and that all wiring connections are secure. Ensure the pull chain is in the 'on' position.
- Желдеткичтин чайпалышы: Verify that all blade screws are tightened. Check that the mounting bracket is securely fastened to the ceiling junction box. Ensure blades are balanced; a balancing kit may be required.
- Жарык иштебейт: Confirm the light pull chain is in the 'on' position. Check electrical connections to the light fixture.
- Ызы-чуу операциясы: Ensure all screws are tight. Check for any loose parts or obstructions. If connected to a dimmer switch, replace it with a standard on/off switch as dimmer switches can cause humming.
9. Кепилдик жана колдоо
The Honeywell Ventnor Ceiling Fan is backed by a 1-year manufacturer's warranty. For warranty claims or technical support, please contact Honeywell customer service. Keep your proof of purchase for warranty validation.
For additional information or assistance, please visit the official Honeywell webсайтка же кардарларды тейлөөгө кайрылыңыз.
