1. Киришүү
This manual provides essential information for the proper installation, operation, and maintenance of the JOHNSON Incline Elevation Motor, model 012804-00. This motor is designed as a replacement part for compatible Horizon Fitness, Smooth, and AFG treadmills, enabling the incline adjustment function. Please read this manual thoroughly before attempting any installation or service to ensure safety and optimal performance.
2. Продукт бүтүп калдыview
The JOHNSON Incline Elevation Motor 012804-00 is a critical component responsible for adjusting the incline level of your treadmill. It is engineered for durability and precise control, ensuring a smooth and reliable workout experience.

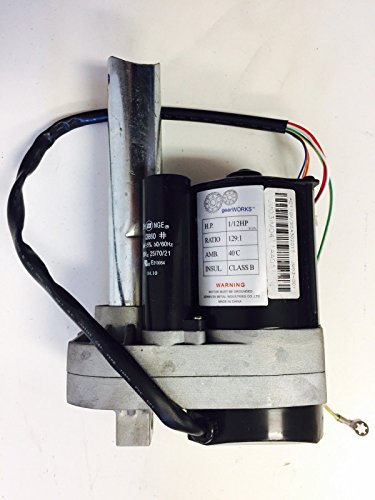

2.1-сүрөт: The JOHNSON Incline Elevation Motor 012804-00. This image displays the complete motor assembly, including the main motor body, wiring, and mounting bracket, as a replacement part.
2.2-сүрөт: А деталдуу view of the motor's specification label. Key specifications include H.P. (1/12HP), Ratio (129:1), Ambient Temperature (40°C), and Insulation Class (Class B). The label also includes a warning: "MOTOR MUST BE GROUNDED" and manufacturer information: "JOHNSON METAL INDUSTRIES CO.,LTD MADE IN CHINA". The internal part number JM03IM0411AA05551 is visible on the barcode label.
2.3-сүрөт: This image shows the incline elevation motor actuator installed within the frame of a treadmill. The motor's position and connection to the treadmill's incline mechanism are highlighted.
2.4-сүрөт: An alternative perspective of the incline elevation motor actuator installed inside a treadmill. This view provides context of the motor's placement relative to other internal components of the treadmill's base.
3. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | 012804-00 |
| Бренд | Джонсон |
| Өндүрүүчү | Johnson Health Tech |
| Продукциянын өлчөмдөрү | 16 x 10 x 6 дюйм |
| Салмагы | 10 фунт |
| Horsepower (H.P.) | 1 / 12 HP |
| Пропорция | 129:1 |
| Айлана-чөйрөнүн температурасы | 40°C |
| Изоляция классы | Б классы |
| UPC | 081225187110 |
| Internal Part Number | JM03IM0411AA05551 |
4. Коопсуздук маалыматы
Always prioritize safety when working with electrical components and heavy machinery like treadmills. Failure to follow safety guidelines can result in serious injury or damage to equipment.
- Кубатты өчүрүү: Always unplug the treadmill from the power source before attempting any inspection, installation, or maintenance.
- Кесиптик орнотуу сунушталат: Installation of this motor involves electrical connections and mechanical adjustments. If you are not experienced with such repairs, it is highly recommended to seek assistance from a qualified technician.
- Негиздөө: As indicated on the motor label, the motor must be properly grounded to prevent electrical shock. Ensure all grounding connections are secure.
- Зымдарды текшерүү: Before and after installation, inspect all wiring for damage, fraying, or loose connections.
- Коопсуз компоненттер: Ensure all bolts, screws, and connectors are tightened securely after installation to prevent vibration and component failure.
- Таза кармоо: Keep hands, hair, and clothing clear of moving parts during operation or testing.
5. Орнотуу жана орнотуу
This section outlines the general steps for replacing an incline elevation motor. Specific steps may vary depending on your treadmill model. Refer to your treadmill's original service manual for detailed instructions.
- Даярдоо:
- Ensure the treadmill is unplugged from the power outlet.
- Gather necessary tools (screwdrivers, wrenches, wire cutters/strippers, multimeter).
- Clear the area around the treadmill for safe access.
- Моторго кирүү:
- Remove the motor cover or any panels obstructing access to the incline motor. This typically involves unscrewing several fasteners.
- Carefully note the routing of wires and the orientation of the existing motor. Taking photos can be helpful.
- Эски моторду ажыратыңыз:
- Disconnect all electrical connectors from the old incline motor.
- Unbolt or unfasten the old motor from its mounting brackets.
- Carefully remove the old motor from the treadmill frame.
- Жаңы моторду орнотуу:
- Position the new JOHNSON Incline Elevation Motor (012804-00) into the mounting location, ensuring correct orientation.
- Secure the motor with the appropriate bolts and fasteners. Do not overtighten.
- Connect all electrical wires to the new motor. Ensure connections are firm and match the original configuration. Pay close attention to grounding wires.
- Сыноо жана кайра чогултуу:
- Before replacing covers, plug in the treadmill and perform a functional test of the incline mechanism. Operate the incline through its full range of motion.
- Listen for unusual noises and observe for smooth operation.
- Once satisfied with the operation, unplug the treadmill again and replace all covers and panels.
- Plug the treadmill back in and perform a final test.
Шайкештик: This motor is compatible with various Horizon Fitness, Smooth, and AFG treadmill models. Verify your treadmill's specific part requirements before installation.
6. Операция
The incline elevation motor operates in conjunction with your treadmill's control console. Once installed and the treadmill is powered on, you can adjust the incline level using the dedicated incline buttons or controls on your treadmill's console. The motor will smoothly raise or lower the treadmill deck to the desired angle.
- Эңкейүүнү тууралоо: Use the 'Incline Up' and 'Incline Down' buttons on your treadmill console to control the motor.
- Smooth Transition: The motor is designed to provide a gradual and smooth change in incline, preventing sudden jolts.
- Range of Motion: The motor will operate within the maximum and minimum incline settings programmed into your treadmill.
7. Техникалык тейлөө
Regular maintenance helps ensure the longevity and proper function of your incline elevation motor and treadmill.
- Тазалыкты сактоо: Periodically clean the area around the motor to prevent dust and debris buildup, which can hinder performance and cause overheating. Ensure the treadmill is unplugged before cleaning.
- Зымдарды текшерүү: Annually, or if issues arise, inspect all electrical connections to the motor for tightness and signs of wear or damage.
- Майлоо: The motor itself is typically sealed and does not require user lubrication. However, ensure that the mechanical linkage it drives (e.g., the incline screw mechanism) is clean and, if specified by your treadmill manufacturer, properly lubricated.
- Адаттан тыш үндөрдү угуңуз: Pay attention to any grinding, squealing, or unusual noises during incline adjustment, which could indicate a problem.
8. Кыйынчылыктарды
If you experience issues with your treadmill's incline function, consider the following common troubleshooting steps:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Incline not responding | No power to treadmill; loose wiring connection; faulty console button; motor failure. | Check power supply. Inspect all motor wiring connections. Test console buttons. If motor is suspected, professional diagnosis is recommended. |
| Incline moves erratically or makes grinding noise | Obstruction in incline mechanism; worn gears; motor malfunction. | Unplug treadmill and inspect for obstructions. If no obstruction, motor or gear issue may require professional service. |
| Incline stuck at one position | Motor or sensor failure; mechanical binding. | Unplug treadmill. Check for mechanical binding. If clear, motor or sensor replacement may be necessary. |
For persistent issues, contact a qualified treadmill service technician or the manufacturer's support.
9. Кепилдик жана колдоо
This JOHNSON Incline Elevation Motor (012804-00) is manufactured by Johnson Health Tech. For specific warranty terms and conditions, please refer to the official warranty documentation provided with your purchase or visit the Johnson Health Tech webсайт.
For technical support, parts inquiries, or service requests, please contact Johnson Health Tech customer service or the authorized dealer from whom you purchased the motor. Provide your model number (012804-00) and any relevant serial numbers (e.g., JM03IM0411AA05551) when seeking assistance.
Өндүрүүчү: Johnson Health Tech
