1. Продукт бүтүп калдыview
Thank you for choosing the SEBSON LED Under Cabinet Light. This instruction manual provides essential information for the safe and efficient use of your new lighting product. This LED light bar is designed for versatile indoor applications, offering bright, neutral white illumination with a slim profile for discreet installation.
- Бренд: SEBSON
- Модел: S-101009 (50cm)
- Негизги өзгөчөлүктөрү: Integrated LED module, slim design (13mm high, 24mm wide), neutral white light (4000K), 700lm, 8W, 230V, IP20.

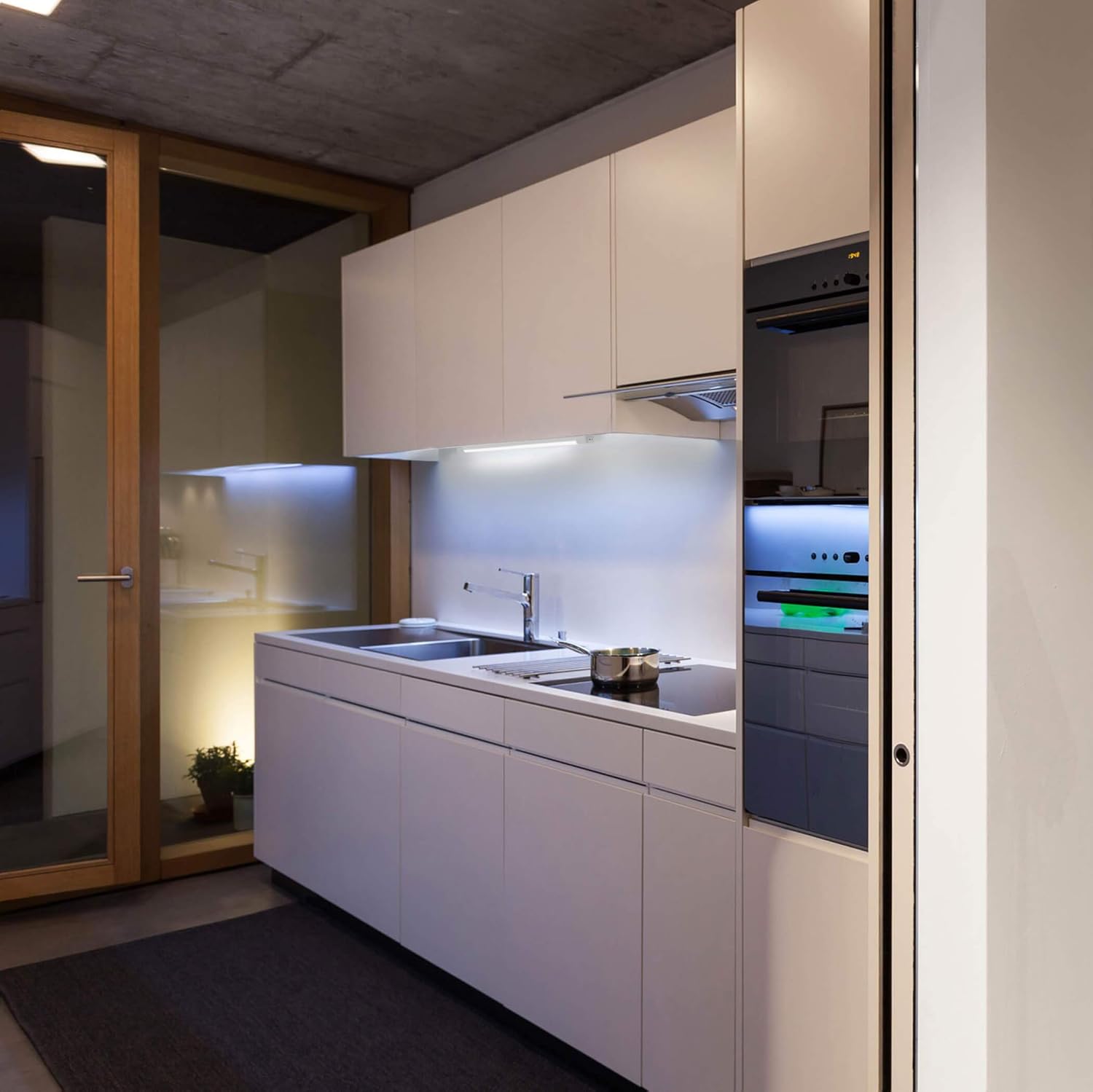

- Тиркемелер: Ideal for kitchens, cabinets, shelves, and other indoor furniture.
2. Коопсуздук нускамалары
Орнотуудан жана колдонуудан мурун ушул коопсуздук көрсөтмөлөрүн кунт коюп окуп чыгыңыз. Бул көрсөтмөлөрдү аткарбоо электр тогуна урунууга, өрткө же башка коркунучтарга алып келиши мүмкүн.
- Электр коопсуздугу: Always disconnect the power supply before installation, maintenance, or cleaning. Installation should only be performed by qualified personnel if you are unsure about electrical wiring.
- Үй ичинде гана колдонуу: This product has an IP20 rating, meaning it is protected against solid objects larger than 12.5mm but offers no protection against water. Do not use in damp чөйрөдө же сыртта.
- Тtage: электр менен жабдууну камсыз кылуу voltage matches the product's requirement (230V).
- Өңүлбөс: This LED light is not dimmable. Do not connect it to a dimmer switch, as this may damage the product.
- Жылуулук: Do not cover the light bar during operation to prevent overheating.
- Зыян: Do not use the product if the cable or housing is damaged.
3. Пакеттин мазмуну
Пакетте бардык компоненттер бар экенин текшериңиз:
- 1 x SEBSON LED Under Cabinet Light (50cm)
- 2 x Монтаждоо бурамалар
4. Орнотуу жана орнотуу
Follow these steps to install your SEBSON LED Under Cabinet Light:
- Таңылганын ачуу: Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз.
- Жайгашкан жерди тандоо: Select a suitable, dry indoor location for mounting, such as under a kitchen cabinet, shelf, or inside a wardrobe. Ensure there is a 230V power outlet nearby.
- Бургулоо пункттарын белгилөө: Hold the LED light bar in the desired mounting position. Use a pencil to mark the locations for the two mounting screws.
- Бургулоо тешиктери: Drill small pilot holes at the marked points. Ensure the drill bit size is appropriate for the provided screws.
- Жарык тилкесин орнотуу: Align the light bar with the drilled holes and secure it firmly using the two provided screws.
- Кубатка туташуу: Plug the light bar's power cable into a standard 230V electrical outlet.
5. Иштөө нускамалары
The SEBSON LED Under Cabinet Light is simple to operate:
- Once plugged into a 230V power outlet, use the integrated switch located on the light bar to turn the light ON or ӨЧҮРҮҮ.
6. Техникалык тейлөө
To ensure the longevity and optimal performance of your LED light bar, follow these maintenance guidelines:
- Тазалоо: Disconnect the power supply before cleaning. Use a soft, dry, lint-free cloth to wipe the surface of the light bar. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or electrical components.
- Текшерүү: Periodically check the power cable and plug for any signs of damage. If damage is found, discontinue use and contact customer support.
- Колдонуучу тейлей турган бөлүктөр жок: The LED module is integrated and not designed to be replaced by the user. Do not attempt to open or repair the light bar.
7. Кыйынчылыктарды
If you encounter issues with your LED light bar, refer to the following troubleshooting steps:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жарык күйбөйт. | Электр энергиясы жок. | Check if the power plug is securely inserted into the outlet. Test the outlet with another device to ensure it is functional. |
| Которуу ӨЧҮК. | Ensure the integrated switch on the light bar is in the ON position. | |
| Жарык жылтылдайт. | Unstable power connection. | Ensure the power plug is firmly connected. Avoid connecting to outlets with fluctuating power. |
| Шайкеш келбеген диммер. | This light is non-dimmable. Ensure it is not connected to a dimmer switch. |
If the problem persists after attempting these solutions, please contact SEBSON customer support for further assistance.
8. Техникалык шарттар
Detailed technical specifications for the SEBSON LED Under Cabinet Light (Model S-101009):
- Бренд: SEBSON
- Модель номери: S-101009 (UNDER_LED_50)
- Өлчөмдөрү (L x W x Y): 50 x 2.4 x 1.35 см
- Салмагы: 138 грамм
- Энергияны керектөө: 8 Ватт
- Тtage: 230 вольт
- Жарык агымы: 700 лм
- Түс температурасы: 4000 Кельвин (нейтралдуу ак)
- Түстөрдү көрсөтүү индекси (CRI): > 80 Ra
- Нур бурчу: 110°
- Орточо жашоо узактыгы: 15,000 саат
- IP рейтинги: IP20 (Ичинде гана колдонуу)
- Материал: Пластик
- Которуу стили: Integrated rocker switch
- Өзгөчөлүктөр: Бүткүл эмес
- Компоненттер камтылган: 1 x LED light bar, 2 x mounting screws
9. Кепилдик жана колдоо
This SEBSON product is covered by a standard manufacturer's warranty. Please refer to the specific terms and conditions provided at the time of purchase or on the official SEBSON website for details regarding warranty duration and coverage.
For technical support, troubleshooting assistance, or warranty claims, please contact your retailer or visit the official SEBSON website. When contacting support, please have your product model number (S-101009) and proof of purchase readily available.
