OSTER Prima Latte II Espresso Machine

1. Продукт бүтүп калдыview

The Oster Prima Latte II Espresso Machine is designed to deliver high-quality espresso, lattes, and cappuccinos with ease. Featuring a 19-bar Italian pump, it ensures optimal flavor extraction. The integrated milk frother and removable reservoirs simplify the coffee-making process and maintenance.

Фронт view of the Oster Prima Latte II espresso machine in red and black, showcasing the control panel and milk reservoir.

Негизги өзгөчөлүктөрү:

• 19-bar Italian pump for rich espresso.
• Easy-to-install and clean portafilter.
• Removable 600 ml milk reservoir, suitable for refrigeration.
• POD filter compatible with ground coffee.
• Automatic wash cycle for milk frother.
• Manual program for customized beverages.

2. Орнотуу жана алгачкы колдонуу

1. Пакеттен чыгаруу: Carefully remove all components from the packaging. Ensure all parts, including the main unit, water reservoir, milk reservoir, portafilter, and filter baskets, are present.
2. Позициялоо: Place the machine on a stable, flat, heat-resistant surface near an electrical outlet.
3. Суу сактагыч: Fill the transparent water reservoir with fresh, cold water up to the MAX line. Ensure it is securely placed at the back of the machine.
4. Milk Reservoir: Fill the transparent milk reservoir with desired milk (dairy or non-dairy) up to the MAX line. Slide it into the designated slot on the right side of the machine until it clicks into place.


A hand demonstrating the removal of the transparent milk reservoir from the side of the espresso machine.

5. Портафильтр: Insert the desired filter basket (single or double shot) into the portafilter. Add ground coffee and tamp lightly. Attach the portafilter to the brewing head by aligning it and twisting firmly to the right until it locks.
6. Initial Cleaning (Priming): Before first use, perform a cleaning cycle without coffee. Fill the water reservoir, turn on the machine, and let it heat up. Run a cycle for espresso and a cycle for milk frothing (using water in the milk reservoir) to flush out any manufacturing residues.

3. Иштөө нускамалары

The control panel features illuminated buttons for various coffee preparations. Ensure the machine is powered on and has completed its heating cycle (lights will stop flashing).

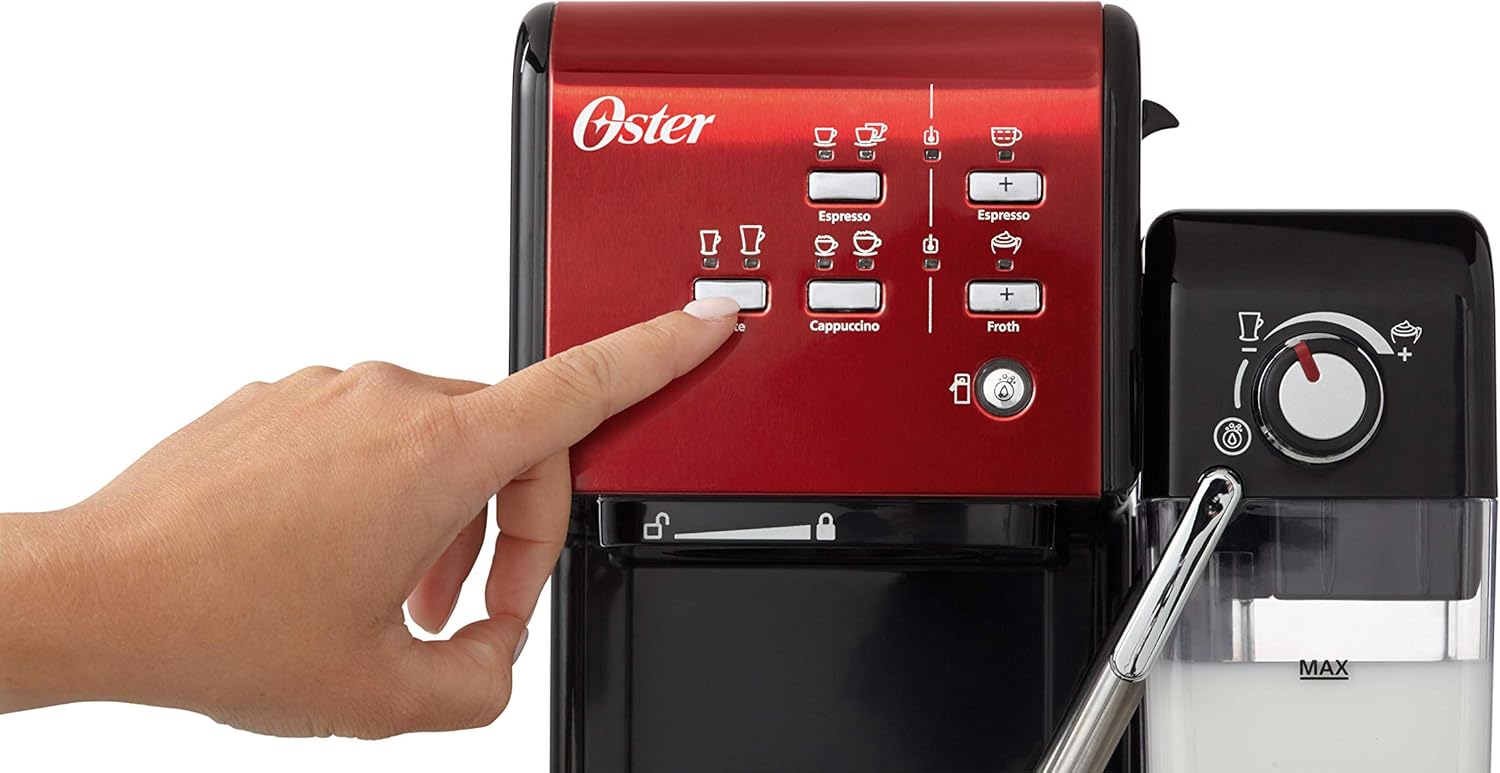

A finger pressing one of the illuminated beverage selection buttons on the red control panel of the espresso machine.

Эспрессо жасоо:

1. Fill the water reservoir and add ground coffee to the portafilter.
2. Портафильтр түтүгүнүн астына чөйчөктү кой.
3. Press the 'Espresso' button (single or double cup icon). The machine will automatically brew the espresso.

Making Latte or Cappuccino:

1. Fill the water and milk reservoirs.
2. Add ground coffee to the portafilter.
3. Adjust the milk frother dial on the milk reservoir to your desired foam level (e.g., 'Latte' for less foam, 'Cappuccino' for more foam).


А деталдуу view of the milk frothing control dial, showing settings for different foam levels and the cleaning function.

4. Place a cup under both the portafilter and the milk frother spout.
5. Press the 'Latte' or 'Cappuccino' button. The machine will first froth the milk, then brew the espresso into the cup.

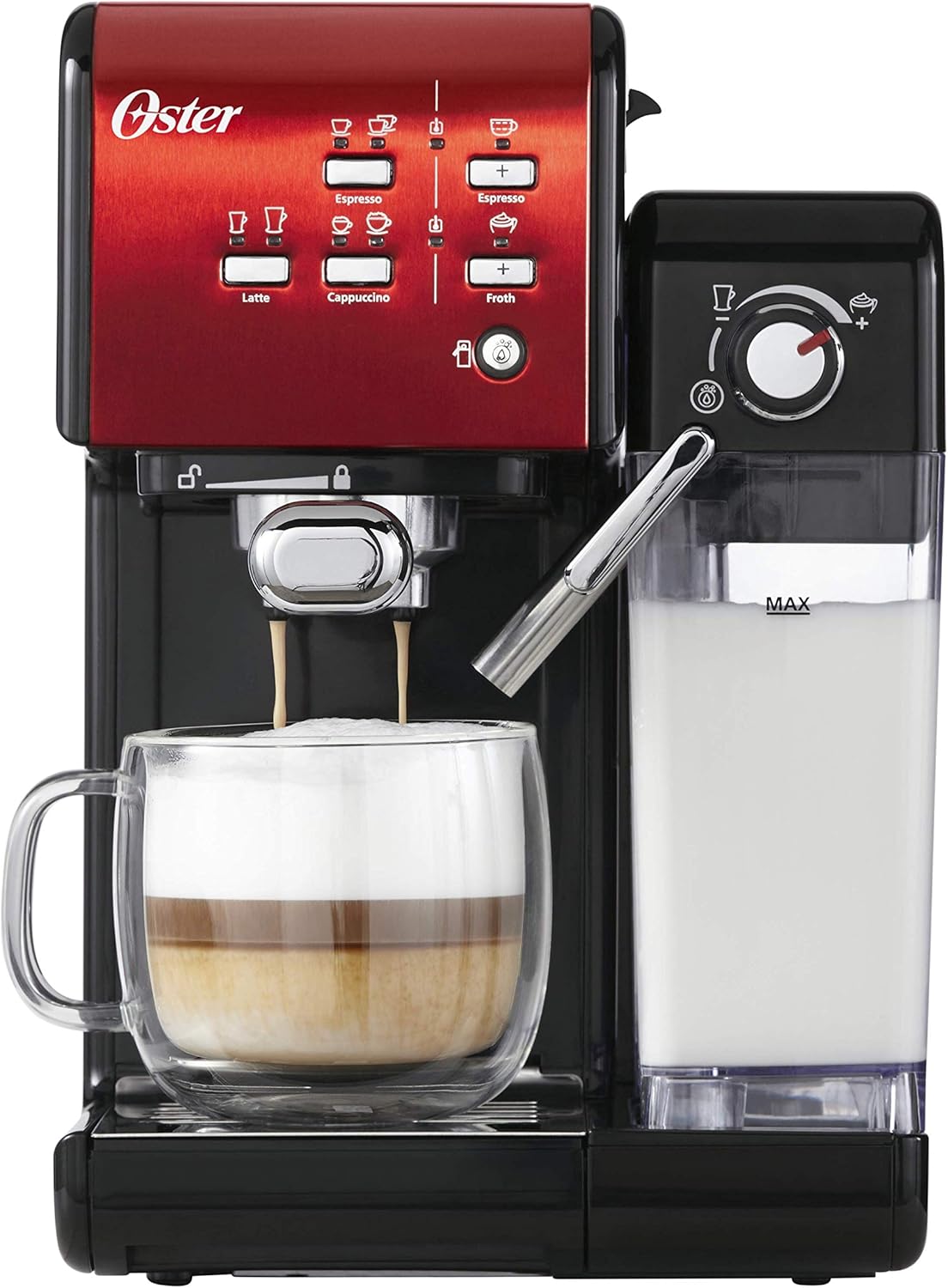

The espresso machine dispensing coffee and frothed milk into a glass mug to create a layered latte.

Frothing Milk Only:

1. Fill the milk reservoir.
2. Adjust the milk frother dial to your desired foam level.
3. Place a cup under the milk frother spout.
4. Press the 'Froth' button. The machine will dispense frothed milk.

Кол менен иштөө программасы:

For customized beverage volumes, press and hold the desired beverage button (Espresso, Latte, Cappuccino, or Froth) until the desired amount is dispensed, then release the button to stop. The machine will remember this setting for future use until reset.

4. Техникалык тейлөө жана тазалоо

Үзгүлтүксүз тазалоо оптималдуу иштешин камсыз кылат жана эспрессо машинаңыздын иштөө мөөнөтүн узартат.

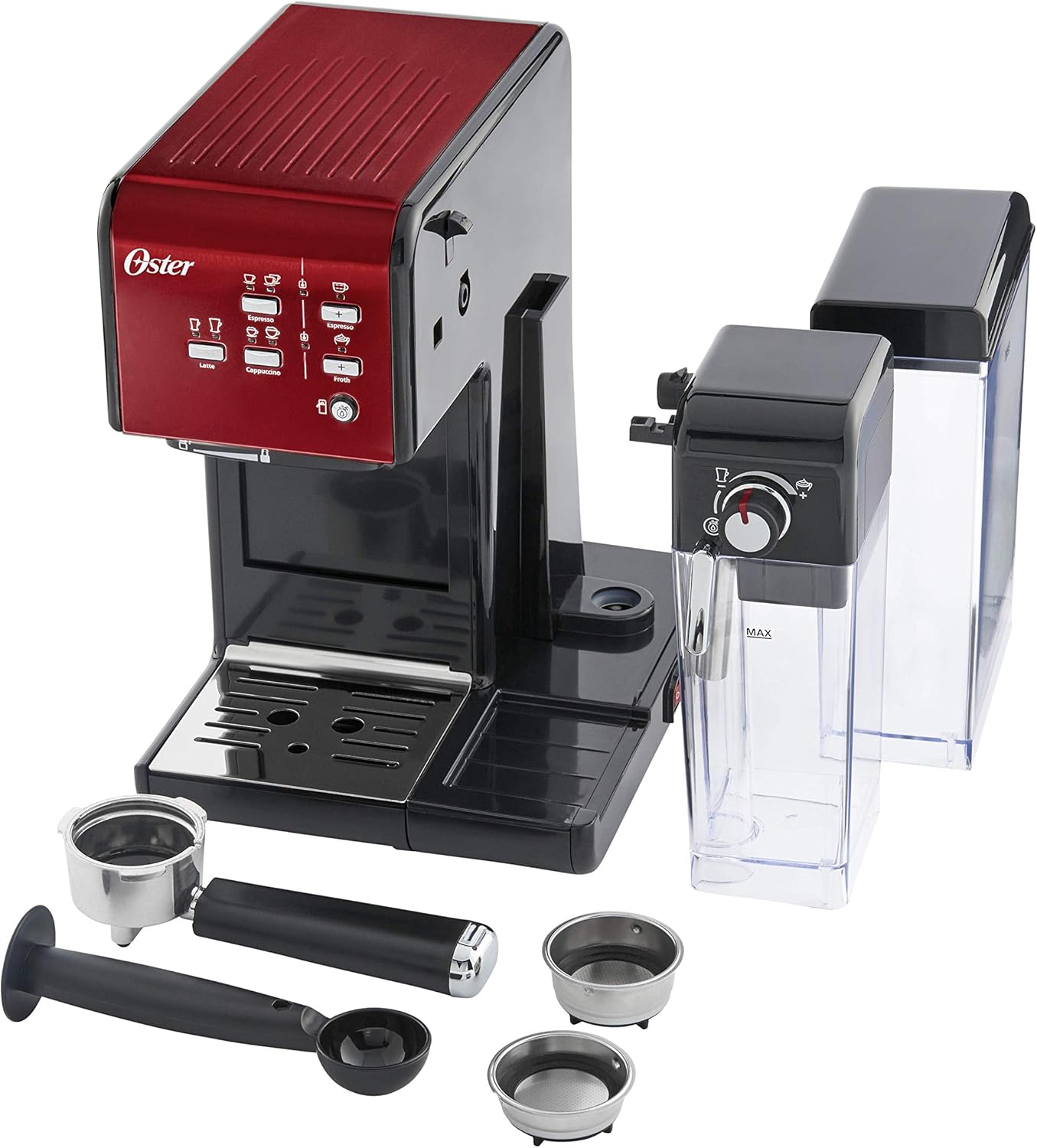

All removable components of the espresso machine, including the water tank, milk tank, portafilter, and filter baskets, laid out for cleaning or assembly.

• Portafilter жана чыпка себеттери: After each use, remove the portafilter, discard spent coffee grounds, and rinse the portafilter and filter basket under warm water. Use a small brush to remove any coffee residue.
• Milk Reservoir: After each use, or when empty, remove the milk reservoir. It can be stored in the refrigerator with milk, but for thorough cleaning, disassemble the frothing tube and rinse all parts with warm, soapy water. The reservoir is removable for easy cleaning.
• Automatic Wash Cycle (Milk Frother): After frothing milk, turn the milk frother dial to the 'Clean' position (often indicated by a water droplet icon) and press the 'Froth' button to run a short cleaning cycle, flushing water through the frothing system.
• Тамчылатма табак: Regularly empty and clean the drip tray. It is designed to collect excess liquids and prevent spills.
• Суу сактагыч: Clean the water reservoir periodically with warm, soapy water and rinse thoroughly.
• Тазалоо: Depending on water hardness and frequency of use, descaling should be performed every 2-3 months. Refer to the full product manual for specific descaling instructions and recommended descaling solutions.

5. Кыйынчылыктарды

• No Coffee Dispensing / Slow Flow:
  • Ensure water reservoir is filled.
  • Check if the portafilter is correctly locked in place.
  • Coffee grounds might be too fine or too heavily tamped, causing excessive pressure. Try a coarser grind or lighter tamp.
  • Clean the filter basket and portafilter for any blockages.
  • Machine may need descaling.
• Машинадан суу агып жатат:
  • Check if the drip tray is full and needs emptying. An overfilled drip tray can cause water to appear to leak from the machine's interior.
  • Ensure all reservoirs (water and milk) are correctly seated and sealed.
  • If coffee grounds are too heavily tamped, the machine's safety system may release excess pressure through an internal channel, leading to apparent leakage. Adjust coffee grind and tamp.
• Milk Not Frothing / Insufficient Foam:
  • Ensure the milk reservoir is filled with cold milk.
  • Check that the milk frother spout is clean and not blocked. Run the automatic wash cycle.
  • Verify the milk frother dial is set to the desired foam level.
  • Use fresh, cold milk for best frothing results.
• Машина күйбөй жатат:
  • Электр шнурунун иштеген электр розеткасына бекем сайылганын текшериңиз.
  • Check the power switch on the machine.

6. Техникалык шарттар

7. Кепилдик жана колдоо

Specific warranty details are not available in the provided product information. For warranty claims, technical support, or to inquire about replacement parts, please refer to the documentation included with your purchase or contact Oster customer service directly. Keep your proof of purchase for any warranty-related inquiries.
