ZYXEL XGS1930-28HP 28-Port Gigabit PoE+ Smart Managed Switch User Manual

1. Киришүү

This user manual provides detailed instructions for the installation, configuration, operation, and maintenance of your ZYXEL XGS1930-28HP 28-Port Gigabit PoE+ Smart Managed Switch. This device is designed to provide high-performance network connectivity with Power over Ethernet capabilities for various network environments. Please read this manual thoroughly before operating the device to ensure proper usage and optimal performance.

2. Пакеттин мазмуну

Пакетиңизде төмөнкү нерселердин бардыгы бар экенин текшериңиз:

• 24-port GbE Smart Managed PoE Switch with 4 SFP+ Uplink (XGS1930-28HP)
• Электр кабели
• Стойкага орнотуу комплекти

3. Продукт бүтүп калдыview

The ZYXEL XGS1930-28HP is a smart managed switch featuring 24 Gigabit Ethernet PoE+ ports and 4 10G SFP+ uplink ports, offering a total power budget of 375W for connected PoE devices. It supports Zyxel NebulaFlex™, allowing flexible management via standalone mode or the Nebula cloud platform. The switch is designed for quiet operation with smart fan technology and is suitable for rackmount installations.

Бурчтуу view of the ZYXEL XGS1930-28HP switch, showcasing its compact rackmount design and port layout.

Түз фронт view of the ZYXEL XGS1930-28HP switch, highlighting the 24 Gigabit Ethernet PoE+ ports, 4 10G SFP+ uplink ports, and LED indicators.

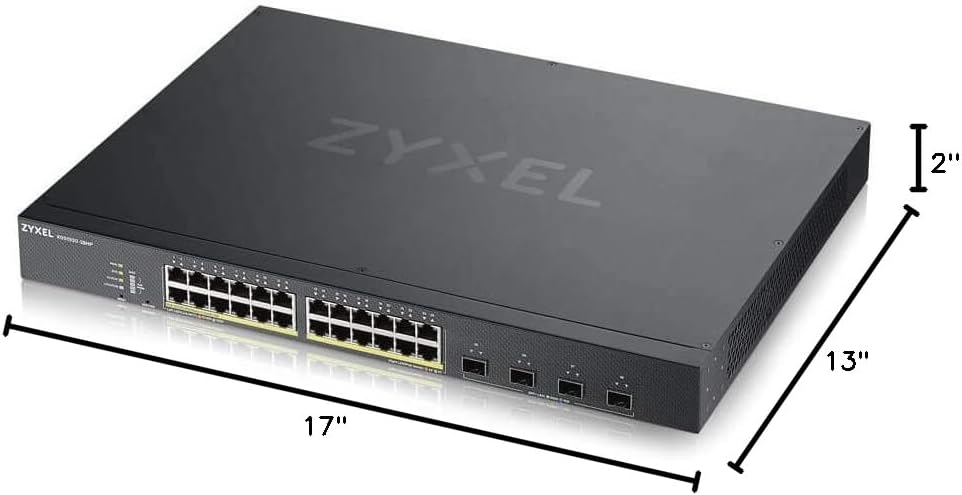

This image illustrates the physical dimensions of the ZYXEL XGS1930-28HP switch, measuring 17 inches in width, 13 inches in depth, and 2 inches in height.

4. Орнотуу

4.1 Стойкага орнотуу

Use the provided rack mounting kit to securely install the switch into a standard 19-inch equipment rack. Ensure adequate ventilation around the unit to prevent overheating.

4.2 Кубат туташтыруу

Connect the power cord to the switch's power inlet and then to a suitable AC power source. The switch will power on automatically.

4.3 Тармактык байланыштар

• Ethernet порттору: Connect your network devices (computers, IP cameras, wireless access points, etc.) to the 24 Gigabit Ethernet PoE+ ports using standard Ethernet cables. These ports provide both data and power to compatible devices.
• Uplink порттору: Use the 4x 10G SFP+ ports for high-speed connections to your core network or other switches. Insert compatible SFP+ transceivers into these slots.

4.4 Баштапкы конфигурация

The XGS1930-28HP supports both standalone and cloud-managed modes via Zyxel NebulaFlex™.

• Өз алдынча режим: Коммутаторго кирүү web-based management interface by connecting a computer to any Ethernet port and configuring its IP address to be in the same subnet as the switch's default IP. Refer to the quick start guide for default IP address and login credentials.
• Тумандуулукту башкаруу: For cloud management, register the device on the Zyxel Nebula platform. The switch will automatically connect to the cloud for centralized management.

5. Иштөө нускамалары

5.1 LED көрсөткүчтөрү

Алдыңкы панелдеги LED индикаторлору реалдуу убакыт режиминдеги абал жөнүндө маалымат берет:

• Power LED: Кубаттын абалын көрсөтөт.
• PoE Max LED: Жалпы PoE кубат керектөө абалын көрсөтөт.
• Cloud LED: Indicates connection status to the Zyxel Nebula cloud.
• Порт диоддору: Indicate link status, activity, and PoE status for individual ports.

5.2 Башкаруу интерфейси

Manage the switch settings, monitor network traffic, and configure advanced features through the web-based GUI in standalone mode or via the Zyxel Nebula cloud dashboard.

5.3 Zyxel ONE Network (ZON) Utility

The complimentary ZON Utility can be used to discover and configure Zyxel devices, including switches, WLANs, and gateways, within your network with a single click. This simplifies initial setup and ongoing management.

6. Техникалык тейлөө

6.1 Тазалоо

Regularly clean the exterior of the switch with a soft, dry cloth. Ensure ventilation openings are free from dust and obstructions to maintain proper airflow.

6.2 Микропрограмма жаңыртуулары

Zyxel колдоосун мезгил-мезгили менен текшерип туруңуз website for the latest firmware updates. Keeping the firmware up-to-date ensures optimal performance, security, and access to new features. Firmware updates can typically be performed via the web management interface or Nebula cloud.

6.3 Айлана-чөйрөнү коргоо

Operate the switch within the specified temperature and humidity ranges to ensure longevity and stable performance. Avoid exposing the device to direct sunlight, excessive heat, or moisture.

7. Кыйынчылыктарды

Бул бөлүмдө сиз кабылышы мүмкүн болгон жалпы маселелерди чечүү жолдору каралган.

7.1 Күч жок

• Кубат шнуру өчүргүчкө да, розеткага да бекем туташтырылганын текшериңиз.
• Башка аспапка сайып, розетка иштеп жатканын текшериңиз.

7.2 Тармакка туташуу жок

• Check the Ethernet cable connections between the switch and connected devices. Ensure cables are not damaged.
• Verify the Link/Act LED for the respective port is lit or blinking, indicating a valid connection and activity.
• Confirm that the connected device's network settings (IP address, subnet mask) are correct.

7.3 PoE түзмөгү кубат албай жатат

• Ensure the connected device is PoE compatible (802.3af/at).
• Check the PoE status LED for the port.
• Verify the total PoE power budget (375W) is not exceeded. The PoE Max LED will indicate if the budget is nearing its limit.
• PoE түзмөгүн башка PoE портуна туташтырып көрүңүз.

7.4 Кирүү мүмкүн эмес Web Башкаруу интерфейси

• Ensure your computer's IP address is in the same subnet as the switch.
• Verify the correct IP address for the switch. If unknown, use the ZON Utility to discover it.
• Браузериңиздин кэшин тазалаңыз же башка браузерди колдонуп көрүңүз.

8. Техникалык шарттар

9. Кепилдик жана колдоо

9.1 Кепилдик маалыматы

The ZYXEL XGS1930-28HP switch comes with a Limited Lifetime Hardware Warranty. This warranty covers defects in materials and workmanship under normal use and service.

9.2 Техникалык колдоо

Free technical support is available for 90 days from the date of purchase. Additionally, free firmware upgrade support is provided for the lifetime of the product. For support, please visit the official Zyxel webсайтка же кардарларды тейлөөгө кайрылыңыз.

Онлайн ресурстар: For the latest documentation, FAQs, and support tools, please visit the Zyxel support portal.
