Introduction
The BOBLOV LF600AG Rangefinder is a precision optical instrument designed for accurate distance measurement in golfing and hunting. It features advanced flag-lock technology with vibration feedback, slope compensation, and multiple measurement modes to enhance your outdoor experience. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance and longevity of your device.
Image: The BOBLOV LF600AG Golf Rangefinder, a compact black device with optical lenses.
Продукт бүттүview
The LF600AG offers versatile functionality with distinct operating modes tailored for different measurement needs. Understanding these modes is key to utilizing the rangefinder effectively.

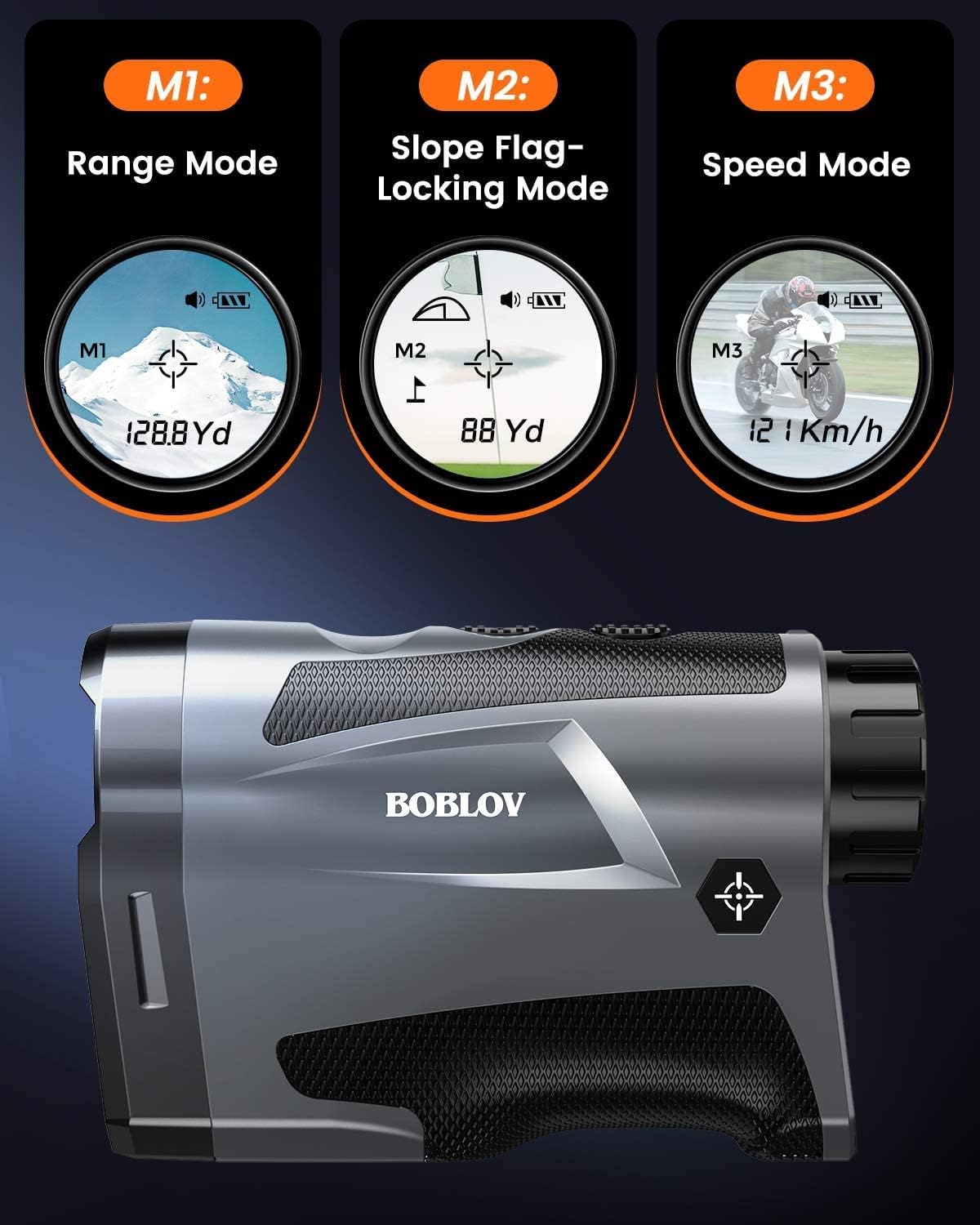

Image: Visual representation of the three main operating modes: M1 (Range Mode), M2 (Slope Flag-Locking Mode), and M3 (Speed Mode).
The device is designed for ease of use, featuring a clear optical display and intuitive button controls. Its robust construction ensures durability in various outdoor conditions.
Жайгашуу
Кутудан чыгаруу жана алгачкы текшерүү
Пакетти ачканда, бардык компоненттер бар экенин жана бузулбаганын текшериңиз. Стандарттык пакеттин мазмуну төмөнкүлөрдү камтыйт:
- BOBLOV LF600AG Rangefinder
- Ташуу кутусу
- USB заряддоо кабели
- Билек боо
- Тазалоочу кездеме
- Колдонуучунун Колдонмосу (бул документ)
- Карабин
Image: All items included in the BOBLOV LF600AG package, laid out on a white surface.
Аппаратты заряддоо
The LF600AG is equipped with a built-in rechargeable lithium battery. Before first use, fully charge the device. Connect the provided USB charging cable to the rangefinder's charging port and plug the other end into a compatible USB power source (e.g., computer USB port, wall adapter). The charging indicator will show the charging status.
Image: The BOBLOV LF600AG connected via USB cable to a laptop for charging, with indicators for charging and fully charged states.
Көз айнектин туураланышы
Түшүнүктүү болуш үчүн view through the eyepiece, rotate the diopter adjustment ring until the display and target appear sharp and in focus. This adjustment is crucial for users with varying eyesight.
Image: A close-up of the rangefinder's eyepiece, showing the rotational arrows for diopter adjustment to achieve clear images.
Иштөө нускамалары
Күйгүзүү/өчүрүү
Press the Power button (usually marked with a power symbol) once to turn on the device. The display will activate. The device will automatically power off after a period of inactivity to conserve battery.
Режим тандоо
Press the Mode button (usually marked 'MODE' or 'M') to cycle through the available measurement modes: Range Mode (M1), Slope Flag-Locking Mode (M2), and Speed Mode (M3).
M1: Range Mode (Normal/Continuous Measurement)
In Range Mode, the device measures the straight-line distance to a target. Press and hold the Power button to activate continuous scanning, which is useful for measuring distances to multiple targets or moving objects. Release the button to stop scanning and display the last measured distance.
Video: Demonstration of the LF600 Series Rangefinder's various modes, including single and continuous measurement in Range Mode.
M2: Slope Flag-Locking Mode with Vibration
This mode is ideal for golf. Aim the crosshairs at the flagstick. The device will quickly lock onto the flag, providing the accurate distance and vibrating to confirm target acquisition. This mode also calculates slope-adjusted distance, which can be toggled on or off.
Image: Illustrates the 650-yard slope and flag-locking compensation mode, showing how the device accurately locks onto a target and provides adjusted distances.
Image: Depicts the 1-second fast locking and pin acquisition mode with vibration feedback, showing a golfer using the rangefinder to target a flag.
Slope Function On/Off Switch
The LF600AG features a physical switch to enable or disable the slope compensation function. Turn slope 'ON' to get compensated distances for uphill or downhill shots, which is beneficial for practice. Turn slope 'OFF' to comply with tournament rules, providing only line-of-sight distance.
Image: The rangefinder shown with a clear indication of the physical switch to toggle the slope function between ON and OFF positions.
Image: A close-up of the rangefinder's side, highlighting the physical switch for turning the slope function on or off.
M3: Speed Mode
In Speed Mode, the rangefinder can measure the speed of a moving object. Aim at the object and press the Power button. The device will display the speed in kilometers per hour (Km/h).
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | БОБЛОВ |
| Модель аты | BOBLOV LF600G/AG |
| Бөлүмдүн номери | LF600 |
| Түс | Z#Black with Slope Switch |
| Материал | Пластик |
| Спорт | Гольф |
| Элемент Салмагы | 5.9 унция |
| Батарея түрү | Lithium (Rechargeable) |
| Максималдуу чоңойтуу | 6 x |
| Эл аралык коргоо рейтинги | IP54 |
| Элементтин өлчөмдөрү (LxWxH) | 5.12 x 2.36 x 3.15 дюйм |
| Range (Yards) | Up to 650 Yards |
| Камтылган компоненттер | Rangefinder, Carrying Case, USB Cable, Wrist Strap, Cleaning Cloth, Carabiner |
Техникалык тейлөө
- Тазалоо: Use the provided cleaning cloth to gently wipe the lenses and body of the rangefinder. Do not use abrasive materials or chemical cleaners.
- Сактагыч: Store the device in its carrying case in a cool, dry place when not in use. Avoid extreme temperatures and direct sunlight.
- Батареяга кам көрүү: Recharge the battery regularly, even if the device is not used frequently, to maintain battery health. Avoid fully discharging the battery for extended periods.
- Суу каршылык: The device has an IP54 rating, meaning it is protected from dust and splashing water. Do not submerge the device in water.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түзмөк күйбөйт. | Батарея аз же түгөнүп калган. | Берилген USB кабелин колдонуу менен аппаратты толугу менен заряддаңыз. |
| Аралыкты өлчөө так эмес. | Unstable aiming, environmental factors (fog, heavy rain), or targeting wrong object. | Ensure stable aiming. Re-measure in clearer conditions. Confirm target is correctly acquired, especially in Flag-Locking Mode. |
| Дисплей бүдөмүк. | Eyepiece not adjusted, or lenses are dirty. | Rotate the diopter adjustment ring until the display is clear. Clean the lenses with the provided cloth. |
| Flag-lock not working consistently. | Multiple objects in view, or flag is too far/small. | Ensure the flag is the primary target. Try scanning slowly across the flag. |
Кепилдик жана колдоо
The BOBLOV LF600AG Golf Rangefinder comes with a 2 жылдык кепилдик сатып алынган күндөн тартып. Бул кепилдик өндүрүш кемчиликтерин камтыйт жана нормалдуу колдонууда буюмдун материалдык жана жасалгалоо кемчиликтери жок экенин камсыз кылат.
For warranty claims, technical support, or any inquiries regarding your product, please contact BOBLOV customer service through the retailer where you purchased the device or visit the official BOBLOV webбайланыш маалыматы үчүн сайт.
Кепилдикти текшерүү үчүн сатып алганыңыздын далилин сактап коюңуз.
