Introduction
This manual provides essential information for the safe and efficient operation of your Leitz IQ Home Office P4 Paper Shredder. Designed for personal and small office use, this compact cross-cut shredder offers DIN P4 security for your sensitive documents. Please read these instructions carefully before use and retain them for future reference.
The Leitz IQ Home Office P4 Paper Shredder integrated into a modern office environment, showcasing its compact and stylish design suitable for both home and office use.
1. Орнотуу
- Пакеттен чыгаруу: Carefully remove the shredder from its packaging. Ensure all packing materials are removed from the shredder head and waste bin.
- Жайгашкан жери: Place the shredder on a flat, stable surface. Ensure there is adequate space around the unit for ventilation and easy access to the power outlet.
- Waste Bin Installation: Ensure the waste bin is correctly inserted into the shredder unit. The shredder will not operate if the bin is not properly seated.
- Кубат туташуу: Электр шнурын стандарттуу электр розеткасына сайыңыз.
- Коопсуздук кулпу: Locate the safety lock feature. This mechanism prevents unsupervised use. Ensure it is disengaged before operation and engaged when not in use, especially around children or pets.
This image displays the Leitz IQ Home Office P4 Paper Shredder with its top unit lifted, showing the internal waste bin filled with cross-cut shredded paper. This illustrates the shredder's design and how to access the waste bin for emptying.
2. Иштөө нускамалары
- Күйгүзүү: Turn on the shredder using the main power switch, usually located on the back or side of the unit. The shredder is ready when the indicator light is on.
- Кагаз берүү: Insert up to 10 sheets of A4 paper into the paper entry slot. The shredder will automatically detect the paper and begin shredding.
- Үзгүлтүксүз иштөө: The shredder can operate continuously for up to 6 minutes. An LED indicator will illuminate if the shredder needs to cool down after extended use. Allow the unit to cool before resuming operation.
- Shredding Other Items: This shredder is designed to handle paper clips and staples. However, for optimal performance and longevity, it is recommended to remove them when possible. Do not attempt to shred CDs, credit cards, or other non-paper items.
- Таштанды урнасынын сыйымдуулугу: The 23-liter waste bin can hold approximately 225 shredded sheets before requiring emptying. Monitor the bin level through the viewтерезе.
This image visually confirms the shredder's capacity, showing it can shred up to 10 sheets of A4 paper at once and has a 23-liter waste bin, which can hold approximately 225 shredded sheets.
3. Техникалык тейлөө
- Таштанды кутучасын бошотуу: Regularly empty the waste bin to prevent jams and ensure efficient operation. Always turn off and unplug the shredder before emptying.
- Oiling the Shredder: For optimal performance and to prolong the life of the cutting blades, oil the shredder regularly, especially after emptying the bin several times or after heavy use. Use Leitz oil sheets or a recommended shredder oil.
- Тазалоо: Wipe the exterior of the shredder with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure the paper entry slot is free of dust and paper debris.
4. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Шредер күйбөйт. | Not plugged in, waste bin not properly seated, safety lock engaged. | Check power connection, ensure bin is correctly inserted, disengage safety lock. |
| Кагаз тыгылышы. | Too many sheets inserted, paper folded or crumpled. | Use the reverse function to clear the jam. Reduce the number of sheets. The shredder features a jam-proof mechanism to help prevent this. |
| Майдалагыч иштөө учурунда токтоп калат. | Overheating due to continuous use, waste bin full. | Allow the shredder to cool down (LED indicator will show). Empty the waste bin. |
| Shredder is unusually noisy. | Blades require oiling. | Oil the shredder blades using recommended shredder oil or oil sheets. |
5. Техникалык шарттар
- Бренд: Лейц
- Модель номери: 80090000
- Кесүү түрү: Кайчылаш кесүү
- Коопсуздук деңгээли: DIN P4
- Барактын кубаттуулугу: 10 A4 sheets (80 gsm)
- Таштанды урнасынын сыйымдуулугу: 23 Liters (approx. 225 shredded sheets)
- Үзгүлтүксүз иштөө убактысы: 6 мүнөт
- Муздатуу убактысы: Indicated by LED
- Продукциянын өлчөмдөрү (H x W x D): 42.3 x 35.6 x 23.8 см
- Элемент Салмагы: 6.5 килограмм
- Кубат булагы: Электр зымдары
- Өзгөчөлүктөр: Automatic stop, Jam proof, Anti-clog, Quiet operation, Safety lock

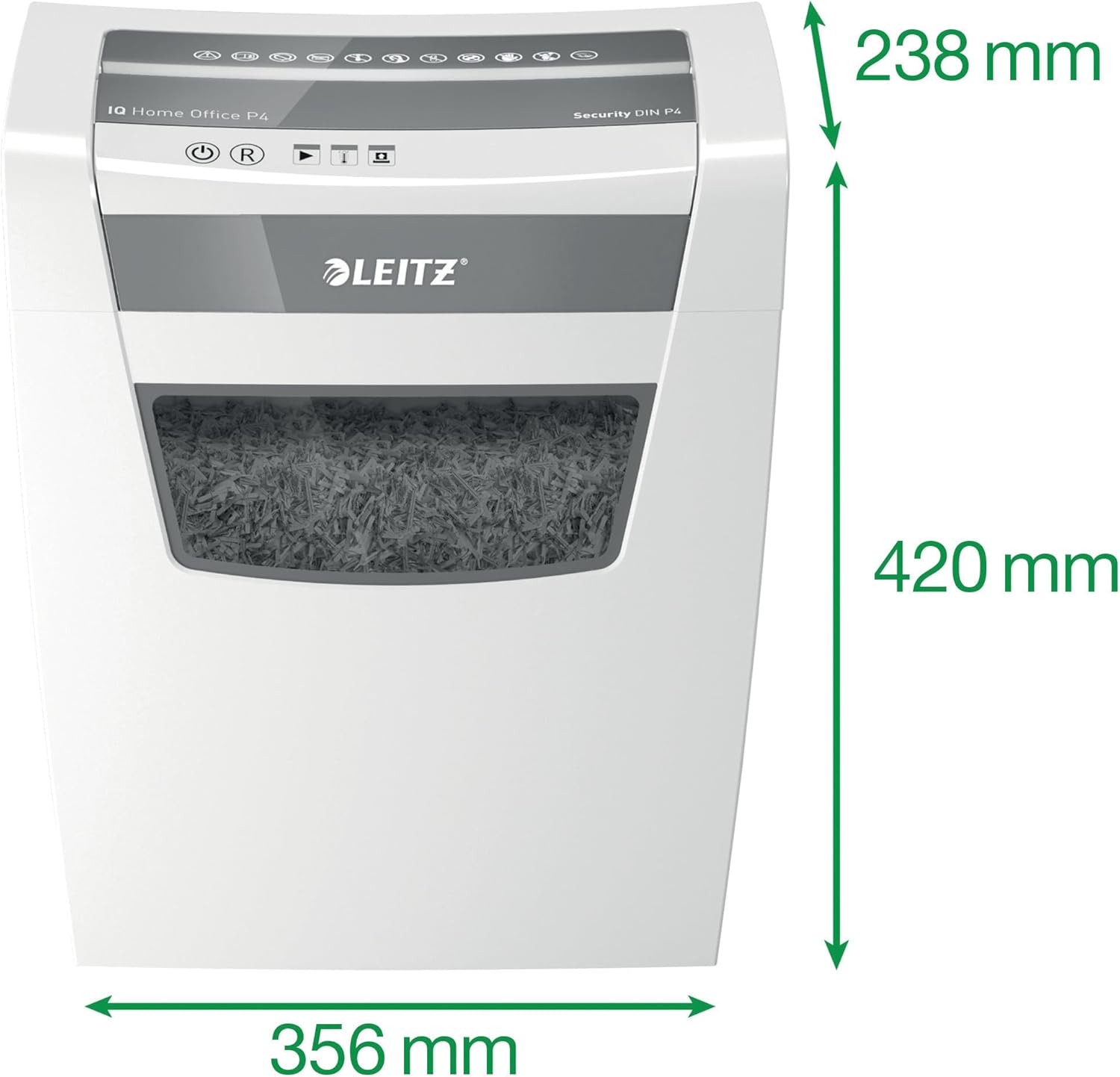

This image provides the physical dimensions of the Leitz IQ Home Office P4 Paper Shredder, indicating a height of 420 mm, a width of 356 mm, and a depth of 238 mm. These measurements are useful for planning placement.
This graphic illustrates different DIN security levels for paper shredders. The Leitz IQ Home Office P4 model provides P4 security, meaning it shreds documents into small cross-cut particles (approximately 400 particles per A4 sheet), offering a good balance of security for home and office use.
6. Кепилдик маалыматы
Your Leitz IQ Home Office P4 Paper Shredder is covered by a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms, conditions, and duration. Keep your proof of purchase for any warranty claims.
7. Кардарларды колдоо кызматы
For technical assistance, troubleshooting not covered in this manual, or spare parts, please contact Leitz customer support. Contact details can typically be found on the Leitz official webсайтында же продуктунун таңгагында.
