KRINNER LUMIX Superlight Mini зымсыз LED жаңы жылдык балаты шам узартуу топтому (75553 модели) колдонуучунун колдонмосу

1. Киришүү

This manual provides essential information for the safe and efficient use of your KRINNER LUMIX Superlight Mini Cordless LED Christmas Tree Candle Extension Set. This set is designed to expand an existing LUMIX Superlight Mini system, adding 6 additional cordless LED candles to your festive lighting arrangement. Please read these instructions carefully before installation and operation.

2. Продукт бүтүп калдыview

The LUMIX Superlight Mini Extension Set includes 6 cordless LED candles, designed for easy attachment to Christmas tree branches. These candles offer a dual light effect and are intended to be used with a main LUMIX Superlight Mini set that includes a remote control for full functionality.

Негизги өзгөчөлүктөрү:

• SuperLight Technology: Provides a dual light effect for enhanced illumination.
• Зымсыз дизайн: Eliminates visible cables for a clean aesthetic.
• Узак жарык убактысы: Over 21 days of lighting with 4 hours of daily use (when used with fresh batteries).
• Оңой тиркеме: Integrated clips for secure placement on tree branches.

Эмне камтылган:

• 6 x LUMIX Superlight Mini Cordless LED Candles (Gold)
• 6 х AAA щелочтук батарейкалар

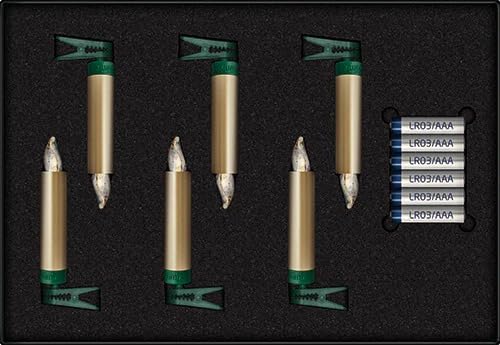

Image 2.1: Contents of the extension set, including 6 LED candles and 6 AAA batteries.

3. Орнотуу

1. Батареяны салуу: For each candle, carefully open the battery compartment. Insert one AAA battery, ensuring the correct polarity (+/-) as indicated inside the compartment. Close the compartment securely.
2. Attachment to Tree: Use the integrated green clip at the base of each candle to securely attach it to a Christmas tree branch. Ensure the candle is stable and upright.
3. Системалык интеграция: These extension candles are designed to work with a LUMIX Superlight Mini base set (sold separately) which includes the remote control. Ensure your base set is also powered on and ready for operation.

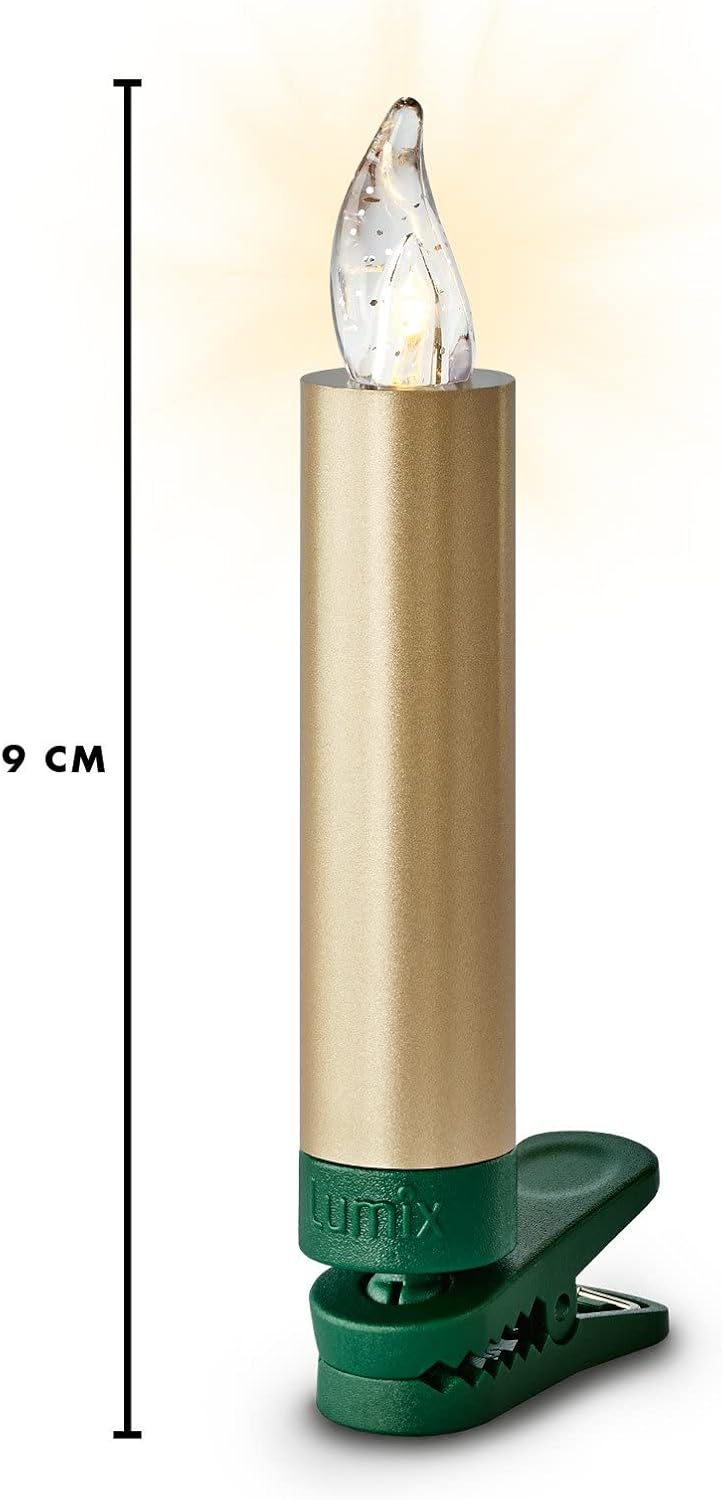

Image 3.1: A single LED candle, illustrating its design and clip for attachment.

4. Иштөө нускамалары

The LUMIX Superlight Mini Extension Set candles are controlled via the remote control included with your main LUMIX Superlight Mini set. This extension set does not include a remote control.

Remote Control Functions (from main set):

• Күйгүзүү/өчүрүү: Press the designated button on the remote to turn all connected candles on or off.
• Жарыктыкты жөндөө: Cycle through 5 brightness levels using the remote control.
• Жаркылдоо режими: Activate or deactivate the 2-fold flicker mode for a realistic candle effect.
• Таймер функциясы: Engage the 4-hour timer function. The candles will automatically turn off after 4 hours and reactivate at the same time the next day.

Эскертүү: For optimal remote control response, ensure a clear line of sight between the remote and the candles. You may need to point the remote in different directions or press buttons multiple times to activate all candles, especially on a densely decorated tree.

Image 4.1: LUMIX Superlight Mini candles with the remote control (remote not included in this extension set).

5. Техникалык тейлөө

• Тазалоо: Wipe the candles with a soft, dry cloth. Do not use abrasive cleaners or immerse in water.
• Батареяны алмаштыруу: When the light output diminishes, replace the AAA batteries in each candle. Always replace all batteries in a set at the same time for consistent performance.
• Сактагыч: When not in use, remove all batteries from the candles to prevent leakage and corrosion. Store the candles in their original packaging or a protective container in a cool, dry place.

6. Кыйынчылыктарды

• Candle Not Lighting:
  • Check if the battery is inserted correctly with the correct polarity.
  • Батарея отсеги бекем жабылганын текшериңиз.
  • Replace the battery with a fresh AAA battery.
  • Confirm the main set's remote control is functioning and has fresh batteries.
• Remote Control Not Responding to All Candles:
  • Ensure a clear line of sight between the remote control and each candle.
  • Try pointing the remote in different directions or from various angles around the tree.
  • Press the remote button multiple times to ensure the signal reaches all candles.
  • Check the remote control's batteries.
• Dim or Inconsistent Light:
  • This usually indicates low battery power. Replace the AAA batteries in the affected candles.

7. Техникалык шарттар

8. Кепилдик жана колдоо

For specific warranty information regarding your KRINNER LUMIX Superlight Mini Cordless LED Christmas Tree Candle Extension Set, please refer to the documentation provided with your original purchase or contact the retailer or manufacturer directly. Support contact details can typically be found on the manufacturer's official webсайтында же сатып алуу дүмүрчөгүндө.

Manufacturer: Krinner GmbH
