Bort TITAN 4000 Waste Disposer Instruction Manual

1. Киришүү

The Bort TITAN 4000 Waste Disposer is designed to efficiently process food waste, reducing kitchen odors and waste volume. It features a powerful DC motor, a 3-level grinding system, and sound insulation for quiet operation. This manual provides essential information for the safe installation, operation, and maintenance of your appliance.

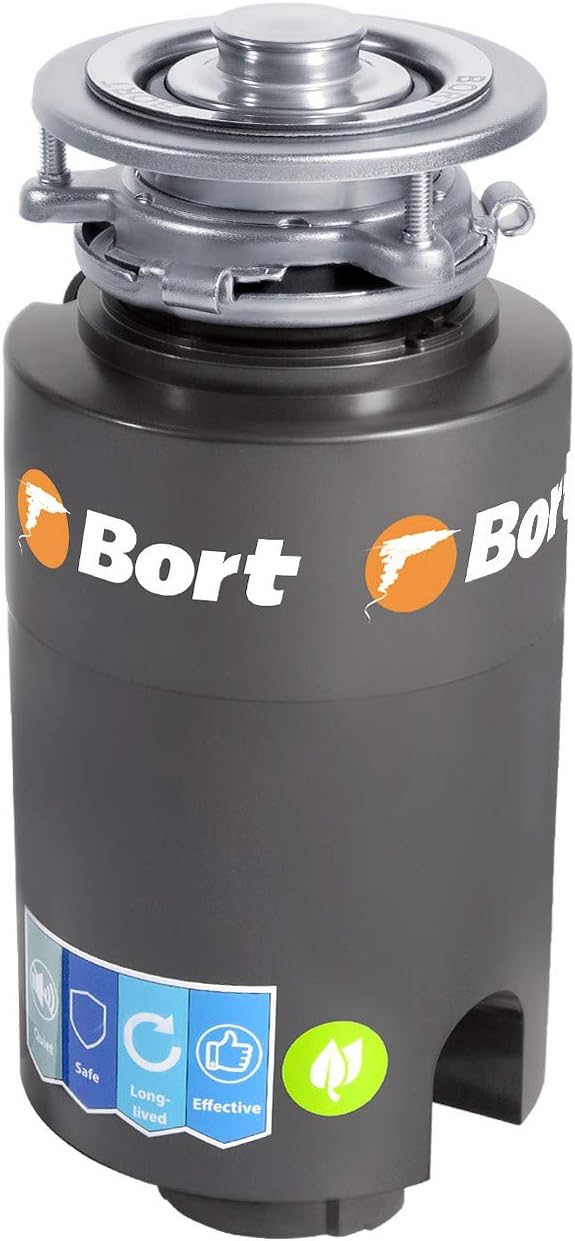

Image 1.1: The Bort TITAN 4000 Waste Disposer, showcasinанын компакттуу дизайны жана интеграцияланган функциялары.

2. Коопсуздук нускамалары

Please read and understand all safety instructions before installing or operating the Bort TITAN 4000 Waste Disposer. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always ensure the disposer is properly grounded according to local electrical codes.
• Do not insert hands or foreign objects into the disposer opening. Use a plunger or tongs if an object needs to be retrieved.
• Always run cold water when operating the disposer. Continue running water for a few seconds after grinding is complete to flush the drain.
• Do not dispose of non-food items such as glass, metal, plastic, paper, or fabric.
• Avoid disposing of harsh chemicals, paint, or flammable liquids.
• Do not dispose of large quantities of fibrous materials like corn husks, artichokes, or onion skins at once.
• Disconnect power to the disposer before attempting to clear a jam, clean, or perform any maintenance.
• Бул шайман физикалык, сезүү же акыл-эс мүмкүнчүлүктөрү чектелүү же тажрыйбасы жана билими жок адамдар тарабынан колдонулушу үчүн арналган эмес, эгерде алардын коопсуздугуна жооптуу адам тарабынан шайманды колдонуу боюнча көрсөтмөлөр болбосо.

3. Пакеттин мазмуну

Орнотууну баштоодон мурун пакетте бардык компоненттер бар экенин текшериңиз:

• Bort TITAN 4000 Waste Disposer Unit
• Mounting Assembly (Sink Flange, Stopper, Mounting Ring, Gaskets)
• Дренаждык түтүктү монтаждоо
• Air Switch Button with Tubing
• Плунжер
• Fasteners and Installation Hardware

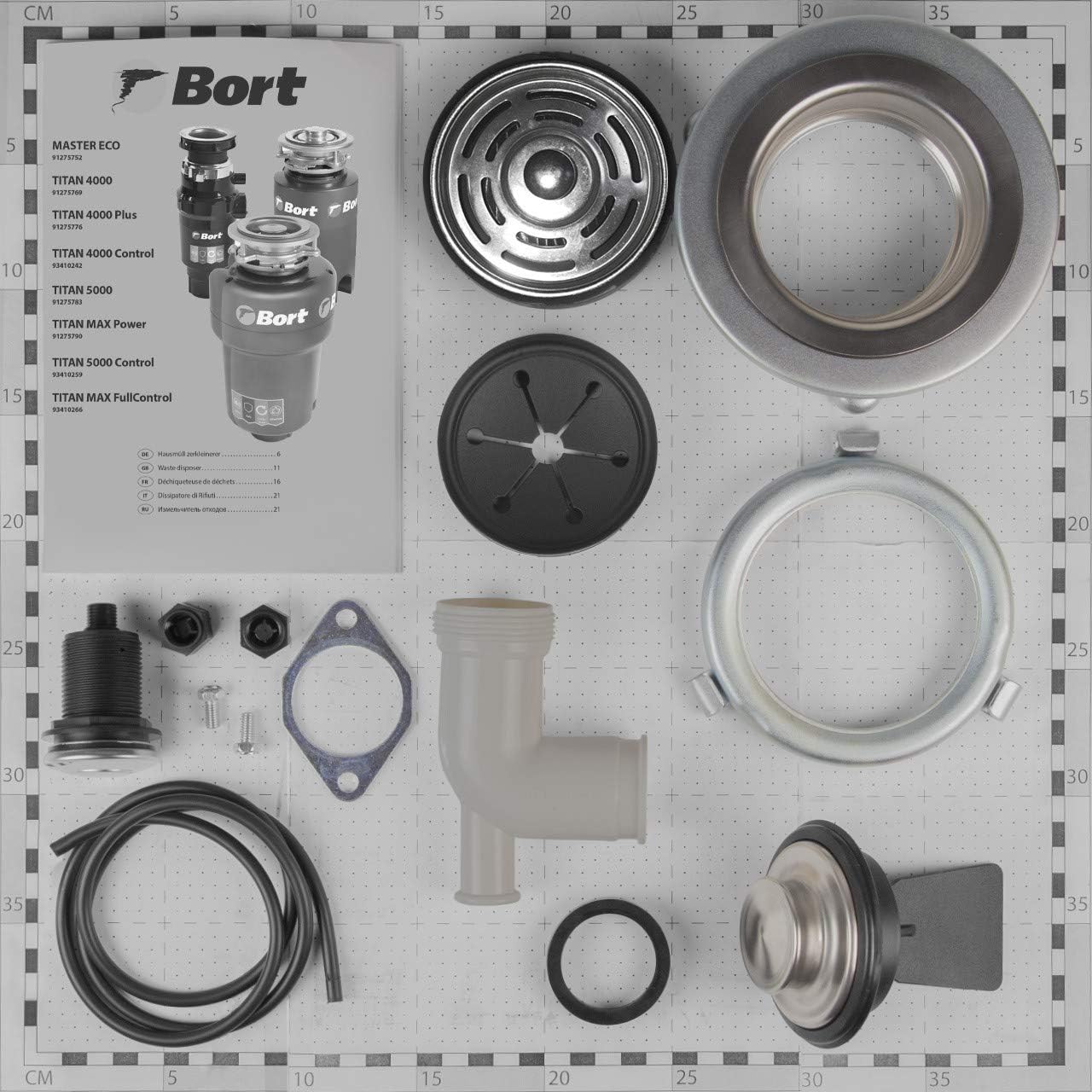

Сүрөт 3.1: Жарылып кеткен view showing all components included with the Bort TITAN 4000 Waste Disposer, laid out for easy identification during installation.

4. Орнотуу жана орнотуу

The Bort TITAN 4000 is designed for straightforward installation and is compatible with most standard sink openings. Professional installation is recommended if you are unfamiliar with plumbing or electrical work.

4.1 Орнотууга чейинки текшерүүлөр

• Ensure the sink opening is compatible with the disposer's mounting flange.
• Verify that there is an accessible electrical outlet under the sink, preferably controlled by a wall switch or the included air switch.
• Confirm adequate space under the sink for the disposer unit. Refer to the dimensions diagram below.

Image 4.1: Dimensional drawing of the Bort TITAN 4000 Waste Disposer, indicating key measurements for installation planning. The TITAN 4000 has a total height of 357 mm, a width of 170 mm, and a drain pipe offset of 79 mm.

4.2 Орнотуу кадамдары

1. Раковинанын оозун даярдоо: Remove any existing drain assembly from the sink. Clean the sink opening thoroughly.
2. Install Sink Flange: Apply plumber's putty around the underside of the sink flange. Insert the flange into the sink opening from above.
3. Assemble Mounting Ring: From below the sink, slide the fiber gasket, backup flange, and mounting ring onto the sink flange. Secure with the snap ring and tighten the mounting screws evenly until the flange is firmly seated.
4. Connect Disposer to Mounting Ring: Align the disposer's discharge outlet with the drain pipe. Lift the disposer and align the three mounting tabs on the disposer with the corresponding slots on the mounting ring. Twist the disposer until it locks into place.
5. Дренаждык түтүктү бекитүү: Connect the disposer's discharge outlet to the drain pipe assembly using the provided gasket and bolts. Ensure all connections are secure and leak-free.
6. Dishwasher Connection (Optional): If connecting a dishwasher, remove the dishwasher inlet plug from the disposer's inlet port using a screwdriver or punch. Connect the dishwasher drain hose to this port.
7. Аба өткөргүчтү орнотуу: Drill a hole in the countertop or sink for the air switch button. Insert the button and connect the air tubing from the button to the air switch port on the disposer.
8. Электр байланышы: Plug the disposer into a grounded electrical outlet.

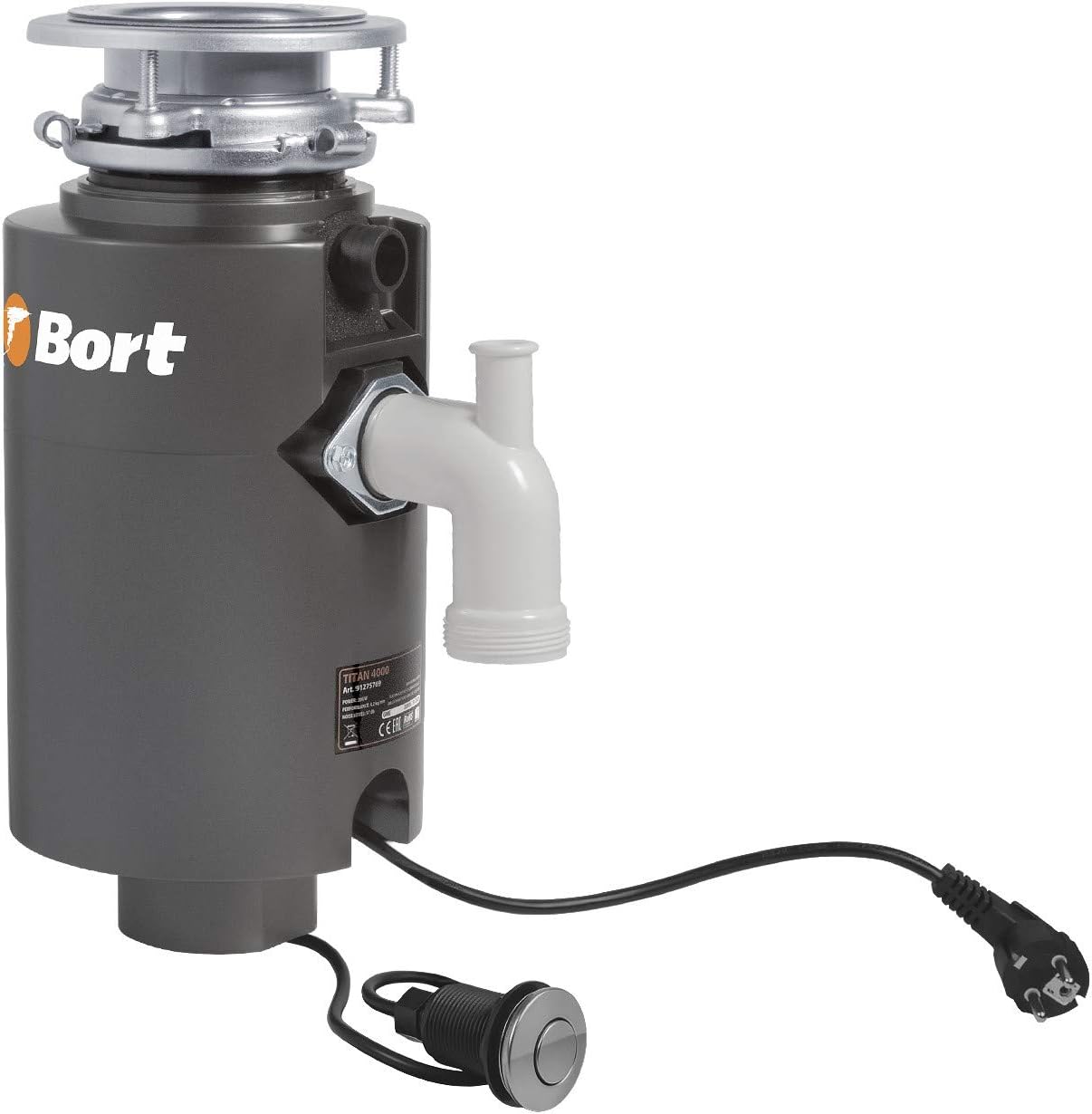

Image 4.2: The Bort TITAN 4000 Waste Disposer shown with its drain pipe assembly and air switch button, illustrating the typical setup under a sink.

5. Иштөө нускамалары

Follow these steps for safe and effective operation of your Bort TITAN 4000 Waste Disposer:

1. Муздак сууну күйгүзүү: Turn on the cold water tap to a moderate flow. This helps flush food particles and keeps the grinding chamber cool.
2. Жок кылуучуну иштетүү: Press the air switch button to turn on the disposer.
3. Тамак-аш калдыктары: Тамак-аш калдыктарын раковинанын тешигине акырындык менен куюңуз. Утилизаторду ашыкча жүктөбөңүз.
4. Continue Grinding: Allow the disposer to run until all food waste is processed and only the sound of running water and the motor is heard.
5. Таштанды чыгаруучуну өчүрүү: Аба өткөргүчтү өчүрүү үчүн аба өткөргүч баскычын кайра басыңыз.
6. Flush Drain: Continue running cold water for approximately 15 seconds after turning off the disposer to ensure all particles are flushed down the drain.

Image 5.1: The Bort TITAN 4000 Waste Disposer installed in a kitchen, demonstrating its integration into a modern kitchen environment for efficient food waste management.

6. Техникалык тейлөө

Proper maintenance ensures the longevity and efficient operation of your Bort TITAN 4000 Waste Disposer.

• үзгүлтүксүз тазалоо: To clean the grinding chamber and remove odors, grind small amounts of citrus peels (lemon, orange, lime) with cold water. This helps to scrub the chamber and leave a fresh scent.
• Avoid Grease Buildup: Do not pour grease or oil down the drain. Allow grease to solidify and dispose of it in the trash. For small amounts, flush with hot water and detergent.
• Терең тазалоо: For a more thorough cleaning, you can use specialized disposer cleaning products following their instructions.

7. Кыйынчылыктарды

Refer to this section for solutions to common issues you might encounter with your waste disposer.

7.1 Disposer Does Not Start

• Күчтү текшерүү: Ensure the disposer is properly plugged into a working electrical outlet.
• Калыбына келтирүү баскычы: Locate the red reset button on the bottom of the disposer unit (Image 7.1). Press it firmly. If it trips repeatedly, there may be an internal issue requiring professional service.
• Аба алмаштыргыч: Verify that the air switch tubing is securely connected to both the button and the disposer.

Image 7.1: The underside of the Bort TITAN 4000 Waste Disposer, highlighting the location of the red reset button for troubleshooting power issues.

7.2 Утилизатор ызылдайт, бирок майдалабайт

• Тыгылып калган майдалоочу тарелка: An object may be lodged between the grinding plate and the grinding ring.
• Чечим: Turn off the disposer and disconnect power. Use tongs or pliers to carefully remove the object. Never use your hands. If the object cannot be removed, use a wooden spoon handle to try and dislodge the grinding plate by rotating it back and forth.

7.3 Агышуулар

• Бошоң байланыштар: Check all plumbing connections (sink flange, drain pipe, dishwasher connection) for tightness. Tighten any loose bolts or nuts.
• Damaged Gaskets: Inspect gaskets for proper seating and any signs of damage. Replace if necessary.

7.4 Unpleasant Odors

• Food Buildup: Odors usually indicate food particles trapped in the grinding chamber or drain.
• Чечим: Follow the regular cleaning procedure described in Section 6. Ensure all food waste is thoroughly flushed after each use.

8. Техникалык шарттар

Technical specifications for the Bort TITAN 4000 Waste Disposer:

9. Кепилдик жана колдоо

Bort products are manufactured to high-quality standards and come with a manufacturer's warranty. For specific warranty terms, conditions, and duration, please refer to the warranty card included with your product or visit the official Bort webсайт.

For technical assistance, troubleshooting not covered in this manual, or to inquire about replacement parts, please contact Bort customer service through their official channels. When contacting support, please have your product model (TITAN 4000) and purchase information readily available.
