WOLFGANG 18V Portable Electric Air Compressor User Manual

1. Киришүү

Thank you for choosing the WOLFGANG 18V Portable Electric Air Compressor. This versatile and compact device is designed for convenient inflation of various items, including car tires, bicycle tires, sports balls, and small inflatables. Featuring an 18V Li-Ion battery, it offers cordless operation and a maximum pressure of 7.5 bar (100 psi). Please read this manual carefully before use to ensure safe and optimal performance.

2. Коопсуздук нускамалары

Өрт, электр шок жана жеке жаракат алуу коркунучун азайтуу үчүн электр шаймандарын колдонууда ар дайым негизги коопсуздук чараларын сактаңыз.

• Компрессорду иштетүүдөн мурун бардык көрсөтмөлөрдү окуп чыгыңыз.
• Компрессорду нымдуу шарттарда же күйүүчү суюктуктардын же газдардын жанында иштетпеңиз.
• Балдарды жана уруксаты жок адамдарды операциялык аймактан алыс кармаңыз.
• Wear appropriate eye protection during operation.
• Do not over-inflate items. Always check the recommended pressure for the item being inflated.
• Колдонулбай турганда же техникалык тейлөө иштерин жүргүзүүдөн мурун батареяны сууруп алыңыз.
• Use only the charger and battery specified by the manufacturer.
• Do not modify the compressor or its accessories.
• Ensure the air hose is securely attached before starting inflation.

3. Пакеттин мазмуну

Таңгактан чыгарганда бардык буюмдар бар экенин текшериңиз:

• WOLFGANG Portable Electric Air Compressor
• 18V Lithium-Ion Battery (1300 mAh)
• Батарея заряддагыч
• Pneumatic Hose (50 cm)
• Various Nozzle Adapters (for balls, inflatables, etc.)

4. Продукт бүтүп калдыview

Familiarize yourself with the components of your WOLFGANG air compressor.

1-сүрөт: WOLFGANG 18V Portable Electric Air Compressor, showing the main unit, detachable 18V Lithium-Ion battery, and battery charger.

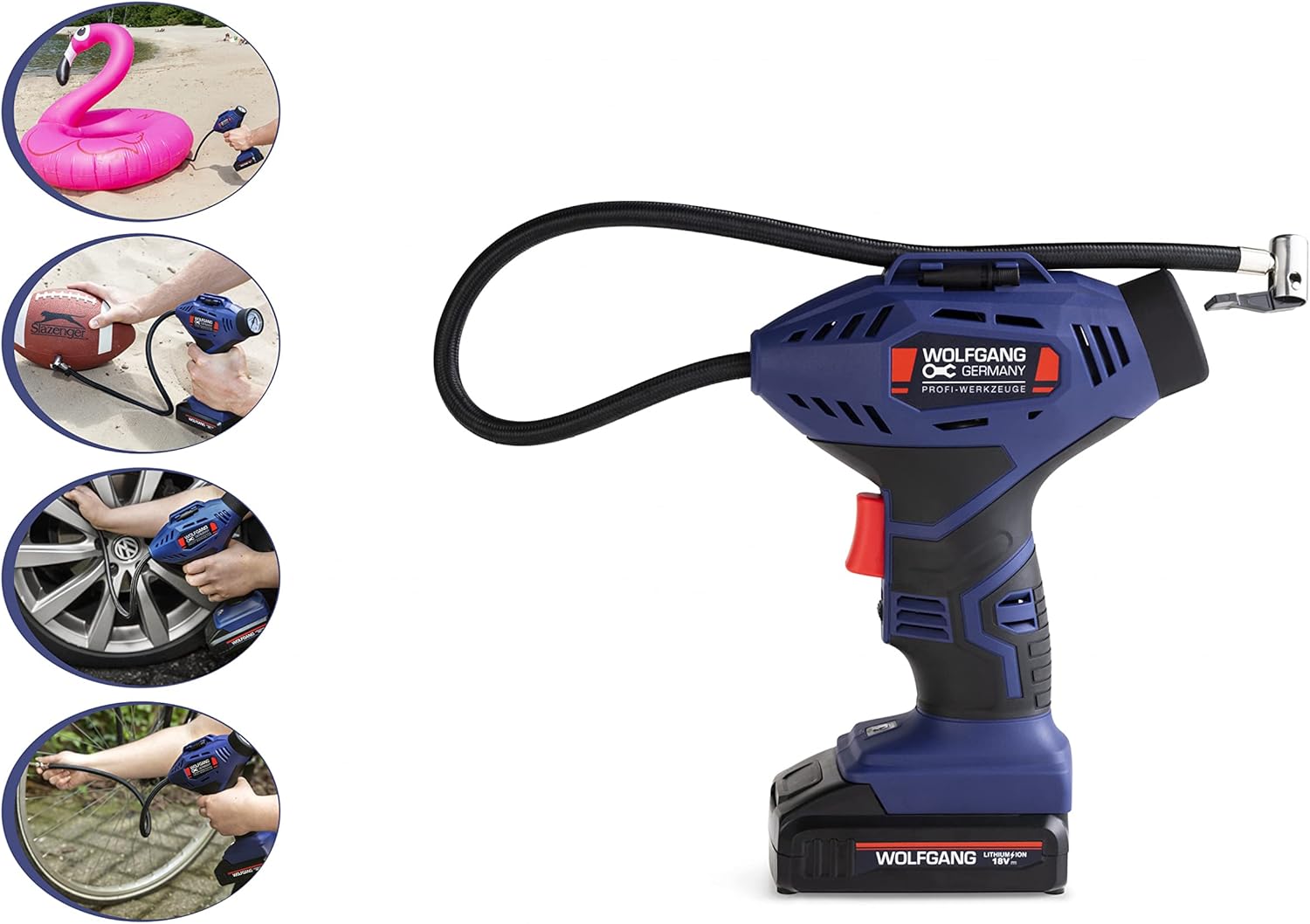

2-сүрөт: The air compressor being used to inflate a car tire, bicycle tire, sports ball, and a pool inflatable, demonstrating its versatility.

3-сүрөт: А деталдуу view of the integrated pressure gauge, displaying pressure readings in PSI, Bar, and kPa for accurate inflation.

4-сүрөт: Close-up of the convenient on-board storage for various nozzle adapters, ensuring they are always accessible when needed.

5. Орнотуу

5.1 Батареяны заряддоо

1. Insert the 18V Lithium-Ion battery into the provided charger.
2. Заряддагычты стандарттуу электр розеткасына сайыңыз.
3. Allow approximately 3-5 hours for a full charge. The charger's indicator light will typically change color or turn off when charging is complete.
4. Заряддалгандан кийин, батареяны заряддагычтан чыгарыңыз.

5.2 Attaching the Battery and Hose

1. Slide the fully charged battery into the base of the compressor until it clicks securely into place.
2. Connect the 50 cm pneumatic hose to the air outlet port on the compressor. Ensure it is tightly screwed on to prevent air leaks.
3. Select the appropriate nozzle adapter for the item you wish to inflate and attach it to the end of the pneumatic hose.

6. Иштөө нускамалары

6.1 General Inflation Procedure

1. Ensure the battery is charged and securely attached.
2. Attach the correct nozzle adapter to the hose and then to the item to be inflated.
3. Press the power button or trigger to start the compressor.
4. Monitor the pressure gauge closely. Do not exceed the recommended pressure for the item.
5. Once the desired pressure is reached, release the power button/trigger to stop the compressor.
6. Carefully disconnect the nozzle from the item and then detach the hose from the compressor.

6.2 Inflating Car/Bicycle Tires

• Use the standard Schrader valve adapter (usually pre-attached or included).
• Screw the adapter onto the tire valve stem.
• Inflate to the pressure recommended by the vehicle or bicycle manufacturer (typically found on a sticker inside the car door jamb or on the bicycle frame).

6.3 Inflating Sports Balls

• Attach the needle adapter to the hose.
• Carefully insert the needle into the ball's inflation port.
• Inflate to the recommended pressure, usually printed near the inflation port on the ball.

6.4 Inflating Other Items (e.g., Pool Floats)

• Select the appropriate cone-shaped nozzle adapter.
• Insert the nozzle firmly into the inflatable's valve.
• Inflate until the item is firm but not rigid, avoiding over-inflation which can cause damage.

Эскертүү:

• The compressor has a maximum airflow of 30 liters per minute.
• The battery provides approximately 15 minutes of continuous operation, depending on usage.

7. Техникалык тейлөө

7.1 Тазалоо

• Ensure the compressor is turned off and the battery is removed before cleaning.
• Компрессордун сыртын жумшак менен сүртүңүз, гamp кездеме. Катуу химиялык заттарды же абразивдүү тазалагычтарды колдонбоңуз.
• Тийиштүү муздатууну камсыз кылуу үчүн аба желдеткичтерин чаңдан жана таштандылардан тазалаңыз.

7.2 Батареяга кам көрүү жана сактоо

• Батареяны салкын, кургак жерде, тике күн нурунан жана экстремалдык температурадан алыс сактаңыз.
• Узак мөөнөттүү сактоо үчүн, батареяны болжол менен 50% сыйымдуулугуна чейин заряддаңыз.
• Recharge the battery every 3-6 months during long storage periods to maintain its lifespan.
• Do not store the battery completely discharged.

7.3 Storage of the Compressor

• Store the compressor in a dry, protected area when not in use.
• Keep the hose and nozzle adapters neatly stored to prevent damage. The compressor has on-board storage for adapters.

8. Кыйынчылыктарды

Эгер көйгөйлөргө туш болсоңуз, төмөнкү жалпы көйгөйлөрдү жана чечимдерди караңыз:

9. Техникалык шарттар

10. Кепилдик жана колдоо

For warranty information or technical support, please refer to the documentation included with your purchase or contact WOLFGANG customer service. Keep your proof of purchase for any warranty claims.
