1. Киришүү
This manual provides comprehensive instructions for the setup, operation, and maintenance of your Ducky One 2 RGB Full Size Mechanical Keyboard (Model DKON1808ST). The Ducky One 2 RGB features an updated design, an enhanced RGB interface for customizable lighting, and modern USB-C connectivity. Please read this manual thoroughly to ensure proper use and to maximize your keyboard's potential.
Сүрөт: жогорудан төмөнгө view of the Ducky One 2 RGB Full Size Mechanical Keyboard, showcasing its full layout and initial RGB lighting on specific keys.
2. Пакеттин мазмуну
Пакетте бардык буюмдар бар экенин текшериңиз:
- Ducky One 2 RGB Full Size Mechanical Keyboard (DKON1808ST)
- Ажыратылуучу USB-Cден USB-Aга кабели
- Additional PBT Double Shot Keycaps (random colors)
- Баскыч капкагын тарткыч
- Колдонуучунун Колдонмосу (бул документ)
3. Орнотуу
Follow these steps to set up your Ducky One 2 RGB keyboard:
- Таңылганын ачуу: Баскычтопту жана бардык аксессуарларды таңгактан кылдаттык менен чыгарып алыңыз.
- Кабелди туташтыруу: Locate the USB-C port on the back of the keyboard. Connect the USB-C end of the provided cable to the keyboard and the USB-A end to an available USB port on your computer.
- Күйгүзүү: Your computer should automatically detect the keyboard. No additional drivers are typically required for basic functionality.
- Кошумча программалык камсыздоо: For advanced RGB customization and macro programming, Ducky may provide optional software. Refer to the official Ducky website for the latest software downloads and instructions.
Image: Detail of the USB-C port on the Ducky One 2 RGB keyboard, showing the connection point for the detachable cable.
4. Иштөө нускамалары
4.1 Негизги баскычтоп функциялары
The Ducky One 2 RGB functions as a standard full-size keyboard. All keys perform their labeled actions. The keyboard features Cherry MX Brown switches, providing a tactile bump for keystroke confirmation.
Сүрөт: бурчтуу view of the Ducky One 2 RGB keyboard, showing the full layout and the illuminated RGB backlighting.
4.2 RGB Lighting Настройка
The Ducky One 2 RGB offers extensive lighting customization both through on-board controls and optional software.
- On-board Controls: Use the Function (Fn) key in combination with specific keys (often F10, F11, F12, or arrow keys) to cycle through lighting modes, adjust brightness, and change colors. Refer to the keyboard's keycap legends for specific combinations.
- Программалык камсыздоону ыңгайлаштыруу: For more detailed control, download the Ducky RGB software from the official Ducky website. This software allows for per-key lighting customization, advanced effects, and integration with systems like Razer's Chroma broadcasting.

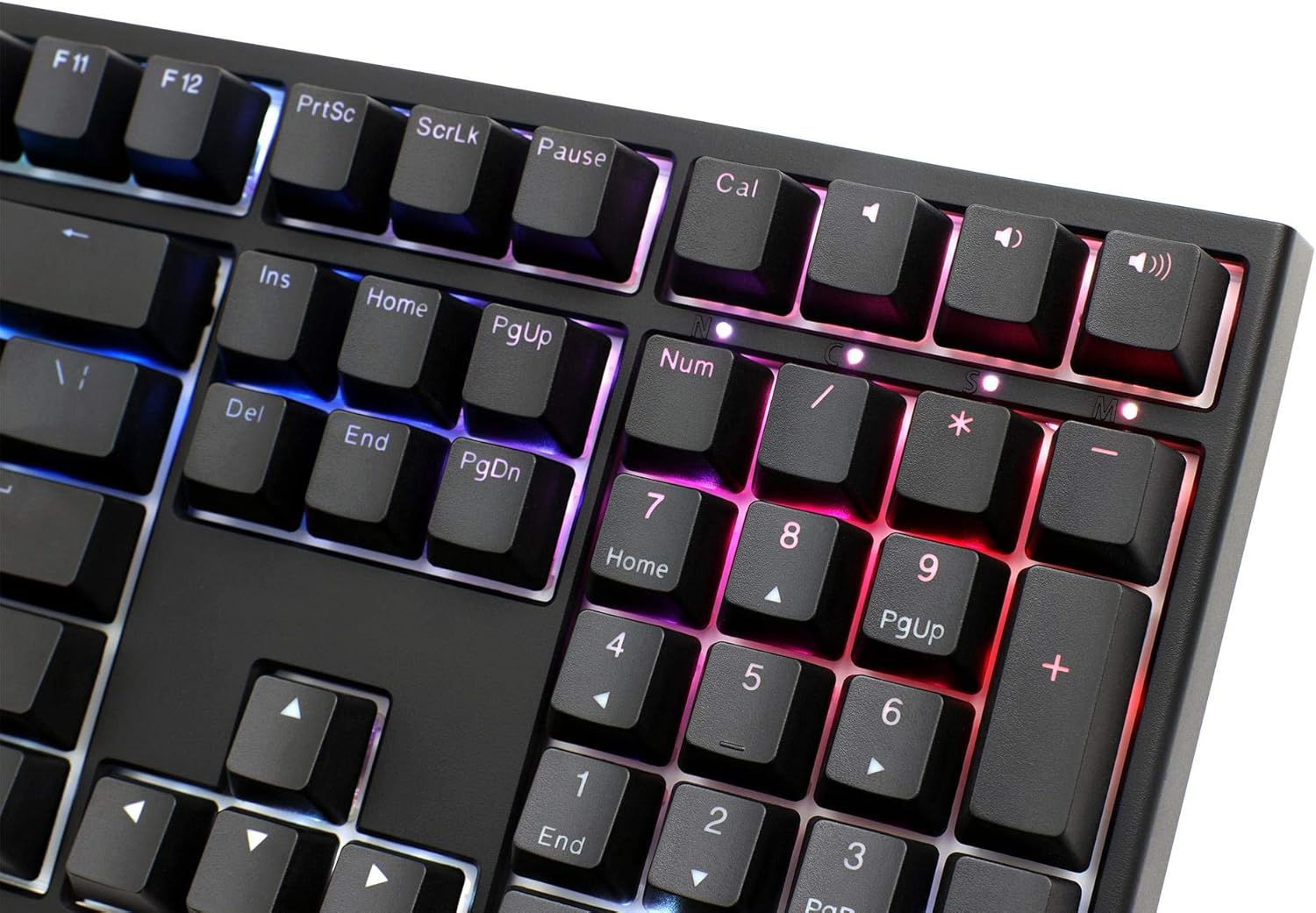

Image: Close-up of the numeric keypad on the Ducky One 2 RGB keyboard, demonstrating the customizable RGB lighting effects.
4.3 Макро программалоо
The Ducky One 2 RGB supports on-the-fly macro recording. Consult the detailed instructions on the official Ducky website or the full user manual for specific key combinations and procedures to record and assign macros.
4.4 N-Key оодарылып кетүү (NKRO)
The keyboard features USB N-Key Rollover, ensuring that every key press is registered accurately, even when multiple keys are pressed simultaneously. This is particularly beneficial for fast typing and gaming.
5. Техникалык тейлөө
Туура тейлөө клавиатураңыздын узак иштөөсүн жана иштешин камсыз кылат.
- Тазалоо:
- Компьютериңизден клавиатураны ажыратыңыз.
- Баскыч капкактарынын ортосундагы чаңды жана калдыктарды тазалоо үчүн жумшак щетка же кысылган абаны колдонуңуз.
- For stubborn dirt, gently wipe the keycaps with a damp кездеме жана жумшак самын эритмеси. Клавиатурага суюктуктун кирбегенин текшериңиз.
- Клавиатураны алып салуу: Use the provided keycap puller to carefully remove keycaps for cleaning or replacement. Grip the keycap firmly and pull straight up. Avoid excessive force to prevent damage to the switch.
Сүрөт: Side profile of the Ducky One 2 RGB keyboard, illustrating the keycap height and ergonomic design.
6. Кыйынчылыктарды
If you encounter issues with your Ducky One 2 RGB keyboard, refer to the following common solutions:
| Маселе | Мүмкүн болгон себеп / Чечим |
|---|---|
| Keyboard not detected by computer |
|
| RGB жарыгы иштебейт же шайкеш келбейт |
|
| Атайын баскычтар жооп бербей жатат |
|
7. Техникалык шарттар
- Модел: DKON1808ST
- Бренд: Ducky
- Которуу түрү: Cherry MX Brown
- Макет: Толук өлчөм
- Байланыш: USB-C (ажыратылуучу)
- Арткы жарыктандыруу: RGB
- Баскыч капкактары: Double Shot PBT and ABS
- N-Key Rollover: USB N-Key Rollover
- Салмагы: 771.11 г
- Операциялык системанын шайкештиги: Windows, Linux, macOS
8. Кепилдик жана колдоо
Ducky products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your product or visit the official Ducky website. For technical support, driver downloads, and frequently asked questions, please visit the Ducky support page:
Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
