Introduction
This manual provides detailed instructions for the installation, use, and maintenance of your MAAX B3Round Rectangular Acrylic Alcove Shower Base. To ensure proper function and longevity of your product, please read all instructions carefully before beginning installation and retain this manual for future reference.
Коопсуздук маалыматы
Орнотуу жана колдонуу учурунда төмөнкү коопсуздук чараларын сактаңыз:
- Professional installation is recommended to ensure compliance with local building codes and proper functionality.
- Always wear appropriate personal protective equipment (PPE), such as safety glasses and gloves, during handling and installation.
- Ensure the installation area is clean, dry, and free from obstructions.
- Verify that all plumbing connections are secure and watertight to prevent leaks.
- Do not stand or place excessive weight on the shower base before it is fully installed and supported.
Продукт бүттүview
The MAAX B3Round shower base is a durable acrylic unit designed for alcove installations. It features a rectangular shape with a smooth floor and a left-hand drain location, providing a clean and functional foundation for your shower enclosure.

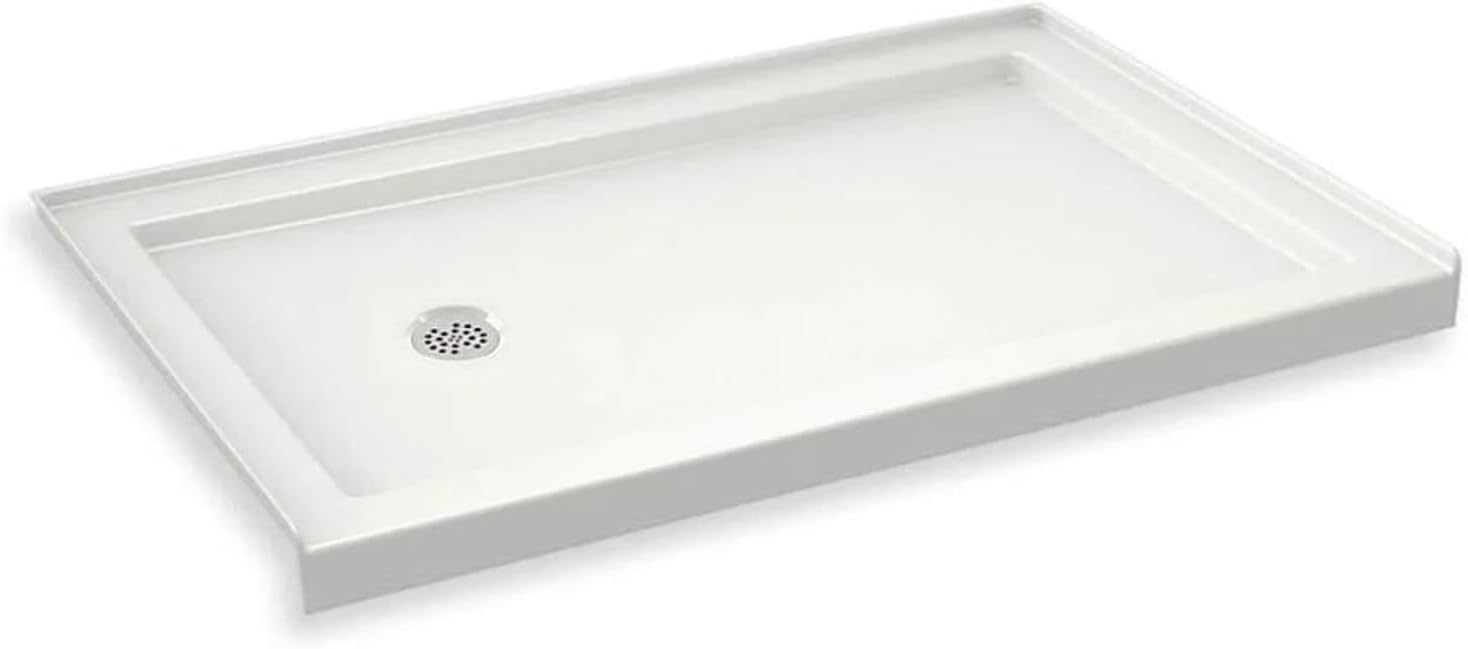

This image displays the MAAX B3Round Rectangular Acrylic Alcove Shower Base. It is white, rectangular, and features a smooth floor with a circular drain opening located on the left side when viewed from the front. The base has a low threshold design suitable for alcove installations.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | MAAX |
| Модел | B3Round |
| Материал | Акрил |
| Түс | Ак |
| Өлчөмдөрү (L x W x Y) | 59.875 дюйм x 35.875 дюйм x 4 дюйм |
| Орнотуу түрү | Alcove |
| Дренаждын жайгашкан жери | Left-Hand, Round |
| Босого бийиктиги | 3 дюйм |
| Полдун түрү | Жылмакай |
| Элемент Салмагы | 62 фунт |
| UPC | 623163631234 |
| Бөлүмдүн номери | 410006-L-501-001 |
Note: Drain assembly is not included with the shower base and must be purchased separately.
Орнотуу нускамалары
Follow these steps for proper installation of your MAAX B3Round shower base. Always refer to local plumbing and building codes.
- Сайтты даярдоо: Ensure the subfloor is level, clean, and structurally sound. Frame the alcove opening to the exact dimensions required for the shower base, allowing for wall finishes.
- Dry Fit: Place the shower base into the alcove without adhesive or plumbing connections to verify fit and levelness. Mark the drain location on the subfloor.
- Дренаждык орой: Install the rough plumbing for the drain according to local codes, ensuring it aligns with the marked drain opening on the base.
- Mortar Bed Preparation (Recommended): Apply a thin, even layer of mortar mix (not included) to the subfloor within the footprint of the shower base. This provides solid support and prevents flexing.
- Базаны коюу: Carefully place the shower base onto the mortar bed, aligning the drain opening with the rough-in plumbing. Press down firmly to ensure full contact with the mortar. Verify the base is level in all directions using a spirit level.
- Дренажды туташтыруу: Install the drain assembly (not included) to the shower base and connect it to the rough-in plumbing, following the drain manufacturer's instructions. Ensure all connections are sealed properly.
- Базаны коргоо: Once the mortar has cured and the drain is connected, secure the flanges of the shower base to the wall studs using appropriate fasteners (e.g., screws with washers), ensuring not to overtighten.
- Суу сыноо: Before proceeding with wall finishes, plug the drain and fill the shower base with a few inches of water. Let it sit for several hours to check for any leaks around the drain or plumbing connections.
- Бүтүрүү: Once the base is secure and leak-free, proceed with installing wall coverings (e.g., tile, panels) and apply silicone sealant along all seams where the base meets the walls.
Колдонуу эрежелери
After installation, the MAAX B3Round shower base is ready for use. Ensure that the shower enclosure is properly sealed and waterproofed to prevent water damage to surrounding areas. Avoid dropping heavy objects onto the base, as this may cause damage to the acrylic surface.
Техникалык тейлөө жана кам көрүү
To maintain the appearance and integrity of your acrylic shower base, follow these care instructions:
- үзгүлтүксүз тазалоо: Clean the shower base regularly with a soft cloth or sponge and a non-abrasive, mild household cleaner.
- Абразивтерден качыңыз: Do not use abrasive cleaners, scouring pads, steel wool, or harsh chemicals (e.g., acetone, paint thinner, strong acids/bases) as these can scratch or damage the acrylic surface.
- Дакты кетирүү: For stubborn stains, use a diluted solution of white vinegar and water, or a cleaner specifically designed for acrylic surfaces. Rinse thoroughly after cleaning.
- Чийүүлөрдүн алдын алуу: Avoid dragging rough or sharp objects across the surface.
- Дренажды тейлөө: Periodically remove and clean the drain cover to prevent hair and debris buildup, which can lead to clogs.
Проблемаларды чечүү
Бул жерде сиз кабылышы мүмкүн болгон жалпы маселелер боюнча чечимдер:
- Дренаждын айланасындагы агып кетүүлөр: Check the drain assembly for proper sealing. Ensure all gaskets are correctly seated and the drain nut is tightened sufficiently. Re-apply plumber's putty or silicone sealant if necessary.
- Суу бассейни: Verify that the shower base was installed perfectly level. If pooling occurs, it may indicate an uneven installation. Small amounts of residual water are normal.
- Жай дренаж: This typically indicates a clog in the drain pipe. Remove the drain cover and clear any hair or debris. If the clog persists, a plumbing snake may be required.
- Беттик сызаттар: Minor scratches on acrylic can sometimes be buffed out using a fine-grit plastic polish or automotive rubbing compound, followed by a plastic wax. For deep scratches, professional repair may be needed.
Кепилдик маалымат
MAAX products are manufactured to high-quality standards and typically come with a manufacturer's limited warranty. For specific details regarding the warranty period, coverage, and terms for your B3Round Rectangular Acrylic Alcove Shower Base, please refer to the official MAAX webсайтты же сатып алууда камтылган кепилдик документтерин. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.
Кардарларды колдоо
If you require further assistance, have questions about installation, or need to report a product issue, please contact MAAX customer support. You can typically find contact information, including phone numbers and online support portals, on the official MAAX webсайт (www.maax.com).
