1. Продукт бүтүп калдыview
The ETHERMA eTOUCH-eco Thermostat is an advanced, touch-sensitive device designed for precise temperature control in your living spaces. Its sleek, high-gloss white design integrates seamlessly into modern interiors, while its robust construction ensures long-lasting performance. This thermostat is specifically engineered for flush-mount installation and adheres to Ecodesign guidelines for energy efficiency.

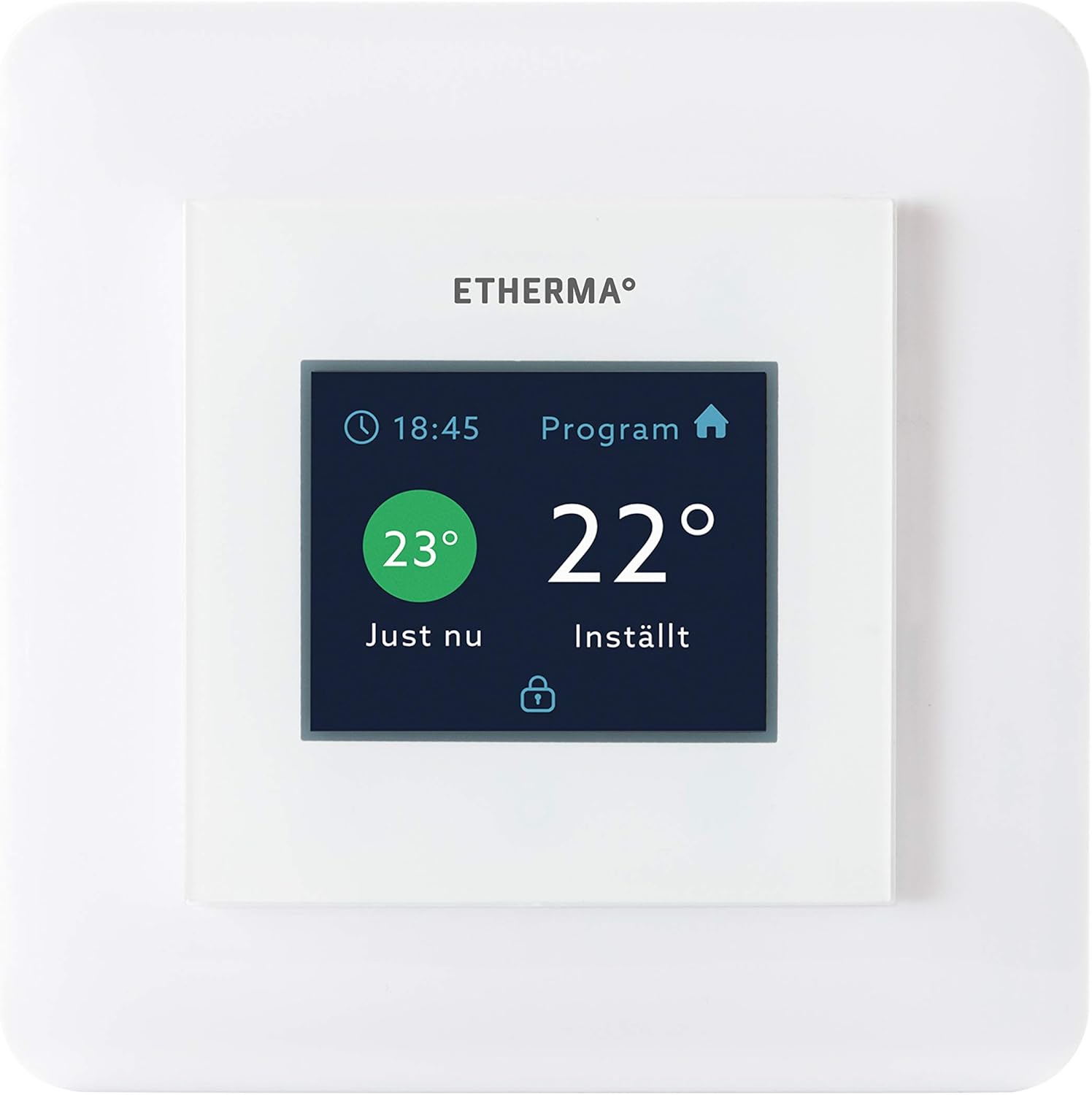

Сүрөт 1: Алдыңкы view of the ETHERMA eTOUCH-eco Thermostat, displaying its intuitive touch interface.
Негизги өзгөчөлүктөр төмөнкүлөрдү камтыйт:
- Touchpad Interface: Easy and intuitive temperature adjustment and program navigation.
- Кең температура диапазону: Capable of controlling temperatures from 5 to 35 degrees Celsius.
- Ecodesign Compliant: Designed for energy efficiency and environmental responsibility.
- Туруктуу курулуш: Built for reliability and longevity.

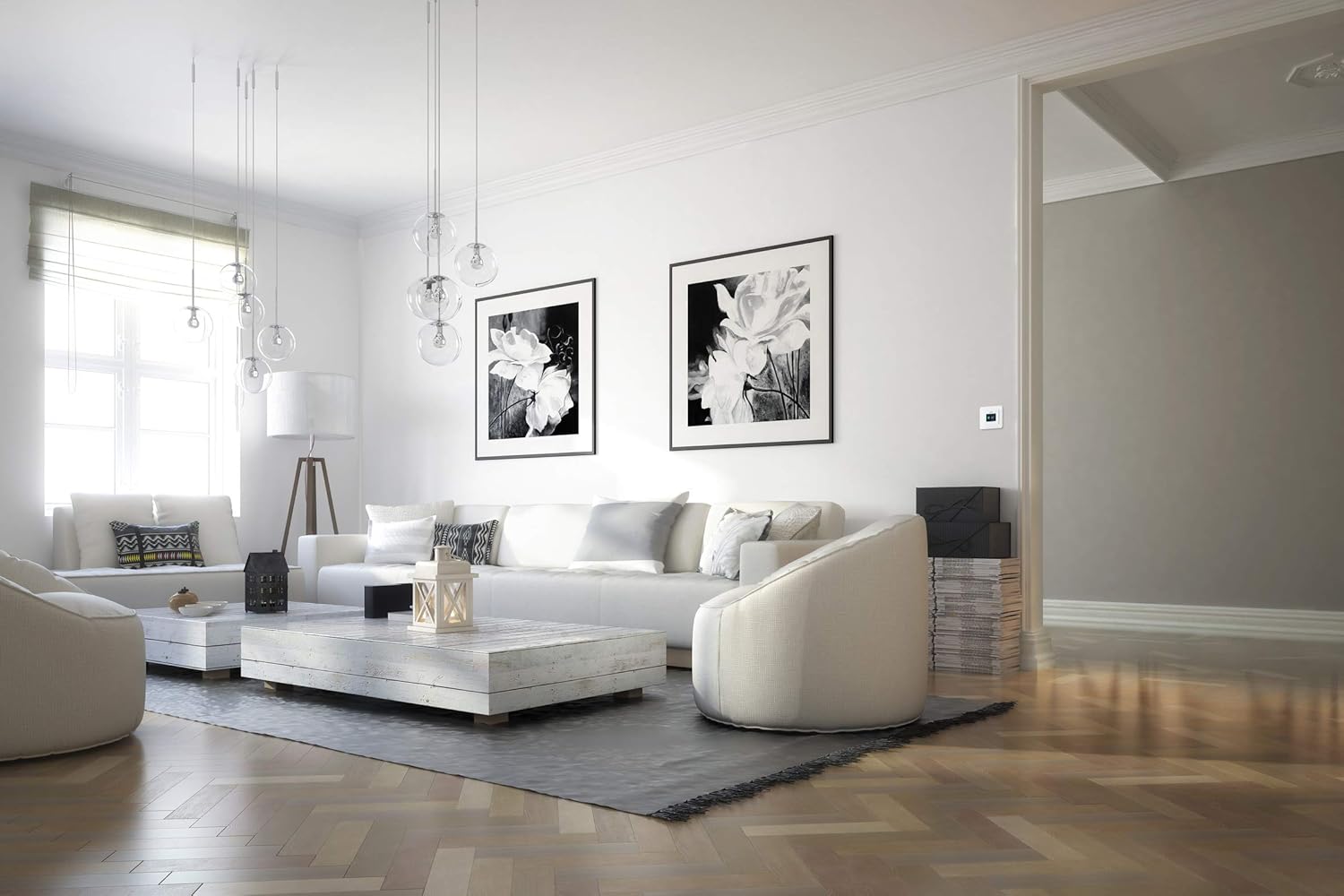

Figure 2: The ETHERMA eTOUCH-eco Thermostat seamlessly integrated into a contemporary living space.
2. Орнотуу
2.1 Пакеттен чыгаруу
Carefully remove the thermostat from its packaging. Verify that all components are present and undamaged. If any items are missing or damaged, contact your retailer immediately.
2.2 Орнотуу
The ETHERMA eTOUCH-eco Thermostat is designed for flush-mount installation. Due to the electrical nature of this device, professional installation by a qualified electrician is strongly recommended to ensure safety and proper functionality. Ensure the power supply to the installation area is disconnected before beginning any work.
- Монтаждоо жери: Ички дубалда, күндүн түз нурунан, шамалдан же температуранын көрсөткүчтөрүнө таасир этиши мүмкүн болгон жылуулук булактарынан алыс жайгашкан жерди тандаңыз.
- Зымдар: Follow the wiring diagram provided with the product packaging. Connect the thermostat to a 230 Volt power supply.
- Өлчөмдөрү: The thermostat is designed to fit standard switch boxes, with dimensions of approximately 55 x 55 mm for the visible face. The overall product dimensions are 33 x 34 x 13 cm.
2.3 Баштапкы күйгүзүү
Once installed and wired correctly, restore power to the circuit. The thermostat display should illuminate, and it may prompt you to set the date, time, and initial temperature settings. Follow the on-screen instructions.
3. Иштөө нускамалары
The eTOUCH-eco Thermostat features a user-friendly touchpad interface for all operations.
3.1 Basic Temperature Adjustment
To manually adjust the temperature, simply touch the temperature display area. Use the up/down arrows or slide gestures (if supported by the model) to set your desired temperature. The new setting will typically be applied immediately or after a short confirmation period.
3.2 Программалоо графиктери
The thermostat allows for programmable heating schedules to optimize comfort and energy savings. Access the 'Program' menu (as indicated on the display, see Figure 1) to set daily or weekly heating schedules. You can typically define different temperature settings for various times of the day (e.g., morning, day, evening, night).
- Программанын менюсуна кирүү: Tap the 'Program' icon or text on the display.
- Setting Time Periods: Define specific time blocks for each day.
- Assigning Temperatures: Set the desired temperature for each time block.
- Сактоо орнотуулары: Ensure you save your programmed schedule before exiting the menu.
3.3 Иштөө режимдери
Your thermostat may offer various operating modes, such as:
- Комфорт режими: Maintains your preferred comfort temperature.
- Экономикалык режим: Sets a lower, energy-saving temperature.
- Суукка каршы режими: Prevents temperatures from dropping below a critical point (e.g., 5°C) to protect pipes.
- Майрам режими: Allows you to set a specific temperature for an extended period while you are away.
Белгилүү бир режимди тандоо жана конфигурациялоо үчүн экрандагы менюну караңыз.
4. Техникалык тейлөө
4.1 Тазалоо
To maintain the appearance and functionality of your thermostat, clean it regularly. Use a soft, dry, or slightly damp cloth. Do not use abrasive cleaners, solvents, or chemical sprays, as these can damage the display and casing.
4.2 Жалпы кам көрүү
Avoid exposing the thermostat to extreme temperatures, direct sunlight for prolonged periods, or excessive moisture. Do not attempt to open the thermostat casing, as this may void the warranty and expose you to electrical hazards. All internal servicing should be performed by qualified personnel.
5. Кыйынчылыктарды
If you encounter issues with your ETHERMA eTOUCH-eco Thermostat, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Термостаттын дисплейи бош. | Электр энергиясы жок. | Check circuit breaker. Ensure proper wiring connections (consult an electrician). |
| Температураны туура эмес окуу. | Thermostat exposed to drafts or heat sources. | Мүмкүн болсо термостатты башка жерге коюңуз же аны тышкы таасирлерден коргоңуз. |
| Heating not turning on/off. | Incorrect program settings or wiring issue. | Verify program schedule and temperature settings. Check wiring (professional assistance recommended). |
| Сенсордук панел жооп бербей жатат. | Убактылуу программалык ката. | Try restarting the thermostat by temporarily cutting power at the circuit breaker. |
Эгерде бул чечимдерди колдонуп көргөндөн кийин да көйгөй чечилбесе, кардарларды колдоо кызматына же квалификациялуу техникке кайрылыңыз.
6. Техникалык шарттар
| Атрибут | Нарк |
|---|---|
| Бренд | Etherma |
| Модель номери | 40511 |
| Макала номери | 9120061393444 |
| Түс | White (Hochglanz) |
| Продукциянын өлчөмдөрү | 33 x 34 x 13 см |
| Элемент Салмагы | 260 грамм |
| Тtage | 230 вольт |
| Температура диапазону | 5-35 градус Цельсий |
| Дисплей түрү | LED |
| Controller Type | Touchpad / Push Button |
| Монтаж түрү | Wall Mount (Flush-mount) |
7. Кепилдик
Your ETHERMA eTOUCH-eco Thermostat is covered by a manufacturer's warranty. Please refer to the warranty information provided with your purchase documentation for specific terms, conditions, and duration. Keep your proof of purchase for any warranty claims.
8. Колдоо
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact your authorized ETHERMA retailer or visit the official Etherma website. Ensure you have your product model number (40511) and purchase details ready when contacting support.
Etherma Official Webсайт: www.etherma.com
