1. Киришүү
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your HECHT 5162 Ride-On Lawn Mower. Please read this manual thoroughly before operating the machine to ensure proper use and to prevent injury or damage.
The HECHT 5162 is a powerful and high-quality ride-on lawn mower designed for medium-sized areas. With its electric start, the mower is easily put into operation with a turn of the key. Its compact dimensions and small turning circle make it highly maneuverable, even in tight spaces and around obstacles. The spring-loaded seat and large tires offer comfortable operation.
2. Коопсуздук маалыматы
Always prioritize safety when operating the lawn mower. Failure to follow safety instructions can result in serious injury or death.
- Машинаны иштетүүдөн мурун бардык нускамаларды окуп, түшүнүңүз.
- Балдарды жана үй жаныбарларын операциядан алыс кармаңыз.
- Тиешелүү жеке коргонуу шаймандарын (ЖКК), анын ичинде көздү коргоону, угууну коргоону жана бекем бут кийимдерди кийиңиз.
- Never operate the mower under the influence of alcohol or drugs.
- Inspect the area for debris before mowing.
- Кандайдыр бир техникалык тейлөө же бөгөттөрдү тазалоодон мурун кыймылдаткычты өчүрүп, ачкычты алып салыңыз.
- Өтө тик эңкейиштерде иштебеңиз.
3. Орнотуу жана чогултуу
Before first use, ensure all components are correctly assembled and checked.
- Пакеттен чыгаруу: Carefully remove the mower and all accessories from the packaging. Retain packaging for future transport if needed.
- Handlebar/Steering Wheel Assembly: Attach the steering wheel securely. Ensure all bolts are tightened.
- Орнотуу: Mount the operator's seat. The spring-loaded seat provides comfortable operation.
- Grass Catcher Attachment: Attach the 130-liter grass catcher to the rear of the mower. Ensure it is securely latched.
- Суюктуктун деңгээли:
- Мотор майы: Check the oil level. The oil tank volume is 0.59 liters. Use recommended engine oil.
- Күйүүчү май: Fill the fuel tank with unleaded gasoline. The fuel tank volume is 1.8 liters.
- Шина басымы: Check and adjust tire pressure as per specifications for optimal performance and stability.
3.1-сүрөт: The HECHT 5162 Ride-On Lawn Mower. This image shows the overall view of the mower, including the seat, steering wheel, and grass catcher, ready for operation.
4. Иштөө нускамалары
Кыймылдаткычты иштетүүдөн мурун башкаруу элементтери жана иштөө тартиби менен таанышып алыңыз.
4.1. Моторду ишке киргизүү
- Унаа тормозунун иштетилгенин текшериңиз.
- Ачкычты от алдыргычка кыстарыңыз.
- Turn the key to the "START" position. The electric start system will engage the Briggs & Stratton 850 Series engine. Release the key once the engine starts.
- Allow the engine to warm up for a few moments before engaging the blades.
4.1-сүрөт: View of the steering wheel and dashboard area, showing the ignition key slot and other control indicators. The electric start is activated via the key.
4.2. Engaging the Blades
Locate the blade engagement lever. Slowly engage the blades once the engine is running smoothly.
4.3. Кесүү бийиктигин тууралоо
The cutting height can be adjusted in 4 steps, from 30 mm to 90 mm. Use the cutting height adjustment lever to select the desired height.
4.2-сүрөт: Close-up of the cutting height adjustment mechanism, typically located near the operator's seat. This allows for quick changes to the mowing height.
4.4. Gear Selection and Driving
The mower features 4 forward gears and 1 reverse gear. The maximum speed is up to 4.5 km/h.
- Select the desired gear using the gear lever.
- Slowly release the clutch (if applicable) or press the accelerator pedal to begin moving.
- Steer using the steering wheel. The compact design allows for a very small turning radius.
4.3-сүрөт: The gear lever, clearly marked with forward gears (1-4) and reverse (R), located conveniently next to the operator's seat for easy access during operation.
4.5. Emptying the Grass Catcher
The large 130-liter grass catcher is easy to empty. When full, disengage the blades, stop the engine, and use the telescopic rod to release and empty the catcher.

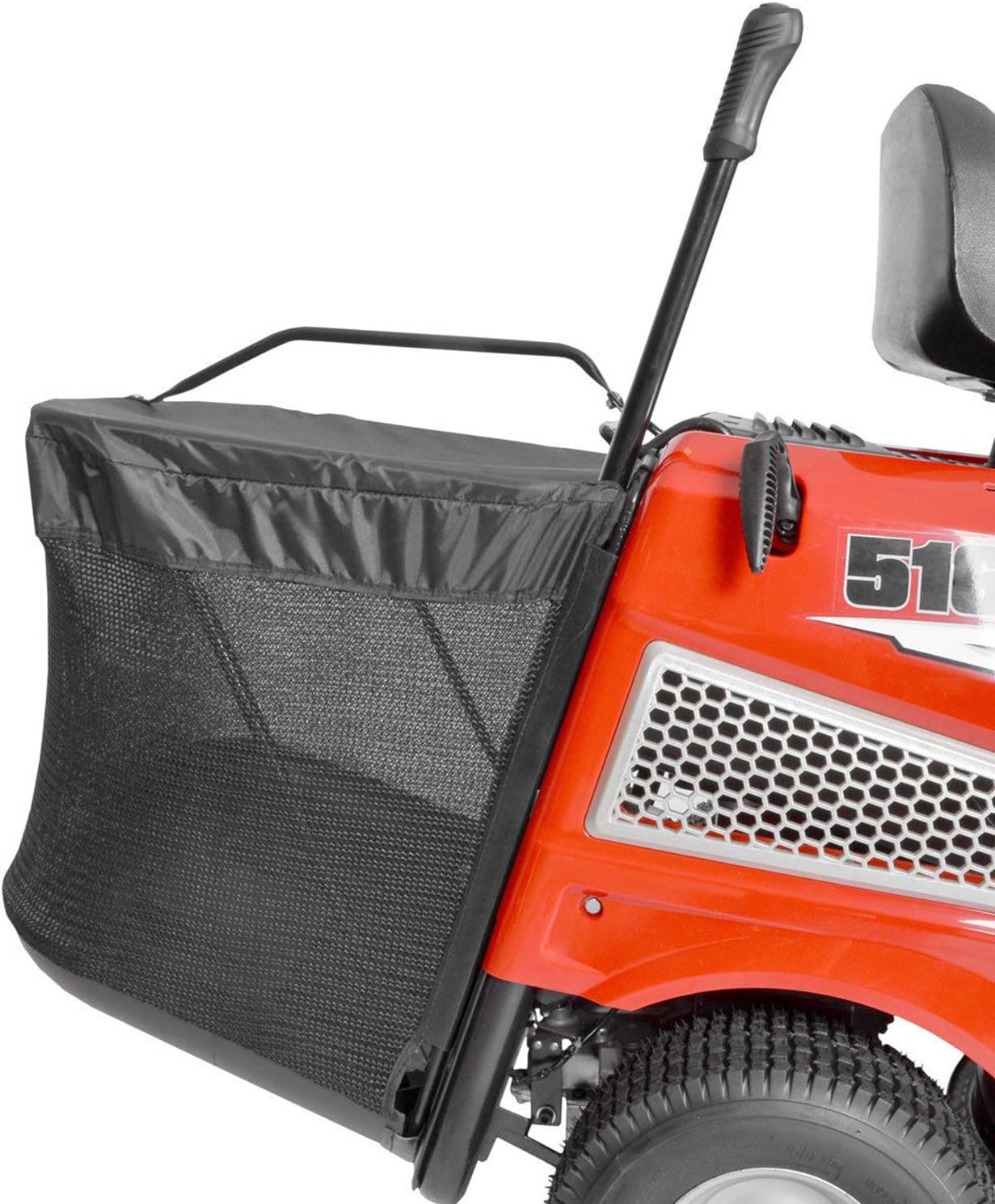

4.4-сүрөт: The large 130-liter grass catcher attached to the rear of the mower. It is designed for easy removal and emptying, reducing downtime during mowing.
4.6. Моторду токтотуу
- бычактарды ажыратыңыз.
- Чөп чапкычты толугу менен токтотуңуз.
- Тормозду иштетиңиз.
- От алдыргычтын ачкычын "OFF" абалына буруп, алып салыңыз.
5. Техникалык тейлөө
Regular maintenance is crucial for the longevity and optimal performance of your HECHT 5162 lawn mower.
- Engine Oil Check: Check engine oil level before each use. Change oil according to the engine manufacturer's recommendations (Briggs & Stratton).
- Аба чыпкасын тазалоо/алмаштыруу: Өзгөчө чаңдуу шарттарда аба чыпкасын дайыма тазалаңыз же алмаштырыңыз.
- От алдыргычты текшерүү: Шамды мезгил-мезгили менен текшерип, тазалап туруңуз. Эгер эскирген болсо алмаштырыңыз.
- Blade Inspection and Sharpening: Regularly inspect the cutting blades for sharpness and damage. Sharpen or replace blades as needed. Ensure blades are balanced after sharpening.
- Терраса тазалоо: Clean the underside of the cutting deck after each use to prevent grass buildup, which can affect cutting performance.
- Жалпы тазалоо: Keep the entire mower clean, especially cooling fins on the engine.
- Сактагыч: For long-term storage, ensure the fuel tank is empty or treated with a fuel stabilizer. Store in a dry, protected area.
5.1-сүрөт: View of the underside of the mower deck, showing the cutting blades and discharge chute. Regular cleaning of this area is essential for efficient mowing.

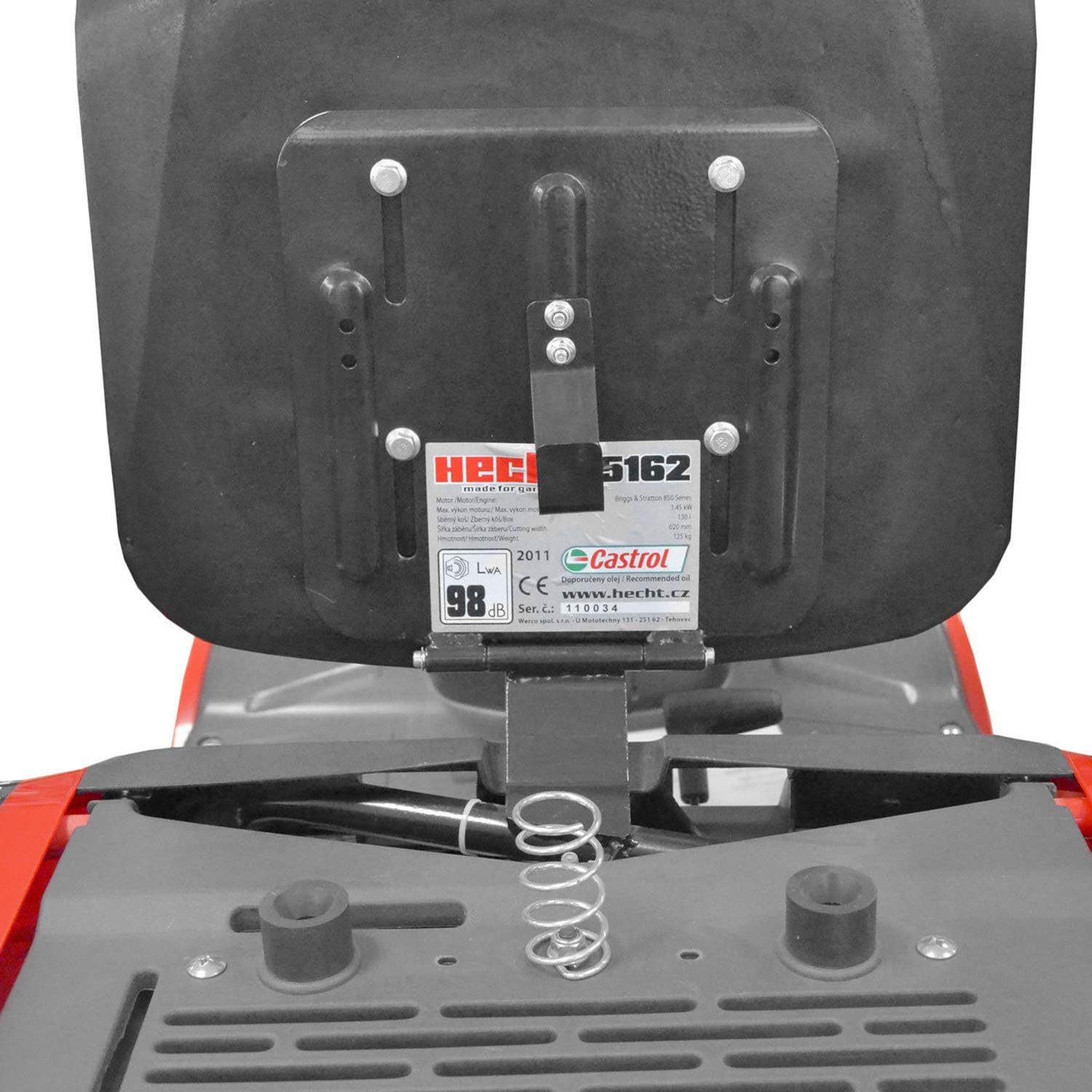

5.2-сүрөт: Product information label, typically found under the seat, providing model details, serial number, and other technical specifications. This information is useful for maintenance and ordering parts.
6. Кыйынчылыктарды
This section provides solutions to common operational issues. For problems not listed here, contact authorized service personnel.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Мотор иштебейт. | No fuel; Spark plug faulty; Battery low (for electric start); Safety switch not engaged. | Check fuel level; Inspect/replace spark plug; Charge battery; Ensure operator is seated and parking brake is engaged. |
| Начар кесүү көрсөткүчү. | Dull blades; Mower deck clogged; Cutting height too low for grass conditions. | Sharpen/replace blades; Clean mower deck; Adjust cutting height. |
| Ашыкча термелүү. | Damaged or unbalanced blades; Loose components. | Inspect blades for damage and balance; Tighten all fasteners. |
| Мотор күчүн жоготот. | Clogged air filter; Low fuel; Overheating. | Clean/replace air filter; Refuel; Allow engine to cool down. |
7. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Модел | HECHT 5162 |
| Мотор түрү | Briggs & Stratton 850 Series, Single-cylinder/4-stroke/OHV |
| Номиналдуу кубаттуулук | 3.45 kW / 4.7 PS (SAE J 1940) |
| Max. Engine Power | 4.78 kW / 6.5 PS at 3600 rpm |
| Көчүрүү | 190 см³ |
| Макс. Момент | 11.5 Нм |
| Күйүүчү май багынын көлөмү | 1.8 литр |
| Мунай резервуарынын көлөмү | 0.59 литр |
| Кесүү туурасы | 62 см |
| Кесүү бийиктиги | 30 – 90 мм |
| Number of Height Settings | 4 |
| Grass Catcher Volume | 130 литр |
| Gears саны | 4 Алга + 1 Артка |
| Өлчөмдөрү (L x W x Y) | 1820 мм x 770 мм x 1050 мм |
| Салмагы | 125 кг |
8. Кепилдик жана колдоо
HECHT products are designed for durability and performance. For warranty information and technical support, please refer to the warranty card included with your product or visit the official HECHT webсайт.
The Briggs & Stratton engine is supported by a wide network of authorized service partners. For engine-specific service and parts, contact a Briggs & Stratton service center.
For general inquiries or assistance, please contact HECHT customer service.
