Exmark / Toro 30" түпнуска OEM PTO куру, тетик № 121-5765 колдонуу боюнча колдонмо

Продукт бүттүview

This manual provides essential information for the Exmark / Toro 30" Genuine OEM PTO Belt, Part# 121-5765. This original OEM belt is manufactured by Exmark and is designed for specific walk-behind commercial lawnmowers, ensuring proper power transfer from the engine to the mower blades, crucial for efficient operation.

This belt is compatible with Exmark Model# ECS180CKA30000 and Toro Model# 22200 and 22205TE.

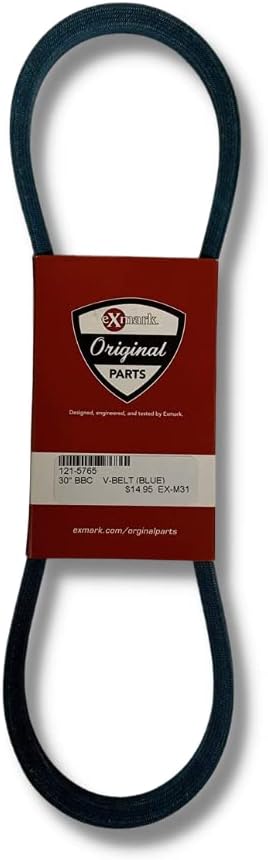

Image: The Exmark / Toro 30" Genuine OEM PTO Belt (Part# 121-5765) in its packaging, showcasing its blue color and official branding.

Орнотуу & Орнотуу

Proper installation of the PTO belt is critical for the safe and effective operation of your lawnmower. Always ensure the engine is off and the spark plug wire is disconnected before beginning any maintenance or installation procedures.

Керектүү куралдар:

• Appropriate wrench or socket set for removing and tightening bolts.
• Gloves for protection.

Орнотуу кадамдары:

1. Бел аймагына кирүү: Depending on your mower model (Exmark ECS180CKA30000, Toro 22200, or 22205TE), you may need to remove a protective cover or deck plate to access the PTO belt and pulleys. Use a drill or wrench to remove any securing bolts.

Image: An Exmark Commercial 30" walk-behind mower, illustrating the general type of equipment this belt is used with.
2. Эски курду алып салыңыз: Carefully observe the routing of the existing belt around the engine pulley, PTO pulley, and any idler pulleys. Note any tensioners or guides. If the old belt is broken, identify where it was routed. Use a wrench to loosen any tensioning mechanisms or bolts holding the pulleys if necessary to remove the old belt.


Сүрөт: жакын план view of the PTO belt, showing its texture and construction. This image can help in identifying the correct belt type.

3. Шкивдерди текшерүү: Before installing the new belt, inspect all pulleys for wear, damage, or excessive buildup of debris. Clean any grass clippings or dirt that may interfere with the new belt's operation.
4. Жаңы курду орнотуу: Route the new Exmark / Toro PTO belt (Part# 121-5765) exactly as the old one was. Ensure it sits correctly in all pulley grooves. This belt is blue, which can help in distinguishing it from other belts on the mower.

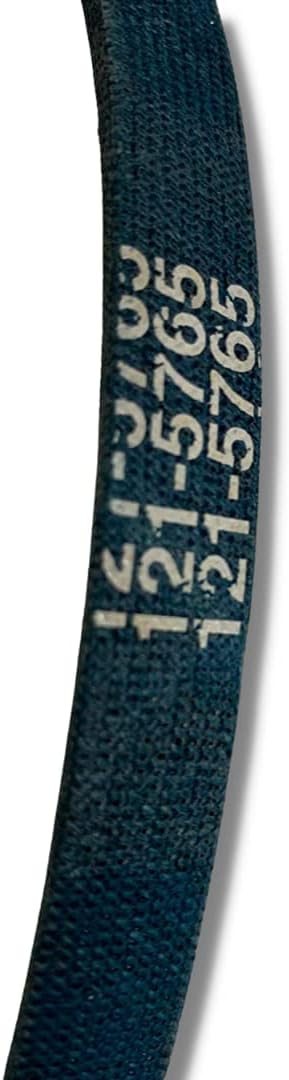

Сүрөт: деталдуу view of the new PTO belt, clearly showing the part number "121-5765" printed on its surface.

5. Курду тартыңыз: If your mower has an adjustable tensioner, apply the correct tension as specified in your mower's service manual. The belt should be snug but not overly tight, allowing for proper engagement and disengagement of the PTO.
6. Кайра чогултуу: Replace any covers or guards that were removed. Ensure all bolts are securely tightened.
7. Сыноо операциясы: Reconnect the spark plug wire. Start the mower and carefully engage the PTO to ensure the blades spin correctly and the belt operates smoothly without slipping or unusual noises.

Image: A Toro TimeMaster 30" walk-behind mower, another compatible model for this PTO belt.

Иштетүү жөнүндө ойлор

While this manual focuses on the PTO belt, its proper function is integral to the mower's operation. Always ensure the PTO is fully engaged or disengaged when operating. Avoid engaging the PTO at high engine RPMs, as this can cause excessive wear on the belt and clutch components. Disengage the PTO when transporting the mower or when not actively cutting.

Техникалык тейлөө

Regular inspection of your PTO belt can significantly extend its lifespan and prevent unexpected failures. It is recommended to inspect the belt before each mowing season or every 25 operating hours, whichever comes first.

Текшерүү пункттары:

• Жаракалар жана сыйрылып кетүүлөр: Look for any signs of cracking, fraying, or splitting along the belt's surface.
• Айнектөө: A shiny, hardened surface (glazing) indicates the belt is slipping and losing grip.
• Чоюу: An overly stretched belt will not maintain proper tension and can lead to slipping.
• Debris Buildup: Remove any accumulated grass, dirt, or other debris from around the belt and pulleys.
• Шкивди тегиздөө: Ensure all pulleys are properly aligned. Misalignment can cause premature belt wear.

Replace the belt immediately if any significant wear or damage is observed to maintain optimal performance and safety.

Проблемаларды чечүү

If you experience issues with your mower's PTO system, consider the following common problems and solutions related to the PTO belt:

For complex issues or if problems persist, consult a certified service technician or refer to your specific mower's service manual.

Техникалык шарттар

• Бөлүмдүн номери: 121-5765
• Модель номери: 121-5765-ФБА
• Бренд: Эксмарк
• Өндүрүүчү: Эксмарк
• Белдин түрү: PTO (Power Take-Off) Belt
• Белдин стили: Round Belt
• Түсү: Blue (as per product description)
• Элемент Салмагы: Болжол менен 3.84 унция (0.11 Kilogram)
• Пакеттин өлчөмдөрү: Болжол менен 13.27 x 3.35 x 0.59 дюйм
• Шайкештик: Exmark 30" Walk-Behind Commercial Lawnmowers (e.g., Model# ECS180CKA30000), Toro 30" Walk-Behind Lawnmowers (e.g., Model# 22200, 22205TE)
• Материал: Original OEM (Original Equipment Manufacturer) quality for durability and performance.

Кепилдик жана колдоо

As an Original Equipment Manufacturer (OEM) part, this Exmark / Toro PTO Belt (Part# 121-5765) is designed and manufactured to meet the exact specifications and quality standards of Exmark. OEM parts typically carry a manufacturer's warranty against defects in materials and workmanship.

For specific warranty details, claims, or technical support, please refer to the official Exmark or Toro website, or contact their customer service directly. Always retain your proof of purchase for warranty purposes.

Using genuine OEM parts ensures compatibility, reliability, and maintains the integrity of your equipment's original design and performance.
