Liectroux C30B Robotic Vacuum Cleaner User Manual

1. Киришүү

The Liectroux C30B Robotic Vacuum Cleaner is an advanced cleaning device designed to efficiently clean various floor types in your home. Featuring 2D map navigation, powerful 3000Pa suction, smart memory, and WiFi app control, it offers a convenient and thorough cleaning experience. This manual provides essential information for the safe and effective use of your robotic vacuum cleaner.

The Liectroux C30B Robotic Vacuum Cleaner, shown alongside a smartphone displaying its real-time cleaning map, highlights its smart navigation capabilities.

2. Коопсуздук нускамалары

Please read all safety warnings and instructions carefully before using this appliance to avoid injury or damage.

• Роботту нымдуу чөйрөдө же сууга жакын жерде колдонбоңуз.
• Ensure the charging station is placed against a wall in an open area, free from obstacles.
• Бошогон кабелдерди, пардаларды жана роботту жолунан тыгып алуучу башка нерселерди сактаңыз.
• Балдарга же үй жаныбарларына роботту иштетүүгө уруксат бербеңиз.
• Regularly clean the brushes and dustbin to maintain optimal performance and prevent blockages.
• The robot features an anti-fall system; however, exercise caution near stairs or elevated surfaces.

3. Кутуда эмне бар

Кутудан чыгарууда бардык компоненттер бар экенин текшериңиз:

• Main body (x1)
• Charging station (x1)
• Remote controller (x1) - Батареялар камтылган эмес
• AC адаптер (x1)
• Dust bin (x1)
• Electric water tank (x1)
• Extra mop (x1)
• Cleaning brush (x1)
• Extra side Brush (x2)
• Extra HEPA filter (x1)
• Колдонуучунун колдонмосу (x1)

An overview of all included accessories and the main unit of the Liectroux C30B Robotic Vacuum Cleaner.

4. Продукциянын өзгөчөлүктөрү

The Liectroux C30B is equipped with several advanced features for superior cleaning:

• 2D Map Navigation: The robot maps its environment to plan efficient cleaning paths, ensuring comprehensive coverage with low repetition.
• 3000Па Соруу кубаттуулугу: Ар кандай таштандыларды натыйжалуу тазалоо үчүн күчтүү сордурууну камсыз кылат.
• Акылдуу эс тутум: Remembers cleaned areas to optimize future cleaning routes.
• WiFi колдонмосун башкаруу: Connects to a mobile app for real-time monitoring of cleaning routes and remote control.
• 350ml Electric Water Tank: Ensures even water seepage for wet mopping, stopping automatically when the robot is idle.
• Үн менен эскертүү: Provides audio alerts for charging, cleaning status, dustbin full, and glitches.
• Interchangeable Dustbin and Water Tank: Allows for easy switching between vacuuming and mopping functions.
• Төмөн ызы-чуу операциясы: Designed for quieter cleaning, suitable for use even when people are present.
• Anti-Fall System: Detects stairs and drops to prevent falls.
• Шайкештик: Works with Amazon Alexa and Google Assistant for voice control.

The robot utilizes 2D map navigation to ensure thorough cleaning coverage with minimal repetition.

Designed for low noise operation, the Liectroux C30B maintains a quiet environment during cleaning.

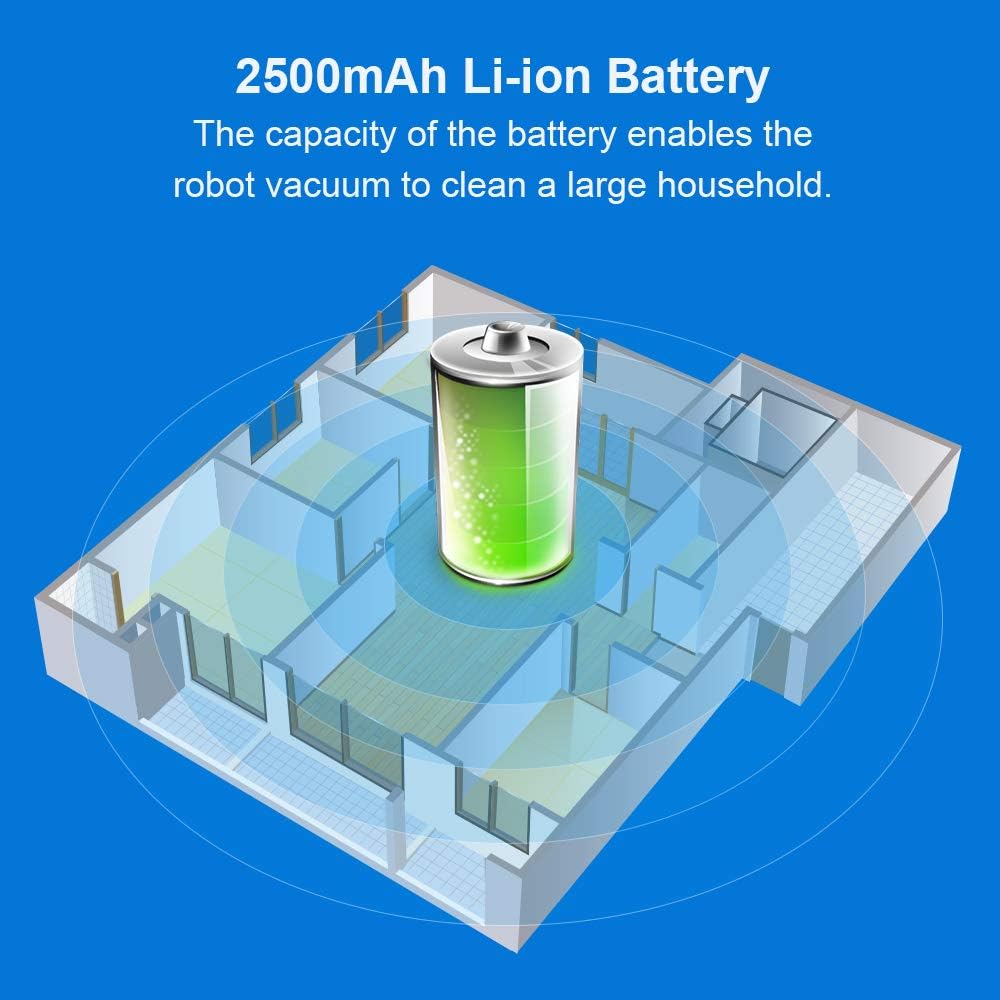

The 2500mAh Li-ion battery provides sufficient power for cleaning large households.

The electric water tank ensures controlled water release for effective wet mopping.

5. Орнотуу

1. Таңылганын ачуу: Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз.
2. Заряддоо станциясын жайгаштыруу: Place the charging station against a wall in an open, clutter-free area. Ensure there is at least 1 meter of clear space on either side and 2 meters in front of the station.
3. Туташуу кубаты: Plug the AC adapter into the charging station and then into a power outlet. The indicator light on the charging station should illuminate.
4. Баштапкы төлөм: Place the robot onto the charging station. Ensure the charging contacts on the robot align with those on the station. Allow the robot to fully charge before its first use (approximately 4-5 hours).
5. Каптал щеткаларды орнотуу: Attach the side brushes to the designated posts on the bottom of the robot until they click into place.
6. Колдонмого туташуу (милдеттүү эмес): Download the Liectroux app from your smartphone's app store. Follow the in-app instructions to connect your robot to your home WiFi network for advanced control and mapping features.

6. Иштөө нускамалары

The Liectroux C30B offers multiple operating modes:

• Автоматтык тазалоо: Press the power button on the robot or the remote control, or select 'Auto' in the app. The robot will automatically clean your home based on its mapped environment.
• Тазалоо: Place the robot in a specific area you want to clean intensively and select 'Spot' mode. The robot will clean in a spiral pattern.
• Четтерин тазалоо: Select 'Edge' mode to instruct the robot to clean along the walls and edges of your rooms.
• Пландаштырылган тазалоо: Use the mobile app to set a cleaning schedule for specific times and days.
• Нымдуу сүртүү: Fill the electric water tank with clean water and attach the mop cloth. Replace the dustbin with the water tank assembly. The robot will then perform wet mopping. Ensure to remove the water tank when not in use.

Monitor and control your robot's cleaning progress and map directly from the mobile app.

7. Техникалык тейлөө

Regular maintenance ensures optimal performance and extends the lifespan of your robot:

• Таштанды челекти бошотуу: Empty the dustbin after each use. Press the release button and remove the dustbin, then open and discard collected debris.
• Фильтрди тазалоо: Tap the HEPA filter to remove dust. For thorough cleaning, gently brush it. Replace the HEPA filter every 3-6 months, or as needed.
• Main Brush Cleaning: Use the provided cleaning brush to remove hair and debris from the main brush. Detach the brush cover to access the main brush.
• Каптал щеткаларды тазалоо: Remove any tangled hair or debris from the side brushes. Replace worn or damaged side brushes.
• Сенсор тазалоо: Wipe the cliff sensors and charging contacts on the robot and charging station with a clean, dry cloth.
• Суу резервуарды тейлөө: After wet mopping, empty any remaining water from the tank and allow it to air dry. Clean the mop cloth thoroughly.

8. Кыйынчылыктарды

If you encounter issues with your Liectroux C30B, refer to the following common solutions:

9. Техникалык шарттар

10. Кепилдик жана колдоо

Liectroux products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please refer to the contact details provided on the product packaging or the official Liectroux webсайт. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.
