BONECO U310 Ultrasonic Warm Mist Humidifier Instruction Manual

1. Киришүү

The BONECO U310 Ultrasonic Humidifier is designed to provide optimal indoor air quality with ease and efficiency. This 2-in-1 top-fill unit offers quiet operation and adjustable mist output levels, effectively adding moisture to rooms up to 860 square feet. Built with high-quality components, including a non-corrosive titanium membrane, the U310 ensures reliable performance. Its user-friendly design allows for simple water refilling and easy cleaning, supported by a 2-in-1 water filter for pure humidification without residue.

Сүрөт 1.1: Алдыңкы view of the BONECO U310 Ultrasonic Warm Mist Humidifier, showcasing its sleek design, control knob, and transparent water level window.

2. Орнотуу

1. Нымдаткычты таңгактан чыгарыңыз: Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз. Бардык таңгактоочу материалдар түзмөктүн ичинен алынып салынганын текшериңиз.
2. Жайгашкан жери: Place the humidifier on a flat, stable, and water-resistant surface. Ensure it is not placed directly on carpet or near walls to prevent moisture damage. The unit measures 12.10 inches long, 6.50 inches wide, and 12.79 inches tall.
3. Кубат туташуу: Plug the power cord into a suitable 120V AC electrical outlet.
4. Суу резервуарын толтуруңуз: Open the top lid of the humidifier. Fill the water tank with clean, cool tap water. The U310 features a convenient top-fill design. Do not exceed the maximum fill line. The unit has a capacity of 3.17 gallons.

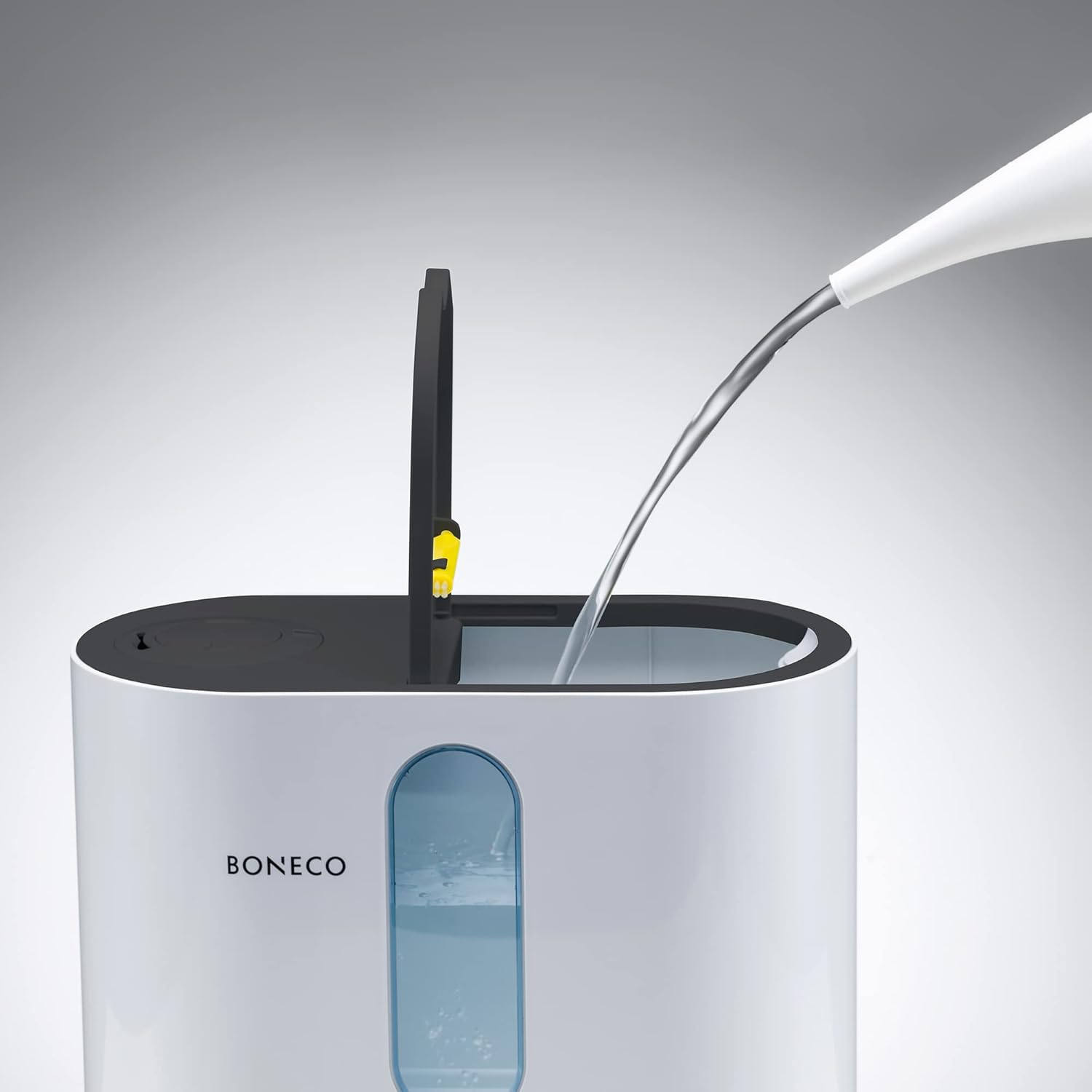

Figure 2.1: Illustrates the easy top-fill method for adding water to the BONECO U310 Humidifier.

2.2-сүрөт: Арткы view of the humidifier, highlighting the power cord and air vents.

3. Иштөө нускамалары

1. Күйгүзүү/өчүрүү: Press the power button on the control panel to turn the humidifier on or off.
2. Туман чыгарууну тууралоо: Use the mist level button to cycle through different mist output settings (low, medium, high). The ultrasonic technology ensures quiet operation.
3. Жылуу туман функциясы: Activate the warm mist feature by pressing the dedicated button. This provides a comfortable, warm mist for enhanced humidification.
4. Нымдуулукту көзөмөлдөө: Set your desired humidity level using the humidity button. The humidifier will automatically maintain this level, turning on and off as needed.
5. Таймер функциясы: Utilize the timer button to set a specific operating duration for the humidifier, up to 12 hours.
6. Уйку режими: Engage sleep mode to dim the display lights for undisturbed rest while the humidifier continues to operate.
7. Арома функциясы: For a pleasant fragrance, pull out the aroma tray located on the side of the unit. Add a few drops of your preferred essential oil to the aroma pad and reinsert the tray.

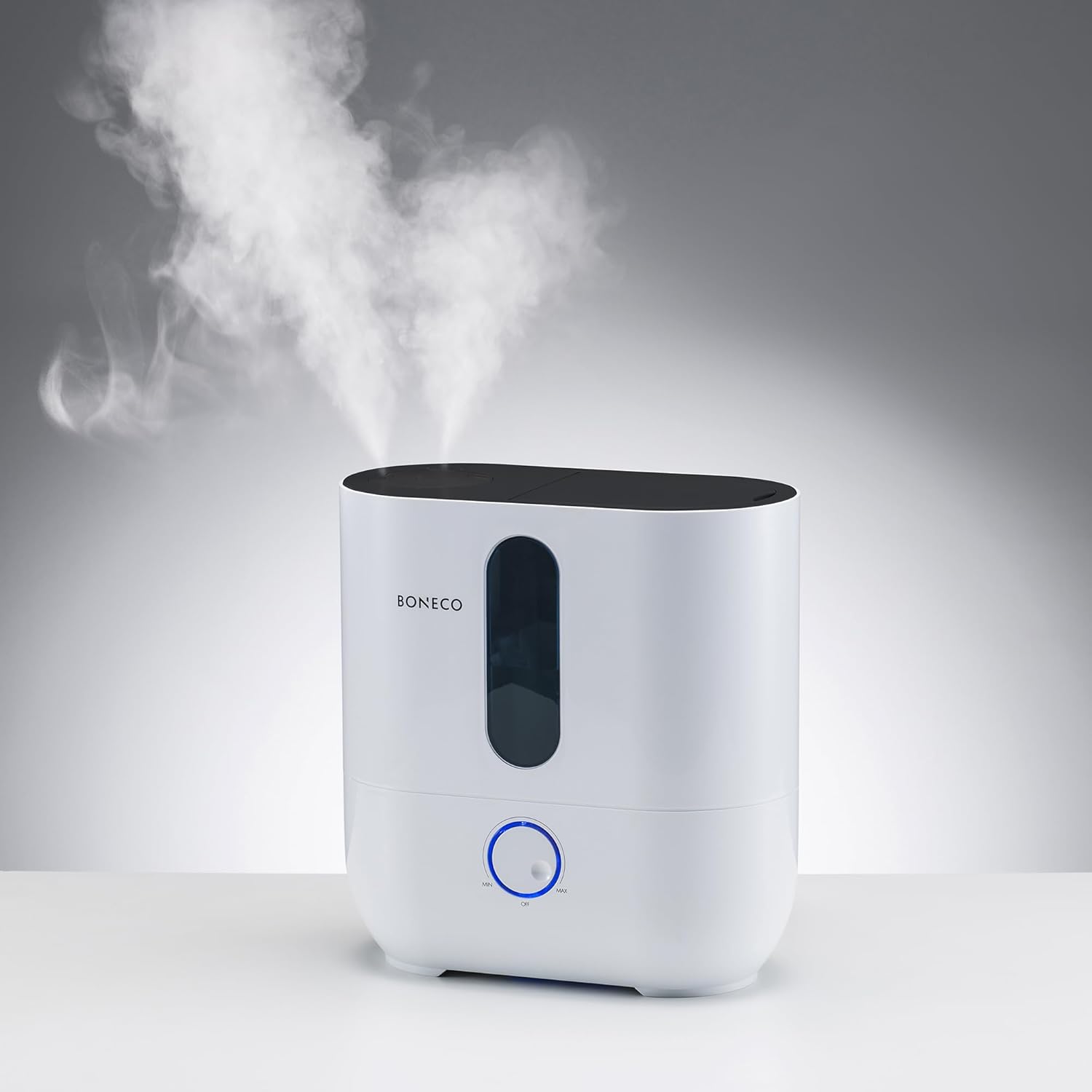

Figure 3.1: The BONECO U310 Humidifier actively releasing mist into the air, demonstrating its humidification capability.

Figure 3.2: Demonstrates how to access the aroma tray for adding essential oils.

Figure 3.3: Close-up of adding essential oils to the designated aroma pad.

4. Техникалык тейлөө

Regular maintenance is crucial for the longevity and optimal performance of your BONECO U310 Humidifier. The 2-in-1 water filter ensures pure humidification without leaving residue, but periodic cleaning is still necessary.

• Жалпы тазалоо: Clean the humidifier every 2-4 weeks of use. All components are designed for easy hand cleaning.
• Тазалоо: Use BONECO EZCal Cleaner & Descaler as recommended to prevent mineral buildup, especially if using hard water.
• Фильтрди тейлөө: Periodically check and clean the 2-in-1 water filter according to the user manual to maintain humidification efficiency.

5. Кыйынчылыктарды

If you encounter issues with your BONECO U310 Humidifier, please refer to the following common troubleshooting tips:

• Туман чыгаруу жок: Check if the water tank is empty. Ensure the unit is properly assembled and powered on. Verify that the mist output level is not set to zero.
• адаттан тыш ызы-чуу: Ensure the humidifier is placed on a flat, stable surface. Check for any foreign objects in the water tank or base.
• Суу агып кетиши: Confirm that the water tank cap is securely tightened and the tank is correctly seated on the base. Avoid overfilling the tank.
• Low Water Level Indicator: The tank window and low water level indicator will alert you when refilling is needed.

For further assistance, please contact BONECO customer support.

6. Техникалык шарттар

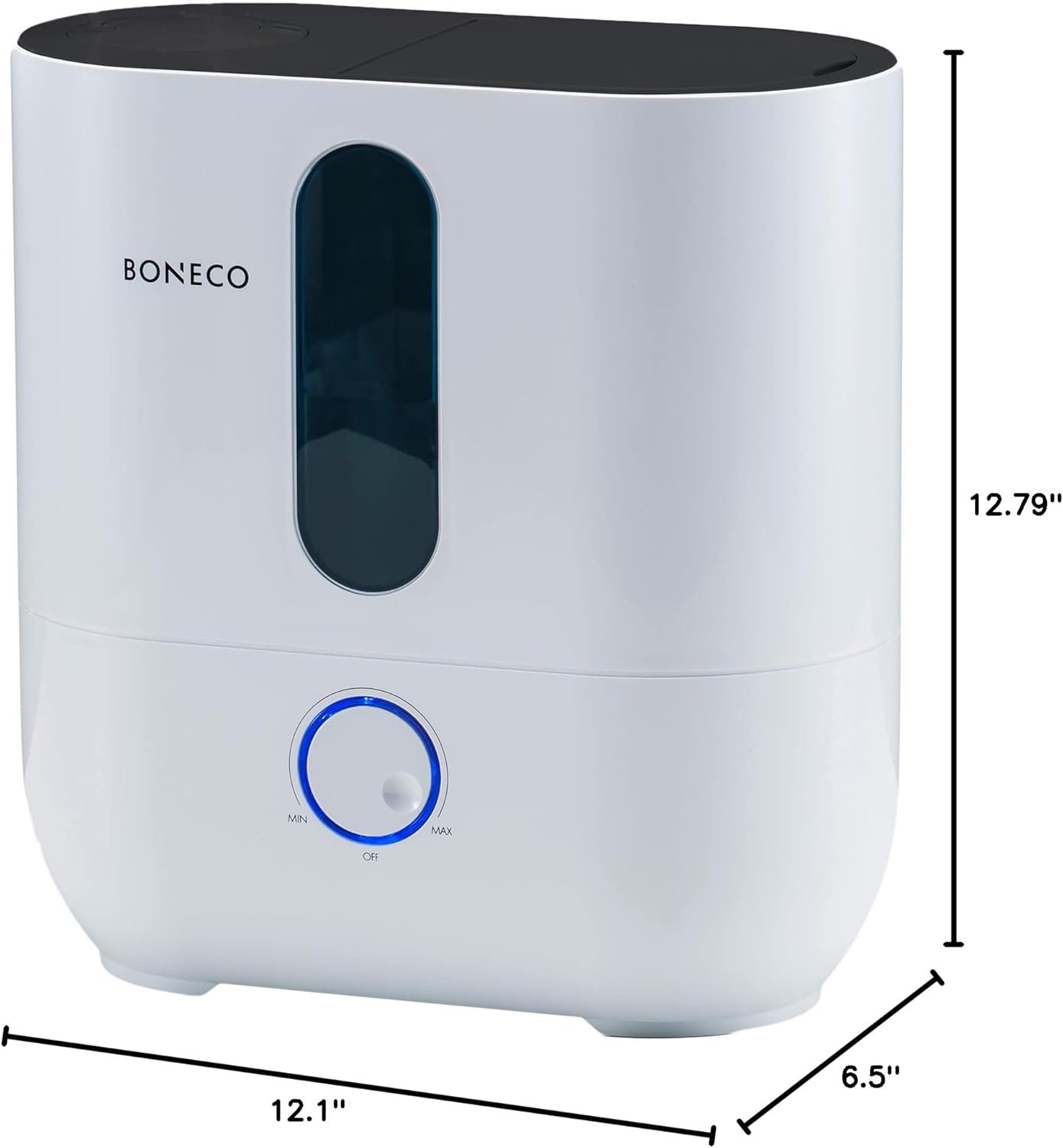

Figure 6.1: Product dimensions for the BONECO U310 Humidifier.

7. Кепилдик жана колдоо

BONECO products are backed by a commitment to quality and reliability. The parent company has been a trusted Swiss manufacturer since 1956.

• Кепилдик: The BONECO U310 Humidifier comes with a 3-year manufacturer's warranty. Please retain your proof of purchase for warranty claims.
• Кардарларды колдоо: For any questions, concerns, or technical support, please refer to the contact information provided in your product packaging or visit the official BONECO webсайт.
