Продукт бүттүview
The Ark Trailer Jack XO750 Black Edition Extreme is a heavy-duty trailer jack designed for robust performance. It features a square body, swivel clamp, and dual wheels with sealed bearings and off-road tread for enhanced mobility and stability. The jack is highly rust-resistant, having been salt spray tested for 600 hours.
Негизги өзгөчөлүктөрү
- Magnetic removable side-winding handle
- Heavy duty square body & swivel clamp
- 4 height positions (Max height 28")
- Variable yoke lock
- Easy-pivot trailing yoke design
- Dual wheel with sealed bearings and Off-road tread
- Highly rust resistant (salt spray tested for 600hrs)
- ПАТЕНТ КОРГООДО
Пакеттин мазмуну
The package includes the XO750 Black Edition Trailer Jack unit and a removable handle. All necessary mounting hardware is included.

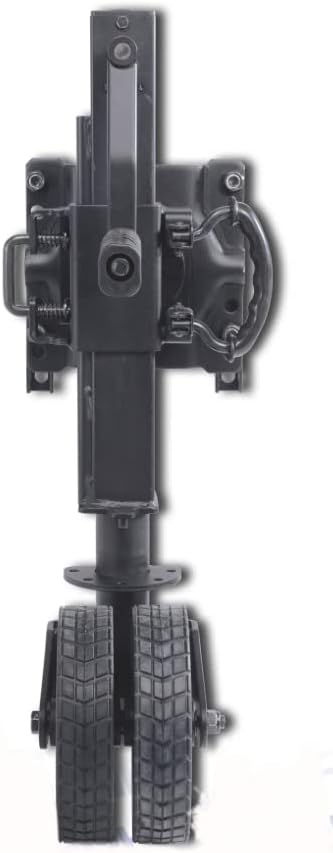

A black Ark Trailer Jack XO750 Black Edition Extreme, featuring dual wheels, a square body, and a side-winding handle.
Орнотуу жана орнотуу
Follow these steps to properly install your Ark Trailer Jack XO750 Black Edition Extreme.
Дөңгөлөктөрдү бекитүү
The dual wheels need to be attached to the main jack body. Ensure the long bolt and sleeve are correctly inserted through both wheels and secured.
Mounting the Jack to the Trailer
The jack features a universal bolt-on swivel mount. Position the jack on your trailer's frame, aligning the mounting holes. Use the provided brackets and bolts to securely fasten the jack. Ensure all bolts are tightened appropriately.
Тутканы бекитүү
The magnetic side-winding handle easily attaches to the top of the jack. Push the tab down, slide the handle on, and ensure it locks securely.
This video demonstrates the easy installation process of a trailer jack, including attaching the wheels and mounting it to the trailer frame. It also shows how to adjust the height and highlights the grease fitting for maintenance.
Иштөө нускамалары
Raising and Lowering the Trailer
To raise or lower the trailer, use the side-winding handle. Turn the handle clockwise to raise the trailer and counter-clockwise to lower it. The jack offers 4 height positions with a maximum height of 28 inches.
Swiveling the Jack
The jack features an easy-pivot trailing yoke design. To swivel the jack for storage or maneuvering, pull the pin to release the lock, rotate the jack to the desired position (e.g., tucked away along the trailer frame), and re-engage the pin to secure it.
Техникалык тейлөө
Regular maintenance ensures the longevity and optimal performance of your trailer jack.
Майлоо
The jack is equipped with a grease fitting. Periodically apply grease to this fitting to keep internal components well-lubricated and ensure smooth operation.
Дат каршылык
The XO750 Black Edition Trailer Jack is highly rust-resistant, having undergone 600 hours of salt spray testing. However, regular cleaning and inspection, especially after exposure to harsh environments, are recommended to maintain its protective coating.
Техникалык мүнөздөмөлөр
| Өзгөчөлүк | Спецификация |
|---|---|
| Load Capacity (Dynamic) | 1100 фунт |
| Load Capacity (Static) | 1650 фунт |
| Максималдуу көтөрүү бийиктиги | 28 дюйм |
| Бренд | Ark |
| Түс | Кара |
| Элемент Салмагы | 44.1 фунт |
| Өндүрүүчү | Ark |
| Модель номери | 051096 |
| Пакеттин өлчөмдөрү | 25 x 10.5 x 10 дюйм |
| Дата биринчи жеткиликтүү | 29-январь, 2019-жыл |
Кепилдик жана колдоо
The manufacturer offers a 1-year warranty for this product. For specific warranty claims, technical support, or service inquiries, please refer to the manufacturer's official contact channels or visit their webсайт.
