Zoom CMF-8 Camera Mount Adapter Instruction Manual

1. Продукт бүтүп калдыview

The Zoom CMF-8 is a specialized camera mount adapter designed to securely attach your Zoom F8 or F8n MultiTrack Field Recorder to a DSLR camera setup. This accessory facilitates integrated audio and video recording workflows by providing a stable connection between your recorder and camera.

The adapter is constructed for durability and features a standard camera screw for attachment, ensuring a reliable fit for compatible devices.

2. Пакеттин мазмуну

• Zoom CMF-8 Camera Mount Adapter (1 unit)

3. Орнотуу жана орнотуу

Follow these steps to properly install the CMF-8 Camera Mount Adapter with your Zoom F8/F8n recorder and DSLR camera.

3.1 Attaching the CMF-8 to the Recorder

1. Identify the four screw holes on the bottom of your Zoom F8 or F8n MultiTrack Field Recorder.
2. Align the CMF-8 adapter with these holes, ensuring the central camera screw is facing upwards.
3. Using appropriate screws (not included with the CMF-8, typically provided with the recorder or camera rig), securely fasten the four corners of the CMF-8 adapter to the recorder. Do not overtighten.

1-сүрөт: The CMF-8 adapter securely attached to the base of a Zoom F8/F8n recorder. The adapter's arms extend outwards, providing a stable platform.

3.2 Attaching the Recorder Assembly to a DSLR Camera

1. Locate the tripod mount thread on the bottom of your DSLR camera.
2. Position the recorder assembly (with the CMF-8 attached) directly beneath your DSLR camera.
3. Align the central camera screw of the CMF-8 adapter with the tripod mount thread on your DSLR camera.
4. kn айлантыңызurled screw on the CMF-8 adapter clockwise until the camera is firmly secured to the adapter. Ensure a snug fit to prevent movement, but avoid excessive force.

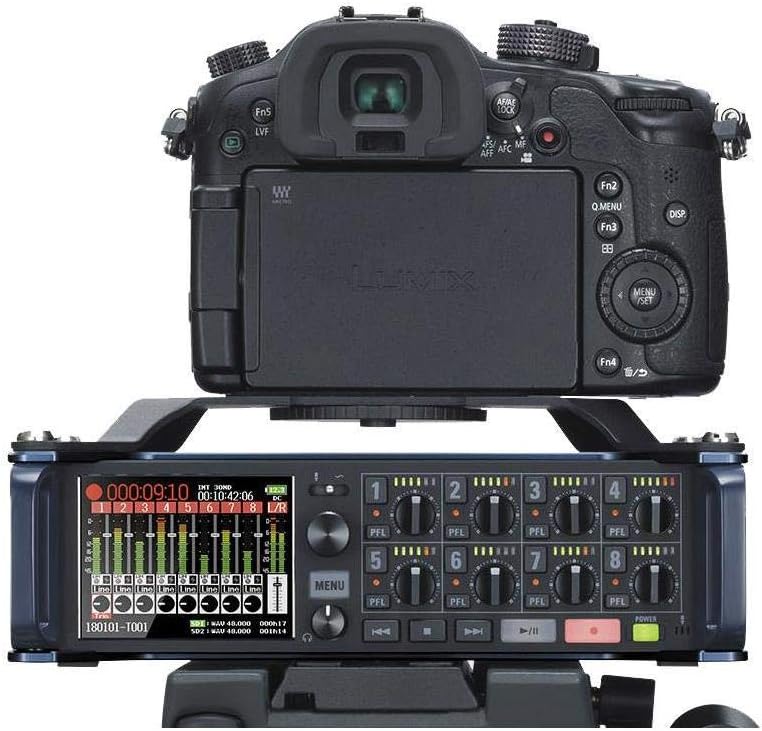

2-сүрөт: A Zoom F8/F8n recorder, equipped with the CMF-8 adapter, positioned directly below a DSLR camera. This configuration allows for integrated audio and video capture.

4. Операция

Once installed, the CMF-8 adapter provides a stable platform for your Zoom F8 or F8n recorder, allowing it to be mounted directly beneath a DSLR camera. This setup is ideal for filmmakers and videographers who require high-quality audio recording synchronized with their camera's video feed. The adapter ensures that both devices move as a single unit, simplifying handling and transport.

5. Техникалык тейлөө

The CMF-8 Camera Mount Adapter requires minimal maintenance. To ensure longevity and proper function:

• Periodically inspect all screws for tightness.
• Clean the adapter with a soft, dry cloth to remove dust or debris. Avoid using harsh chemicals or abrasive materials.
• Store the adapter in a dry environment when not in use.

6. Кыйынчылыктарды

If you encounter issues with the CMF-8 adapter, consider the following:

• Туруксуз байланыш: Ensure all screws attaching the adapter to the recorder and the recorder to the camera are tightened appropriately. Check for any obstructions preventing a flush fit.
• Шайкештик: Verify that your recorder is a Zoom F8 or F8n model. The adapter is specifically designed for these units.
• Damaged Threads: If the camera screw or tripod mount threads appear damaged, discontinue use and consider professional repair or replacement.

7. Техникалык шарттар

3-сүрөт: The Zoom CMF-8 Camera Mount Adapter, showcasing its design and central mounting screw.

8. Коопсуздук маалыматы

• Always ensure the adapter is securely fastened to both the recorder and the camera before operation.
• Do not overtighten screws, as this may damage the threads of the adapter, recorder, or camera.
• Тумчугуп калуу коркунучун болтурбоо үчүн кичинекей бөлүктөрүн балдардан алыс кармаңыз.
• Avoid dropping the adapter or subjecting it to strong impacts, which could compromise its structural integrity.
