1. Киришүү
This manual provides essential information for the safe and effective operation of the Yaskawa V1000 Series CIMR-VU4A0004FAA SERVO Drive. This industrial drive is designed for precise motor control applications, featuring a 3-phase input voltage range of 380-480V AC and an output voltage range of 0-480V AC, delivering 2 HP of power. Please read this manual thoroughly before installation, operation, or maintenance.
Figure 1.1: The Yaskawa V1000 SERVO Drive as packaged, including the drive unit, documentation, and a software CD.
2. Коопсуздук маалыматы
Always observe the following safety precautions to prevent injury or damage to equipment. This device operates with high voltages and currents that can be lethal.
- Электр шок коркунучу: Ensure all power is disconnected and verified before performing any installation, wiring, or maintenance. Wait at least 5 minutes for capacitor discharge after disconnecting power.
- Ысык беттик эскертүү: The heatsink and other components can become extremely hot during operation. Avoid direct contact to prevent burns.
- Квалификациялуу кадрларды: Орнотуу, зымдарды тартуу жана техникалык тейлөө иштери квалификациялуу жана даярдыктан өткөн персонал тарабынан гана жүргүзүлүшү керек.
- Негиздөө: To conform to CE requirements, ensure the supply neutral is properly grounded for 400V class systems.
- Экологиялык шарттар: Install the drive in an environment free from excessive dust, moisture, corrosive gases, or direct sunlight.
2.1-сүрөт: Каптал view of the drive, highlighting the heatsink and warning labels regarding hot surfaces and electric shock.
3. Орнотуу жана орнотуу
Proper installation is critical for the performance and longevity of the SERVO drive.
3.1 Физикалык орнотуу
Mount the drive vertically on a flat, stable surface, ensuring adequate clearance for ventilation. The drive dimensions are approximately 8.25 x 7.5 x 7 inches and it weighs 4.8 pounds.
3.1-сүрөт: Жогорку view of the drive, illustrating the heatsink fins designed for heat dissipation.
3.2 Электр зымдары
Connect the input power, motor, and control signals according to the wiring diagrams provided in the full product manual. Ensure correct phase sequence and proper grounding.
- Киргизүү күчү: 380-480V AC, 3-Phase.
- Чыгуу күчү: 0-480V AC, 3-Phase.
- Негиздөө: Connect the protective earth (PE) terminal to a reliable ground point.
3.2-сүрөт: Төмөнкү view of the drive, showing the main power and motor connection terminals.
4. Иштөө нускамалары
The V1000 drive features an intuitive control panel for monitoring and basic operation.
4.1 Башкаруу панелинин үстүнөview
The front panel includes a digital display, navigation buttons (ESC, UP, DOWN, LEFT, RIGHT, ENTER), and dedicated RUN/STOP buttons.
Сүрөт 4.1: Алдыңкы view of the drive, detailing the control panel with its display and operational buttons.
4.2 Негизги операция
- Күйгүзүү: After ensuring all wiring is correct and safe, apply input power. The display will illuminate.
- Параметр орнотуу: Use the navigation buttons to access and adjust operational parameters as required for your application. Refer to the comprehensive programming manual for detailed parameter descriptions.
- Баштоо/Токтоо: басыңыз RUN button to start the motor. Press the ТОКТОТ button to halt operation.
- Мониторинг: The display can show various operational data such as output frequency, current, and voltage.
5. Техникалык тейлөө
Regular maintenance ensures optimal performance and extends the lifespan of your V1000 SERVO drive.
- Тазалоо: Periodically clean the heatsink fins and ventilation openings to prevent dust accumulation, which can impede cooling. Ensure power is off and capacitors are discharged before cleaning.
- Текшерүү: Regularly inspect wiring connections for tightness and signs of wear or damage. Check for any unusual noises or odors during operation.
- Экологиялык текшерүү: Иштөө чөйрөсү белгиленген температура жана нымдуулук диапазондорунда калаарын текшериңиз.
6. Кыйынчылыктарды
This section provides general guidance for common issues. For detailed troubleshooting, refer to the full Yaskawa V1000 technical manual.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Диск күйбөйт | Киргизүү кубаты жок; Сактагыч күйүп кеткен; Туура эмес зымдар | Электр менен камсыздоону текшериңиз; Сактагычтарды текшериңиз; Зымдардын туташуусун текшериңиз. |
| Мотор иштебейт | Incorrect parameters; Motor wiring error; Drive fault | Verify parameter settings; Check motor connections; Check drive display for fault codes. |
| Ашыкча ысып кетүү эскертүүсү | Insufficient ventilation; Clogged heatsink; Overload | Ensure proper airflow; Clean heatsink; Reduce load or check motor sizing. |
7. Техникалык шарттар
Key technical specifications for the Yaskawa V1000 CIMR-VU4A0004FAA SERVO Drive:
| Параметр | Нарк |
|---|---|
| Модель номери | CIMR-VU4A0004FAA |
| Киргизүү көлөмүtage (AC) | 380 - 480 В-AC |
| Output Voltage (AC) | 0 - 480 В-AC |
| Фаза | 3PH |
| Күч | 2 HP |
| Продукциянын өлчөмдөрү | 8.25 x 7.5 x 7 дюйм |
| Салмагы | 4.8 фунт (болжол менен 1.9 кг) |
| Өндүрүүчү | ЯСКАВА |
| ASIN | B07NVYHM29 |

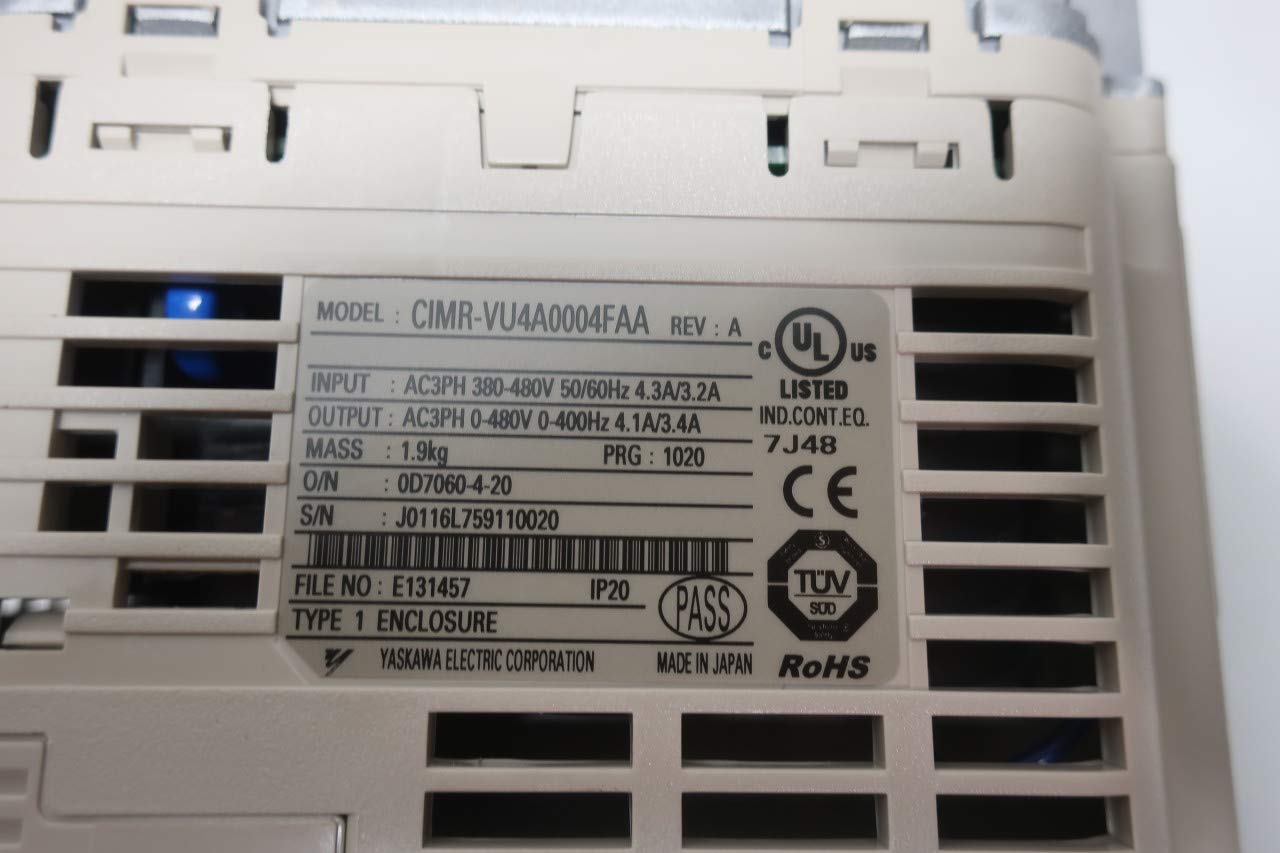

Figure 7.1: Product rating label showing model number, input/output specifications, and certifications.

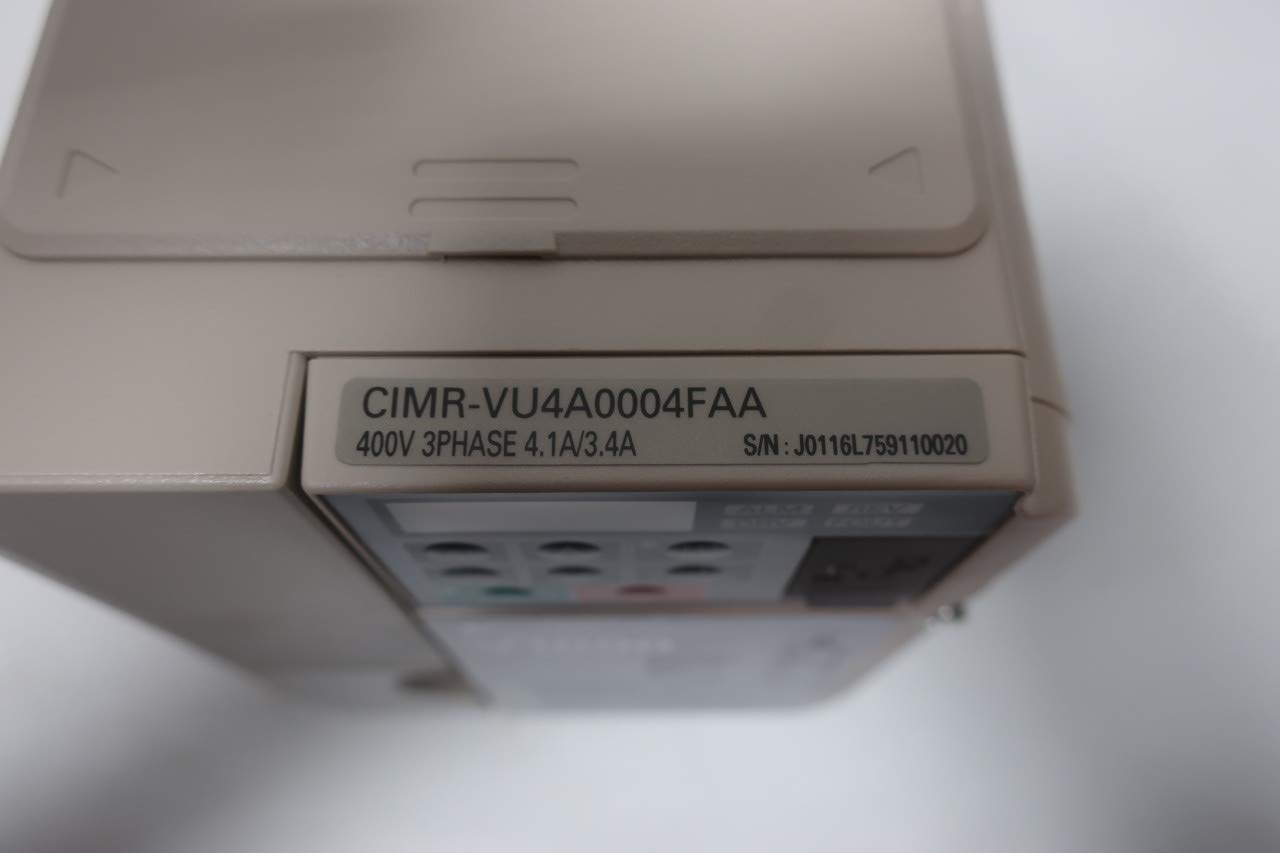

7.2-сүрөт: View of the drive unit displaying the model number CIMR-VU4A0004FAA.
Figure 7.3: Product box label confirming the model CIMR-VU4A0004FAA and other identifiers.
8. Кепилдик жана колдоо
For specific warranty terms and conditions, please refer to the official documentation provided by Yaskawa or contact Yaskawa customer support directly. Warranty coverage typically varies by region and purchase agreement.
For technical support, service, or to obtain detailed manuals, please visit the official Yaskawa webсайтына же алардын ыйгарым укуктуу тейлөө борборлоруна кайрылыңыз.
