1. Киришүү
This manual provides essential information for the safe and effective use of your Secura Mulching Blade, model 6384875. This blade is designed as a high-quality replacement part compatible with MTD 46 SPB-60 12C-668E600 lawn mowers. It is engineered from durable, wear-resistant tool steel, ensuring efficient grass cutting and mulching performance. Please read this manual thoroughly before installation and operation to ensure proper function and user safety.
Сүрөт 1.1: Толук view of the Secura Mulching Blade, showcasing its design and cutting edges.
2. Коопсуздук нускамалары
Always prioritize safety when handling lawn mower blades. Failure to follow these instructions can result in serious injury.
- Кубатты өчүрүү: Before performing any maintenance or installation on your lawn mower, ensure the engine is off and the spark plug wire is disconnected to prevent accidental starting.
- Коргоочу шаймандарды кийүү: Бычак менен иштегенде ар дайым бекем кол кап жана көздү коргоочу каражат кийиңиз. Бычактар курч жана катуу кесилиштерге алып келиши мүмкүн.
- Чөп чапкычты бекитиңиз: Tilt the mower carefully and secure it to prevent it from tipping over during blade removal or installation.
- Зыянды текшерүү: Before each use, inspect the blade for any signs of damage, cracks, or excessive wear. A damaged blade can be dangerous.
- Туура орнотуу: Бычактын туура орнотулганын жана өндүрүүчүнүн техникалык мүнөздөмөлөрүнө ылайык бекем бекитилгенин текшериңиз. Туура эмес орнотулган бычак иштөө учурунда ажырап кетиши мүмкүн.
3. Орнотуу жана орнотуу
Refer to your lawn mower's original instruction manual for specific blade removal and installation procedures. The following steps are general guidelines for installing the Secura Mulching Blade.
- Чапкычты даярдаңыз: Disconnect the spark plug wire. Tilt the mower onto its side, ensuring the carburetor and air filter are facing upwards to prevent fuel or oil leakage.
- Эски бычакты алып салуу: Using a wrench, carefully loosen and remove the bolt(s) holding the old blade in place. You may need a block of wood to prevent the blade from turning.
- Таза орнотуу аймагы: Чөп чапкычтын палубасындагы бычак орнотулган жерден чөп кыркылган жерлерди же таштандыларды тазалаңыз.
- New Blade орнотуу: Position the new Secura Mulching Blade onto the blade adapter. Ensure the blade is oriented correctly (the cutting edges should face the direction of rotation, typically upwards towards the deck). The central star-shaped hole and two smaller circular holes on the blade must align perfectly with the mower's blade adapter.
Image 3.1: Close-up of the blade's central mounting hole and two smaller holes, designed for secure attachment.
- Бычакты бекемдеңиз: Reinstall the blade bolt(s) and tighten them securely according to your mower's torque specifications. An unbalanced or loose blade can cause excessive vibration and damage.
- Check Balance: After installation, it is recommended to check the blade's balance. A properly balanced blade will rest horizontally on a blade balancer. If unbalanced, it may require professional balancing or replacement.
- От алдыргычты кайра туташтырыңыз: Бычак бекем орнотулгандан кийин, от алдыргычтын зымын кайра туташтырыңыз.
4. Иштөө принциптери
The Secura Mulching Blade is specifically designed to cut grass into fine clippings and recirculate them back into the lawn. This process, known as mulching, returns nutrients to the soil, promoting a healthier lawn.
- Mulching Action: Unlike standard blades that primarily discharge clippings, mulching blades have a unique design with additional curves and cutting surfaces that create a stronger airflow within the mower deck. This airflow keeps the grass clippings suspended longer, allowing them to be cut multiple times into smaller pieces.
- Оптималдуу шарттар: For best mulching results, mow when the grass is dry and not excessively long. Cutting no more than one-third of the grass blade length at a time is recommended.
- Артыкчылыктары: Mulching reduces the need for bagging clippings, saves time, and naturally fertilizes your lawn.

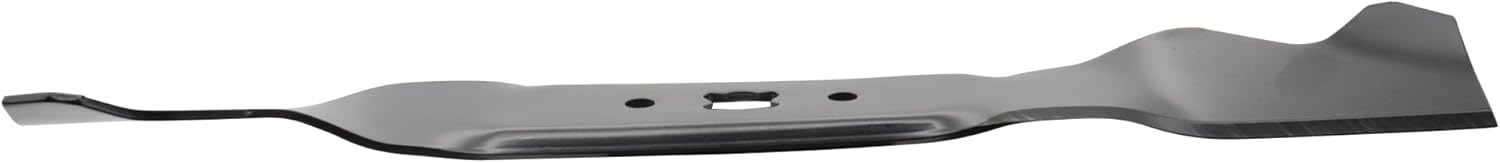

Сүрөт 4.1: Каптал view of the mulching blade, highlighting the distinct curves that facilitate the mulching process.
5. Техникалык тейлөө
Regular maintenance of your mulching blade is crucial for optimal performance and safety.
- Бычактын курчтугу: A sharp blade is essential for a clean cut and efficient mulching. A dull blade tears grass, leading to an unhealthy lawn and increased mower strain. Inspect the blade regularly for sharpness.
- Курчтоо: If the blade is dull, it should be sharpened. This can be done with a file or grinder, maintaining the original cutting angle. After sharpening, always re-balance the blade to prevent vibration. If you are unsure, seek professional sharpening services.
- Алмаштыруу: Replace the blade if it shows signs of significant wear, bending, cracks, or nicks that cannot be sharpened out. A damaged blade can be dangerous and affect cutting quality. The frequency of replacement depends on usage and mowing conditions.
- Тазалоо: After each use, clean grass clippings and debris from the blade and the underside of the mower deck. This prevents buildup that can hinder mulching performance and lead to corrosion.
6. Кыйынчылыктарды
Here are some common issues and their potential solutions related to your mulching blade:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Poor cut quality (torn grass) | Түтүк бычак | Бычакты курчутуңуз же алмаштырыңыз. |
| Excessive mower vibration | Unbalanced blade, bent blade, or improper installation | Check blade balance, inspect for damage, ensure correct and secure installation. Replace if bent or severely damaged. |
| Ineffective mulching (large clippings) | Dull blade, mowing wet or excessively long grass, clogged deck | Sharpen blade. Mow when grass is dry and cut less at a time. Clean underside of mower deck. |
| Blade detaches during operation | Improperly tightened blade bolt | Ensure blade bolt is tightened to manufacturer's torque specifications. Always check tightness before use. |
7. Техникалык шарттар
- Модел: 6384875
- Бренд: Secura
- Түрү: Мульчалоочу бычак
- Шайкештик: MTD 46 SPB-60 12C-668E600 Lawn Mower
- Материал: High-quality tool steel
- Өзгөчөлүктөрү: Wear-resistant, pre-sharpened, balanced
- Функциясы: Cuts and finely shreds grass clippings for nutrient return to the lawn.
8. Кепилдик жана колдоо
Specific warranty information for this Secura Mulching Blade is not provided in the product data. For details regarding warranty coverage, terms, and conditions, please refer to the product packaging or contact Secura customer support directly.
For technical assistance, replacement parts, or any questions not covered in this manual, please contact the manufacturer or your authorized dealer. Always provide the product model number (6384875) when seeking support.
