8BitDo Pro 2 Wired Controller Колдонуучунун колдонмосу

1. Киришүү

The 8BitDo Pro 2 Wired Controller is a high-performance gaming controller officially licensed for Xbox Series X, Xbox Series S, Xbox One, and Windows 10 and above. Designed for precision and comfort, it features a classic d-pad, trigger vibration, enhanced grip, and a 3-meter wired connection. This manual provides essential information to help you get the most out of your controller.

Сүрөт 1: Алдыңкы view of the 8BitDo Pro 2 Wired Controller, showcasing its button layout and wired USB-C connection.

2. Орнотуу

2.1 Контроллерди туташтыруу

The 8BitDo Pro 2 is a wired controller and connects directly to your device via a USB-C cable. The product may ship with either a non-detachable or detachable USB-C cable version at random.

1. Locate the USB-C port on the top of your 8BitDo Pro 2 controller.
2. Connect the USB-C end of the cable to the controller.
3. Connect the USB-A end of the cable to an available USB port on your Xbox console (Xbox Series X, Xbox Series S, Xbox One) or Windows 10 (or above) PC.
4. Контроллер автоматтык түрдө таанылат жана колдонууга даяр болот.

Figure 2: Illustration showing the two possible versions of the USB-C cable: non-detachable (left) and detachable (right).

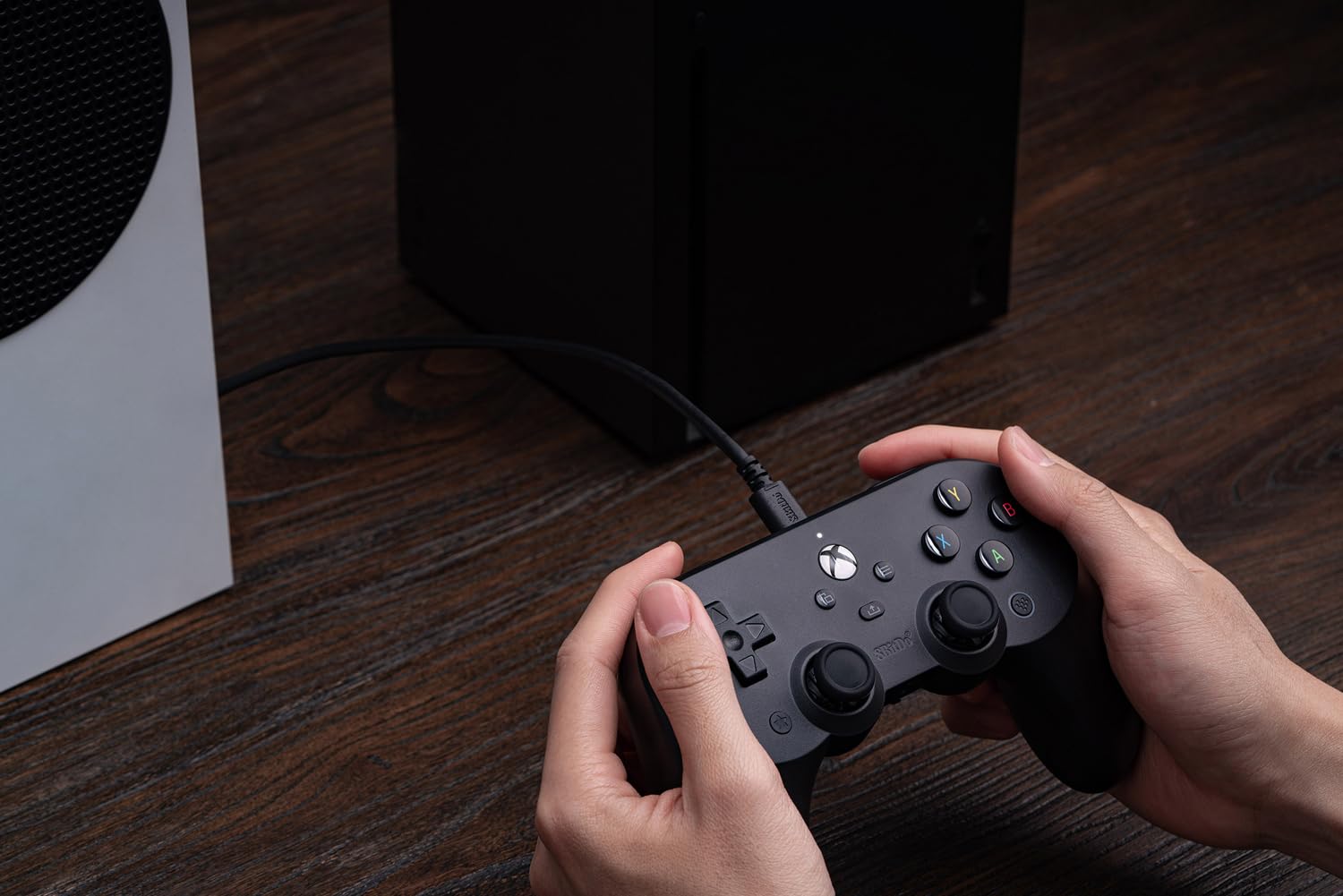

Figure 3: The 8BitDo Pro 2 controller connected via its USB-C cable to an Xbox Series S console, ready for gameplay.

3. Контроллерди иштетүү

3.1 Негизги башкаруу каражаттары

The 8BitDo Pro 2 controller features standard Xbox button layouts, including:

• A, B, X, Y баскычтары: Стандарттык аракет баскычтары.
• D-Pad: Classic directional pad for precise movement.
• Left & Right Analog Sticks: 360 градустук кыймыл жана камераны башкаруу үчүн.
• Left & Right Triggers (LT, RT): Pressure-sensitive triggers, featuring trigger vibration for enhanced feedback.
• Left & Right Bumpers (LB, RB): Digital buttons located above the triggers.
• Xbox баскычы: Powers on the console, opens the guide, or returns to the home screen.
• View Баскыч: Used for various in-game functions or to open context menus.
• Меню баскычы: Used for in-game menus or system options.

Сүрөт 4: Жакын пландан view of the central Xbox button, View button (left), and Menu button (right) on the controller.

3.2 Өркүндөтүлгөн функциялар

• Two Extra Pro-level Back Buttons: Located on the underside of the controller, these can be mapped to various functions for quick access during gameplay.
• 3.5 мм аудио уячасы: Directly connect your headphones for in-game audio and chat.
• Trigger Vibration: Provides immersive feedback during gameplay, especially for actions like shooting or driving.
• Өркүндөтүлгөн кармашуу: Textured surface on the handles ensures a secure and comfortable hold during extended gaming sessions.

Figure 5: Visual representation of key features: Trigger Vibration, the 3.5mm Audio Jack, and the Pro-level Back Buttons.

Figure 6: A detailed close-up of one of the programmable Pro-level Back Buttons located on the underside of the controller.

3.3 Ultimate Software Customization

Unlock the full potential of your controller with the 8BitDo Ultimate Software, available on Xbox and PC. This software allows for extensive customization:

• Түймөктүн картасы: Каалаган баскычты өзүңүзгө жаккан макетке кайра жайгаштырыңыз.
• Таякча жана триггер сезгичтиги: Adjust the sensitivity of analog sticks and triggers for precise control.
• Вибрацияны көзөмөлдөө: Fine-tune the intensity of the controller's vibration feedback.
• Profiles: Create and save multiple custom profiles for different games or genres.

Download the Ultimate Software from the official 8BitDo website or your console's app store.

Сүрөт 7: An overview of the 8BitDo Ultimate Software interface, highlighting options for button mapping, stick/trigger adjustment, and vibration control.

4. Техникалык тейлөө

Proper care will extend the life of your 8BitDo Pro 2 Wired Controller:

• Тазалоо: Контроллерди дайыма сүртүү үчүн жумшак, кургак чүпүрөктү колдонуңуз. өжөр кир үчүн, бир аз гamp cloth can be used, but ensure no moisture enters the ports or crevices.
• Кабельге кам көрүү: Avoid sharp bends or kinks in the USB-C cable. Do not pull the cable to disconnect the controller; always grasp the connector.
• Сактагыч: Store the controller in a clean, dry place away from extreme temperatures and direct sunlight when not in use.

5. Кыйынчылыктарды

If you encounter issues with your 8BitDo Pro 2 Wired Controller, consider the following common solutions:

• Контроллер жооп бербей жатат:
  • Ensure the USB-C cable is securely connected to both the controller and your console/PC.
  • Try connecting the controller to a different USB port on your device.
  • Консолуңузду же компьютериңизди өчүрүп-күйгүзүңүз.
• Киргизүүнүн кечигиши же ажыратуулар:
  • Ensure the cable is not damaged. Try a different compatible USB-C cable if available.
  • Avoid placing the cable near sources of electromagnetic interference.
• Software Issues (e.g., customization not applying):
  • Ensure you have the latest version of the 8BitDo Ultimate Software installed.
  • Check for any firmware updates for your controller via the Ultimate Software.

For further assistance, please refer to the official 8BitDo support resources.

6. Техникалык шарттар

7. Кепилдик жана колдоо

For information regarding product warranty, returns, or technical support, please visit the official 8BitDo webсайтка же түздөн-түз кардарларды тейлөөгө кайрылыңыз. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.

Official 8BitDo Store: 8BitDo Store on Amazon
