1. Киришүү
This instruction manual provides detailed guidance for the installation, operation, and maintenance of the Ariens Genuine OEM Part # 52107500 Fuel Filler Neck Kit. This kit is designed as a direct replacement component for compatible Ariens snow blowers and other equipment, ensuring proper fuel system function and safety. Please read this manual thoroughly before proceeding with installation or use.
2. Коопсуздук маалыматы
Always prioritize safety when working with fuel systems. Fuel is highly flammable and can cause serious injury or death if not handled properly.
- Ensure the engine is cool and turned off before beginning any work on the fuel system.
- Ачык оттон, учкундан же башка тутандыруу булактарынан алыс, жакшы желдетилген жерде иштеңиз.
- Тиешелүү жеке коргонуу шаймандарын, анын ичинде коргоочу көз айнектерди жана күйүүчү майга туруктуу кол каптарды кийиңиз.
- Өрт өчүргүч даяр болушу керек.
- Clean up any spilled fuel immediately using absorbent materials. Dispose of contaminated materials properly.
- Do not smoke while handling fuel or working on the fuel system.
- Балдарды жана үй жаныбарларын жумуш аймагынан алыс кармаңыз.
3. Пакеттин мазмуну
The Ariens Genuine OEM Part # 52107500 Fuel Filler Neck Kit typically includes the following components:
- Fuel Cap (with retention chain, if applicable)
- Metal Insert (for filler neck)
- Fuel Filter / Strainer

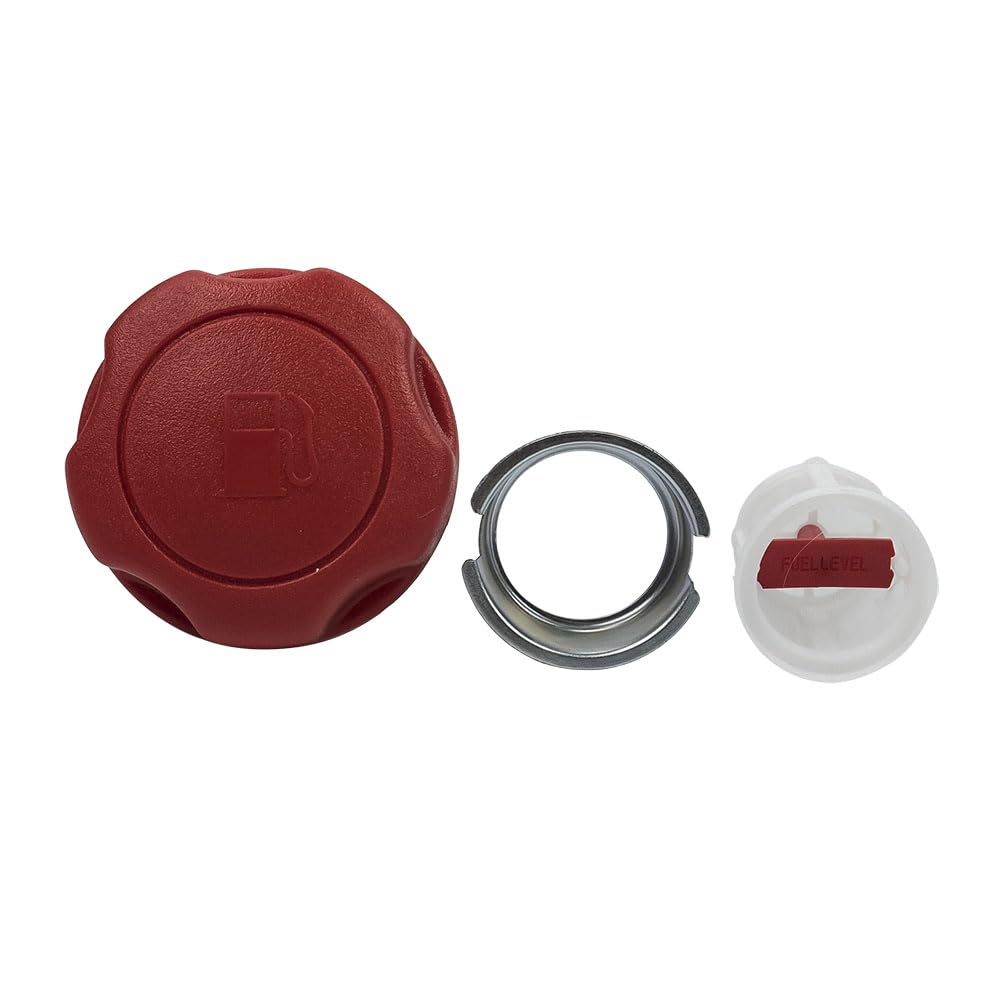

Image 1: Components of the Ariens Fuel Filler Neck Kit. Shown are the red fuel cap, a metal insert, and a white fuel filter/strainer.
4. Орнотуу боюнча нускамалар
Follow these steps to properly install the fuel filler neck kit. Refer to your equipment's service manual for specific instructions related to your model.
- Жабдууларды даярдоо: Ensure the equipment is on a level surface, the engine is off and cool, and the fuel tank is empty or has minimal fuel. Disconnect the spark plug wire to prevent accidental starting.
- Эски компоненттерди алып салуу: Carefully remove the existing fuel cap, metal insert, and fuel filter from the fuel tank opening. Note their orientation for reference.
- Inspect Tank Opening: Clean the fuel tank opening and surrounding area to remove any dirt, debris, or old gasket material.
- Install New Fuel Filter: Insert the new fuel filter/strainer into the fuel tank opening. Ensure it sits securely and correctly within the tank.
- Install Metal Insert: Place the metal insert into the fuel filler neck opening, ensuring it is properly seated and aligned.
- Attach Fuel Cap: Screw the new fuel cap onto the filler neck. Turn clockwise until it is hand-tight. Do not overtighten.
- Secure Retention Chain (if applicable): If your new fuel cap includes a retention chain, attach it to a suitable anchor point on the equipment, such as a rectangular fuel level marker or a secure bolt, to prevent loss of the cap when removed.
- Акыркы текшерүү: Verify that all components are securely installed and there are no visible gaps or potential leak points.
5. Операция
The fuel filler neck kit is designed for straightforward operation.
- Opening the Fuel Cap: Turn the fuel cap counter-clockwise until it loosens and can be removed.
- Closing the Fuel Cap: Place the fuel cap back onto the filler neck and turn clockwise until it is hand-tight. A properly sealed cap prevents fuel spills and contamination.
- Күйүүчү май: Always use the correct type of fuel specified in your equipment's owner's manual. Avoid overfilling the tank.
6. Техникалык тейлөө
Regular maintenance of the fuel filler neck kit ensures optimal performance and longevity of your equipment.
- Inspect Fuel Cap: Periodically check the fuel cap for cracks, damage, or a worn seal. A damaged cap can lead to fuel leaks or improper ventilation. Replace if necessary.
- Clean Fuel Filter/Strainer: The fuel filter/strainer helps prevent debris from entering the fuel tank. Inspect it regularly for clogs or damage. Clean it gently with appropriate fuel system cleaner or replace it if heavily contaminated or damaged.
- Check Filler Neck: Ensure the filler neck opening is free of debris and corrosion.
7. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Күйүүчү май куюучу капкак жакшы жабылбайт. | Damaged cap threads, worn cap seal, or debris in the filler neck. | Clean threads and seal. Inspect for damage and replace the cap if necessary. |
| Күйүүчү май чыпкасы бүтүп калган. | Accumulation of dirt or debris in the fuel tank. | Remove and clean the fuel filter. Replace if cleaning is ineffective or if damaged. |
| Fuel cap color differs from original. | Manufacturing variation or updated design. | This is a cosmetic difference and does not affect functionality. The kit is designed to be a functional replacement. |
8. Техникалык шарттар
- Бөлүмдүн номери: 52107500
- Өндүрүүчү: Ariens
- Материал: Metal (insert), Plastic (cap, filter)
- Элемент Салмагы: Болжол менен 6.4 унция
- Камтылган компоненттер: Fuel Cap, Metal Insert, Fuel Filter
9. Кепилдик маалыматы
This Ariens Genuine OEM Part # 52107500 Fuel Filler Neck Kit comes with a 1 жылдык кепилдик from the date of purchase. This warranty covers defects in materials and workmanship under normal use. For specific warranty terms and conditions, please refer to the official Ariens warranty documentation or contact Ariens customer support.
10. Кардарларды колдоо кызматы
If you have any questions regarding the installation, operation, or maintenance of your Ariens Fuel Filler Neck Kit, please contact Ariens customer support or visit the official Ariens website for further assistance. When contacting support, please have your equipment model number and the part number (52107500) readily available.
