1. Киришүү жана Продукт бүттүview
Thank you for choosing the Stayer Professional Telescopic Miter Saw SCR 315 W. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new tool. Please read this manual thoroughly before initial use and keep it for future reference.
This powerful 1800W miter saw is designed for precision cutting with a large capacity, capable of cutting materials up to 370 mm in length and 120 mm in height. Its belt-driven transmission significantly reduces noise and improves work quality. The robust yet lightweight aluminum base ensures stability and durability.
Сүрөт 1.1: Бүттүview of the Stayer Professional Telescopic Miter Saw SCR 315 W.
2. Коопсуздук нускамалары
Өрт, электр шок жана жеке жаракат алуу коркунучун азайтуу үчүн ар дайым негизги коопсуздук чараларын сактаңыз. Тез маалымдоо үчүн бул колдонмону колуңузда кармаңыз.
Жалпы коопсуздук эрежелери:
- Ар дайым тиешелүү жеке коргонуу шаймандарын (ЖКК), анын ичинде коопсуздук көз айнектерин, угууну коргоону жана чаң маскасын кийиңиз.
- Иш аянты таза, жакшы жарык жана тоскоолдуктар жок болушун камсыз кылыңыз.
- Арааны иштетип жатканда балдарды жана жанында жүргөндөрдү алыс кармаңыз.
- Жарылуучу чөйрөдө, мисалы, күйүүчү суюктуктар, газдар же чаң бар жерде электр шаймандарын иштетпеңиз.
- Secure the workpiece firmly before cutting. Never hold small pieces by hand.
- Ensure the blade guard is always in place and functioning correctly.
- Ар кандай тууралоолорду жасоодон, аксессуарларды алмаштыруудан же техникалык тейлөөдөн мурун арааны кубат булагынан ажыратыңыз.
- Use only sharp, clean blades of the correct size and type for the material being cut.
- Avoid awkward hand positions. Always maintain proper footing and balance.
3. Components and Key Features
Familiarize yourself with the various parts of your miter saw to ensure safe and effective operation.
Image 3.1: Labeled diagram of the miter saw components.
- Транспорт туткасы: For safe and easy carrying of the saw.
- Belt Motor: 1800W motor with belt transmission for quiet and efficient operation.
- Telescopic Rail: Allows for extended cutting capacity up to 370mm.
- Vertical Clamp: Secures the workpiece for stable cutting.
- Tilting Head: Adjustable from -45° to +45° for bevel cuts in both directions.
- Кеңейтилүүчү колдоо: Provides additional support for longer workpieces.
- Adjustable Rotary Table: Allows for precise miter angle adjustments (0°/22.5°/45°).
- Резина буттары: Ensures stability and reduces vibration during operation.
- Лазердик колдонмо: Provides a precise cutting line for improved accuracy.
Image 3.2: Additional features and technical data overview.
4. Орнотуу
Although the saw comes largely pre-assembled, some setup is required before first use.
Пакеттен чыгаруу жана жайгаштыруу:
- Араны жана бардык аксессуарларды таңгактан кылдаттык менен алып салыңыз.
- Inspect the saw for any shipping damage. Do not operate if damaged.
- Place the saw on a stable, level workbench or stand that can support its weight (approx. 19 kg) and the workpiece. Ensure sufficient space around the saw for safe operation and material handling.
- Ensure the rubber feet are securely positioned to prevent movement.
Баштапкы тууралоолор:
- Verify that all locking mechanisms for the miter table, bevel head, and telescopic rail are functioning correctly.
- Check the alignment of the blade with the miter scale and laser guide. Adjust if necessary according to the calibration section (if applicable in a detailed manual).
- Connect the saw to a suitable power outlet (220V AC).
Сүрөт 4.1: View of the miter table and fence, ready for setup.
5. Иштөө нускамалары
Follow these steps for safe and effective operation of your miter saw.
Basic Cutting Procedure:
- Жумушчу бөлүгүн даярдоо: Mark your desired cut line on the material.
- Орнотууларды тууралоо: Set the desired miter angle on the rotary table and the bevel angle on the tilting head. Secure all locking levers.
- Жумушчу бөлүгүнүн орду: Иштетүүчү бөлүктү тосмого жана араа үстөлүнө бекем коюңуз. Тик бурчту колдонуңузamp to secure it. Ensure the material is fully supported, using the extendable supports if needed.
- Кесүүнү тегиздөө: Lower the saw head slightly (without starting the motor) to align the blade with your marked cut line. Use the laser guide for precise alignment.
- Баштоо араа: Ensure your hands are clear of the blade path. Press the power switch to start the motor. Allow the blade to reach full speed before beginning the cut.
- Кесүү жасоо: Slowly and steadily lower the saw head through the workpiece. For telescopic cuts, push the saw head forward along the rail as you cut.
- Толук кесүү: Once the cut is complete, release the power switch and allow the blade to stop completely before raising the saw head.
- Жумушчу бөлүгүн алып салуу: Carefully remove the cut material and any off-cuts.
Image 5.1: The miter saw in action, demonstrating a cut.
Сүрөт 5.2: Жакын пландан view of the cutting process, showing the laser guide.
6. Техникалык тейлөө
Үзгүлтүксүз тейлөө сиздин митер арааңыздын узак мөөнөттүү жана оптималдуу иштешин камсыз кылат.
Тазалоо:
- After each use, disconnect the saw from power and clean off sawdust and debris using a brush or vacuum cleaner.
- Pay special attention to the blade guard, miter scale, and telescopic rails to ensure smooth operation.
- The dust collection system is designed to minimize sawdust, but regular cleaning of the dust bag/port is essential.
Бычакты багуу жана алмаштыруу:
- Regularly inspect the saw blade for sharpness, cracks, or missing teeth. A dull blade can cause kickback and poor cut quality.
- When replacing the blade, ensure the saw is unplugged. Follow the instructions in your saw's specific blade replacement guide. Use only blades with a 315mm diameter and appropriate arbor size.
Белдик текшерүү:
- Periodically inspect the drive belt for wear, cracks, or slippage. A worn belt can affect performance and increase noise.
- Refer to the service manual for instructions on belt replacement if necessary.

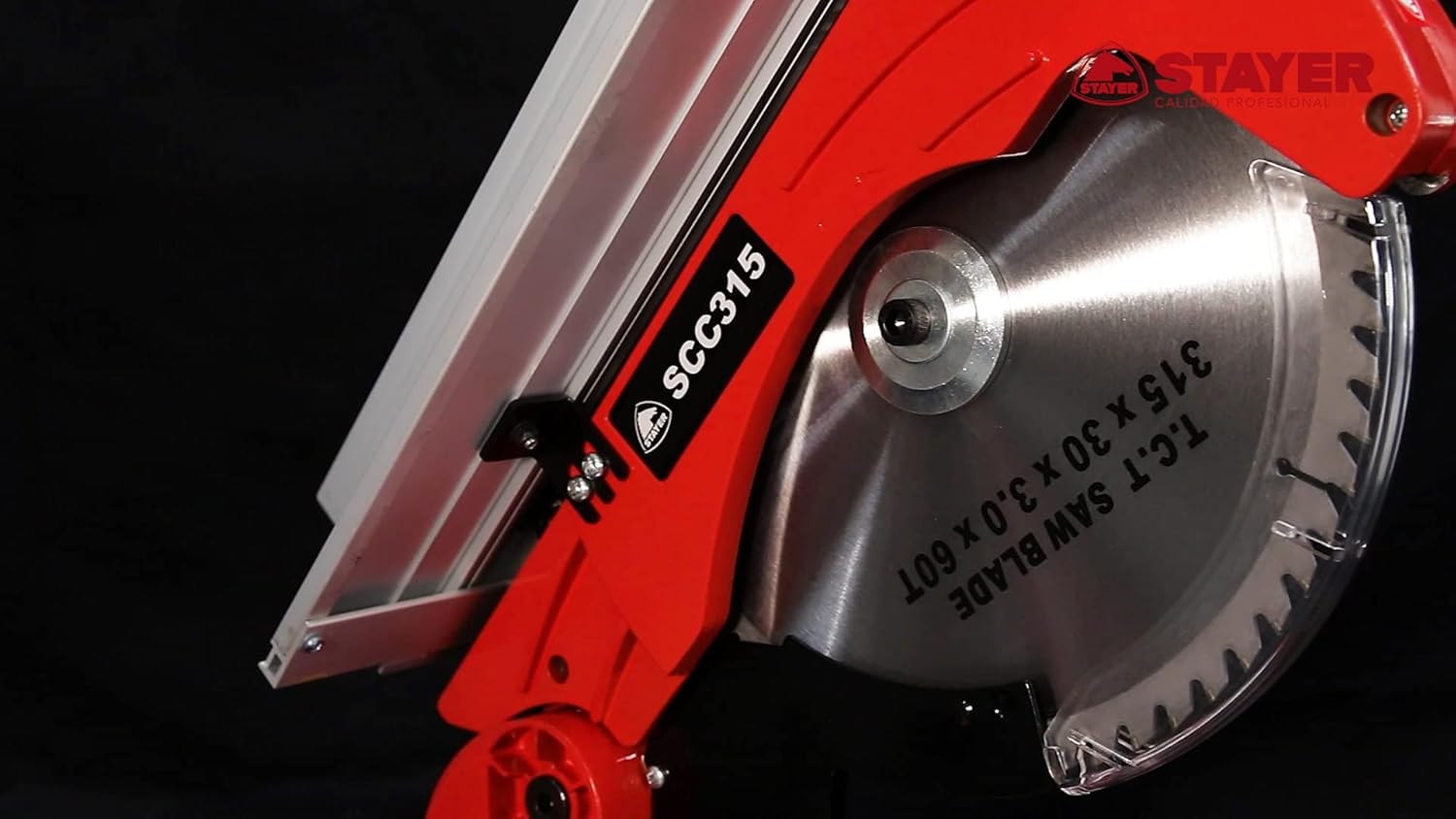

Image 6.1: Close-up of the blade and guard, important for maintenance checks.
7. Кыйынчылыктарды
Бул бөлүмдө сиз кескич араа менен кездешүүчү кеңири таралган көйгөйлөр каралат.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Сау башталбайт | Электр кубаты жок, өчүргүч бузук, мотордо көйгөй бар | Check power connection, circuit breaker. If problem persists, contact service. |
| Начар кесүү сапаты (орой, майдаланган) | Dull blade, incorrect blade for material, improper feed rate, workpiece not secure | Replace or sharpen blade. Use appropriate blade. Adjust feed rate. Secure workpiece firmly. |
| Ашыкча титирөө же ызы-чуу | Loose blade, worn belt, damaged bearings, unstable setup | Check blade tightness. Inspect belt for wear. Ensure saw is on a stable surface. If severe, seek professional service. |
| Laser guide not accurate | Misalignment, dirty laser lens | Clean laser lens. Refer to specific instructions for laser calibration (if available). |
| Dust collection ineffective | Dust bag full, clogged port, improper connection | Empty dust bag. Clear any clogs in the dust port. Ensure connections are secure. |
| Play/wobble in saw head or table | Loose components, manufacturing defect | Check for any accessible tightening points. If significant play affects accuracy or safety, contact customer support. |
If you encounter problems not listed here or if solutions do not resolve the issue, please contact Stayer customer support.
8. Техникалык шарттар
Detailed specifications for the Stayer Professional Telescopic Miter Saw SCR 315 W.
| Спецификация | Нарк |
|---|---|
| Модель номери | 1.1933 |
| Өндүрүүчү | STAYER |
| Power Source | Электр зымдары |
| Тtage | 220 вольт (AC) |
| Күч | 1800 Ватт |
| Ылдамдык | 3500 RPM |
| Бычактын материалы | Aluminum Oxide (typical for general purpose blades) |
| Өзгөчө өзгөчөлүк | Silent (Belt Drive) |
| Элемент Салмагы | 19 килограмм |
| Пакеттин өлчөмдөрү | 95 x 55 x 55 см |
| Cutting Capacity (Length) | 370 мм чейин |
| Кесүү сыйымдуулугу (бийиктиги) | 120 мм чейин |
9. Кепилдик жана колдоо
For warranty information, please refer to the warranty card or documentation included with your purchase. Warranty terms and conditions may vary by region and retailer.
If you require technical assistance, spare parts, or have questions regarding the operation or maintenance of your Stayer Professional Telescopic Miter Saw, please contact Stayer customer support or your authorized dealer. Have your model number (1.1933) and purchase details ready when contacting support.
