1. Коопсуздук боюнча маанилүү маалымат
Please read and understand all instructions before beginning installation. Failure to follow these instructions may result in electric shock, fire, or serious personal injury.
- Электр коопсуздугу: All electrical wiring must be performed by a qualified electrician and comply with all local and national electrical codes. Disconnect power at the main circuit breaker before installation or servicing.
- Монтаждоо: The ceiling fan must be mounted to a structurally sound ceiling joist or outlet box capable of supporting the fan's weight (approximately 16.34 lbs). Ensure the mounting location allows for proper blade clearance.
- Бычакты тазалоо: Maintain a minimum clearance of 7 feet from the floor to the bottom of the fan blades. Ensure there is adequate space around the fan for proper air circulation.
- Damp Бааланган: This fan motor is damp rated, suitable for indoor or covered outdoor use where it will not be directly exposed to water.
- Кесиптик орнотуу сунушталат: Due to the complexity of electrical wiring and mounting, professional installation is highly recommended.
2. Пакеттин мазмуну
Verify that all components are present before beginning installation. If any parts are missing or damaged, contact Fanimation customer service.
- Fanimation Spitfire MA6721BBL Ceiling Fan Motor (Black)
- TR500 Handheld Remote Control (requires 23A battery, not included)
- Монтаждоочу аппараттык комплект
- Instruction Manual
Эскертүү: Fan blades and optional LED light kit are sold separately and are not included with this motor assembly.
3. Орнотуу жана орнотуу
Бул бөлүмдө жалпы маалымат берилетview of the installation process. Always refer to the detailed installation guide included with your fan motor for specific steps and diagrams.
3.1 Орнотууга чейинки кадамдар
- Электр энергиясын өчүрүү: Turn off power to the fan's circuit at the main electrical panel.
- Монтаждоо жери: Confirm the ceiling joist or outlet box can support the fan's weight and provide adequate blade clearance.
3.2 Mounting the Fan Motor
Secure the mounting bracket to the ceiling outlet box. Carefully lift the fan motor assembly and attach it to the mounting bracket according to the specific instructions provided.
1-сүрөт: Жалпысынан view of the Fanimation Spitfire MA6721BBL Ceiling Fan Motor with blades and light kit installed.
3.3 Электр зымдары
Connect the fan's electrical wires to the household wiring. Ensure all connections are secure and properly insulated. This step requires electrical expertise.

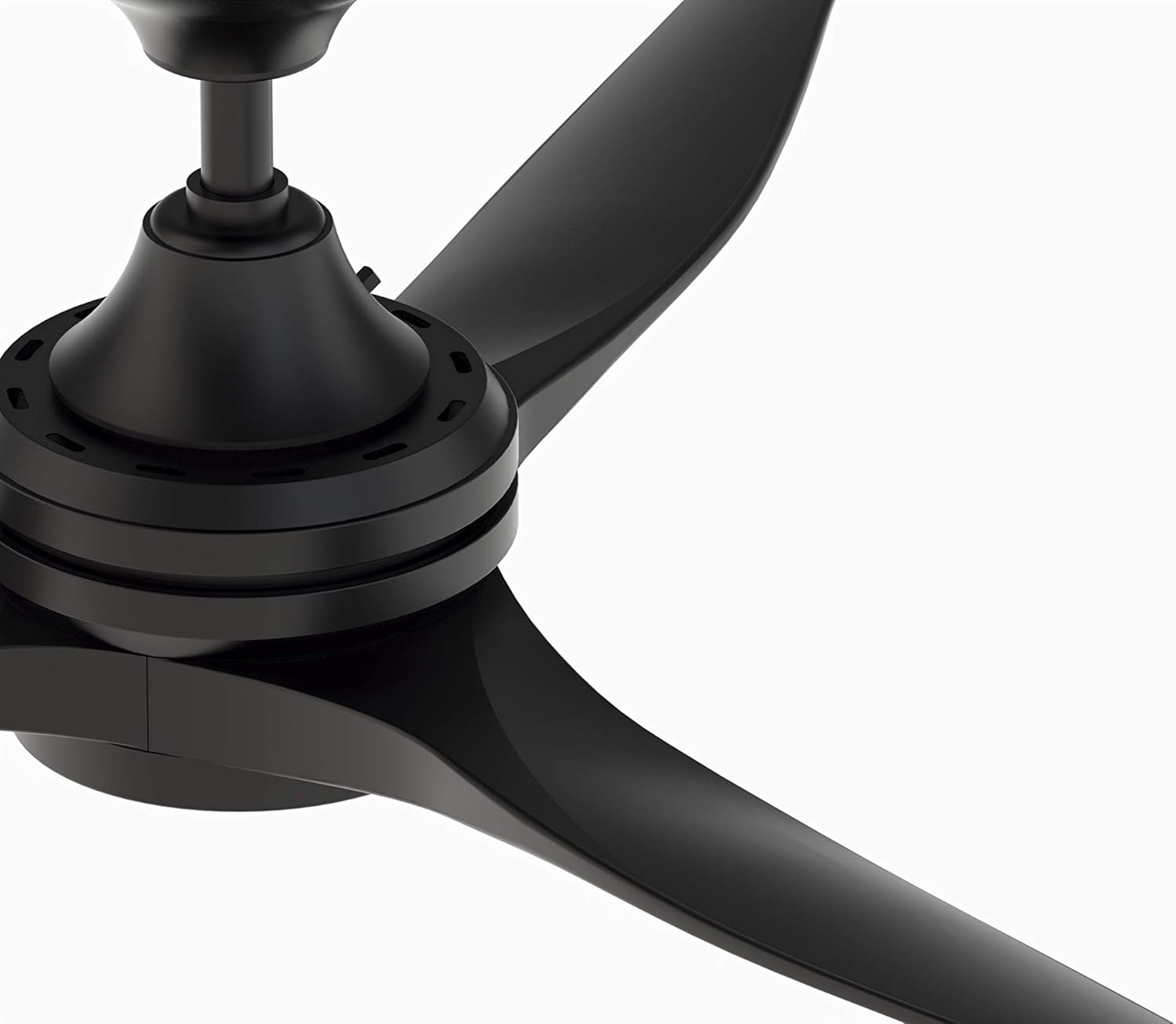

Сүрөт 2: Жакын пландан view of the fan motor housing, showing connection points for wiring and blade attachment.
3.4 Attaching Blades and Light Kit (Sold Separately)
Once the motor is securely mounted and wired, attach the fan blades and any optional light kit according to their respective instructions. Ensure all screws are tightened appropriately.
3-сүрөт: Детальдуу view of the fan motor with an optional LED light kit installed at the bottom.
4-сүрөт: Детальдуу view of the fan motor without an optional light kit, showing the cover plate.
4. Иштөө нускамалары
The Fanimation Spitfire MA6721BBL is controlled via the included TR500 handheld remote control or compatible smart home devices (sold separately).
4.1 Handheld Remote Control (TR500)
The TR500 remote provides comprehensive control over your fan's functions:
- желдеткич ылдамдыгы: Adjusts between 3 speeds (Low, Medium, High).
- Reverse Switch: Changes the direction of blade rotation for seasonal use.
- Жарыкты башкаруу: If an optional light kit is installed, the remote can turn the light on/off and dim it.
- Уйку таймери: Activates a timer function to automatically turn off the fan after a set period.
Ensure the remote has a fresh 23A battery installed for optimal performance.
4.2 Reversible Airflow
The fan features reversible airflow for multi-season use:
- Жайкы режим (төмөн карай аба агымы): Blades rotate counter-clockwise, creating a downward breeze that produces a cooling effect.
- Кышкы режим (жогорку аба агымы): Blades rotate clockwise, drawing cool air up and pushing warm air down from the ceiling, helping to redistribute heat.
Use the reverse switch on the remote control to change the direction of airflow.
Figure 5: Illustration of reversible airflow, showing both downward (cooling) and upward (warming) air movement.
4.3 Smart Home Compatibility
The Fanimation Spitfire MA6721BBL is compatible with WiFi or Bluetooth controls (required controls sold separately) for integration with smart home systems. Refer to the documentation of your chosen smart home control system for setup instructions.
5. Техникалык тейлөө
Үзгүлтүксүз тейлөө сиздин шыптын желдеткичиңиздин узак иштөөсүн жана оптималдуу иштешин камсыз кылат.
- Тазалоо: Желдетүүчү лопаткаларды жана мотор корпусунун чаңын мезгил-мезгили менен жумшак, гamp cloth. Avoid using abrasive cleaners or solvents, as they may damage the finish. Ensure the fan is turned off and power is disconnected before cleaning.
- Tightness Checks: Periodically check all screws on the motor housing, downrod, and blade attachments to ensure they are secure. Loose screws can cause wobbling or noise.
- Blade балансы: If the fan wobbles, check that the blades are securely attached and balanced. A blade balancing kit (often sold separately) can help correct minor wobbles.
6. Кыйынчылыктарды
This section addresses common issues you might encounter with your Fanimation Spitfire ceiling fan motor.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Желдеткич күйбөйт | No power to the fan; Loose wiring; Remote battery dead or not paired. | Check circuit breaker; Verify all wire connections are secure (consult an electrician); Replace remote battery or re-pair remote. |
| Төмөн аба агымы | Fan speed set too low; Incorrect blade pitch; Fan size not appropriate for room. | Increase fan speed using the remote; Ensure blades are installed correctly; While this model offers 5227 CFM on high, consider room size and fan placement. |
| Күйөрман солкулдайт | Loose mounting hardware; Unbalanced blades; Loose blade screws. | Ensure mounting bracket and downrod are secure; Check and tighten all blade screws; Use a blade balancing kit if necessary. |
| Remote control is unresponsive or finicky | Dead battery; Interference; Remote not paired correctly. | Replace the 23A battery; Ensure no obstructions between remote and fan receiver; Refer to remote pairing instructions in the full manual. |
| Light kit not working (if installed) | Loose wiring; Faulty bulb (if replaceable); Light kit not properly connected. | Check wiring connections to the light kit; If LED, ensure proper connection; Consult an electrician if issues persist. |
If you are unable to resolve an issue after consulting this troubleshooting guide, please contact Fanimation customer support or a qualified electrician.
7. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Фанимация |
| Модель номери | MA6721BBL |
| Түс | Кара |
| Электр желдеткич дизайн | Шыпка желдеткич мотору |
| Power Source | Электр зымдары |
| Стиль | Ыңгайлаштырылган |
| Өзгөчө өзгөчөлүк | Кайтаруучу аба агымы |
| Сунушталган Колдонуулар | Желдетүү |
| Ватtage | 2760 Ватт (2.76E+3) |
| Аяктоо түрү | Бүттү |
| Blades саны | 3 (Blades sold separately) |
| Аба агымынын кубаттуулугу | 5227 CFPH (Cubic Feet Per Hour) |
| Ылдамдык орнотуулары | 3 RPM (мүнөтүнө айлануу) |
| Тtage | 120.0 вольт |
| Элемент Салмагы | 16.34 фунт |
| Продукциянын өлчөмдөрү | 7.9 x 7.9 x 12 дюйм |
| Камтылган компоненттер | Алыстан |
| Ички/тышкы колдонуу | Үй ичинде, Сыртта (D)amp Рейтинг) |
| Башкаруу ыкмасы | App (via compatible smart home controls, sold separately) |
| UPC | 840506085459 |
8. Кепилдик жана колдоо
8.1 Кепилдик маалыматы
This Fanimation Spitfire MA6721BBL Ceiling Fan Motor comes with a Чектелген Өмүр бою Кепилдик. Please refer to the warranty documentation included with your product for full terms and conditions, including coverage details and limitations.
8.2 Кардарларды колдоо
For technical assistance, replacement parts, or warranty claims, please contact Fanimation customer support. You can find contact information on the official Fanimation webсайтка же продуктунун баштапкы таңгагы аркылуу.
