1. Киришүү
Thank you for choosing the HONGXIN Electric Beater. This versatile handheld device is designed to effortlessly create foam for various beverages and culinary preparations. It is ideal for making creamy foam for cappuccino, milkshakes, latte macchiato, and hot chocolate, as well as for mixing toppings, salad dressings, and whisking eggs for omelets or egg whites.
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your electric beater. Please read it thoroughly before first use and keep it for future reference.
2. Коопсуздук маалыматы
Сураныч, жаракаттарды же шайманды бузууну болтурбоо үчүн төмөнкү коопсуздук чараларын сактаңыз:
- Шайманды балдар жетпеген жерде сактаңыз.
- Do not immerse the main body of the beater in water or any other liquid. Only the whisk head is designed for contact with liquids.
- Ensure hands are dry before handling the beater or inserting/removing batteries.
- Use only 2 x AA batteries as specified. Do not mix old and new batteries, or different types of batteries.
- Remove batteries if the appliance will not be used for an extended period.
- Иштеп жаткан учурда кыймылдуу бөлүктөргө тийбеңиз.
- Do not use the beater for purposes other than those described in this manual.
- If the beater malfunctions or is damaged, discontinue use immediately and contact customer support.
3. Продукт бүтүп калдыview
The HONGXIN Electric Beater is a compact and lightweight device, designed for ease of use and portability.

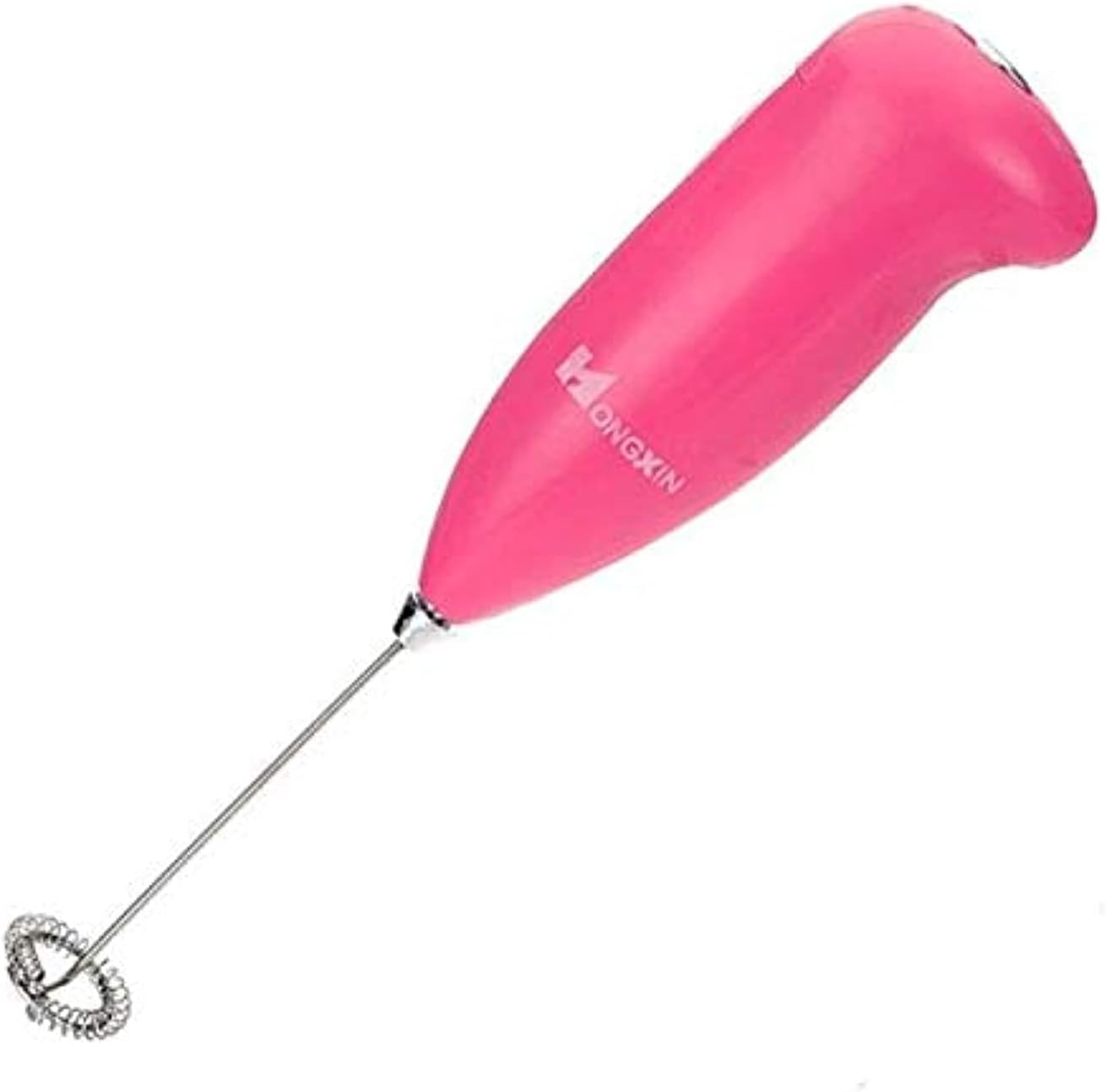

Figure 3.1: The HONGXIN Electric Beater (Pink version).
Figure 3.2: The HONGXIN Electric Beater (Green version).

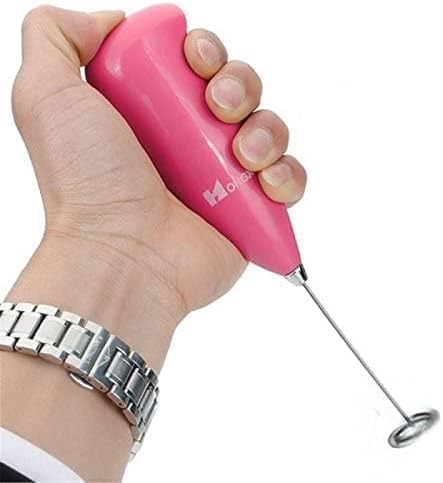

Figure 3.3: Ergonomic design for comfortable grip.

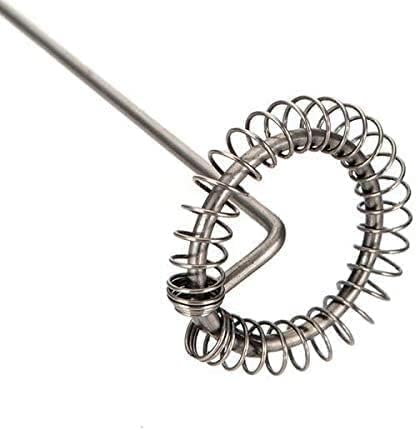

3.4-сүрөт: Детальдуу view of the stainless steel whisk head.
Негизги компоненттер:
- Негизги органы: Мотор жана аккумулятор бөлүмүн камтыйт.
- Кубат баскычы: Located on the top of the main body for easy operation.
- Stainless Steel Whisk Head: The durable whisking attachment for frothing and mixing.
- Батарея бөлүмү: Located at the bottom of the main body, secured by a removable cap.
4. Орнотуу
Before first use, you will need to install the batteries.
- Locate the battery compartment at the bottom of the beater's main body.
- Gently slide or pull off the battery compartment cover.
- Эки (2) AA батарейкасын салып, оң (+) жана терс (-) терминалдары бөлүмдүн ичиндеги белгилер менен туура дал келгенин текшериңиз.
- Replace the battery compartment cover securely until it clicks into place.

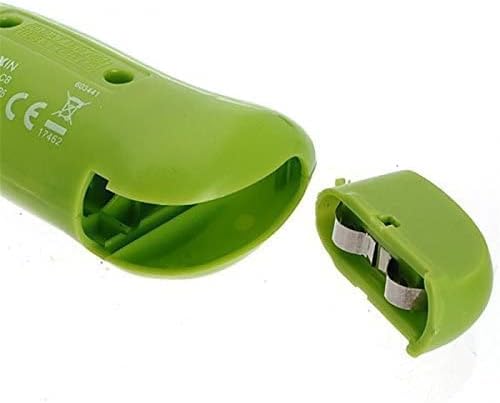

Figure 4.1: Battery installation in the HONGXIN Electric Beater.
Your HONGXIN Electric Beater is now ready for use.
5. Иштөө нускамалары
The HONGXIN Electric Beater is designed for simple and effective frothing and mixing.
- Prepare your liquid: Pour milk, coffee, or other ingredients into a cup or container. For best frothing results with milk, ensure it is cold or heated to your desired temperature (typically 60-70°C for hot beverages).
- Immerse the whisk head: Carefully lower the stainless steel whisk head into the liquid, ensuring it is fully submerged but not touching the bottom of the container.
- Activate the beater: Press and hold the power button located on the top of the beater's main body. The whisk will begin to rotate rapidly.
- Froth/Mix: Move the beater gently up and down within the liquid to create foam or mix ingredients thoroughly. For frothing, keep the whisk head just below the surface of the liquid to incorporate air.
- Deactivate: Release the power button to stop the whisking action.
- Enjoy: Carefully remove the beater from the liquid. Your frothed milk or mixed beverage is now ready.

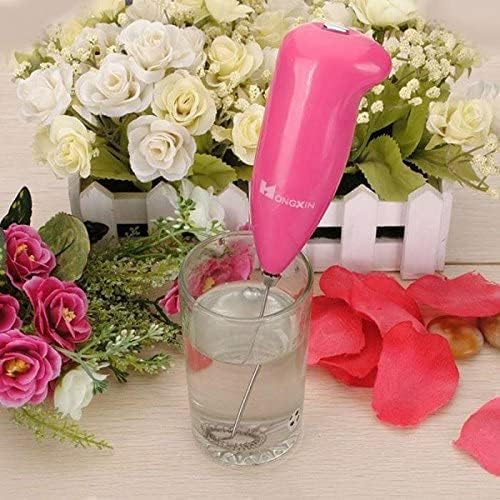

Figure 5.1: Using the HONGXIN Electric Beater to froth liquid.
Тиркемелер:
- Cappuccino/Latte Macchiato: Froth cold or warm milk until desired consistency is achieved.
- Nescafe/Hot Chocolate: Mix powder with hot water/milk and then froth for a creamy texture.
- Milkshakes: Blend milk and desired ingredients for a smooth shake.
- Toppings/Salad Dressings: Emulsify and mix ingredients for consistent results.
- Omelett/Eischnee (Egg Whites): Whisk eggs or egg whites until light and fluffy.
6. Техникалык тейлөө жана тазалоо
Proper cleaning and maintenance will extend the life of your HONGXIN Electric Beater.
- Ар бир колдонуудан кийин: Immediately after use, rinse the stainless steel whisk head under running water. You can briefly activate the beater in a glass of clean water to help dislodge any residue.
- Cleaning the Whisk Head: Use a mild dish soap and a soft sponge or brush to clean the whisk head thoroughly. Ensure all milk or food residue is removed.
- Негизги денени тазалоо: Wipe the main body of the beater with a damp кездеме. Негизги корпусту сууга салууга болбойт.
- Кургатуу: Ensure the whisk head and main body are completely dry before storing.
- Сактагыч: Store the beater in a clean, dry place, away from direct sunlight and extreme temperatures.
- Батареяны алмаштыруу: Replace batteries when the whisking power noticeably decreases. Refer to Section 4 for battery installation instructions.
7. Кыйынчылыктарды
If you encounter issues with your HONGXIN Electric Beater, please refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Beater does not turn on or has weak power. | Батареялар өлүп калган же туура эмес орнотулган. | Check battery orientation. Replace with fresh AA batteries. |
| Whisk head spins slowly or inconsistently. | Low battery power; whisk head obstructed. | Replace batteries. Ensure whisk head is clean and free from debris. |
| Liquid is not frothing effectively. | Whisk head not positioned correctly; liquid type/temperature. | Ensure whisk head is just below the surface. Use cold milk for best frothing results, or heat milk to optimal temperature (60-70°C). |
| Иш учурунда адаттан тыш ызы-чуу. | Ички компонент маселеси же тоскоолдук. | Discontinue use. Check for any visible damage or obstruction. If problem persists, contact customer support. |
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | ХОНСИН |
| Модель номери | MS 3089 |
| Түс | Көп түстүү |
| Материал | Plastic (Body), Stainless Steel (Whisk) |
| Power Source | 2 x AA батарейкалар (киргизилген эмес) |
| Элемент Салмагы | 60 г |
| Пакеттин өлчөмдөрү | 26.6 x 7.8 x 3.8 см |
| Өзгөчөлүктөр | Removable Tank (Note: This feature may refer to a general product category, the beater itself does not have a tank.), Water Filter (Note: This feature may refer to a general product category, the beater itself does not have a filter.) |
| Сунушталган Колдонуулар | Cappuccino Preparation, Milkshake Preparation, Hot Drink Foam Preparation |
9. Кепилдик жана колдоо
For warranty information and customer support, please refer to the terms and conditions provided by your retailer at the time of purchase. Keep your proof of purchase for any warranty claims.
If you require further assistance or have questions not covered in this manual, please contact the retailer or manufacturer directly through their official channels.
