MAAX OPT20254-305 Square PVC дренаждык колдонуучу колдонмосу

1. Киришүү

Thank you for choosing the MAAX OPT20254-305 Square PVC Drain. This manual provides essential information for the proper installation, operation, and maintenance of your new drain. Please read these instructions carefully before beginning installation and retain them for future reference.

2. Продукциянын өзгөчөлүктөрү

• Durable PVC construction for long-lasting performance.
• Elegant brushed nickel finish to complement modern bathroom aesthetics.
• Square design for contemporary shower or bathtub applications.
• Removable grate for easy cleaning and maintenance.

3. Компоненттер камтылган

The MAAX OPT20254-305 package includes:

• 1 x MAAX Square PVC Drain Assembly (including body and grate)

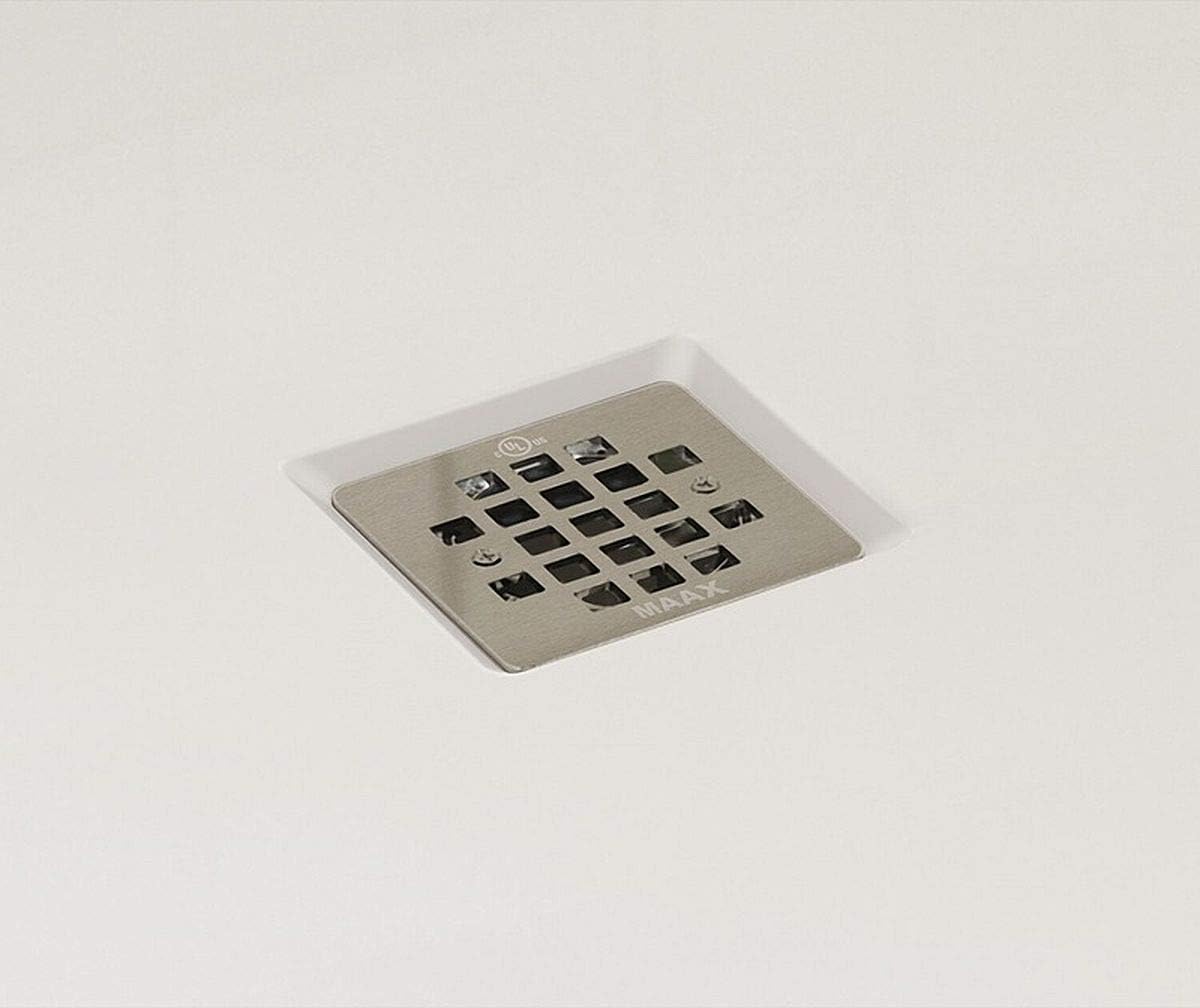

Image 1: The MAAX OPT20254-305 Square PVC Drain, featuring its brushed nickel grate and square design, installed in a white shower base.

4. Коопсуздук маалыматы

Always follow local plumbing codes and regulations. If you are unsure about any part of the installation process, consult a qualified plumber. Wear appropriate personal protective equipment (PPE) such as gloves and eye protection during installation.

5. Орнотуу жана орнотуу

This drain is designed for standard PVC plumbing connections. Professional installation is recommended.

5.1. Орнотууга чейинки текшерүү

• Ensure all necessary tools and materials are available (e.g., PVC cement, primer, measuring tape, level).
• Verify that the rough-in opening for the drain matches the dimensions of the MAAX drain.

5.2. Орнотуу кадамдары

1. Prepare the subfloor or shower pan opening according to the manufacturer's instructions for your specific shower base or tile-in application.
2. Apply PVC primer and cement to the drain body and the connecting PVC pipe as per the adhesive manufacturer's instructions.
3. Securely connect the drain body to the waste pipe, ensuring a watertight seal. Allow adequate curing time for the adhesive.
4. Position the drain body so that the top edge is flush with the finished floor or shower pan surface. Use a level to ensure proper alignment.
5. Once the drain body is securely installed and sealed, insert the brushed nickel grate into the drain opening.
6. Test for leaks by running water through the drain before completing the surrounding floor or wall installation.

6. Техникалык тейлөө

Regular cleaning will help maintain the appearance and functionality of your MAAX drain.

• Cleaning the Grate: Periodically remove the brushed nickel grate. Clean it with a soft cloth and mild, non-abrasive cleaner. Rinse thoroughly and dry.
• Cleaning the Drain Body: Use a brush or cloth to remove any hair, soap scum, or debris from inside the drain body.
• Катуу химиялык заттардан алыс болуңуз: Do not use abrasive cleaners, scouring pads, or harsh chemical drain cleaners, as these can damage the finish and material of the drain.

7. Кыйынчылыктарды

7.1. Slow Drainage

• Себеби: Accumulation of hair, soap scum, or debris in the drain.
• Чечим: Remove the grate and clear any obstructions from the drain body and P-trap. Use a drain snake if necessary.

7.2. Leaks Around the Drain

• Себеби: Improper sealing during installation or damage to the drain connection.
• Чечим: This typically requires professional attention. The drain may need to be re-sealed or re-installed.

8. Техникалык шарттар

9. Кепилдик жана колдоо

For specific warranty information and customer support, please refer to the warranty card included with your product or visit the official MAAX webсайт. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.

For technical assistance or replacement parts, please contact MAAX customer service directly.
