SuperATV Turn Signal Kit for Polaris Ranger XP 1000 / Crew

1. Киришүү

This manual provides essential information for the proper installation, operation, and maintenance of your SuperATV Turn Signal Kit. This kit is designed to enhance the safety and functionality of your Polaris Ranger XP 1000 or Crew vehicle by adding turn signals and a horn. Please read these instructions thoroughly before beginning installation or operation to ensure correct usage and to prevent damage.

2. Унаа шайкештиги

This SuperATV Turn Signal Kit (Model TSK-P-RAN-003#ROK) is compatible with the following Polaris Ranger models:

• Polaris Ranger XP 1000: 2017
• Polaris Ranger XP 1000 Crew: 2017-2018

It is important to verify your vehicle's model and year to ensure proper fitment.

3. Пакеттин мазмуну

The SuperATV Turn Signal Kit includes all necessary components for installation. Please inspect the package contents upon receipt to ensure all items are present and undamaged.

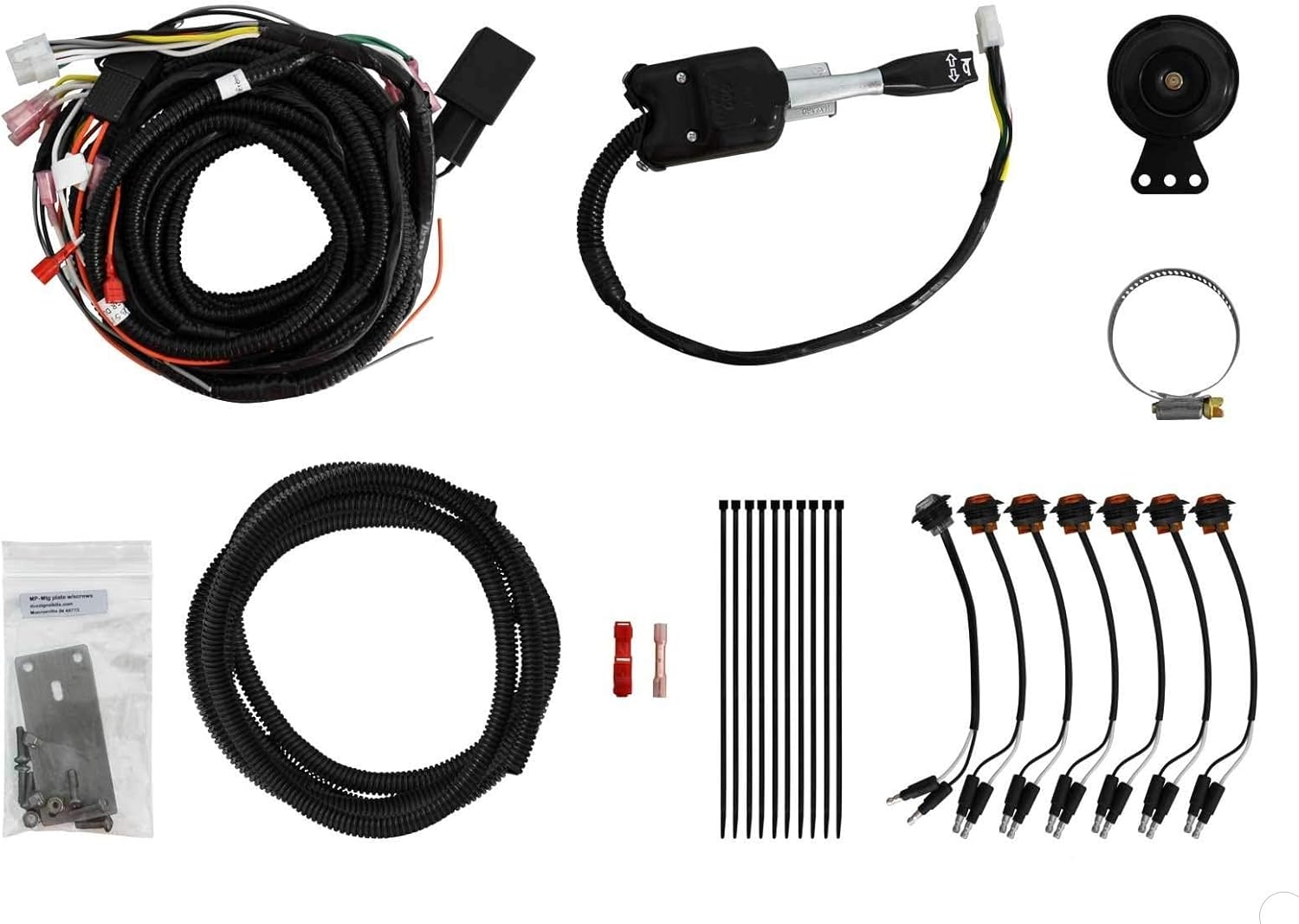

Image 1: All components of the SuperATV Turn Signal Kit, including wiring harness, steering column switch, horn, LED lights, and mounting hardware.

комплект, адатта, камтыйт:

• Pre-assembled and color-coded wiring harness
• Steering column mounted turn signal switch
• Attached horn
• Front and rear LED turn signal lights
• Mounting hardware and zip ties

4. Орнотуу жана орнотуу

For detailed, step-by-step installation instructions, SuperATV provides digital manuals. To access these instructions, please scan the QR code located on your product invoice using any smart device (tablet, smartphone, etc.). This method ensures you have the most current and comprehensive guide for your specific kit.

General installation notes:

• The wiring is pre-assembled and color-coded to simplify the connection process.
• Ensure the vehicle's power is disconnected before beginning any electrical work.
• Route all wiring carefully to avoid pinching, abrasion, or interference with moving parts.
• Secure all connections and components firmly.

5. Иштөө нускамалары

5.1 Бурулуш сигналдары

The turn signals are operated via a switch mounted on the steering column. This switch functions similarly to those found in standard automobiles.

Сүрөт 2: Жакын пландан view of the steering column switch, showing the lever for turn signal activation and the hazard button.

• иштетүү үчүн солго буруш сигналы, push the lever down.
• иштетүү үчүн оңго буруш сигналы, push the lever up.
• To cancel the turn signal, return the lever to the center position.
• Иштетүү үчүн коркунуч жарыктары, press the button located on the end of the lever. Press again to deactivate.

Image 3: A Polaris Ranger XP 1000 with the front turn signals actively illuminated, demonstrating visibility.

5.2 Horn

The horn is integrated into the system and can be activated by pressing the designated button on the steering column switch. Press and release the button to sound the horn.

6. Техникалык тейлөө

To ensure the longevity and proper function of your turn signal kit, periodic maintenance is recommended:

• Үзгүлтүксүз текшерүү: Бардык зымдардын туташууларынын бекемдигин жана эскирүү же дат басуу белгилерин мезгил-мезгили менен текшерип туруңуз.
• Тазалык: Keep the turn signal lights and switch free from excessive dirt, mud, or debris. Use a soft cloth and mild cleaner if necessary.
• Лампаны текшерүү: Verify that all LED lights are functioning correctly before each ride. While LEDs have a long lifespan, occasional checks are prudent.
• Relay Longevity: The relay in this kit is tested for over 380,000 cycles, indicating high durability. No routine maintenance is typically required for the relay itself.

7. Кыйынчылыктарды

If you encounter issues with your SuperATV Turn Signal Kit, consider the following troubleshooting steps:

• No Power to Lights/Horn: Check all electrical connections, ensuring they are secure. Verify the vehicle's battery is charged and the main fuse for the kit is intact.
• One Side Not Functioning: Inspect the wiring and connections for the non-functioning side. Check individual light units for damage.
• Lights Flashing Incorrectly (Too Fast/Slow): This may indicate an issue with the flasher relay or a faulty connection. Refer to the digital installation instructions for specific diagnostic steps.
• Сурнай үн чыкпайт: Check the horn's wiring and ensure the button on the steering column switch is functioning correctly.

For more detailed troubleshooting guides, refer to the digital installation instructions provided by SuperATV via the QR code on your invoice.

8. Продукттун спецификациялары

9. Кепилдик жана колдоо

SuperATV is committed to providing quality products. For specific warranty information, please refer to the documentation included with your purchase or visit the official SuperATV website. For any technical support or assistance with installation and troubleshooting, please consult the digital instructions accessed via the QR code on your invoice. This resource provides the most up-to-date information and contact details for SuperATV customer service.
