Hager VF312PD Electrical Enclosure User Manual
Model: VF312PD
1. Киришүү
Thank you for choosing the Hager VF312PD Electrical Enclosure. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your electrical enclosure. Please read this manual thoroughly before installation and keep it for future reference. This enclosure is designed to provide protection for electrical components in various indoor applications, featuring an IP40 rating.
2. Коопсуздук маалыматы
ЭСКЕРТҮҮ: Electrical work should only be performed by qualified and licensed electricians. Failure to follow these instructions can result in electric shock, fire, or serious injury.
- Always disconnect power at the main circuit breaker or fuse box before installing, servicing, or performing any work on the enclosure or its contents.
- Бардык жергиликтүү жана улуттук электр кодекстеринин жана эрежелеринин так сакталышын камсыз кылыңыз.
- Do not install this enclosure in wet or damp locations, as it is rated IP40 for protection against solid objects larger than 1mm, but not against water ingress.
- Verify that the enclosure dimensions and capacity are suitable for the intended electrical components.
- Орнотуу жана техникалык тейлөө учурунда тиешелүү жеке коргонуу каражаттарын (ЖКК) колдонуңуз.
3. Орнотуу жана орнотуу
The Hager VF312PD Electrical Enclosure is designed for surface mounting. Follow these steps for proper installation:
- Даярдоо:
- Unpack the enclosure and inspect it for any shipping damage.
- Ensure all necessary mounting hardware (not included) is available.
- Choose a suitable, dry, and accessible location for installation, away from direct sunlight or heat sources.
- Монтаждоо:
- Mark the drilling points on the wall using the enclosure's mounting holes as a template.
- Drill holes appropriate for your chosen mounting hardware.
- Securely fasten the enclosure to the wall, ensuring it is level and stable.
- Зымдар:
- Carefully route all electrical cables into the enclosure through the designated knockouts or cable entries.
- Install electrical components (e.g., circuit breakers, terminals) within the enclosure according to their respective instructions and local electrical codes.
- Бардык байланыштар бекем жана коопсуз экендигин текшериңиз.
- Акыркы кадамдар:
- Корпустун эшигин жаап, бекитиңиз.
- Схеманы калыбына келтириңиз.

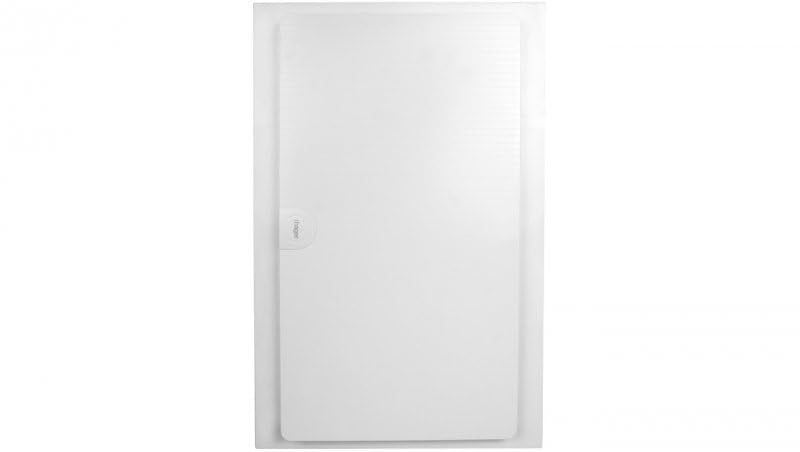

Сүрөт 1: Алдыңкы view of the Hager VF312PD Electrical Enclosure. This image shows the rectangular white enclosure with its smooth, slightly recessed door. The Hager brand logo is subtly visible on the left side of the door, indicating the manufacturer.
4. Корпусту иштетүү
The Hager VF312PD is a passive electrical enclosure designed to house and protect electrical components. It does not have active operational controls. Its primary function is to provide a safe and organized environment for electrical installations.
- Мүмкүнчүлүк: To access the internal components, open the front door of the enclosure. Ensure power is disconnected before opening if any live components are present.
- Коргоо: Once closed, the enclosure provides IP40 protection, safeguarding internal components from solid objects larger than 1mm and accidental contact.
5. Техникалык тейлөө
Regular maintenance ensures the longevity and continued safety of your Hager VF312PD Electrical Enclosure.
- Тазалоо: Корпустун сыртын мезгил-мезгили менен жумшак, d чүпүрөк менен тазалап туруңузamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
- Текшерүү: Annually, or more frequently in dusty environments, inspect the enclosure for:
- Signs of physical damage (cracks, dents).
- Бош монтаждоо бурамалар.
- Accumulation of dust or debris inside (if opened for inspection, ensure power is off).
- Integrity of cable entries and seals.
- Компонентти текшерүү: If the enclosure is opened for inspection, also check the internal electrical components for any signs of overheating, loose connections, or wear.
6. Кыйынчылыктарды
This section addresses common issues related to the enclosure itself. For issues with internal electrical components, refer to their respective manuals.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Enclosure door does not close properly. | Obstruction, damaged hinge/latch, or warped enclosure. | Check for obstructions. Inspect hinges and latch for damage. If warped, consider replacement. |
| Dust accumulation inside enclosure. | Improperly sealed cable entries, damaged enclosure, or very dusty environment. | Ensure cable entries are properly sealed. Inspect enclosure for cracks. Clean regularly. |
| Enclosure feels loose on wall. | Loose mounting screws or inadequate mounting hardware. | Tighten mounting screws. If necessary, reinforce mounting points or use stronger hardware. |
7. Техникалык шарттар
| Атрибут | Нарк |
|---|---|
| Бренд | Хагер |
| Модель номери | VF312PD |
| Продукциянын өлчөмдөрү (L x W x Y) | 13.86 x 3.84 x 21.38 дюйм (352 мм x 97.5 мм x 543 мм) |
| Элемент Салмагы | 12.7 унция (0.36 килограмм) |
| Кирүү коргоо (IP) рейтинги | IP40 (Protected against solid objects over 1mm, no protection against liquids) |
| Өндүрүүчү | Хагер |
| ASIN | B07QNF6N9P |
| Дата биринчи жеткиликтүү | 23-июль, 2020-жыл |
8. Кепилдик жана колдоо
For warranty information and technical support regarding your Hager VF312PD Electrical Enclosure, please refer to the official Hager webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз. Сатып алганыңыздын далили катары сатып алуу дүмүрчөгүңүздү сактаңыз.
Hager Official Webсайт: www.hager.com
