CZC AUTO Digital Tire Inflator Pressure Gauge User Manual

1. Киришүү

This manual provides detailed instructions for the safe and effective use of your CZC AUTO Digital Tire Inflator Pressure Gauge. This device combines the functions of testing tire pressure, deflating, and inflating tires, making it a versatile tool for maintaining optimal tire pressure for various vehicles.

Figure 1: CZC AUTO Digital Tire Inflator Pressure Gauge. This image shows the complete assembly of the digital tire inflator pressure gauge, including the digital display, handle, hose, and chuck.

2. Продукциянын өзгөчөлүктөрү

• 3-ин-1 Функциясы: Capable of testing tire pressure, deflating tires, and inflating tires when connected to an air pump or compressor.
• Санариптик дисплей: Large blue backlit LED screen for clear readings.
• Көптөгөн басым бирдиктери: Supports PSI, kg/cm², BAR, and KPA with 0.1 display resolution.
• Жогорку тактык: Calibrated to ANSI B40.1 Grade B (2%) international accuracy standard.
• Туруктуу курулуш: Features an aluminum handle, brass air bleeder button, and a 13-inch heavy-duty rubber hose.
• Lock-on Chuck: Straight brass lock-on chuck for secure connection to tire valves.
• Автоматтык функциялар: LED screen auto-on upon connection to tire valve, auto-off after 20 seconds of inactivity.

Figure 2: Key components of the CZC AUTO Digital Tire Inflator Pressure Gauge. This image highlights various parts such as the brass air bleeder button, chrome-plated iron thumb trigger, surface frosted aluminum gun handle, 1/4" FNPT connector, 13" long rubber hose, large blue backlit LED screen, gear-style rubber protector, brass straight chuck with lock-on clip, and leak-free air valve core.

Figure 3: Digital display and available pressure units. This image illustrates the "ON/UNITS/OFF" button, "LIGHT UP/LIGHT OFF" button, and the four measurement ranges: 0-250 PSI, 0-17 BAR, 0-1700 KPA, and 0-17 KG/CM².

3. Орнотуу

3.1 Батареяны орнотуу

The digital display requires 2 AAA batteries (not included). To install:

1. Locate the battery cover on the back of the digital gauge head.
2. Батареянын капкагын алып салыңыз.
3. Туура полярдуулукту (+/-) камсыз кылуу менен 2 AAA батарейкасын салыңыз.
4. Батареянын капкагын бекем орнотуңуз.

Figure 4: Battery compartment. This image shows the location of the battery cover and where to insert the 2 AAA batteries (not included).

3.2 Connecting to Air Source

To use the inflation function, connect the gauge to an air pump or compressor:

1. Ensure your air pump or compressor is equipped with a 1/4" NPT fitting.
2. Attach the included 1/4" MNPT fitting to the bottom of the inflator handle.
3. Connect the inflator gauge to your air pump or compressor's hose.

4. Иштөө нускамалары

4.1 Checking Tire Pressure

For accurate readings, check tire pressure when tires are cold, especially before long-distance travel.

1. Remove the valve cap from the tire.
2. Press the straight brass lock-on chuck firmly onto the tire valve stem. The digital display will automatically turn on and show the current tire pressure.
3. Read the pressure displayed on the LED screen.
4. Press the "ON/UNITS/OFF" button to cycle through pressure units (PSI, kg/cm², BAR, KPA) if desired.
5. Press the "LIGHT UP/LIGHT OFF" button to toggle the backlight.
6. Remove the chuck from the valve stem. The display will auto-off after 20 seconds of inactivity.

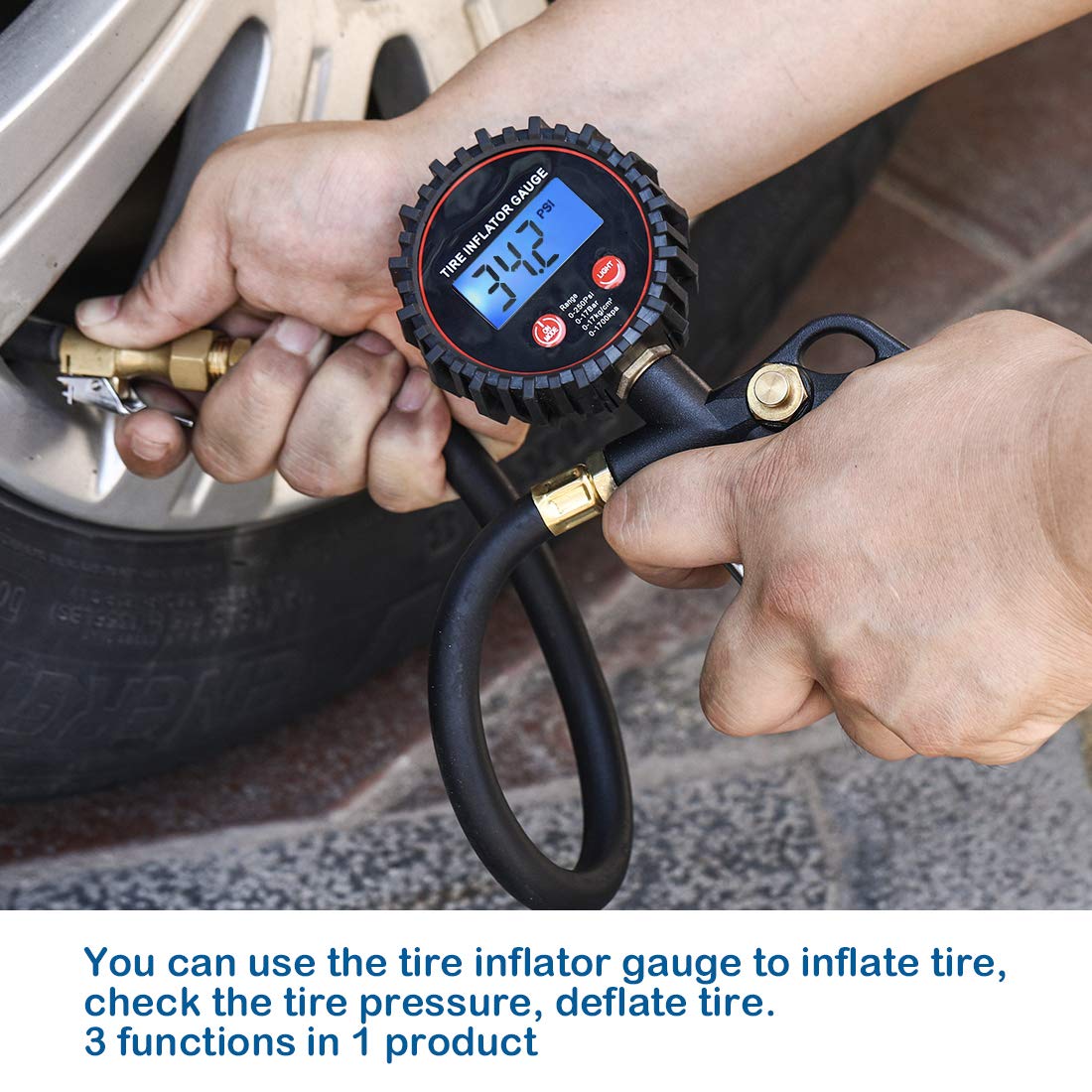

Figure 5: Checking tire pressure with the gauge. This image demonstrates how to connect the gauge's chuck to a tire valve to read the pressure on the digital display.

4.2 Дөңгөлөктөрдү үйлөтүү

Ensure the gauge is connected to an air pump or compressor as described in Section 3.2.

1. Connect the straight brass lock-on chuck firmly onto the tire valve stem.
2. Press the chrome-plated iron thumb trigger to begin inflating the tire. Monitor the pressure on the digital display.
3. Release the thumb trigger once the desired pressure is reached.
4. Remove the chuck from the valve stem.

4.3 Deflating Tires

The gauge can deflate tires whether connected to an air pump or not.

1. Connect the straight brass lock-on chuck firmly onto the tire valve stem. The current pressure will be displayed.
2. Press the brass air bleeder button to release air from the tire. Monitor the pressure on the digital display as air is released.
3. Release the air bleeder button once the desired pressure is reached.
4. Remove the chuck from the valve stem.

Figure 6: Wide range of vehicle compatibility. This image shows the tire inflator gauge is suitable for various vehicles including trucks, buses, cars, SUVs, RVs, ATVs, bikes (with Schrader valve), and motorcycles.

5. Техникалык тейлөө

• Тазалоо: Wipe the gauge with a soft, dry cloth. Do not use abrasive cleaners or immerse the unit in water.
• Сактагыч: Store the gauge in a cool, dry place away from direct sunlight and extreme temperatures.
• Батареяны алмаштыруу: Replace batteries when the display becomes dim or does not turn on. Remove batteries if storing for extended periods to prevent leakage.
• Hose and Chuck Inspection: Periodically inspect the rubber hose and brass chuck for any signs of wear, cracks, or damage. Replace if necessary to ensure accurate readings and safe operation.

6. Кыйынчылыктарды

7. Техникалык шарттар

Figure 7: Product dimensions. This image provides a diagram with measurements, showing the gauge head is approximately 3 inches wide, the total height from the bottom of the handle to the top of the gauge is 9-1/4 inches, and the hose length from the gauge to the chuck is 15-1/2 inches.

8. Кепилдик жана колдоо

For any problems encountered when receiving or using our products, please feel free to contact us. Our client support team is always available to assist you.

Өндүрүүчү: CZC AUTO

Биринчи жеткиликтүү болгон күнү: 15-апрель, 2019-жыл
