Fazley FSP-500-W Digital Piano User Manual

1. Киришүү

Сатып алганыңыз үчүн рахматasing the Fazley FSP-500-W Digital Piano. This instrument is designed to provide a rich and authentic piano playing experience, suitable for both beginners and experienced musicians. It features 88 Hammer Action keys, 16 distinct sounds, and various practical functions such as Layer mode, a built-in metronome, and multiple effects. This manual provides essential information for the safe and effective use of your digital piano.

2. Коопсуздук нускамалары

• Электр камсыздоо: Белгиленген кубат адаптерин гана колдонуңуз. Voltage сиздин аймактын талаптарына дал келет.
• Суу жана ным: Do not expose the instrument to rain, moisture, or excessive humidity. Avoid placing objects containing liquids on the piano.
• Вентиляция: Ensure proper ventilation around the instrument. Do not block ventilation openings.
• Жайгашкан жери: Place the piano on a stable, level surface to prevent accidental falls. Avoid direct sunlight or heat sources.
• Тазалоо: Disconnect the power before cleaning. Use a soft, dry cloth. Do not use liquid cleaners or solvents.
• Тейлөө: Аспапты өз алдынча тейлөөгө аракет кылбаңыз. Бардык тейлөө иштерин квалификациялуу адистерге тапшырыңыз.

3. Орнотуу

3.1 Пакеттен чыгаруу

Carefully remove the digital piano and all accessories from the packaging. Retain the packaging for future transport or storage.

3.2 Орнотуу

Place the Fazley FSP-500-W on a sturdy, flat surface. Ensure there is enough space for comfortable playing and access to the rear panel connections.

Сүрөт 1: Алдыңкы view of the Fazley FSP-500-W digital piano with the included music rest.

3.3 Кубат туташтыруу

1. Кубат адаптерин пианинонун арткы панелиндеги DC IN уячасына туташтырыңыз.
2. Кубат адаптерин ылайыктуу электр розеткасына сайыңыз.

3.4 Аксессуарларды туташтыруу

Арткы панель ар кандай туташуу параметрлерин камсыз кылат:

Figure 2: Rear panel connections including USB, audio out, and pedal inputs.

• Педальдар: Connect sustain pedals or a pedal unit to the designated pedal input jacks.
• Наушник: For private practice, connect standard stereo headphones to the headphone jack. This will mute the internal speakers.
• USB: Use a USB cable to connect the piano to a computer for MIDI data transfer.
• Аудио чыгышы: Тышкы туташуу amplification systems or recording devices using the audio output jacks.

4. Иштөө нускамалары

4.1 Күйгүзүү/өчүрүү

басыңыз КҮЧ button located on the control panel to turn the piano on or off. A brief startup sequence will occur when powering on.

4.2 Үндү башкаруу

Adjust the master volume using the dedicated volume knob or buttons on the control panel. Start with a low volume and increase it gradually.

4.3 Үн тандоо

The FSP-500-W offers 16 different instrument sounds, including various grand piano tones. Use the ҮН buttons or a dedicated dial to cycle through and select your desired sound.

Figure 3: Detail of the 88 Hammer Action keys, providing an authentic piano feel.

4.4 Layer Mode

Layer mode allows you to play two different sounds simultaneously. Refer to the control panel markings or the quick start guide for specific button combinations to activate and adjust layered sounds.

4.5 Метроном

The built-in metronome provides a steady beat for practice. Activate the metronome function and adjust its tempo and beat signature using the dedicated controls.

4.6 Эффекттер

The FSP-500-W includes various digital effects to enhance the sound. Explore the control panel to activate and adjust effects such as reverb or chorus.

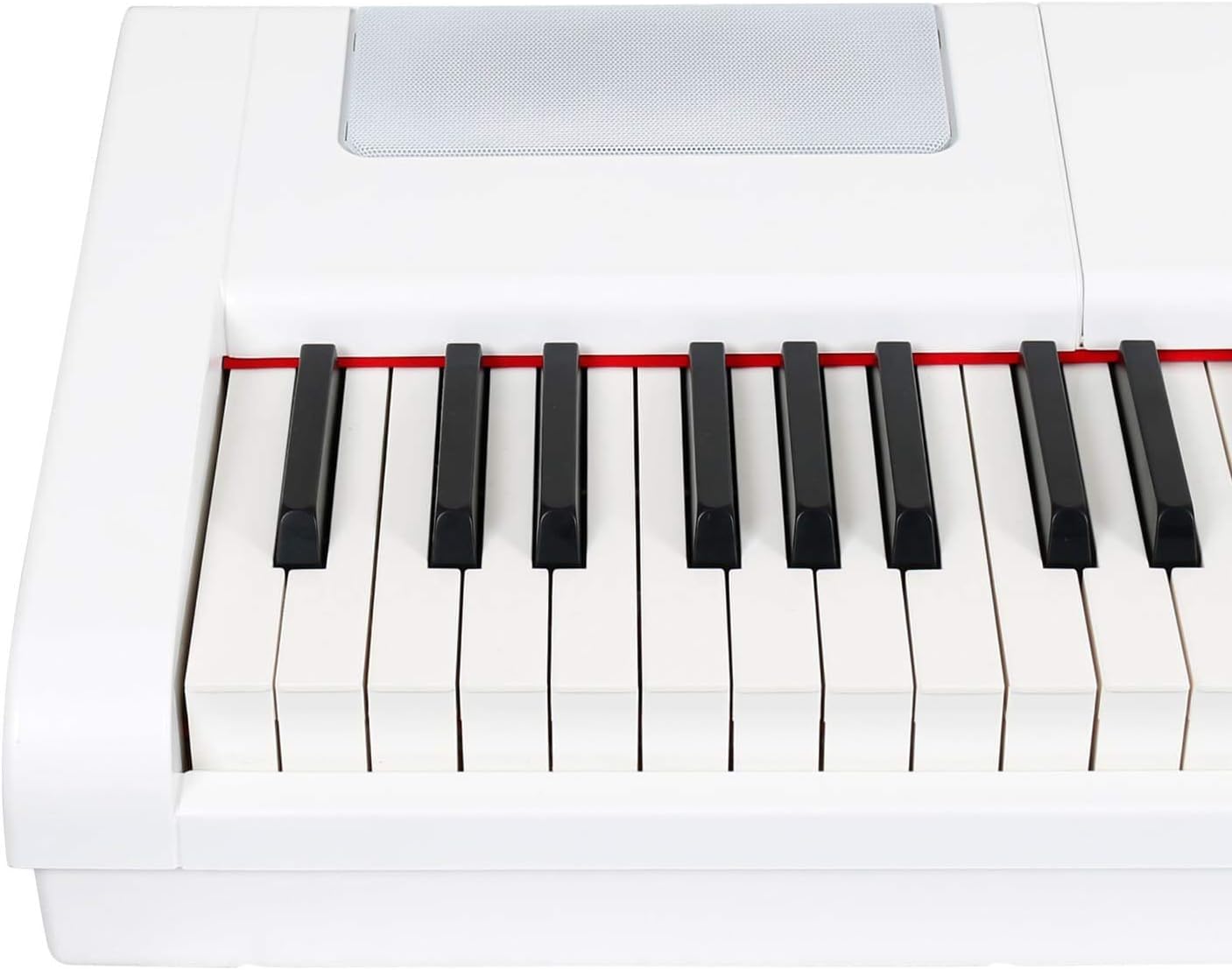

Figure 4: Integrated speaker grille for sound output.

5. Техникалык тейлөө

5.1 Тазалоо

To clean the piano, wipe the surface with a soft, dry cloth. For stubborn dirt, slightly dampen the cloth with water and then wipe dry immediately. Avoid abrasive cleaners, waxes, or solvents.

5.2 Сактоо

When not in use for extended periods, store the piano in a cool, dry place, away from direct sunlight and extreme temperatures. If possible, cover the keys to protect them from dust.

6. Кыйынчылыктарды

• Үн жок:
  • Кубат күйүк экенин жана үнү катуу коюлганын текшериңиз.
  • Ensure headphones are not connected, as they mute the internal speakers.
  • Verify external amplification is properly connected and powered on if used.
• Ачкычтар жооп бербейт:
  • Power cycle the instrument (turn off, then on again).
  • Ачкычтардын арасына бөтөн нерсе калбагандыгын текшериңиз.
• Бурмаланган үн:
  • Үн деңгээлин азайтыңыз.
  • Check connections to external audio equipment for proper seating.
• Metronome Not Working:
  • Ensure the metronome function is activated and its volume is audible.

Эгер көйгөйлөр чечилбесе, кардарларды колдоо кызматына кайрылыңыз.

7. Техникалык шарттар

8. Кепилдик жана колдоо

For warranty information and customer support, please refer to the documentation provided at the time of purchase or visit the official Fazley webсайт. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.
