1. Коопсуздук маалыматы
Орнотуудан жана иштетүүдөн мурун бардык коопсуздук көрсөтмөлөрүн кунт коюп окуп чыгыңыз. Бул көрсөтмөлөрдү аткарбоо электр тогуна урунууга, өрткө же башка коркунучтарга алып келиши мүмкүн.
- Орнотуудан же тейлөөдөн мурун автоматтык өчүргүчтө электр энергиясы өчүрүлгөнүн текшериңиз.
- Эгерде сиз электр зымдары боюнча күмөн санасаңыз, орнотууну квалификациялуу электрик аткарышы керек.
- Do not look directly into the LED light when it is illuminated, as this may cause eye damage.
- камсыз кылуу том экенин текшериңизtage арматуранын талаптарына шайкеш келет (120 Вольт).
- Бардык зымдарды туташтыруу жергиликтүү жана улуттук электр эрежелерине ылайык жүргүзүлүшү керек.
2. Продукт бүтүп калдыview
The Onforu BDBC75-3 is a 75W LED outdoor flood light designed for various exterior applications. It features three adjustable light heads, providing 7000 lumens of 6500K daylight white illumination. The fixture is IP65 waterproof, ensuring durability in outdoor conditions.

Figure 2.1: Onforu 75W LED Outdoor Flood Light (Model BDBC75-3) with its three adjustable heads.

2.2-сүрөт: жарылган view of the flood light components, highlighting the energy-saving LED beads and fin heat dissipation design.
3. Орнотуу жана орнотуу
The Onforu BDBC75-3 flood light is designed for easy installation on walls or eaves. It requires hardwired electrical connection.
3.1 Монтаждоо параметрлери
- Дубалга орнотуу: Аспапты вертикалдуу дубалдын бетине бекем бекитиңиз.
- Эва тоосу: Install the fixture underneath an eave for downward illumination.

Figure 3.1: Illustration of wall-mounted and soffit-mounted installation methods for the flood light.
3.2 Электр зымдары боюнча нускамалар
- Автоматтык өчүргүчтөн электр кубатын өчүрүңүз.
- Attach the mounting bracket to the junction box (not included) using appropriate screws.
- Арматуранын зымдарын үйүңүздүн зымдарына туташтырыңыз:
- Black wire (Live) to Black wire (Live)
- White wire (Neutral) to White wire (Neutral)
- Green wire (Ground) to Green or bare copper wire (Ground)
- Secure the fixture base to the mounting bracket.
- Бардык байланыштар бекем жана коопсуз экендигин текшериңиз.
- Автоматтык өчүргүчтөгү кубаттуулукту калыбына келтириңиз.

Figure 3.2: Detailed wiring connections for the flood light, showing live, neutral, and ground wires.
Video 3.1: Official Onforu video demonstrating the unboxing and installation process for the 55W LED Flood Lights, which shares similar installation steps with the 75W model.
4. Иштөө нускамалары
The Onforu BDBC75-3 flood light is designed for simple, switch-controlled operation.
4.1 Күйгүзүү/өчүрүү
This flood light is controlled by a standard wall switch. There is no motion sensor, solar power, or dusk-to-dawn functionality built into this model. Simply toggle the connected wall switch to turn the light on or off.

Figure 4.1: The flood light is operated via a manual wall switch.
4.2 Жарык баштарын жөндөө
The three light heads are independently adjustable, allowing you to direct illumination precisely where needed. Each head can be swiveled and tilted to achieve a wide 270° luminescence angle.

Figure 4.2: The adjustable light heads offer flexibility in directing light.
Видео 4.1: Колдонуучунун пикириview video demonstrating the brightness and coverage of the flood lights in a backyard setting.
5. Техникалык тейлөө
The Onforu BDBC75-3 flood light is designed for minimal maintenance due to its durable construction and IP65 waterproof rating.
- Тазалоо: Periodically wipe the light heads with a soft, damp cloth to remove dirt and debris. Do not use abrasive cleaners.
- Текшерүү: Regularly check the fixture for any signs of damage, loose connections, or wear. Address any issues promptly.
- Суу өткөрбөйт рейтинги: The IP65 rating ensures protection against dust and water jets. However, avoid submerging the fixture in water.

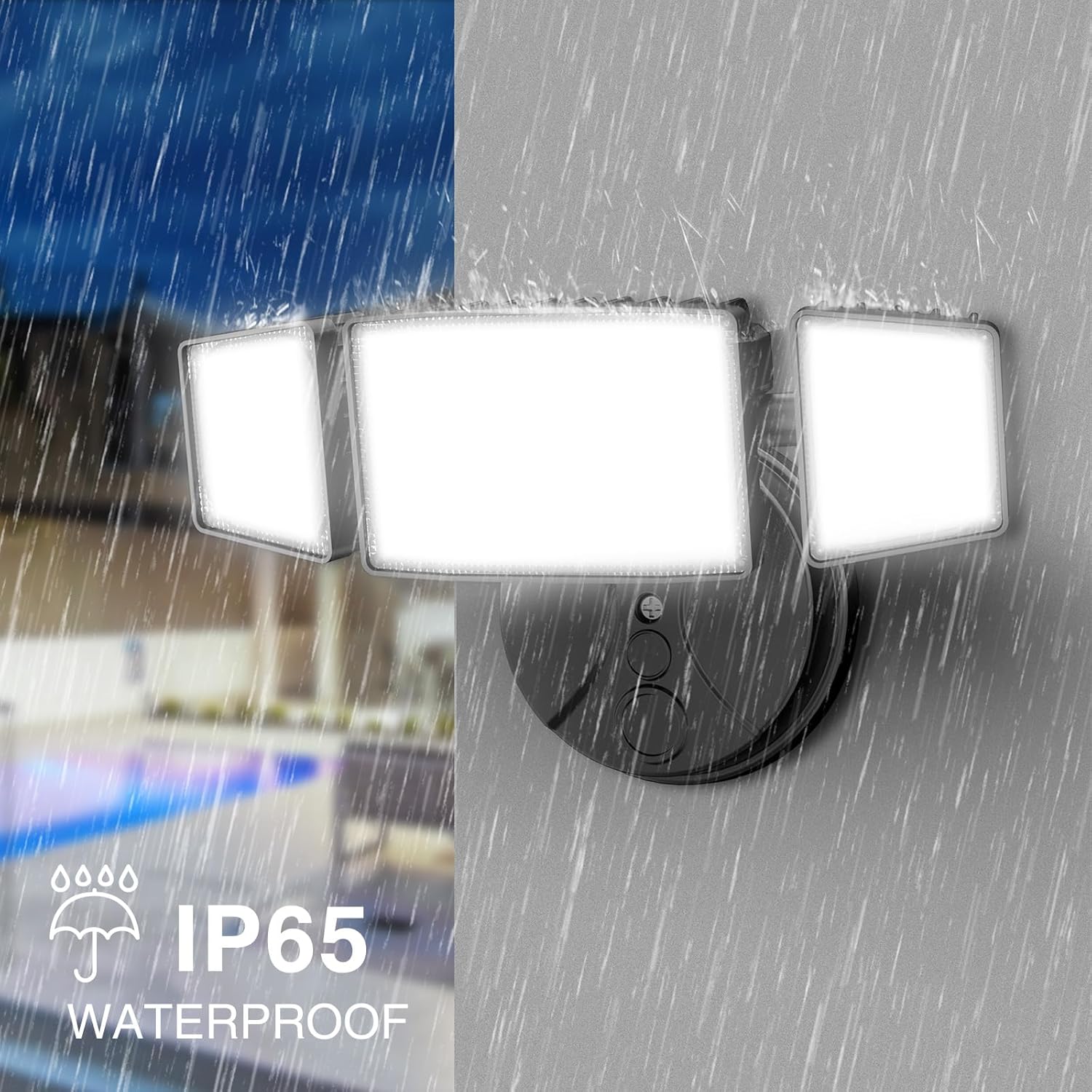

Figure 5.1: The IP65 waterproof design ensures reliable operation in various weather conditions.
6. Кыйынчылыктарды
If you encounter issues with your Onforu BDBC75-3 flood light, refer to the following common troubleshooting steps:
- Жарык күйбөйт:
- Түзмөккө кубат берүү үчүн автоматтык өчүргүчтү текшериңиз.
- Verify that the wall switch is in the "ON" position.
- Inspect wiring connections for any looseness or damage (ensure power is off before inspection).
- Partial Illumination (Some LEDs Not Working):
- This may indicate a component failure. Contact customer support for assistance.
- Жаркылдаган жарык:
- Бошогон зым байланыштарын текшериңиз.
- Voltagэлектрондук камсыздоо туруктуу жана белгиленген диапазондо.
For issues not covered here, or if troubleshooting steps do not resolve the problem, please contact Onforu customer support.
7. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Onforu |
| Модель аты | BDBC75-3 |
| Ватtage | 75 ватт |
| Жарыктык | 7000 Lumen |
| Түс температурасы | 6500 Келвин (Күндүзгү Ак) |
| Жарык булагы түрү | LED (112 efficient LED beads) |
| Материал | Алюминий |
| Сууга туруктуулук деңгээли | IP65 суу өткөрбөйт |
| Башкаруу ыкмасы | Которуу Башкарылган |
| Жөнгө салынуучу баштар | 3 light heads, 270° adjustable angle |
| Power Source | Электр зымдары |
| Тtage | 120 вольт |
| Продукциянын өлчөмдөрү | 10"L x 5"W x 4"H |
| Элемент Салмагы | 1.7 фунт |
| Орнотуу түрү | Wall Mount, Eave Mount |
| Элементтердин саны | 2 (as a 2-pack) |
8. Кепилдик жана колдоо
For warranty information or technical support regarding your Onforu BDBC75-3 flood light, please refer to the contact details provided with your product packaging or visit the official Onforu website. Ensure you have your model number (BDBC75-3) and purchase details available when contacting support.
Onforu is committed to providing quality products and customer satisfaction. If you experience any issues, their support team is available to assist you.
