Teka HLB 8400 P ST Built-in Electric Oven User Manual

1. Коопсуздук нускамалары

Please read these safety instructions carefully before installing or using your appliance. Keep this manual for future reference.

• Электр коопсуздугу: Ensure the appliance is correctly earthed and connected to a suitable power supply. Installation must be performed by a qualified electrician. Do not use adapters or extension cords.
• Ысык беттер: The oven and its accessible parts become very hot during use. Exercise caution to avoid burns. Keep children away from the appliance.
• Балдардын коопсуздугу: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. Children should be supervised to ensure they do not play with the appliance.
• Тазалоо: Always disconnect the appliance from the power supply before cleaning. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass as they can scratch the surface, which may result in shattering of the glass.
• Вентиляция: Ensure adequate ventilation around the appliance as specified in the installation instructions. Do not obstruct ventilation openings.

2. Продукт бүтүп калдыview

The Teka HLB 8400 P ST is a modern built-in electric oven designed for efficient and convenient cooking. It features a sleek dark grey finish, a large capacity oven cavity, and intuitive controls.

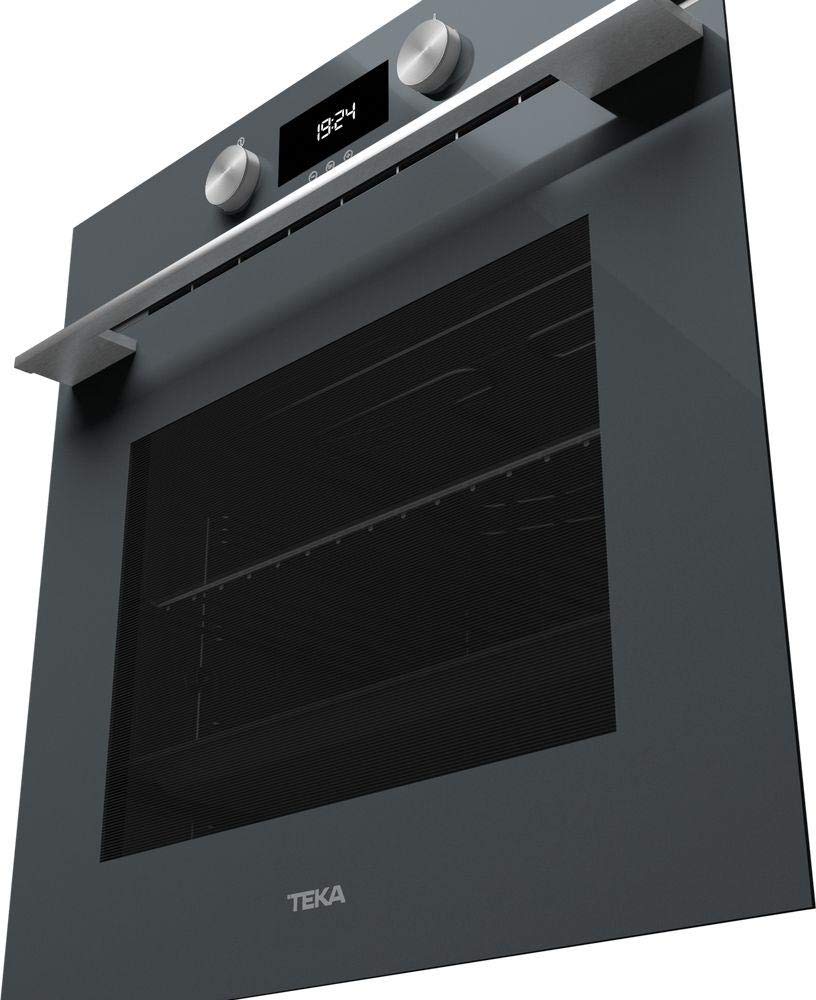

This image shows the Teka HLB 8400 P ST built-in electric oven from a slightly angled perspective. The oven features a dark grey finish, a large glass door, and a control panel with two rotary knobs and a digital display showing '19:24'. A metallic handle extends across the top of the oven door.

Башкаруу панели

The control panel consists of two rotary knobs for function selection and temperature control, and a central digital display for time, temperature, and program indicators.

3. Орнотуу

The oven comes with an assembly kit for installation. It is crucial that installation is carried out by a qualified professional in accordance with local regulations and the provided installation instructions.

• Пакеттен чыгаруу: Carefully remove all packaging materials. Inspect the oven for any damage.
• Жайгашкан жери: Install the oven in a suitable cabinet opening, ensuring adequate ventilation as per the installation diagram. Maintain specified clearances from walls and other appliances.
• Электр байланышы: Connect the oven to the mains power supply. Ensure the voltage and frequency match the appliance's rating plate. The electrical connection must be accessible after installation.
• Духовканы бекитүү: Secure the oven to the cabinet using the screws provided in the assembly kit to prevent tipping.

4. Иштөө нускамалары

4.1. Биринчи колдонуу

1. Биринчи колдонуудан мурун мештин ичин жарнама менен тазалаңызamp кездеме.
2. Heat the empty oven for approximately 30 minutes at maximum temperature (e.g., 250°C) using a conventional heating function to burn off any manufacturing residues. A slight odor may be present; ensure the room is well-ventilated.

4.2. Саатты коюу

Upon first connection to the power supply, the display will flash. Use the control knobs to set the current time. Refer to the detailed instructions in the full manual for specific button presses.

4.3. Basic Cooking Functions

Мешти иштетүү үчүн:

1. Turn the function selector knob to choose the desired cooking mode (e.g., Conventional Heat, Fan-Assisted, Grill).
2. Turn the temperature control knob to set the desired temperature.
3. Духовка ысый баштайт. Белгиленген температурага жеткенде индикатор жарыгы өчөт.

4.4. Pyrolytic Cleaning Cycle

The oven features a pyrolytic self-cleaning function, which heats the oven to a very high temperature (approx. 450-500°C) to burn off food residues, turning them into ash. This ash can then be easily wiped away once the oven has cooled.

• Before starting a pyrolytic cycle, remove all accessories (racks, trays, side supports) from the oven cavity.
• Ар кандай чоң төгүлгөн же бош калдыктарды сүртүңүз.
• Мештин эшигин бекем жабыңыз.
• Select the pyrolytic cleaning function on the control panel. The oven door will automatically lock during the cycle.
• Цикл аяктап, меш муздагандан кийин, күлдү жарнама менен сүртүңүзamp кездеме.

5. Техникалык тейлөө жана тазалоо

Үзгүлтүксүз тазалоо жана тейлөө мешиңиздин узак иштөөсүн жана оптималдуу иштешин камсыздайт.

• Жалпы тазалоо: Clean the oven interior and exterior regularly with a soft cloth and mild detergent. Avoid abrasive cleaners.
• Меш эшиги: The oven door glass can be cleaned with a glass cleaner. For thorough cleaning, some oven doors can be disassembled; refer to the full manual for specific instructions.
• Лампаны алмаштыруу: If the oven light needs replacement, ensure the oven is disconnected from the power supply and has cooled down. Unscrew the protective cover, replace the bulb with a suitable high-temperature resistant bulb (e.g., 25W/300°C), and reattach the cover.

6. Кыйынчылыктарды

Мешиңизде көйгөйлөргө туш болсоңуз, төмөнкү жалпы көйгөйлөрдү жана чечимдерди караңыз:

• Меш ысыбайт: Check if the oven is properly plugged in and the circuit breaker has not tripped. Ensure a cooking function and temperature have been selected.
• Дисплей иштебейт: Check power supply. If the display is blank, there might be a power interruption. Reset the clock if necessary.
• Oven door not closing properly: Inspect the door hinges for any obstructions or damage. Ensure the door seal is clean and intact. If the door does not align, professional adjustment may be required.
• Тамак бышыруу учурунда ашыкча түтүн: Бул тамак-аштын төгүлүшүнөн же калдыктарынан улам келип чыгышы мүмкүн. Духовканы жакшылап тазалаңыз.

For persistent issues or complex repairs, contact an authorized service technician.

7. Техникалык шарттар

8. Кепилдик жана колдоо

Your Teka HLB 8400 P ST oven is covered by a manufacturer's warranty. Please refer to the warranty card included with your appliance for specific terms and conditions, including the warranty period and coverage details.

For technical assistance, spare parts, or to schedule a service appointment, please contact Teka customer support or an authorized service center in your region. Always provide the model number (111000009) and serial number of your appliance when seeking support.
