Oster OS-WDA3200 суу диспенсеринин колдонуучу колдонмосу

1. Киришүү

Thank you for choosing the Oster OS-WDA3200 Water Dispenser. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new appliance. Please read these instructions thoroughly before use and retain them for future reference.

2. Коопсуздук нускамалары

To ensure safe operation, always follow these basic precautions:

• Шайманды колдонуудан мурун бардык нускамаларды окуп чыгыңыз.
• Эч кандай шайманды зымы же сайы бузулган, же шайман иштебей калгандан кийин же кандайдыр бир түрдө бузулгандан кийин иштетпеңиз.
• Электр шнурунун, сайгычтын же шаймандын өзүн сууга же башка суюктуктарга салбаңыз.
• Keep the appliance out of reach of children. The hot water dispenser features a child safety lock, but supervision is always recommended.
• Шаймандын туруктуу, түз бетке коюлганын текшериңиз.
• Do not block ventilation openings. Maintain adequate space around the dispenser for proper airflow.
• Unplug the dispenser from the power outlet before cleaning or performing any maintenance.
• Бул шайман үй ичинде гана колдонуу үчүн.

3. Продукт бүтүп калдыview

The Oster OS-WDA3200 is a floor-standing water dispenser designed to provide hot, ambient, and cold water. It features compressor cooling for efficient performance and a child safety lock for the hot water tap.

Негизги өзгөчөлүктөрү:

• Three Water Outlets: Hot, Ambient, and Cold
• Efficient Compressor Cooling
• Ысык суу үчүн балдардын коопсуздук кулпусу
• Removable Drip Tray for Easy Cleaning
• Floor Standing Design

Компоненттери:

Сүрөт 3.1: Алдыңкы View. This image displays the front of the Oster OS-WDA3200 water dispenser, showing the three water taps for hot, ambient, and cold water, along with the Oster branding and indicator lights.

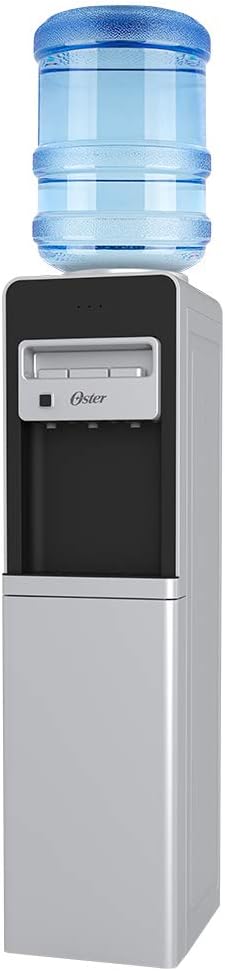

Figure 3.2: Water Bottle Installation. This image illustrates the Oster OS-WDA3200 water dispenser with a standard 5-gallon water bottle placed on top, ready for use.

Figure 3.3: Child Safety Lock. Жакын план view of the child safety lock button, located next to the hot water tap, designed to prevent accidental dispensing of hot water.

Figure 3.4: Storage Compartment. This image shows the lower door of the dispenser open, revealing a convenient storage compartment.

3.5-сүрөт: Арткы View. The back of the dispenser, displaying the compressor unit, cooling coils, and power switches for heating and cooling functions.

4. Орнотуу

4.1 Пакеттен чыгаруу

1. Диспенсерди таңгагынан этияттык менен чыгарыңыз.
2. Remove all packing materials, tape, and protective film.
3. Inspect the dispenser for any signs of damage. If damaged, do not use and contact customer service.

4.2 Орнотуу

1. Диспенсерди толгондо салмагын көтөрө ала турган бекем, түз бетке кой.
2. Ensure there is at least 10 cm (4 inches) of space between the back and sides of the dispenser and any walls or other objects for proper ventilation.
3. Avoid placing the dispenser in direct sunlight or near heat sources (e.g., ovens, radiators) to maintain cooling efficiency.
4. Do not place the dispenser in an area where the temperature will drop below 10°C (50°F).

4.3 Суу бөтөлкөсүн орнотуу

1. Clean the neck of a new 3 or 5-gallon water bottle.
2. Remove the protective cap from the water bottle.
3. Carefully lift the water bottle and place it upright onto the support collar on top of the dispenser. Ensure it is seated firmly.
4. Water will begin to flow into the dispenser's internal reservoirs.

4.4 Initial Power-On and Flushing

1. Once the water bottle is installed and water has filled the reservoirs (this may take a few minutes), plug the dispenser into a grounded 120V electrical outlet.
2. Locate the power switches on the back of the unit (refer to Figure 3.5). Turn on the cooling switch (usually blue or green) and the heating switch (usually red).
3. Before consuming water, flush the system: Dispense and discard at least two cups of water from each tap (hot, ambient, cold) to ensure the system is clean and free of air bubbles.
4. Allow approximately 15-30 minutes for the water to reach optimal cold and hot temperatures.

5. Иштөө нускамалары

5.1 Dispensing Cold Water

Place a cup under the cold water tap (typically blue). Press the cold water lever or button to dispense cold water. Release to stop.

5.2 Dispensing Ambient Water

Place a cup under the ambient water tap (typically gray or white). Press the ambient water lever or button to dispense room temperature water. Release to stop.

5.3 Ысык сууну берүү

The hot water tap (typically red) is equipped with a child safety lock.

1. Place a heat-resistant cup under the hot water tap.
2. Simultaneously press the child safety lock button (refer to Figure 3.3) and the hot water lever/button.
3. Release the lever/button to stop the flow of hot water. Release the safety lock button.

WARNING: Hot water can cause severe burns. Always use caution and ensure the child safety lock is engaged when not in use.

6. Техникалык тейлөө

6.1 Тамчылатуучу табакчаны тазалоо

The drip tray (located below the taps) collects spilled water and should be emptied and cleaned regularly.

1. Carefully remove the drip tray by pulling it forward.
2. Чогулган сууну агызып, табакчаны жумшак самын жана жылуу суу менен жууңуз.
3. Rinse thoroughly and dry before replacing.

6.2 Сырты тазалоо

Диспенсердин сырткы беттерин жумшак, г менен сүртүңүзamp кездеме. Абразивдүү тазалагычтарды, эриткичтерди же катуу химиялык заттарды колдонбоңуз, анткени алар финишке зыян келтириши мүмкүн.

6.3 Draining the Unit (for storage or extended non-use)

1. Диспенсерди электр розеткасынан сууруп алыңыз.
2. Суу куюлган бөтөлкөнү алып салыңыз.
3. Place a large bucket or container under the drain plug, usually located at the back or bottom of the unit.
4. Remove the drain plug to allow all water to empty from the reservoirs.
5. Агызгандан кийин, дренаждык тығынды бекем алмаштырыңыз.
6. Dispense water from all taps until no more water comes out.
7. Allow the interior to air dry completely before storing.

7. Кыйынчылыктарды

If you encounter issues with your water dispenser, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Oster customer service.

8. Техникалык шарттар

9. Кепилдик жана колдоо

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official Oster webсайт. Сатып алганыңыздын далили катары сатып алуу дүмүрчөгүңүздү сактаңыз.
