Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your LEDVANCE Endura Flood 30W 840 DG LED Floodlight. Please read these instructions carefully before use and retain them for future reference.
The LEDVANCE Endura Flood 30W is an energy-efficient outdoor lighting solution designed for general purpose illumination. It features a compact design, homogeneous light distribution, and a robust die-cast aluminum housing with a tempered glass cover, ensuring durability and performance in outdoor environments.
Коопсуздук маалыматы
- Орнотуудан, тейлөөдөн же тазалоодон мурун ар дайым электр энергиясын өчүрүңүз.
- Орнотуу жергиликтүү электр зымдарынын эрежелерине ылайык квалификациялуу электрик тарабынан аткарылышы керек.
- Ensure the mounting surface is capable of supporting the weight of the floodlight.
- Жарык күйүп турганда LED жарык булагын түз карабаңыз.
- This product is designed for outdoor use with an IP65 protection rating, meaning it is dust-tight and protected against water jets.
- The floodlight operates on 230 Volts. Verify your power supply matches this requirement.
Пакеттин мазмуну
Орнотууну баштоодон мурун бардык компоненттер бар экендигин текшериңиз:
- 1 x LEDVANCE Endura Flood 30W 840 DG LED Floodlight
- Орнотуу кронштейни (алдын ала бекитилген)
- Көрсөтмө (бул документ)
Орнотуу жана орнотуу
The LEDVANCE Endura Flood 30W is designed for surface mount, wall mount installation. No assembly is required for the floodlight unit itself.

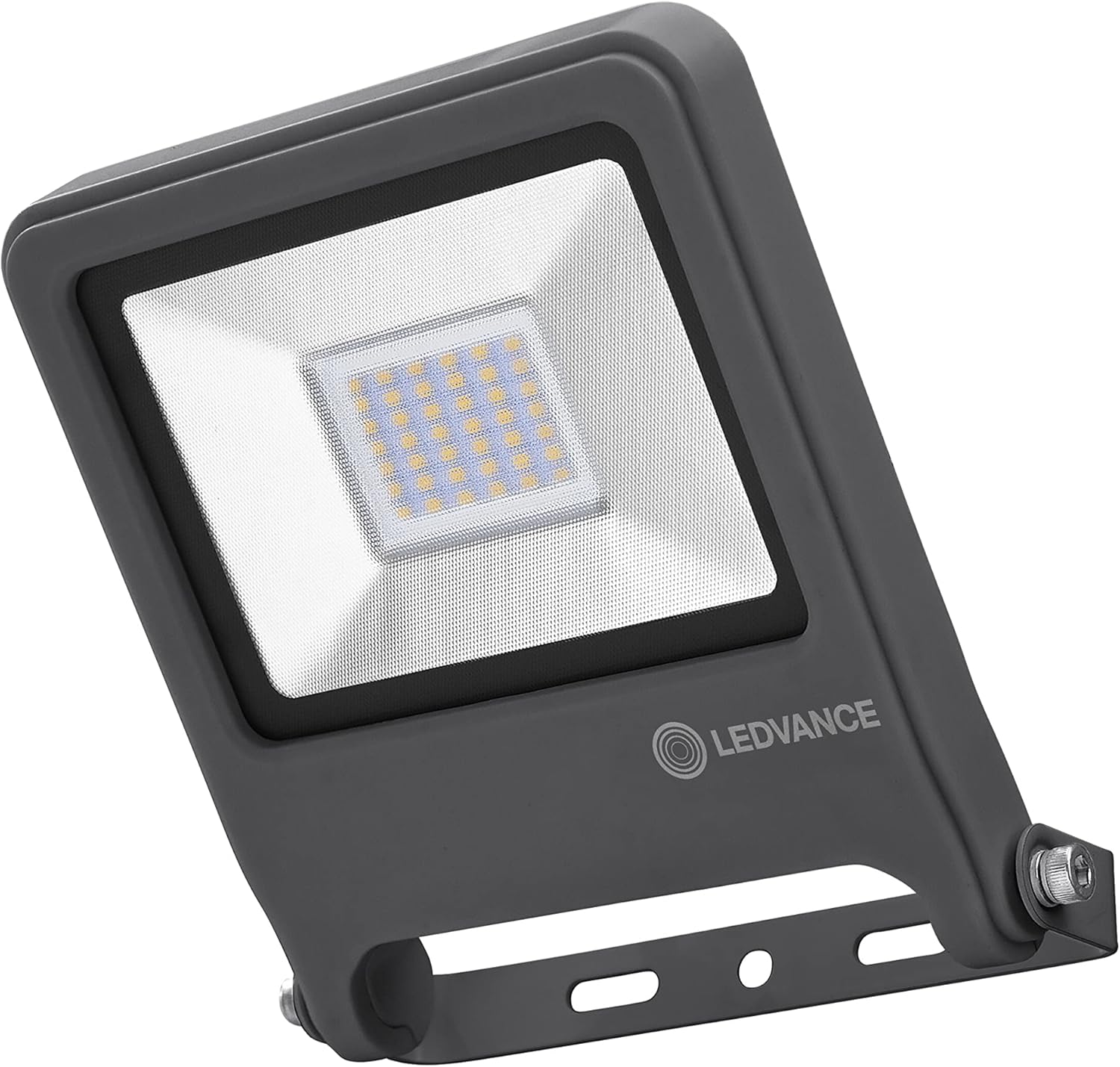

This image displays the LEDVANCE Endura Flood 30W floodlight from the front, showcasing its dark grey die-cast aluminum housing and the integrated LED light panel behind a tempered glass cover.
1. Орнотуу ордун тандоо
- Choose a suitable outdoor location for wall mounting, ensuring adequate clearance and light coverage.
- Consider the floodlight's dimensions for proper placement.
This technical diagram illustrates the physical dimensions of the LEDVANCE Endura Flood 30W floodlight, showing a length of 170mm, height of 193mm, and depth of 39mm, crucial for installation planning.
2. Secure Mounting
- Use the pre-attached mounting bracket to mark drilling points on the wall.
- Керек болсо, тиешелүү тешиктерди бургулап, дубалга бекиткичтерди орнотуңуз.
- Securely fasten the floodlight to the wall using suitable screws (not included).
- Adjust the angle of the floodlight as needed using the bracket's pivot points.
3. Электр зымдары
Wiring is required. The floodlight comes with a 1-meter connection cable.
- Ensure the main power supply is turned OFF at the circuit breaker before proceeding.
- Connect the floodlight's cable to your main power supply wiring. Follow standard electrical codes for live, neutral, and ground connections.
- IP65 рейтингин сактоо үчүн бардык туташуулардын бекем жана тийиштүү түрдө изоляцияланганын текшериңиз.
- Once wiring is complete, restore power to the circuit.
Иштөө нускамалары
The LEDVANCE Endura Flood 30W floodlight is designed for straightforward operation.
- Once properly installed and wired, the floodlight will illuminate when power is supplied to its circuit.
- Operation is typically controlled via an external wall switch (rocker or push button type) connected to the circuit.
- While the product specifications mention 'Remote' and 'Infrared' connectivity, a remote control is not included with this unit. If you wish to use remote functionality, ensure you have a compatible infrared remote system installed separately.
This image shows the LEDVANCE Endura Flood 30W floodlight mounted above a garage door, effectively illuminating the driveway and surrounding area, demonstrating its outdoor application.
Техникалык тейлөө
The LEDVANCE Endura Flood 30W requires minimal maintenance.
- Тазалоо: Periodically clean the exterior of the floodlight with a soft, damp кездеме. Абразивдүү тазалоочу каражаттарды же эриткичтерди колдонбоңуз. Тазалоодон мурун электр кубатынын өчүрүлгөнүн текшериңиз.
- Жарык булагы: This product is a containing product, meaning it is a luminaire that can be disassembled for a separate check of the light source(s) it contains. However, the LED light source is integrated and non-removable by the user for replacement. Do not attempt to replace the LED module yourself.
- Текшерүү: Regularly inspect the cable and housing for any signs of damage. If damage is found, disconnect power immediately and consult a qualified electrician.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Floodlight does not illuminate. | Электр энергиясы жок. Туура эмес зым. Бузулган которгуч. | Электр өчүргүчтү текшерүү. Зымдардын туташуусун текшериңиз (электрик менен кеңешиңиз). Сыноо же алмаштыргыч. |
| Жарыктын чыгышы күңүрт же бүлбүлдөп турат. | Туруксуз электр энергиясы. Бошогон зымдар байланышы. | Электр менен камсыздоону текшерүү үчүн электрикке кайрылыңыз. Check and secure wiring connections (power off first). |
| Ичинде суунун кириши же конденсация пайда болушу. | Орнотуу учурунда туура эмес пломба. Damage to housing/glass. | Ensure all seals are intact and connections are watertight. Inspect for cracks; replace unit if damaged. |
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | LEDVANCE |
| Модель номери | 4058075206700 |
| Ватtage | 30 Ватт |
| Жарыктык | 2700 Lumen |
| Ачык түс | Cold White |
| Тtage | 230 вольт |
| Материал | Die-cast Aluminum Housing, Tempered Glass Cover |
| Продукциянын өлчөмдөрү (L x W x Y) | 7.6" x 6.69" x 1.54" (170 мм x 193 мм x 39 мм) |
| Элемент Салмагы | 349 грамм (12.3 унция) |
| Ички/тышкы колдонуу | Сыртта |
| Коргоо классы | IP65 (чаң өткөрбөйт, суу агымдарынан корголгон) |
| Орнотуу түрү | Surface Mount, Wall Mount |
| Power Source | Corded Electric, 1m Cable Length |
| Өзгөчө өзгөчөлүк | Энергияны үнөмдүү |
| Жарык булагы түрү | Integrated LED (Non-removable) |
Кепилдик жана колдоо
For specific warranty information regarding your LEDVANCE Endura Flood 30W LED Floodlight, please refer to the documentation provided at the point of purchase or contact LEDVANCE customer support directly. Warranty terms typically cover manufacturing defects for a specified period.
For technical support or inquiries, please visit the official LEDVANCE website or contact their customer service department. Contact details can usually be found on the product packaging or the manufacturer's webсайт.
