Mastercool 90010-6 Vacuum Pump Oil Instruction Manual
Essential guidelines for the proper use and maintenance of Mastercool 90010-6 Vacuum Pump Oil.
1. Продукт бүтүп калдыview
Mastercool 90010-6 Vacuum Pump Oil is a high-quality lubricant specifically designed for use in deep vacuum pumps. Regular replacement of vacuum pump oil is crucial to ensure proper pump performance, extend pump life, and maintain optimal vacuum levels.

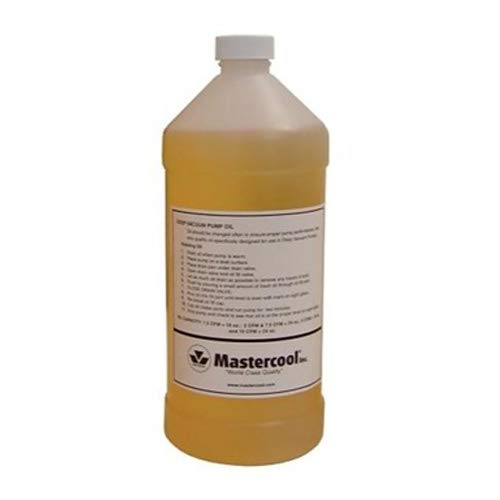

Figure 1: Mastercool 90010-6 Vacuum Pump Oil bottle. This image shows the product packaging, a clear bottle containing yellow oil, with a white label detailing product information and usage instructions.
2. Setup and Preparation for Oil Change
Before changing the vacuum pump oil, ensure you have the necessary tools and a safe working environment. Always refer to your specific vacuum pump's manual for additional safety precautions and procedures.
- Ensure the vacuum pump is disconnected from any power source and is cool to the touch.
- Gather a suitable drain pan or container to collect the old oil.
- Have clean rags or paper towels readily available for spills.
- Position the pump on a stable, level surface to facilitate complete drainage.
3. Operating Instructions: Changing Vacuum Pump Oil
Follow these steps carefully to change the vacuum pump oil. This procedure is critical for maintaining pump efficiency and longevity.
- Warm the Pump: Start the oil-less pump briefly to warm the oil. This makes the oil less viscous and easier to drain.
- Position for Drainage: Place the pump on a level surface and position a drain pan directly under the drain valve.
- Initial Drain: Open the drain valve and allow the old oil to drain completely. Run the pump for approximately 30 seconds to help expel residual oil.
- First Flush (Optional but Recommended): Close the drain valve. Pour a small amount of fresh Mastercool vacuum pump oil (approximately 1-2 ounces) through the fill port. Run the pump for 30 seconds. This helps to flush out any remaining contaminants.
- Second Drain: Open the drain valve again and drain the flushing oil. Run the pump for another 30 seconds.
- Дренаж клапанын жабуу: Once drainage is complete, securely close the drain valve.
- Жаңы май менен толтуруңуз: Slowly pour fresh Mastercool 90010-6 Vacuum Pump Oil into the fill port until the oil level reaches the "FULL" mark on the sight glass. Do not overfill.
- Circulate New Oil: Close the fill port securely. Run the pump for approximately 2 minutes to circulate the new oil throughout the system.
- Акыркы текшерүү: Check the oil level again using the sight glass. If necessary, add more oil to reach the "FULL" mark. Inspect for any leaks around the drain valve or fill port.
Маанилүү: Always dispose of used oil responsibly according to local regulations.
4. Техникалык тейлөө
Regular maintenance of your vacuum pump, particularly timely oil changes, is vital for its performance and longevity.
- Oil Change Frequency: Vacuum pump oil should be changed frequently, especially after each major job or if the oil appears cloudy, discolored, or contaminated. Dirty oil can significantly reduce pump efficiency and cause damage.
- Майдын деңгээлин текшерүү: Periodically check the oil level using the sight glass and top up if necessary with Mastercool 90010-6 Vacuum Pump Oil.
- Сактагыч: Store Mastercool 90010-6 Vacuum Pump Oil in a cool, dry place, away from direct sunlight and extreme temperatures. Keep the container tightly sealed to prevent contamination.
5. Техникалык шарттар
Key specifications for Mastercool 90010-6 Vacuum Pump Oil:
| Менчик | Деталь |
|---|---|
| Продукт модели | 90010-6 |
| Бөтөлкөнүн көлөмү | 10 унция. |
| Шайкештик | Designed for deep vacuum pumps |
| Сунушталган колдонуу | Regular replacement to ensure proper pump performance |
| Capacity Reference (from label) | 7-10 CFM - 18 oz., 3 CFM & 7-10 CFM - 28 oz., 12 CFM - 32 oz. (Note: This refers to pump capacity and corresponding oil volume needed, not the oil bottle size.) |
6. Кыйынчылыктарды
If you encounter issues with your vacuum pump after an oil change, consider the following common problems and solutions:
- Pump Not Pulling Vacuum Effectively:
- Check if the oil level is correct. Low oil can prevent proper vacuum.
- Ensure the oil is clean and not contaminated. Dirty oil significantly reduces performance. Perform another oil change if necessary.
- Verify all connections are tight and there are no leaks in the system.
- Excessive Noise from Pump:
- Low oil level can cause increased noise. Top up or change oil.
- Ensure the pump is on a stable, level surface to minimize vibration.
- Oil Appears Milky or Cloudy:
- This indicates moisture contamination. Change the oil immediately and run the pump for a short period to help evaporate any remaining moisture, then change oil again if cloudiness persists.
For persistent issues, consult a qualified technician or the vacuum pump manufacturer's support.
7. Кепилдик жана колдоо
For specific warranty information regarding Mastercool 90010-6 Vacuum Pump Oil, please refer to the product packaging or contact Mastercool directly. General product support and technical assistance can be obtained through the manufacturer's official channels.
Mastercool Contact Information:
- Webсайт: www.mastercool.com
- Refer to the official Mastercool website for the most current contact details, product information, and support resources.
