Epson EP-882AW сыя бүркүтүүчү көп функциялуу принтер колдонуучусунун колдонмосу

1. Киришүү

This manual provides essential information for the safe and efficient use of your Epson EP-882AW Inkjet Multifunction Printer. It covers setup, operation, maintenance, and troubleshooting. Please read this manual thoroughly before using the product and keep it for future reference.

The Epson EP-882AW is an A4 color multifunction printer from the Colorio series. It features a compact design and utilizes 6-color dye ink for high-quality photo and document printing. Key functionalities include copying, scanning, and printing.

2. Коопсуздук маалыматы

Өрт, электр шок же жаракат алуу коркунучун азайтуу үчүн ар дайым төмөнкү негизги коопсуздук чараларын аткарыңыз:

• Буюмду өзүңүз тейлөөгө аракет кылбаңыз. Бардык тейлөөлөрдү квалификациялуу тейлөө кызматкерлерине тапшырыңыз.
• Продукт менен кошо берилген электр кубатын гана колдонуңуз.
• Do not place the product in a location where it may be exposed to water or moisture.
• Ensure the product is placed on a stable, flat surface.
• Продукцияны жылуулук булактарынан жана түз күн нурунан алыс кармаңыз.

3. Пакеттин мазмуну

Бардык буюмдар кутуга киргизилгендигин текшериңиз:

• Epson EP-882AW Printer Unit
• Setup Ink Cartridges (6 colors)
• Software Disc
• Колдонуучунун колдонмосу (бул колдонмо)
• Диск салгыч
• Электр кабели
• Кепилдик картасы

4. Орнотуу

4.1 Пакеттен чыгаруу жана жайгаштыруу

Carefully remove the printer from its packaging. Remove all protective tapes and materials. Place the printer on a flat, stable surface with adequate space around it for ventilation and operation.

Сүрөт: алдыңкы view of the Epson EP-882AW printer, showcasing its compact white design and central touch panel.

4.2 Кубат туташтыруу

Connect the supplied power cord to the printer's power input and then to a wall outlet. Press the power button to turn on the printer.

4.3 Сыя картридждерин орнотуу

Follow the on-screen instructions on the printer's 4.3-inch touch panel to install the setup ink cartridges. Ensure each cartridge is inserted into its correct color slot until it clicks into place.

4.4 Программалык камсыздоону орнотуу

Insert the software disc into your computer's CD/DVD drive and follow the on-screen instructions to install the printer drivers and utility software. Alternatively, download the latest software from the official Epson support webсайт.

4.5 Тармактык туташуу

The EP-882AW supports wired LAN, wireless LAN (Wi-Fi), and USB connections.

4.5.1 Wi-Fi туташуусу

On the printer's touch panel, navigate to the Wi-Fi setup menu. Select your network and enter the password. The printer also supports easy connection via QR code for smartphones.

Image: A smartphone screen displaying a QR code for quick Wi-Fi connection to the Epson printer, simplifying the setup process.

Example Wi-Fi connection details (for reference, actual details will vary): WIFI:S:DIRECT-FEDCBA98;T:WPA;P:12345678;;

4.5.2 USB туташуу

Connect the printer to your computer using a USB cable (not included). The necessary drivers will be installed automatically or can be installed manually using the software disc.

5. Иштөө нускамалары

The EP-882AW features a 4.3-inch wide touch panel for intuitive operation.

Image: The Epson EP-882AW printer positioned on a wooden shelf, demonstrating its compact and space-saving design.

5.1 Кагазды жүктөө

The printer features a front two-stage paper feed, allowing two types of frequently used paper (e.g., plain paper and photo paper) to be loaded simultaneously. There is also a rear single-sheet manual feed for specialty media.

5.2 Документтерди жана сүрөттөрдү басып чыгаруу

From your computer or smartphone, select the print function in your application. Choose the Epson EP-882AW as your printer, adjust print settings (paper size, type, quality), and initiate printing. The printer supports automatic duplex printing for two-sided documents.

Image: A composite image illustrating the Epson EP-882AW's capabilities: printing a document, utilizing the front paper feed, printing on a disc label, and direct printing from an SD card or USB memory.

5.3 Көчүрүү

Place the document face down on the scanner glass. On the printer's touch panel, select the 'Copy' function. Adjust settings such as number of copies, color/mono, and paper size, then press 'Start'.

5.4 Скандоо

Place the document face down on the scanner glass. On the printer's touch panel, select the 'Scan' function. Choose your scan destination (e.g., computer, cloud service, memory card) and settings, then press 'Start'.

5.5 Direct Printing from Memory Card/USB

Insert an SD memory card or USB memory device into the designated slot on the printer. Use the touch panel to browse and select photos or documents for direct printing.

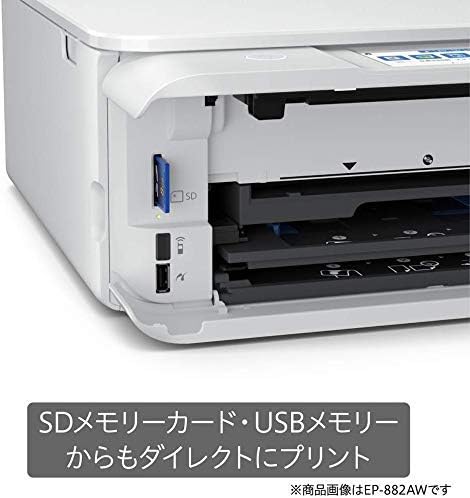

Сүрөт: жакын план view of the Epson EP-882AW's side panel, showing the slots for an SD memory card and a USB memory stick, enabling direct printing without a computer.

5.6 Disc Label Printing

Attach the disc tray to the printer as instructed. Use the software provided or the printer's touch panel to design and print directly onto compatible CDs/DVDs.

Image: The Epson EP-882AW printer actively printing a label onto a CD/DVD using its dedicated disc tray, highlighting its disc label printing capability.

5.7 Using Epson Smart Panel App

Download the Epson Smart Panel app on your smartphone or tablet. This app allows you to control the printer remotely, print, scan, and check printer status.

Image: A person using the Epson Smart Panel app on a smartphone to control the Epson EP-882AW printer, which is visible in the background on a shelf.

6. Техникалык тейлөө

6.1 Принтерди тазалоо

Принтердин сыртын жумшак, нымдуу чүпүрөк менен үзгүлтүксүз сүртүп туруңузamp cloth. Clean the scanner glass with a lint-free cloth and glass cleaner. Avoid using abrasive cleaners.

6.2 Сыя картридждерин алмаштыруу

When an ink cartridge is low or empty, a message will appear on the touch panel. Follow the on-screen instructions to replace the individual ink cartridge. Use genuine Epson ink cartridges for optimal performance.

6.3 Техникалык тейлөө кутучасын алмаштыруу

The EP-882AW features a replaceable maintenance box that collects waste ink. When the maintenance box is full, a message will appear. Refer to the printer's on-screen guide or the full user manual for instructions on how to replace it.

7. Кыйынчылыктарды

Бул бөлүм сиз кабылышы мүмкүн болгон жалпы көйгөйлөрдү карайт.

7.1 Принтер жооп бербей жатат

• Принтер күйгүзүлгөнүн текшериңиз.
• Verify all cables (power, USB, LAN) are securely connected.
• Ensure the printer is connected to the correct Wi-Fi network.
• Принтериңизди жана компьютериңизди/түзмөктү өчүрүп күйгүзүңүз.

7.2 Басып чыгаруу сапатынын начардыгы

• Сыянын деңгээлин текшерип, аз же бош картридждерди алмаштырыңыз.
• Perform a nozzle check and head cleaning using the printer's utility software or touch panel.
• Басып чыгаруу тапшырмаңыз үчүн тиешелүү кагаз орнотууларын колдонуп жатканыңызды текшериңиз.

7.3 Кагаз тыгындары

• Turn off the printer and carefully remove any jammed paper from the paper trays or output slot.
• Ensure paper is loaded correctly and not over the maximum fill line.
• Принтердин спецификацияларына жооп берген кагазды колдонуңуз.

8. Техникалык шарттар

9. Кепилдик жана колдоо

9.1 Кепилдик маалыматы

Your Epson EP-882AW printer comes with a limited warranty. Please refer to the warranty card included in your package for specific terms, conditions, and duration of coverage. Keep your purchase receipt as proof of purchase for warranty claims.

9.2 Кардарларды колдоо

For technical assistance, troubleshooting beyond this manual, or warranty service, please contact Epson customer support. Visit the official Epson website for contact information, FAQs, and driver downloads.

Official Epson Support Webсайт: www.epson.com/support
