Tronic T-Fan T3000 Handheld Mini Fan User Manual

1. Киришүү

Thank you for choosing the Tronic T-Fan T3000 Handheld Mini Fan. This portable and versatile fan is designed to provide personal cooling wherever you go. Featuring a powerful 3000mAh rechargeable battery, a magnetic base for easy mounting, and a compact design, the T-Fan T3000 is ideal for use at your desk, during travel, or outdoors. Please read this manual carefully before use to ensure proper operation and maintenance.

2. Коопсуздук маалыматы

• Do not insert fingers or any objects into the fan grille when the fan is operating.
• Keep the fan away from water and moisture. Do not use in wet environments.
• Do not disassemble, repair, or modify the fan yourself. Contact customer support for assistance.
• Балдар жетпеген жерде сактаңыз.
• Кубаттоо үчүн берилген USB кабелин же сертификатталган эквивалентин гана колдонуңуз.
• Do not expose the fan to extreme temperatures or direct sunlight for prolonged periods.
• Ensure the fan is placed on a stable surface when not handheld.

3. Пакеттин мазмуну

Сураныч, пакетте төмөнкү нерселерди текшериңиз:

• Tronic T-Fan T3000 Handheld Mini Fan
• USB заряддоо кабели
• Magnetic Metal Plate (with adhesive backing)
• User Manual

4. Продукциянын диаграммасы

Familiarize yourself with the components of your Tronic T-Fan T3000.

4.1-сүрөт: Фронт view of the Tronic T-Fan T3000 handheld mini fan, showcasing анын компакттуу дизайны жана желдеткич тор.

4.2-сүрөт: Side view of the Tronic T-Fan T3000, highlighting the USB-C charging port located on the handle.

1. Вентилятор торчосу: Protects the fan blades.
2. Желдеткичтер: Generate airflow.
3. Power Button/Speed Control: Located on the handle, used for turning the fan on/off and adjusting speed.
4. USB-C заряддоо порту: Заряддоо кабелин туташтыруу үчүн.
5. LED көрсөткүчү: Shows charging status and operation.
6. Магниттик база: Allows the fan to attach to metallic surfaces or the included metal plate.
7. Жөнгө салынуучу баш: The fan head can be tilted up to 15 degrees for directional airflow.

5. Орнотуу

5.1 Алгачкы заряддоо

Before first use, fully charge the fan. Connect the USB charging cable to the fan's USB-C port and the other end to a USB power source (e.g., computer, wall adapter). The LED indicator will illuminate during charging and change color or turn off when fully charged.

5.2 Attaching the Magnetic Metal Plate

The included magnetic metal plate allows you to mount your fan on non-metallic surfaces.

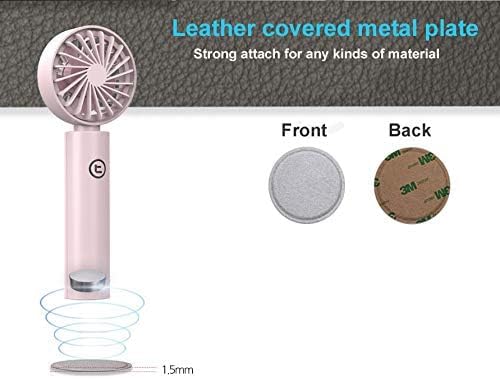

5.1-сүрөт: The leather-covered magnetic metal plate with 3M adhesive backing, used for mounting the fan.

1. Clean the desired surface thoroughly to ensure it is free of dust and grease.
2. Peel off the protective film from the adhesive backing of the metal plate.
3. Firmly press the metal plate onto the clean surface and hold for a few seconds to ensure strong adhesion.
4. Allow the adhesive to set for at least 24 hours before attaching the fan.

6. Иштөө нускамалары

6.1 Күйгүзүү/өчүрүү жана ылдамдыкты жөндөө

The Tronic T-Fan T3000 features a single button for control.

1. Күйгүзүү: Press the power button once. The fan will start at its default speed.
2. Ылдамдыкты жөнгө салуу үчүн: Press the power button repeatedly to cycle through available speed settings (e.g., Low, Medium, High, Off). Refer to the LED indicator for current speed if applicable.
3. Өчүрүү: Continue pressing the power button until the fan stops, or press and hold the button for a few seconds.

6.2 Аба агымынын багытын жөндөө

The fan head can be manually tilted up to 15 degrees to direct the airflow as needed.

6.1-сүрөт: Illustration showing the 15-degree adjustable tilt of the fan head for customized airflow.

7. Заряддоо

When the battery is low, the fan's performance may decrease, or it may stop operating. Recharge the fan using the provided USB cable.

• Connect the USB-C end of the cable to the fan's charging port.
• Connect the USB-A end to a compatible power source (e.g., 5V USB adapter, computer USB port, power bank).
• The LED indicator will show the charging status. A full charge typically takes approximately 3-4 hours.
• Avoid overcharging the battery by disconnecting the fan once fully charged.

8. Магниттик монтаждоо

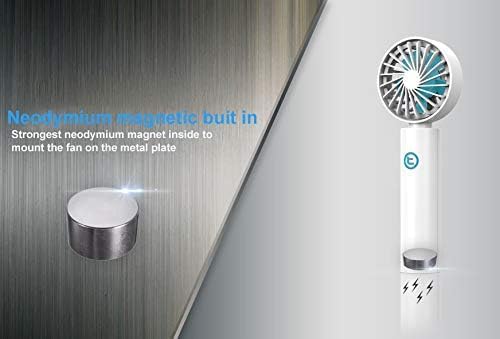

The Tronic T-Fan T3000 features a strong neodymium magnet in its base, allowing it to attach to various metallic surfaces or the included metal plate.

8.1-сүрөт: Examples of the Tronic T-Fan T3000 magnetically mounted in a car, kitchen, office, and desk environment.

• Монтаждоодон мурун бети таза жана кургак экенин текшериңиз.
• Place the fan's magnetic base directly onto a metallic surface or the previously installed metal plate.
• Verify that the fan is securely attached before releasing it.

9. Техникалык тейлөө

9.1 Тазалоо

• Ensure the fan is turned off and disconnected from any power source before cleaning.
• Желдеткичтин сыртын сүртүү үчүн жумшак, кургак чүпүрөктү колдонуңуз.
• For the fan grille, use a cotton swab or a soft brush to gently remove dust. Do not use water or harsh cleaning agents.

9.2 Сактоо

When not in use for extended periods, store the fan in a cool, dry place, away from direct sunlight and extreme temperatures. It is recommended to charge the fan every 3 months to maintain battery health.

10. Кыйынчылыктарды

11. Техникалык шарттар

• Бренд: Tronic
• Модел: T3000
• Түрү: Кол мини желдеткич
• Кубат булагы: Батарея менен иштейт (USB кайра заряддалуучу)
• Батарея сыйымдуулугу: 3000 мАч (литий-ион)
• Тtage: 5 вольт
• Башкаруу ыкмасы: Button Control (Touch)
• Өзгөчө өзгөчөлүгү: Portable, Magnetic Base, Adjustable Tilt (15 degrees)
• Элемент Салмагы: Болжол менен 5.9 унция (0.17 Kilogram)
• Пакеттин өлчөмдөрү: 7.24 x 2.91 x 1.65 дюйм
• Ички/тышкы колдонуу: Сыртта

12. Продукт бүтүп калдыview Video

Watch this official product video for a visual guide to the Tronic T-Fan T3000's features and usage.

13. Кепилдик жана колдоо

The Tronic T-Fan T3000 comes with a standard manufacturer's warranty. For detailed warranty information, product support, or to report any issues, please contact Tronic customer service through the retailer where you purchased the product or visit the official Tronic webсайт.

Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
