1. Киришүү
This manual provides detailed instructions for the installation, operation, and maintenance of your Aux ASW-24B2/FFR1 JSERIE Mini-Split Air Conditioner. This 220V Wi-Fi enabled unit offers 24,000 BTU cooling/heating capacity, suitable for areas between 25 to 36 square meters. Key features include self-cleaning, anti-fungus mode, and automatic restart for enhanced comfort and convenience. Please read this manual thoroughly before using the appliance.
2. Коопсуздук маалыматы
For your safety and to prevent damage to the unit, always observe the following precautions:
- Электр коопсуздугу: Ensure the unit is connected to a dedicated 220V-1-60Hz power supply. Do not use extension cords or multi-outlet adapters.
- Орнотуу: Installation must be performed by a qualified professional to prevent electric shock, fire, or injury. Improper installation voids the warranty.
- Операция: Do not insert fingers or objects into the air inlet/outlet. Do not operate the unit with wet hands.
- Тейлөө: Always disconnect power to the unit before performing any cleaning or maintenance.
- Балдар: Keep children away from the unit and remote control. This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
3. Продукт бүтүп калдыview

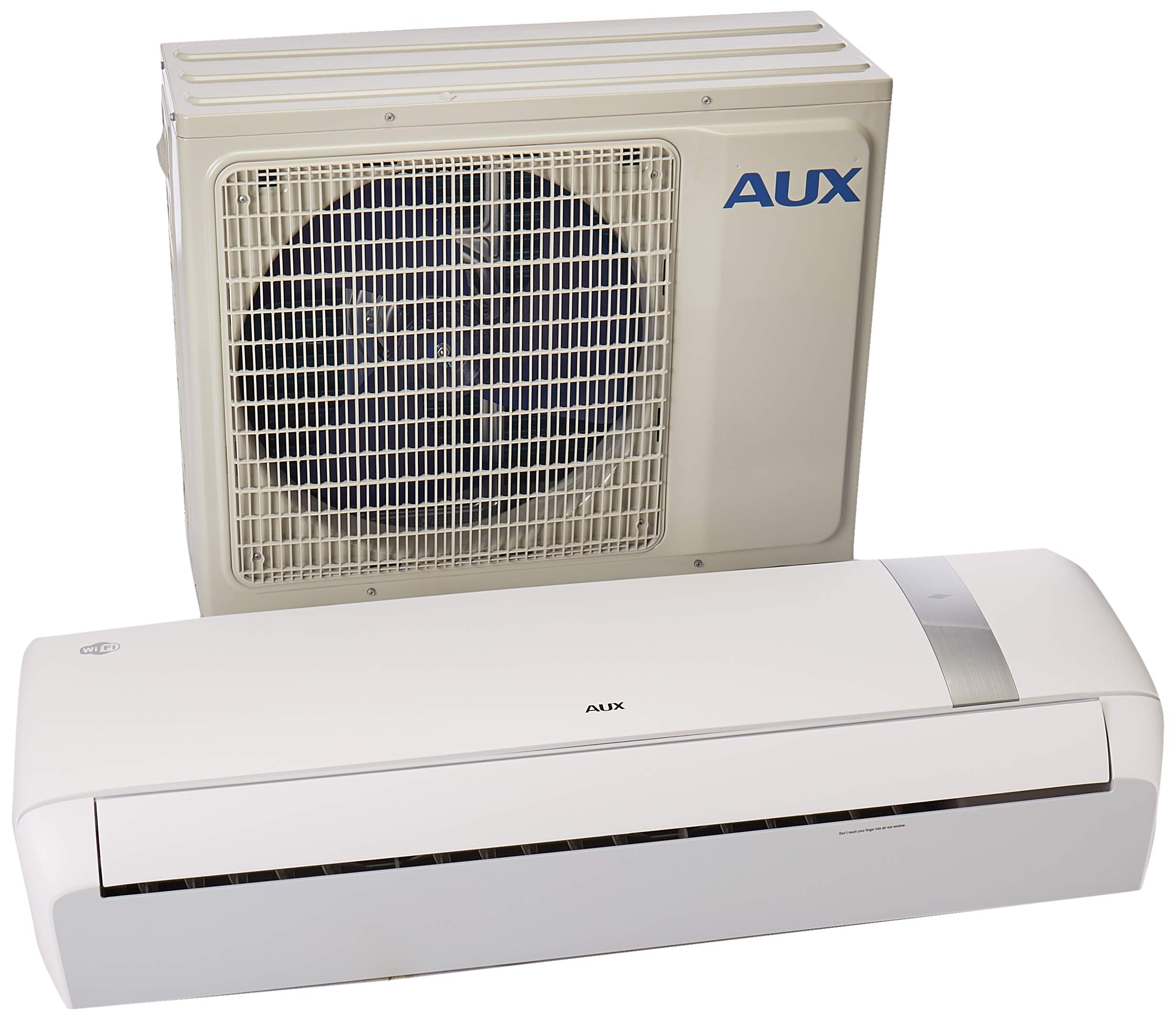

The Aux ASW-24B2/FFR1 JSERIE Mini-Split system is designed for efficient climate control. It comprises an indoor evaporator unit and an outdoor condenser unit, working together to provide cooling and heating. The unit also features integrated Wi-Fi connectivity for smart control via a mobile application.
Алыстан башкаруу
This image displays the remote control for the Aux ASW-24B2/FFR1 JSERIE Mini-Split Air Conditioner. The remote is white with a large LCD screen at the top for displaying settings. Below the screen, the "AUX" brand logo is visible. The buttons are light green, with a prominent central blue power button. Each button controls a specific function of the air conditioner:
- Power Button (Blue): Кондиционердин иштөө системасын күйгүзөт же өчүрөт.
- °C/°F баскычы: Температура дисплейин Цельсий менен Фаренгейттин ортосунда которушат.
- MODE баскычы: Cycles through various operating modes such as Cool, Heat, Fan, Dry, and Auto.
- SPEED баскычы: Желдеткичтин ылдамдыгын тууралайт (мисалы, Төмөн, Орто, Жогорку, Авто).
- SWING (Horizontal) Button: Controls the horizontal movement of the air louvers.
- SWING (Vertical) Button: Controls the vertical movement of the air louvers.
- TURBO баскычы: Температуранын тез өзгөрүшү үчүн тез муздатуу же жылытуу функциясын иштетет.
- TIMER баскычы: Used to set the automatic on/off times for the unit.
- iFavor Button: Recalls and applies a user-defined personalized favorite setting.
- iFeel Button: Activates a function where the remote control senses the ambient temperature at its location and adjusts the unit's operation accordingly for localized comfort.
- HEALTH Button: Engages specific health-related functions, such as air purification or ionizer (if equipped).
- SLEEP баскычы: Activates a sleep mode that automatically adjusts temperature and fan speed for comfortable sleep and energy saving.
- iClean Button: Initiates the self-cleaning cycle of the indoor unit.
- Anti-FUNGUS Button: Activates a mode designed to prevent the growth of mold and mildew within the indoor unit.
- DISPLAY баскычы: Turns the LED display on the indoor unit on or off.
4. Орнотуу жана орнотуу
The Aux ASW-24B2/FFR1 is a split-system air conditioner, meaning it has separate indoor and outdoor units. Proper installation is crucial for performance and safety.
- Кесиптик орнотуу: Due to the complexity of refrigerant lines, electrical connections, and mounting, it is mandatory that installation be performed by a certified HVAC technician. This ensures compliance with local codes, proper functioning, and maintains the product warranty.
- Электр камсыздоо: The unit requires a 220V-1-60Hz electrical power source. Ensure the installation site has the appropriate wiring and circuit breaker capacity.
- Компоненттери: The product package includes both the indoor evaporator unit and the outdoor condenser unit, along with necessary installation accessories.
- Wi-Fi орнотуу: After the physical installation is complete and the unit is powered on, refer to the dedicated Wi-Fi setup guide or the Aux smart home application for instructions on connecting your air conditioner to your home network.
5. Иштөө нускамалары
Негизги операция
- Күйгүзүү/өчүрүү: Көктү басыңыз Күч аппаратты күйгүзүү же өчүрүү үчүн пульттун баскычын басыңыз.
- Режимди тандоо: басыңыз РЕЖИМ button repeatedly to cycle through available operating modes: Auto, Cool, Dry, Fan, and Heat.
- Температураны жөндөө: Use the temperature up/down buttons (typically located near the power button) to set your desired temperature.
- Желдетүүчү ылдамдыгын жөндөө: басыңыз ЫЛДАМ button to select the desired fan speed (Auto, Low, Medium, High).
- Жалюзи башкаруу: колдонуу САЛКЫН buttons to adjust the direction of the airflow, both horizontally and vertically.
Атайын функциялар
- ТУРБО: Температуранын тез өзгөрүшү үчүн максималдуу муздатууну же жылытууну иштетет.
- ТАЙМЕР: Set a specific time for the unit to turn on or off automatically. Refer to the detailed timer setting instructions in the full manual for precise programming.
- iFavor: Saves and recalls your preferred operating settings (mode, temperature, fan speed, swing) with a single button press.
- iFeel: The remote control measures the ambient temperature at its location and sends this data to the indoor unit, optimizing comfort around the remote's position.
- ДЕН СООЛУК: Engages air purification or other health-related features to improve indoor air quality.
- УЙКУ: Automatically adjusts temperature and fan speed during sleep for optimal comfort and energy saving.
- КӨРСӨТҮҮ: Toggles the LED display on the indoor unit on or off for undisturbed rest.
Wi-Fi туташуусу
Your ASW-24B2/FFR1 unit supports Wi-Fi control. Download the official Aux smart home application on your smartphone or tablet. Follow the in-app instructions to pair your device with the air conditioner. This allows for remote control, scheduling, and monitoring from anywhere with an internet connection.
6. Техникалык тейлөө
Regular maintenance ensures optimal performance, energy efficiency, and longevity of your air conditioner.
- Аба чыпкасын тазалоо: Clean the air filters every two weeks or more frequently if the unit is used heavily or in dusty environments. Refer to the full manual for instructions on how to remove and clean filters. Dirty filters reduce airflow and efficiency.
- Self-Cleaning (iClean): колдонуу iClean function on your remote control to activate the unit's self-cleaning cycle. This process helps to remove accumulated dust and moisture from the evaporator coil, preventing mold and odor buildup.
- Грибокко каршы режим: жандырыңыз Грибокко каршы mode periodically to inhibit mold and mildew growth within the indoor unit, contributing to healthier air quality.
- Сырткы блок: Keep the outdoor condenser unit free from obstructions, leaves, and debris. Periodically clean the coils with a soft brush or vacuum cleaner to ensure proper heat exchange.
- Кесиптик текшерүү: Schedule an annual professional inspection and cleaning by a qualified technician. This can identify potential issues early and ensure the unit operates at peak efficiency.
7. Кыйынчылыктарды
Before contacting service, check the following common issues and their solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түзмөк күйбөйт | No power supply, remote control batteries low, circuit breaker tripped. | Электр кубатына туташууну текшериңиз, пульттун батареяларын алмаштырыңыз, автоматтык өчүргүчтү кайра орнотуңуз. |
| Жетишсиз муздатуу/жылытуу | Dirty air filters, blocked outdoor unit, wrong mode selected, temperature setting too high/low, doors/windows open. | Clean air filters, clear obstructions from outdoor unit, select correct operating mode, adjust temperature, ensure room is sealed. |
| Адаттан тышкаркы ызы -чуу | Loose parts, foreign objects inside unit, refrigerant issues. | Turn off unit and inspect for obvious obstructions. If noise persists or is loud, contact service. |
| Ички блоктон суунун агып чыгышы | Clogged drain pipe, improper installation, frozen evaporator coil. | Check and clear the drain pipe. If issue persists, contact a professional technician. |
| Wi-Fi туташуу маселелери | Router issues, incorrect Wi-Fi password, unit too far from router, app not updated. | Restart your Wi-Fi router, re-enter password in the app, ensure unit is within Wi-Fi range, update the Aux app. |
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Көмөкчү |
| Модель аты | ASW-24B2/FFR1 220V WIF JSERIE |
| Муздатуу кубаттуулугу | 24,000 Британ жылуулук бирдиктери (BTUs) |
| Тtage | 220 вольт |
| Power Source | Электр зымдары |
| Өзгөчөлүктөр | Heating and Cooling Function, Wi-Fi Connectivity, Self-Cleaning (iClean), Anti-Fungus Mode, Automatic Restart, iFeel, iFavor, Sleep Mode |
| Форма фактору | Mini-Split |
| Башкаруу ыкмасы | Touch Control (Remote) |
| Орнотуу ыкмасы | Бөлүнүү тутуму |
| Камтылган компоненттер | Evaporator (Indoor Unit) and Condenser (Outdoor Unit) |
| Сунушталган камтуу аймагы | 25 to 36 m² (approximate) |
| Продукт Салмагы | 58 Grams (Note: This weight likely refers to a component, not the full system. Full system weight will be significantly higher.) |
9. Кепилдик жана колдоо
Your Aux ASW-24B2/FFR1 Mini-Split Air Conditioner comes with a Чектелген Кепилдик. Please refer to the warranty card included with your product for specific terms, conditions, and duration of coverage. The warranty typically covers manufacturing defects under normal use.
For technical support, service, or warranty claims, please contact your authorized Aux dealer or customer service center. It is essential to keep your purchase receipt or proof of purchase as it will be required for any warranty service.
