Soleus Air 12,000 BTU Portable Air Conditioner User Manual
Model: FEA-12HP
1. Продукт бүтүп калдыview
The Soleus Air FEA-12HP Portable Air Conditioner is a multi-functional unit designed to provide year-round comfort. It offers cooling, heating, dehumidification, and fan-only modes, making it suitable for various climate control needs in rooms up to 450 sq ft.
Камтылган компоненттер:
- Портативдик кондиционер
- Чыгаруучу шланг
- Window Kit & Adapter
- Алыстан башкаруу (2 AAA батарейкасы менен)



2. Коопсуздук маалыматы
ЭСКЕРТҮҮ: Бул продукт Калифорния штатына рак жана тубаса кемтиги же башка репродуктивдүү зыян келтирүү үчүн белгилүү болгон коргошунду камтыган химиялык заттарга дуушар болушу мүмкүн. Көбүрөөк маалымат алыш үчүн www.P65Warnings.ca.gov.
Please read all instructions carefully before operating this appliance. Failure to follow these instructions may result in electric shock, fire, or serious personal injury.
- Аппаратты ар дайым жерге туташтырылган 3 тиштүү розеткага сайыңыз. Жерге туташтыргычты алып салбаңыз.
- Аппаратты бузулган шнур же сайгыч менен иштетпеңиз.
- Узарткычтарды же адаптер сайгычтарды колдонбоңуз.
- Аппаратты тез күйүүчү материалдардан жана ачык оттон алыс кармаңыз.
- Тийиштүү желдетүүнү камсыз кылыңыз жана аба кирүүчү же чыгуучу тешиктерди жаппаңыз.
- Do not insert fingers or foreign objects into the air outlets.
- Тазалоодон же техникалык тейлөөдөн мурун блокту электр розеткасынан сууруп алыңыз.
- Бул шайман физикалык, сезүү же акыл-эс жөндөмү начар же тажрыйбасы жана билими жок адамдар (анын ичинде балдар) үчүн, эгерде алардын коопсуздугуна жооптуу адам тарабынан көзөмөлсүз же шайманды колдонуу боюнча көрсөтмө болбосо, колдонууга арналбайт.
3. Орнотуу жана орнотуу
Бирдиктин жайгашуусу:
Place the portable air conditioner on a flat, stable surface. Ensure there is at least 20 inches of clearance around the unit for proper airflow.
Window Kit and Exhaust Hose Installation:
For optimal performance, the unit must be vented to the outside. The included window kit and exhaust hose facilitate this process.
- Attach the exhaust hose to the air outlet on the back of the unit. Twist clockwise until secure.
- Connect the other end of the exhaust hose to the window adapter.
- Adjust the window slider kit to fit your window opening.
- Insert the window adapter into the opening of the window slider kit.
- Close the window securely against the kit to seal the opening.


4. Иштөө нускамалары
The Soleus Air FEA-12HP offers multiple operating modes and features for customized comfort.
Башкаруу панели жана алыстан башкаруу:
Агрегатты аппараттын үстүндөгү башкаруу панели же камтылган пульту аркылуу башкарса болот.


Иштөө режимдери:
- Муздатуу режими: Provides 12,000 BTU of cooling capacity. Set your desired temperature using the digital thermostat.
- Жылытуу режими: Provides 10,000 BTU of heating capacity. Ideal for cooler weather.
- Кургаткыч режими: Removes up to 132 pints of moisture per day, helping to reduce humidity levels.
- Күйөрмандар үчүн гана режими: Circulates air without cooling or heating, offering 3-speed fan options (Low, Medium, High).
Кошумча өзгөчөлүктөр:
- Санариптик термостат: Температураны так көзөмөлдөөгө мүмкүндүк берет.
- 24 сааттык таймер: Program the unit to turn on or off at specific times for energy efficiency.
- Авто режим: Automatically selects the appropriate operating mode based on the ambient temperature.
- Уйку режими: Adjusts temperature automatically and saves energy overnight for comfortable sleep.
5. Техникалык тейлөө
Үзгүлтүксүз техникалык тейлөө сиздин көчмө кондиционериңиздин оптималдуу иштешин жана узак мөөнөттүү иштешин камсыз кылат.
Фильтрди тазалоо:
The unit features a washable, reusable filter. Clean the filter every two weeks or more frequently depending on usage and air quality.
- Агрегатты розеткадан сууруп алыңыз.

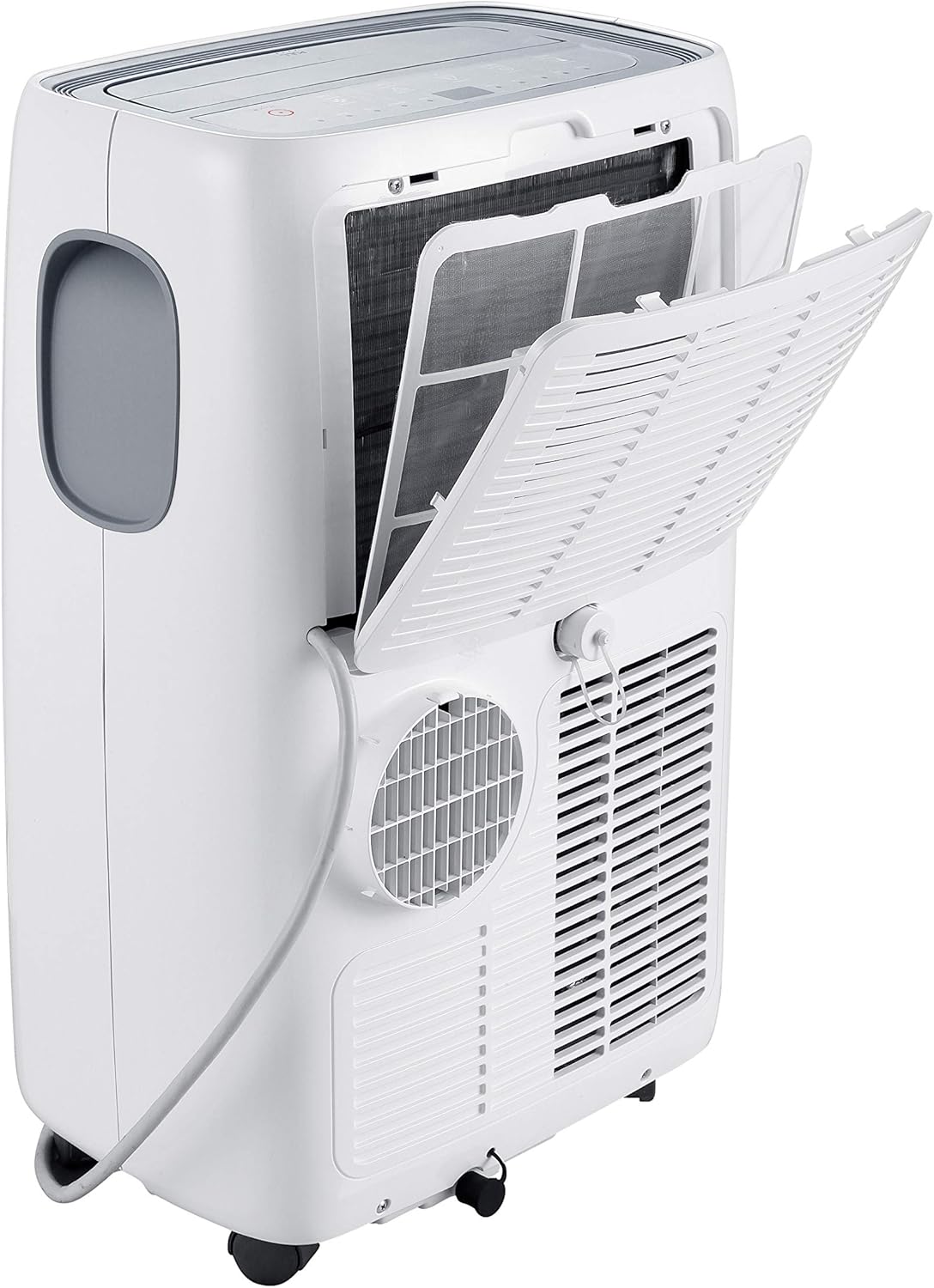

- Чыпкалоочу панелди түзмөктүн арткы бетинен табыңыз.
- Панелди ачып, фильтрди кылдаттык менен алып салыңыз.
- Чыпканы жылуу, самындуу суу менен жууңуз. жакшылап чайкоо.
- Кайра салуудан мурун чыпканы толугу менен абада кургатып алыңыз.
- Фильтрге кирүү панелин жабыңыз.

Дренаж:
In dehumidifier mode or high humidity conditions, the unit may accumulate water. Refer to the full manual for specific drainage instructions, which typically involve a drain hose connection or manual emptying of a water tank (if applicable).
Сактагыч:
When storing the unit for an extended period, ensure it is clean and dry. Drain any accumulated water. Store the unit in a cool, dry place, preferably covered to protect it from dust.
6. Кыйынчылыктарды
If you encounter issues with your portable air conditioner, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түзмөк күйбөйт | күч жок; Электр шнурунун розеткасына сайылган эмес; Автоматтык өчүргүч иштен чыкты. | электр розеткасын текшерүү; сайгыч толугу менен киргизилгенин текшериңиз; Автоматтык өчүргүчтү баштапкы абалга келтирүү. |
| Агрегат эффективдүү муздабай жатат | Аба чыпкасы кир; Чыгаруучу түтүк туура орнотулган эмес; Бөлмө өтө чоң; Эшиктер/терезелер ачык. | Clean air filter; Ensure exhaust hose is sealed; Close doors/windows; Check room size. |
| Суунун агып чыгышы | Drain plug not secure; Unit not level; Drain pan full (if applicable). | Check drain plug; Ensure unit is on a level surface; Drain water from unit. |
| Ызы-чуу операция | бирдиги деңгээл эмес; желдеткичте тоскоолдук. | Ensure unit is on a level surface; Check for obstructions and remove if safe. |
Бул чечимдерди колдонуу аракетинен кийин көйгөй чечилбесе, кардарларды колдоо кызматына кайрылыңыз.
7. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд аты | Soleus Air |
| Модел маалыматы | FEA-12HP |
| Муздатуу күчү | 12,000 BTU |
| Жылытуу күчү | 10,000 BTU |
| нымдуулуктун күч жөндөмдүүлүгү | Күнүнө 132 pint |
| Полдун аянты | 450 чарчы футка чейин |
| Элемент Салмагы | 65 фунт |
| Продукциянын өлчөмдөрү (D x W x Y) | 14.56 x 17.61 x 28.15 дюйм |
| Ызы-чуу деңгээли | 53 дБ |
| Тtage | 115 вольт |
| Ватtage | 1250 ватт |
| Муздаткыч | R 410A |
| Чыпка түрү | Washable, reusable filter |
| Түс | Ак |
| Камтылган компоненттер | Exhaust Hose, Window Kit & Adapter, Remote Control |
8. Кепилдик жана колдоо
Soleus Air products are manufactured to the highest quality standards. For information regarding your product's warranty, please refer to the warranty card included with your purchase or visit the official Soleus Air webсайт.
For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Soleus Air customer service. Contact information can typically be found on the manufacturer's webсайтында же продуктунун таңгагында.
