Humanscale M10 Adjustable Monitor Arm User Manual

Introduction

The Humanscale M10 Adjustable Monitor Arm is designed to enhance the comfort, health, and productivity of any workspace. This heavy-duty monitor arm can support up to three monitors or 48 pounds, offering a simple and sleek design. It features patented Weight-Compensating Spring Technology and Smart Stop functionality for personalized and flexible monitor positioning. The M10 promotes better working posture, maximizes desktop space, and helps maintain a clutter-free environment.

Орнотуу жана орнотуу

The M10 monitor arm is designed for quick and simple installation. It comes packaged in three main parts: two links and the mount. These components snap together for a secure and robust fit, making installation possible in less than one minute.

Негизги орнотуу өзгөчөлүктөрү:

• Quick Release Joints: Patent-pending Quick Release joints allow components to instantly snap together for a secure and robust fit, simplifying installation. Only one tool is required, and it's neatly concealed inside the arm base.
• Built-In Counterbalance Indicator: This feature allows the installer to counterbalance the monitor weight мурун attaching the monitor, reducing setup time and effort.

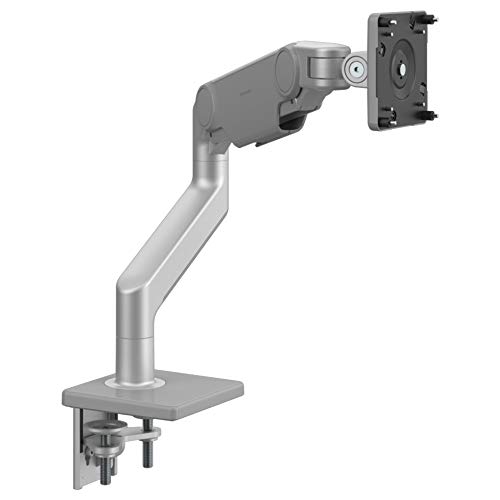

This image shows the Humanscale M10 Adjustable Heavy Duty Monitor Arm with its two-piece clamp mount, ready for installation. The arm is silver-grey and features angled/dynamic links.

Иштөө нускамалары

The Humanscale M10 monitor arm allows for effortless adjustment of your monitor to achieve an optimal ergonomic position.

Монитордун абалын тууралоо:

• Retract and Extend: Easily move the monitor closer or further away from you.
• Айлануучу: Rotate the monitor horizontally to share your screen with others or adjust your viewбурч.
• Айлантуу: Change the monitor's orientation from landscape to portrait mode.
• Reposition Up or Down: Adjust the monitor's height to fit your body and task requirements.

Эргономикалык Viewing Guidelines:

Оптималдуу үчүн viewing comfort and to minimize strain, position your monitor at arm's length away. The top line of text on your screen should be at or slightly below eye level. Tilt the top of the monitor slightly away from you until your line of sight is perpendicular to the monitor surface.

A properly positioned monitor helps prevent neck and shoulder strain, eye fatigue, and headaches, contributing to a safer and more comfortable viewтажрыйбасы.

This video demonstrates the various adjustments and ergonomic benefits of Humanscale monitor arms, including retraction, swivel, rotation, and height adjustment, highlighting how they contribute to a comfortable and productive workspace.

Өзгөчөлүктөрү

• Шайкештик: Fully compatible with both traditional desks and sit/stand workstations.
• Оор жүктөрдү колдоо: A strong triple crossbar allows the M10 to hold up to three monitors or 48 pounds while maintaining a simple and sleek design.
• Патенттелген технология: Features Humanscale’s patented Weight-Compensating Spring Technology and Smart Stop functionality for precise and flexible positioning.
• Personalization & Flexibility: Enables personalization and flexibility required for modern workplaces.
• Тез орнотуу: Offers quick, simple installation with patent-pending Quick Release joints that snap together for a secure fit.
• Built-In Counterbalance Indicator: Allows pre-installation counterbalance adjustment without the monitor.
• Self-Lubricating Bearings: Precision bearings ensure ease and longevity of use.
• Rubber Cable Management: Provides effective cable organization for a clutter-free aesthetic.
• Экологиялык таза дизайн: 100% free of harmful Red List chemicals, designed for longevity.
• Smart Stop: Allows users to stop each joint anywhere along its rotation to prevent monitor or arm overhang on desk edges.
• Заманбап эстетика: Sleek, modern design complements any contemporary workstation.

This image displays a diagram illustrating key features of the Humanscale M10 monitor arm, including Smart Stop, Counterbalance Indicator, Easy Install Cable Management, and Quick Release Joints.

Техникалык шарттар

This image displays a specification sheet for the Humanscale M10 monitor arm, detailing its features, weight capacity, height adjustment, color options, and warranty.

Техникалык тейлөө

To ensure the longevity and optimal performance of your Humanscale M10 Monitor Arm, regular light cleaning is recommended.

• жумшак колдонуу, damp беттерин сүртүү үчүн чүпүрөк.
• Абразивдүү тазалоочу каражаттардан же эриткичтерден алыс болуңуз, анткени алар бетке зыян келтириши мүмкүн.
• Коопсуздугун камсыз кылуу үчүн бардык байланыштарды мезгил-мезгили менен текшериңиз.

The self-lubricating precision bearings are designed for long-term, maintenance-free operation.

Проблемаларды чечүү

If you encounter any issues with your Humanscale M10 Monitor Arm, consider the following:

• Monitor Stability: cl камсыз кылууamp mount is securely fastened to your desk and the monitor is correctly attached to the VESA plate.
• Жөнгө салуудагы кыйынчылык: Verify that the counterbalance is correctly set for your monitor's weight. The built-in counterbalance indicator can assist with this.
• Кабелдик башкаруу: Ensure cables are routed properly through the rubber cable management system to prevent snagging or interference with arm movement.

Көбүрөөк жардам алуу үчүн, колдоо бөлүмүнө кайрылыңыз.

Кепилдик

The Humanscale M10 Monitor Arm comes with an industry-leading 10-year, 24/7 warranty, reflecting its durable construction and commitment to quality. This warranty covers defects in materials and workmanship under normal use.

Колдоо

For product inquiries, technical support, or warranty claims, please visit the official Humanscale webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз.

Сиз да зыярат кылсаңыз болот Humanscale Store on Amazon кошумча ресурстар үчүн.
