JSAUX USB Type Cден 3.5 ммге чейинки аялдар үчүн кулакчын уячасынын адаптери үчүн колдонмо

1. Продукт бүтүп калдыview

The JSAUX USB Type C to 3.5mm Female Headphone Jack Adapter is designed to connect your USB-C enabled devices, which lack a dedicated 3.5mm audio jack, to traditional audio devices such as headphones, headsets, and speakers. This compact dongle facilitates audio output and supports various functions like call management, volume control, and pause/play via headphone function keys.

Image: The JSAUX USB Type C to 3.5mm Female Headphone Jack Adapter.

2. Негизги өзгөчөлүктөрү

• Multi-function Dongle: Connects USB-C devices without an audio jack to headphones, headsets, and speakers. Supports call, volume control, and pause/play functions via headphone keys.
• Smart DAC Chip: Features a built-in Smart DAC chip for low power consumption, stable decoding performance, and support for up to 16Bit/48Khz audio sampling rate. Converts digital audio to analog while preserving original sound quality. Compatible with CTIA 3.5mm female ports.
• Stable Signal & Durable Material: Designed for durability with relief strain design, capable of withstanding over 15,000 bending tests. Shielded enamel wire ensures stable signal transmission, and metal-coated connectors provide better contact for lossless audio.

Сүрөт: деталдуу view of the adapter highlighting the Smart DAC Chip for high-resolution audio.

3. Орнотуу жана орнотуу

1. Identify the USB-C port on your device (e.g., smartphone, tablet, laptop).
2. Plug the USB-C male connector of the JSAUX adapter into your device's USB-C port.
3. Connect your 3.5mm headphones, headset, or speakers into the 3.5mm female jack of the JSAUX adapter.
4. Your device should automatically recognize the adapter and route audio through it. No additional drivers or software are typically required.

Image: Demonstrates connecting the adapter to a laptop and headphones for audio output.

4. Иштөө нускамалары

Once connected, the JSAUX adapter allows you to use your 3.5mm audio devices with your USB-C device. Standard functions of your connected headphones/headset, such as volume control, play/pause, and call answering/ending, should operate as usual, provided the headphones support these features.

• Аудио ойнотуу: Play music or other audio content from your device.
• Чалууларды башкаруу: Answer or end calls using the inline controls on your headphones (if available).
• Үндү көзөмөлдөө: Adjust audio volume using the inline controls on your headphones (if available).

Маанилүү эскертүүлөр:

• Microphone functionality and volume adjustment for Apple EarPods Headphones with a 3.5mm plug are not supported.
• The 3.5mm female port is compatible with CTIA standards. It is not compatible with OMTP, TS, and TRS microphone-only devices.

Image: User enjoying audio with the JSAUX adapter connected to a smartphone and headphones.

5. Шайкештик

The JSAUX USB C headphone adapter is compatible with a wide range of Type-C devices. Below is a list of commonly supported devices:

• Apple: iPhone 17, iPhone 17 Air, iPhone 17 Pro, iPhone 17 Pro Max, iPhone 16, 16 Plus, 16 Pro, 16 Pro Max, iPhone 15, 15 Plus, 15 Pro, 15 Pro Max, iPad Pro, iPad mini 6, MacBook.
• Samsung Galaxy: S24/S24+/S24 Ultra, S23 S23+ S23 Ultra, S22 S22+ S22 Ultra, S21 S21+ S21 Ultra, S20 Ultra S20 Z Flip S20+ S10 S9 S8 Plus, Note 20 10 10+ 9 8.
• Google Pixel: 9, 8, 7, 6.
• Huawei: Mate 60 50 40 30 20 10 and Pro, P60 P50 P40 P30 P20 and Pro.
• OnePlus: 6T, 7, 7Pro.
• And many other devices with a USB-C port.

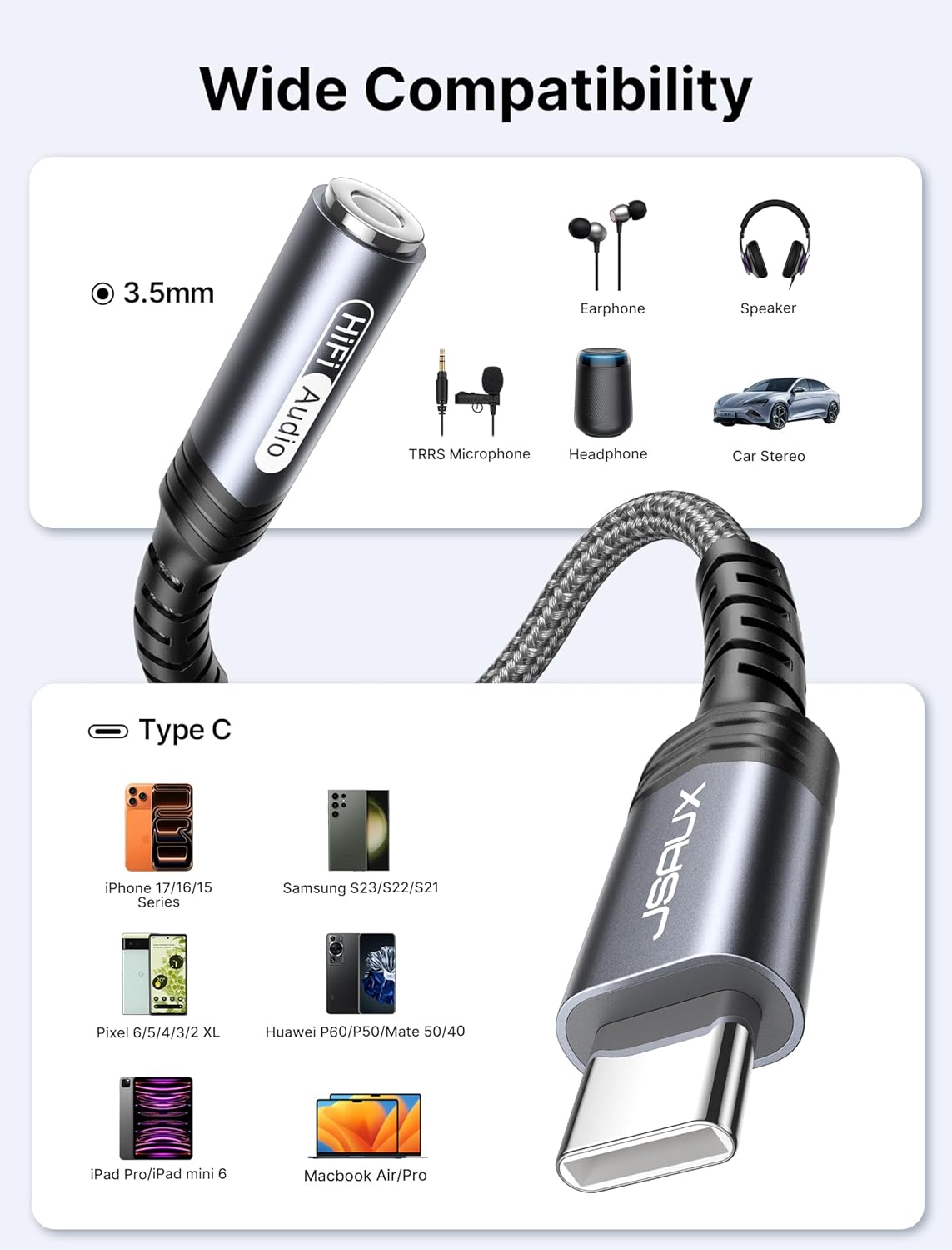

Image: Visual representation of the adapter's broad compatibility with different USB-C devices and 3.5mm audio peripherals.

6. Кыйынчылыктарды

• Аудио чыгышы жок: Ensure both the USB-C connector and the 3.5mm audio jack are fully inserted into their respective ports. Check your device's audio settings to confirm the output is directed to the adapter.
• Microphone or Volume Control Not Working:
  • Microphone functionality and volume adjustment for Apple EarPods Headphones with a 3.5mm plug are not supported by this adapter.
  • The 3.5mm female port is compatible with CTIA. It is not compatible with OMTP, TS, and TRS microphone-only devices. Ensure your headphones/headset use the CTIA standard for full functionality.
• Phone Calls Not Supported: If your USB-C device already includes a built-in 3.5mm audio jack (e.g., some older Samsung Galaxy models like S9/S8/S10, Note 9/Note 8, and certain iPad Pro 2018 models), this adapter may not support phone calls or music control. This is due to the device's internal audio routing.

7. Техникалык шарттар

8. Кепилдик жана колдоо

For warranty information, technical support, or any inquiries regarding your JSAUX USB Type C to 3.5mm Female Headphone Jack Adapter, please refer to the official JSAUX website or contact their customer service directly. Contact details are typically available on the product packaging or the manufacturer's official support pages.
