Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your VOLT 150W Clamp Connect Low Voltage Transformer with Digital Timer. Please read this manual thoroughly before installation and retain it for future reference.
Сүрөт: алдыңкы view of the VOLT 150W Clamp Connect Low Voltage Transformer in its closed, stainless steel housing.
Маанилүү коопсуздук маалыматы
- Бул жабдууну орнотуудан же тейлөөдөн мурун электр энергиясын өчүрүңүз.
- Do not exceed the maximum primary current of 5 Amps.
- This unit is equipped with a thermal protector. If a circuit overloads or short circuits, the thermal protector will automatically shut off power. Reset by pushing the circuit breaker.
- Ичинде же сыртта колдонуу үчүн ылайыктуу.
- Ар дайым жергиликтүү электр эрежелерин жана эрежелерин сактаңыз.
- Туура жерге туташтырууну камсыз кылуу.
Продукт өзгөчөлүктөрү
- Clamp-Type Terminal Blocks: Tool-free wire insertion and clamping for secure connections. Supports up to 10-gauge wire.
- High Performance Toroidal Core: Ensures reliable, efficient, cooler, and quieter operation.
- Designed for LED Systems: Features 12V for short runs and 15V for longer runs or multiple fixtures.
- Professional Grade Construction: ETL listed, stainless steel enclosure with lockable hinged lid, and spacious wire compartment.
- Astronomic Digital Timer: Automatically determines dusk/dawn times based on geographical location, eliminating manual adjustments. Features a large, easy-to-read LCD display.
Image: The transformer with its front cover open, revealing the internal wiring, terminal blocks, timer receptacle, and photocell plug.
Орнотуу жана орнотуу
- Монтаждоо: Securely mount the transformer to a wall or suitable vertical surface using appropriate hardware. Ensure it is in a location that allows for proper ventilation and access.
- Кубат туташуу: Plug the transformer into a standard 120V AC outlet.
- Wiring Landscape Lights:
- Strip approximately 1/2 inch of insulation from the ends of your landscape lighting wires.
- cl ачыңызamp-type terminal blocks by pressing down on the lever.
- Insert the stripped wire fully into the desired common (COM1 or COM2) and voltage tap (12V or 15V) terminals.
- Release the lever to secure the wire. Ensure all connections are tight.
- Timer/Photocell Setup:
- The unit includes a timer receptacle and a photocell plug. The digital timer (included) can be plugged into the timer receptacle.
- If using an external photocell (sold separately), remove the jumper from the photocell plug and insert the photocell.
Сүрөт: деталдуу view clamp-type terminal blocks, showing wires inserted into the COM, 12V, and 15V terminals.
Видео: Бул видеодо толук маалымат берилетview of the VOLT Clamp-Connect Low Voltage Transformers, demonstrating key features and the easy connection process using clamp-type terminals.
Operating Instructions: Digital Timer
The included Astronomic Digital Timer simplifies the control of your landscape lighting.

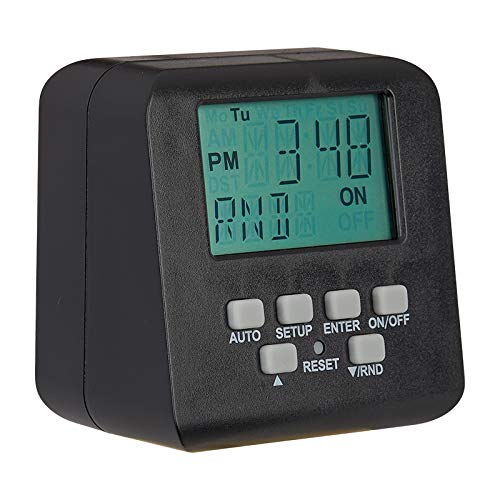

Image: The Astronomic Digital Timer, showing its LCD display and various control buttons for setup and operation.
Таймерди орнотуу
- Баштапкы орнотуу: Follow the timer's specific instructions to set the current time, date, and your geographical location. This allows the timer to accurately calculate local dusk and dawn times.
- Programming On/Off Cycles: Program the desired ON and OFF times for your lighting. The astronomic feature will adjust these times daily based on the changing dusk/dawn schedule.
- Кол менен жокко чыгаруу: Most digital timers include a manual override function to temporarily turn lights on or off outside of programmed schedules.
Refer to the separate instruction sheet provided with the digital timer for detailed programming steps.
Техникалык тейлөө
- Үзгүлтүксүз текшерүү: Periodically inspect the transformer and wiring for any signs of damage, corrosion, or loose connections.
- Тазалоо: Keep the transformer enclosure clean and free of debris. Use a soft, dry cloth for cleaning. Do not use abrasive cleaners or solvents.
- Вентиляция: Ensure that the transformer's ventilation openings are not obstructed to prevent overheating.
- Ажыраткыч: If the circuit breaker trips, disconnect some lights or check for short circuits before resetting.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жарыктар күйбөйт | No power to transformer | Электр розеткасын жана өчүргүчтү текшериңиз. |
| Жарыктар күйбөйт | Туура эмес зым байланыш | Inspect all wire connections at the terminal blocks. Ensure wires are fully inserted and clampред. |
| Жарыктар күйбөйт | Digital timer not programmed correctly | Review timer instructions and reprogram. |
| Жарыктар бүлбүлдөп же күңүрт | Тtage drop due to long wire runs or too many fixtures | Use the 15V tap for longer runs or reduce the number of fixtures. Ensure appropriate wire gauge is used. |
| Автоматтык өчүргүчтөр | Ашыкча жүк же кыска туташуу | Disconnect some lights. Inspect wiring for shorts. Reset the circuit breaker. |
Техникалык шарттар
- Модел: 150 Вт
- Киргизүү көлөмүtage: 120V AC
- Output Voltage: 12V AC, 15V AC
- Макс Ватtage: 150 Вт
- Өлчөмдөрү (H x W x D): 13.19" x 6.00" x 5.41"
- Салмагы: 15.01 фунт
- Коргоо материалы: Дат баспаган болот
- Сертификаттар: ETL тизмеленген
- Кубат булагы: Электр зымдары
- Монтаж түрү: Дубалга орнотуу

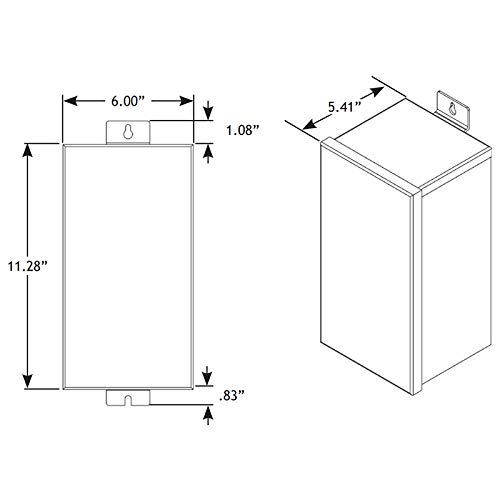

Image: Technical drawing illustrating the height, width, and depth dimensions of the transformer.
Кепилдик жана колдоо
This VOLT transformer is backed by a lifetime warranty. For technical assistance, troubleshooting, or warranty claims, please contact VOLT Lighting customer support.
Visit the official VOLT Lighting webбайланыш маалыматы жана кошумча ресурстар үчүн сайт.
