Introduction
This manual provides essential information for the safe and effective operation of your Best Choice Products Air Compression Shiatsu Neck Back Massager. Please read this manual thoroughly before first use and retain it for future reference.
Маанилүү коопсуздук маалыматы
Do not use while sleeping or taking a bath. Keep away from water. Do not use if you have a medical condition that could be affected by heat or massage. Unplug and allow to cool before storing. Do not use if cord is damaged. Always follow standard electrical safety precautions.
Пакеттин мазмуну
- Massage Chair Pad
- Алыстан башкаруу
- Кубаттуу адаптер
- Алынуучу капкактар
Жайгашуу
The massager is designed for use on various seating surfaces such as chairs, sofas, and recliners. No assembly is required.
- Place the massage chair pad on a stable and comfortable chair or sofa. Ensure the pad is securely positioned.
- Utilize the integrated mounting straps on the back of the massager to secure it to your chair, preventing slippage during use.
- Connect the power adapter to the massager's power input, then plug the adapter into a standard electrical outlet.
- Ensure the remote control is easily accessible. The massager includes a remote holder for convenient storage.
Image: The massager can be easily placed on various chairs for comfortable use.
Image: The lightweight design allows for versatile use in various settings, including sofas, office chairs, dining chairs, and recliners.
Иштөө нускамалары
Familiarize yourself with the remote control to utilize the various massage functions.
Image: Key features of the massager, including the remote control and its holder.
Алыстан башкарууview
The remote control allows you to customize your massage experience. Refer to the remote's layout for specific button functions.
- Кубат баскычы: Turns the massager On/Off.
- Авто режим: Activates a pre-programmed massage sequence.
- Моюн массажы: Controls the neck massage nodes. Adjustable up to 2.75 inches. Use arrow buttons to raise or lower.
- 2D/3D Massage: Toggles between 2D (inward/outward) and 3D (deep-kneading, mimicking finger pressure) massage modes for the back.
- Rolling Massage: Activates a gentle rolling motion along the back and spine.
- Так массаж: Allows you to target specific areas for focused massage.
- Жылуулук функциясы: Turns on/off the infrared heat for the back and neck shiatsu balls.
- Аба компрессиясы: Controls the inflation of air bags for waist and thigh massage.
- Дирилдөө: Activates the vibrating seat function.
Massage Modes and Functions
- Unique 2D/3D Massage: Oscillating nodes provide massage to the neck, back, and lower body. Select "2D" for an inward and outward motion or "3D" to mimic finger pressure and a deep-kneading massage. This function works in conjunction with the vibrating seat to help release tension.
Image: Visual representation of 2D, 3D, and Rolling massage movements, and the heat function.
- Жылуулук функциясы: Shiatsu balls in the backrest and neck utilize infrared heat to relax muscles, improve blood circulation, and enhance the massage experience.
- Rolling and Spot Massage: The rolling massage setting gently glides along the back and spine to alleviate muscle pain. Precision spot massage uses fine-tuned pressure and oscillating rollers to relieve pain in your neck, back, lower back, and hips.
- Аба компрессиялык массаж: A series of air bags inflate and deflate to relax your waist and thigh muscles, gently positioning you for optimal stress relief.
- Adjustable Neck Massage: The neck massage nodes can be freely raised and lowered to fit your comfort. Use the arrow buttons next to the neck function on the remote control; press and hold until the desired height is reached.
Техникалык тейлөө
- Тазалоо: Unplug the massager before cleaning. Use a soft, damp cloth to wipe down the surface. Do not use abrasive cleaners or immerse the unit in water. The removable covers can be washed according to their care instructions.
- Сактагыч: When not in use, store the massager in a cool, dry place. Avoid placing heavy objects on top of the massager.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Массажер күйбөйт. | Кубат шнуру бекем сайылган эмес. Розеткадан кубат жок. | Ensure power cord is fully inserted. Test outlet with another device. |
| Массаж алсыз же ыраатсыз сезилет. | Incorrect mode selected. Overheating protection activated. | Check remote settings. Allow unit to cool down for 30 minutes before restarting. |
| Жылуулук функциясы иштебейт. | Жылытуу функциясы иштетилген эмес. | Press the heat button on the remote control. Allow a few minutes for heat to build. |
Техникалык шарттар
- Жалпы өлчөмдөрү: 24.5"(узундугу) x 19.25"(туурасы) x 32.25"(бийиктиги)
- Neck Massager (From Seat): 24"(H)
- Орундуктун өлчөмдөрү: 20.75"(L) x 16.25"(W)
- Арткы өлчөмдөрү: 24.5"(узундугу) x 4.5"(туурасы) x 31"(бийиктиги)
- Электр шнурунун өлчөмдөрү: 120"(L)
- Алыскы Өлчөмдөр: 6.5"(L) x 2.5"(W)
- Remote Cord Dimensions: 32.5"(L)
- Салмагы: 17.4 фунт.
- Материал: Polyurethane, Polyester
- Модель номери: SKY5467
- Кубат булагы: Электр зымдары
- Өндүрүүчү: Мыкты тандоо продуктылары
- Биринчи жеткиликтүү: 4-октябрь, 2019-жыл

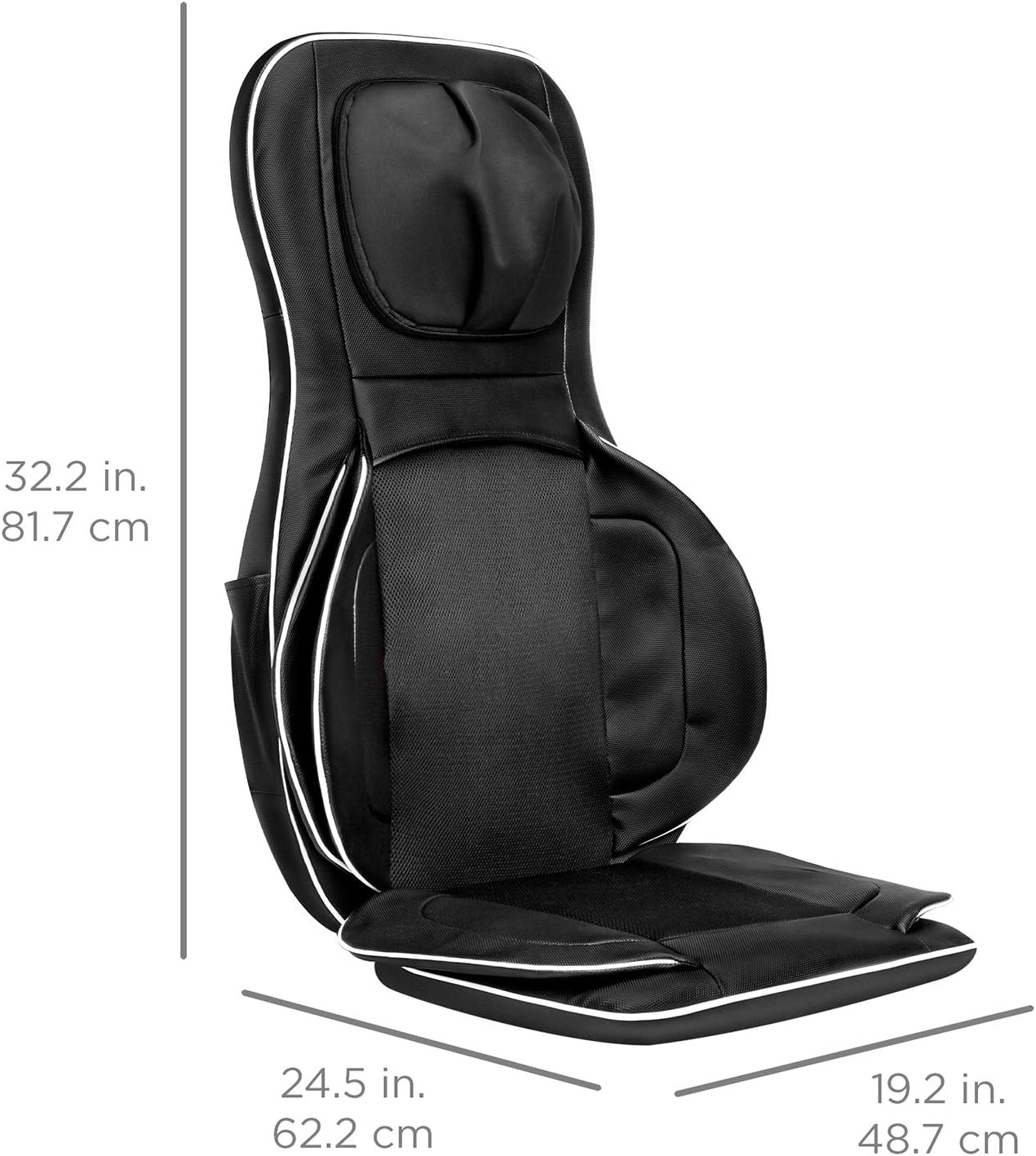

Image: Detailed dimensions of the massager for reference.
Кепилдик жана колдоо
For any questions, concerns, or warranty information, please contact Best Choice Products customer support. Refer to the official product page or included documentation for contact details.
Колдонуу боюнча расмий көрсөтмөнүн (IFU) PDF документин жүктөп алууга болот: Колдонуучунун колдонмосун жүктөп алыңыз (PDF).
