Продукт бүттүview
The Anjou 500ml Cool Mist Humidifier is designed to diffuse essential oils, creating a pleasant aromatic environment while also humidifying the air. It features a wood grain finish and offers various settings for mist output and LED lighting.
- Patented Oil Flow: Proprietary Onefill technology allows for up to 12 hours of continuous aromatherapy. Add 1.5ml (30-40 drops) of essential oil for 15 hours of scent in low mode or 10 hours in high mode.
- Ультра-тынч иштөө: Utilizes silent ultrasonic diffusion, operating below 30dB, ensuring it does not disturb sleep or daily activities.
- Автоматтык өчүрүү: For safety, the diffuser automatically powers off within 5 seconds when the water tank is empty. It also includes 3 convenient auto-off timer settings: 1 hour, 4 hours, and 8 hours.
- Adjustable Mist: Users can select their preferred mist output level to effectively disperse scents and alleviate dry air.
- 7 Color LED Light: Features a customizable LED light with 7 changing colors to enhance the ambiance.
Сүрөт 1: Алдыңкы view of the Anjou Essential Oil Diffuser, showcasing its wood grain design and control panel.
Пакеттин мазмуну
Кутучаны ачканда, бардык компоненттердин бар экендигин текшериңиз:
- 1 x Anjou Essential Oil Diffuser (Model: AJ-AD012)
- 1 х AC чыңалуу
- 1 x Folded Measuring Cup
- 1 x Колдонуучунун колдонмосу
Note: The collapsible measuring cup may be located in the bottom of the packaging.
Setup and Filling Instructions
Follow these steps to set up your Anjou Essential Oil Diffuser:
- Пакеттен чыгаруу жана тазалоо: Carefully remove the aromatherapy diffuser from its packaging. Before first use, gently wipe the diffuser with a damp кездеме.
- Капкакты алып салуу: Lift the top cover of the diffuser to access the water tank.
- Суу кошуу: Using the provided measuring cup, fill the water tank with clean tap water up to the maximum fill line. Do not overfill. For optimal performance and longevity, distilled water is recommended to prevent mineral buildup.
Figure 2: Illustration of filling the diffuser with water and essential oil.
- Эфир майын кошуу: Add 1.5ml or approximately 30-40 drops of your preferred essential oil directly into the water in the tank. Adjust the amount based on desired scent intensity.

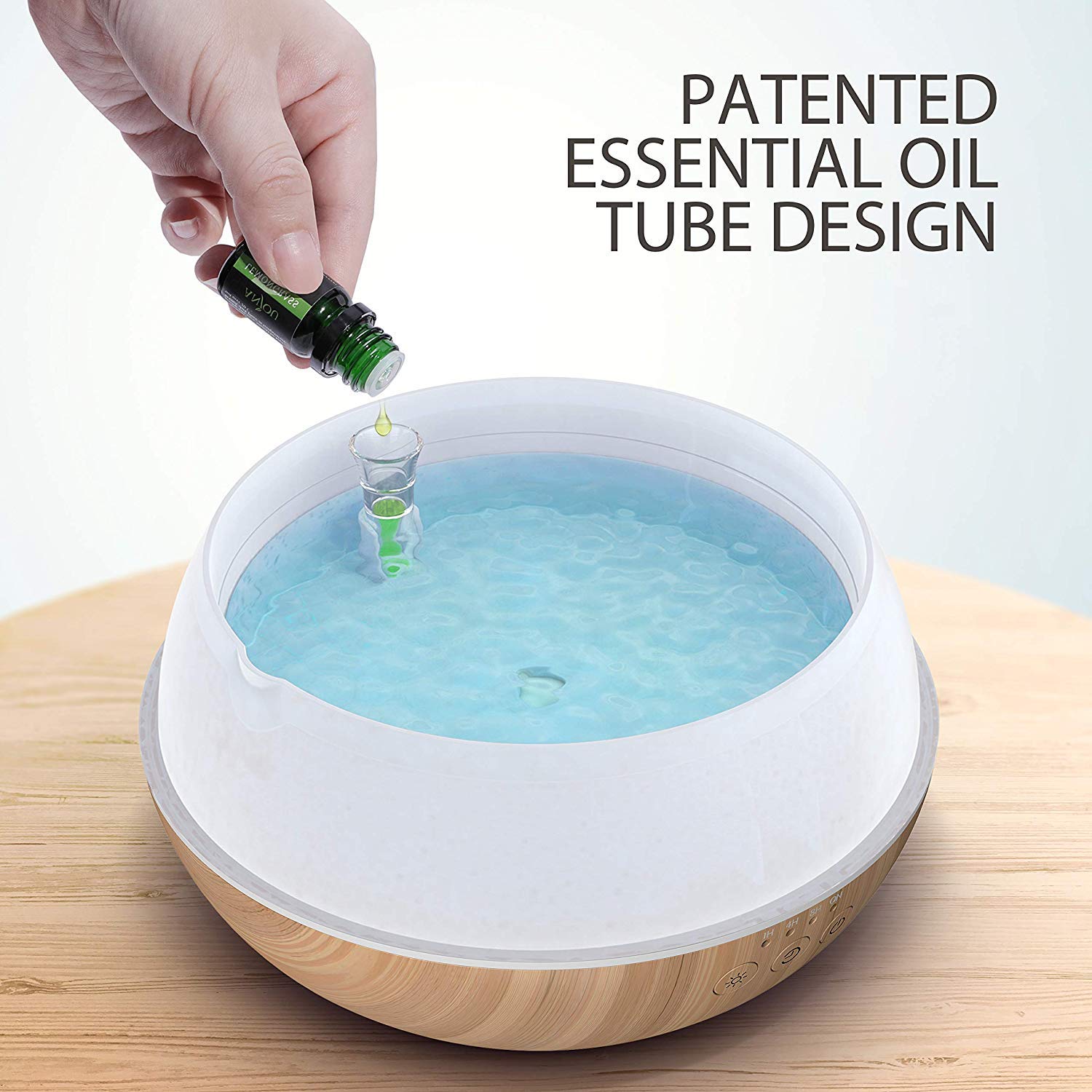

Figure 3: A hand adding essential oil into the diffuser's water reservoir.
- Капкакты алмаштыруу: Securely place the lid back onto the diffuser, ensuring it is properly aligned.
- Туташуу кубаты: Plug the AC power cord into the diffuser's power input, then plug the adapter into a standard electrical outlet.
Иштөө нускамалары
Once set up, operate your diffuser using the control buttons on the front:
- Power On/Off and Timer Settings:
басыңыз Power/Timer button (
) to turn on the diffuser. Each press cycles through the timer settings:- First press: 1 Hour (1H)
- Second press: 4 Hours (4H)
- Third press: 8 Hours (8H)
- Fourth press: Continuous (ON)
- Fifth press: Turn Off
The diffuser will automatically shut off when the selected timer is reached or when the water tank is empty.
- Mist Mode Adjustment:
басыңыз Туман баскычы (
) to switch between high and low mist output modes. The default is high mist.
Figure 4: The diffuser operating quietly, emitting mist, suitable for use during sleep.
- LED жарык башкаруу:
басыңыз Жарык баскычы (
) to cycle through the 7 color changing LED lights. Press again to fix on a specific color, or press and hold to turn off the light function.
Техникалык тейлөө жана кам көрүү
Regular maintenance ensures the longevity and optimal performance of your diffuser:
- Күнүмдүк тазалоо: After each use, especially if changing essential oils, empty any remaining water from the tank. Wipe the inside of the tank with a clean, damp кездеме.
- Апталык терең тазалоо:
- Unplug the diffuser and remove the lid.
- Add about 100ml of clean water and 1 tablespoon of white vinegar to the water tank.
- Let it sit for 15-20 minutes to loosen any mineral buildup or oil residue.
- Carefully drain the water from the side opposite the air outlet.
- Wipe the inside of the tank and the ultrasonic disc with a soft cloth or cotton swab. Avoid harsh scrubbing.
- Rinse the tank with clean water and dry thoroughly before next use.
- Сактагыч: If not in use for an extended period, clean the diffuser thoroughly, ensure it is completely dry, and store it in a cool, dry place.
- Маанилүү эскертүүлөр:
- Диффузорду тазалоодон же кайра толтуруудан мурун ар дайым розеткадан сууруп алыңыз.
- Do not immerse the base of the diffuser in water.
- Use only 100% pure essential oils. Avoid corrosive chemicals or synthetic fragrances.
- Ensure the diffuser is placed on a stable, flat surface away from direct sunlight or heat sources.
Проблемаларды чечүү
If you encounter issues with your Anjou Essential Oil Diffuser, please refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Диффузор күйбөйт. | No power connection; power adapter faulty; unit malfunction. | Ensure the power cord is securely plugged into both the diffuser and the wall outlet. Try a different outlet. If the issue persists, contact customer support. |
| Туман жок же алсыз туман чыгарат. | Insufficient water; water level too high; water tank or ultrasonic disc dirty; air outlet blocked. | Check water level and refill if necessary (do not exceed MAX line). Clean the water tank and ultrasonic disc as per maintenance instructions. Ensure the mist outlet is clear. |
| Unpleasant odor from diffuser. | Residue from old essential oils; dirty water tank. | Perform a deep clean of the water tank and ultrasonic disc using white vinegar. Ensure to rinse thoroughly. Use fresh, clean water for each use. |
| Diffuser leaks water. | Lid not properly secured; overfilled water tank; diffuser placed on an uneven surface. | Ensure the lid is correctly aligned and securely placed. Do not exceed the maximum water fill line. Place the diffuser on a flat, stable surface. |
| LED жарыгы иштебейт. | Light function turned off; internal malfunction. | Press the Light button to cycle through colors or turn it on. If the issue persists, contact customer support. |
Техникалык шарттар
| Модел | AJ-AD012 |
| Киргизүү | 100-240V ~ 50 / 60 Hz |
| Чыгуу | 24.0В --- 0.50А |
| Күч | 10 Вт ± 20% |
| Таймер орнотуулары | 1 Hour, 4 Hours, 8 Hours |
| LED жарык | 7 түс өзгөрөт |
| Туман режими | Жогорку, төмөн |
| Материал | Жыгач (жасалгалоо) |
| Өлчөмдөр | 10.2 x 7.5 x 7.4 дюйм |
| Салмагы | 2.1 фунт |
This product is 100% BPA Free, ensuring safety for all users, including children.
Figure 5: The Anjou diffuser is designed to be 100% BPA-free, making it safe for use around children.
Кепилдик жана колдоо
The Anjou Essential Oil Diffuser (Model: AJ-AD012) is covered under a бир жылдык кепилдик сатып алынган күндөн тартып. Бул кепилдик өндүрүш кемчиликтерин жана нормалдуу колдонуудан келип чыккан маселелерди камтыйт.
For warranty claims, technical support, or any inquiries regarding your product, please contact Anjou customer support. Refer to the contact information provided in the original product packaging or on the official Anjou webсайт.
Please have your model number (AJ-AD012) and proof of purchase ready when contacting support.
Коопсуздук маалыматы
Коопсуз эксплуатацияны камсыз кылуу жана зыян келтирбөө үчүн төмөнкү коопсуздук эрежелерин сактаңыз:
- Do not place the diffuser on carpets or unstable surfaces.
- Keep out of reach of children and pets when in operation.
- Туман чыгуучу жерди жаап албаңыз.
- Do not move the diffuser while it is operating or contains water.
- Use only the original power adapter provided with the unit.
- If the diffuser emits unusual sounds, smells, or smoke, unplug it immediately and discontinue use.
- Avoid direct contact with the ultrasonic vibrating plate.
