1. Продукт бүтүп калдыview
The JBL Professional AM7215/66 is a high-power, lightweight, 2-way, full-range loudspeaker system. It features a JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 inch) low-frequency driver and a 2432H high-frequency 38 mm (1.5 inch) exit, 75 mm (3 inch) voice-coil compression driver.
A large format Progressive Transition waveguide ensures excellent coverage and can be rotated to allow the loudspeaker system to be used in either vertical or horizontal orientation. High-slope passive networks are integrated to minimize band overlap, and a well-controlled off-axis response enhances arrayability for various sound reinforcement applications.
Негизги өзгөчөлүктөрү
- 2265H Differential Drive Low-Frequency Driver for powerful bass response.
- 2432H High-Frequency Compression Driver for clear and precise highs.
- Large PT Progressive Transition waveguide for superior pattern control and low distortion.
- Rotatable waveguide for flexible vertical or horizontal orientation.
- Available in Black or White (AM7215/66) to suit various aesthetic requirements.
2. Продукциянын өлчөмдөрү

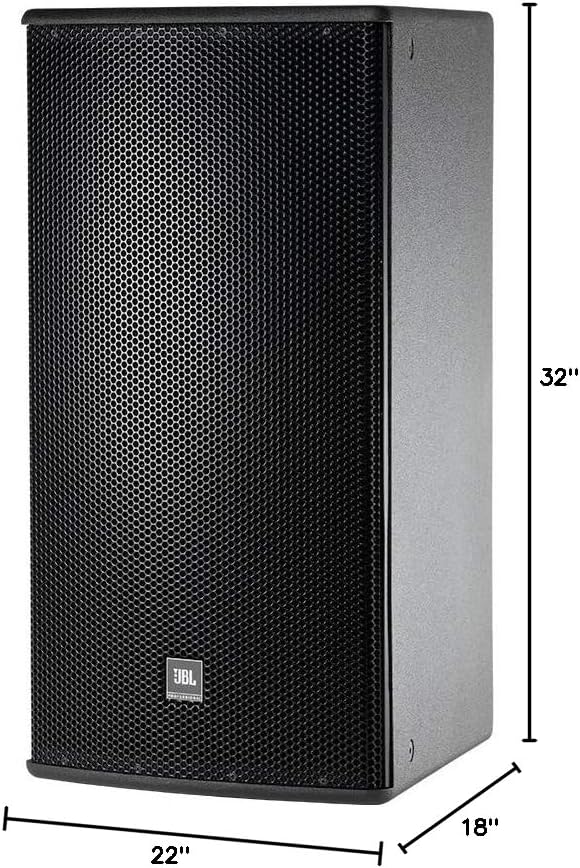

The following image illustrates the physical dimensions of the JBL Professional AM7215/66 loudspeaker.
The loudspeaker measures approximately 32 inches in height, 22 inches in depth, and 18 inches in width. These dimensions are crucial for planning installation and placement.
3. Орнотуу жана орнотуу
Пакеттен чыгаруу
Carefully remove the loudspeaker from its packaging. Inspect the unit for any signs of damage that may have occurred during transit. Retain the original packaging for future transport or storage.
Монтаждоо маселелери
The AM7215/66 is designed for various installation methods, including magnetic mounting. Ensure that any mounting hardware used is rated to safely support the loudspeaker's weight (67 pounds). The rotatable waveguide allows for optimal sound dispersion whether the speaker is mounted vertically or horizontally. Consult a professional installer for complex installations or when mounting overhead.
Зымдарды туташтыруу
Connect the loudspeaker to a suitable power amplifier using high-quality speaker cables. Ensure correct polarity (+ to + and - to -) to maintain proper phase alignment. Refer to your amplifier's manual for specific connection instructions. This is a passive loudspeaker, requiring an external ampөмүрлүү.
4. Операция
Күйгүзүү/өчүрүү
Since the AM7215/66 is a passive loudspeaker, it does not have a direct power switch. Power is supplied by the connected amplifier. Always power on your amplifier after connecting the loudspeaker and power off the amplifier before disconnecting.
Аудио сигналды туташтыруу
Connect your audio source (e.g., mixer, audio interface) to your power amplifier's input. The amplifier's output should then be connected to the AM7215/66 loudspeaker. Adjust volume levels gradually to prevent sudden loud noises or damage to the system.
5. Техникалык тейлөө
Тазалоо
To clean the loudspeaker, use a soft, dry cloth. For stubborn dirt, a slightly damp cloth with mild soap can be used, followed by a dry cloth. Avoid using harsh chemicals, solvents, or abrasive cleaners, as these can damage the finish or components.
Сактагыч
When not in use for extended periods, store the loudspeaker in a cool, dry environment, away from direct sunlight and extreme temperatures. If possible, use the original packaging for added protection.
6. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Үн жок | Туура эмес зымдар; Amplifier off; Source issue; Damaged cable. | Check all cable connections and polarity. Ensure amplifier is powered on and functioning. Verify audio source output. Test with a different cable. |
| Distorted Sound | Overdriven amplifier; Input signal too high; Damaged driver. | Кыскартуу amplifier volume or input gain. Check source signal level. If distortion persists at low volumes, contact support. |
| Үзгүлтүктүү үн | Loose connection; Faulty cable. | Secure all connections. Replace speaker cables if suspected faulty. |
7. Техникалык шарттар
| Спецификация | Деталь |
|---|---|
| Модель аты | AM7215/66 |
| Динамик түрү | Monitor, 2-Way, Full-Range |
| Төмөн жыштыктагы айдоочу | 15-Inch (380 mm) 2265H Differential Drive |
| Жогорку жыштыктагы айдоочу | 1.5-Inch (38 mm) exit, 3-Inch (75 mm) voice-coil 2432H Compression Driver |
| Waveguide | Large PT Progressive Transition, Rotatable |
| Жабуу үлгүсү | 60° x 60° |
| Динамик өлчөмү | 15 дюйм |
| Түс | Кара |
| Продукциянын өлчөмдөрү (D x W x Y) | 22" x 18" x 32" |
| Элемент Салмагы | 67 фунт |
| Power Source | Corded Electric (via external ampөмүрлүү) |
| Динамиктин максималдуу чыгаруу күчү | 2400 Ватт (чоку) |
| Аудио чыгаруу режими | Stereo (when used in pairs) |
| Монтаж түрү | Magnetic Mount (compatible) |
| UPC | 691991011498 |
8. Кепилдик маалыматы
The JBL Professional AM7215/66 loudspeaker comes with a limited warranty. Please refer to the official JBL Professional warranty documentation included with your product for specific terms, conditions, and duration of coverage. Keep your proof of purchase for warranty claims.
9. Колдоо
For technical assistance, service, or further information regarding your JBL Professional AM7215/66 loudspeaker, please visit the official JBL Professional website or contact their customer support department. Contact details can typically be found on the manufacturer's webсайтында же продуктунун таңгагында.
